PCIe TO 2-CH SATA HAT+ For Raspberry Pi 5

Need Support? Click Here

Free Delivery Above ₹999

Best seller

Waveshare

PCIe TO 2-CH SATA HAT+ For Raspberry Pi 5

SKU: WVSH0534

₹ 2,099.99

Available in 2-4 weeks

Chat with us on WhatsApp We reply quickly! Contact Us

PCIe TO 2-CH SATA HAT+ For Raspberry Pi 5₹ 2,099.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

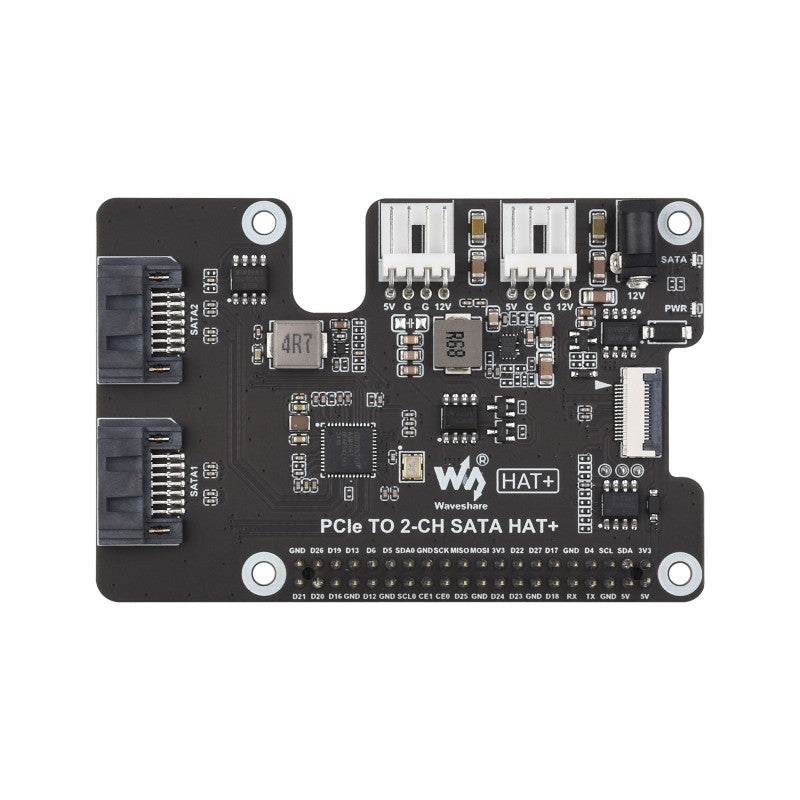

PCIe TO 2-CH SATA HAT+

Designed For Raspberry Pi 5, driver-free, plug and play

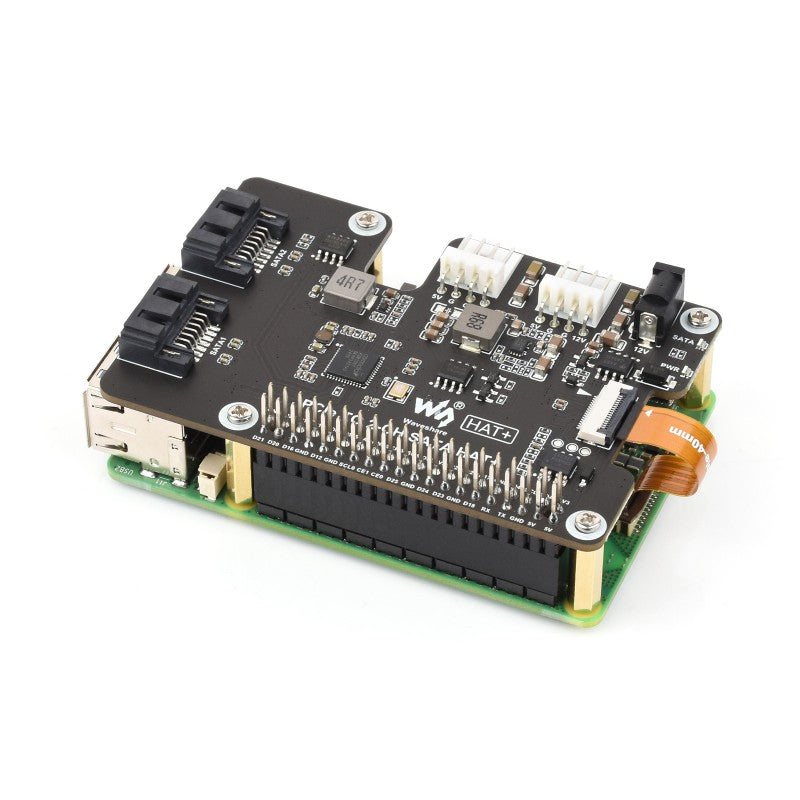

Connecting to Pi 5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5

* for reference only, the Raspberry Pi 5 is not included

SATA Hard Drive Protocol

Dual-channel SATA interfaces, compliant with SATA Gen3 standard

PCIe to 2-ch High-Speed SATA 3.0

Compliant with SATA 3.0 (SATA Gen3) and PCIe Gen2 standards

* for reference only, please refer to the Package Content for the detailed part list.

SATA Drive Slot Support

* Only supports SATA protocol hard drives.

Onboard Dual LED Indicators

Easy to monitor the Working Status

Onboard EEPROM

For saving HAT ID and product information

Outline Dimensions

Resources

Wiki: www.waveshare.com/wiki/PCIe_TO_2-CH_SATA_HAT+

Package Content

Weight: 0.036 kg

PCIe TO 2-CH SATA HAT+ × 1
SATA Adapter Cable × 2
16PIN PCIe cable × 1
Screws pack × 1

Is this PCIe to SATA HAT compatible with Raspberry Pi 5 and other boards?

It is designed for the Raspberry Pi 5 PCIe interface via the 16PIN connector. Compatibility with other boards is not specified.

Does it require any drivers or software installation?

No, it is driver free and plug and play.

What type of drives can be connected and what interfaces are supported?

The device provides two SATA Gen3 channels and only supports SATA protocol drives.

What is included in the package and how do I install it on the Raspberry Pi 5?

Package includes the PCIe to 2-CH SATA HAT+, SATA adapter cable, 16PIN PCIe cable and screws. Connect to the Pi 5 via the 16PIN PCIe interface and use the EEPROM for HAT ID.

How can I monitor the status of the two SATA channels?

The HAT features onboard dual LED indicators to show the working status.
