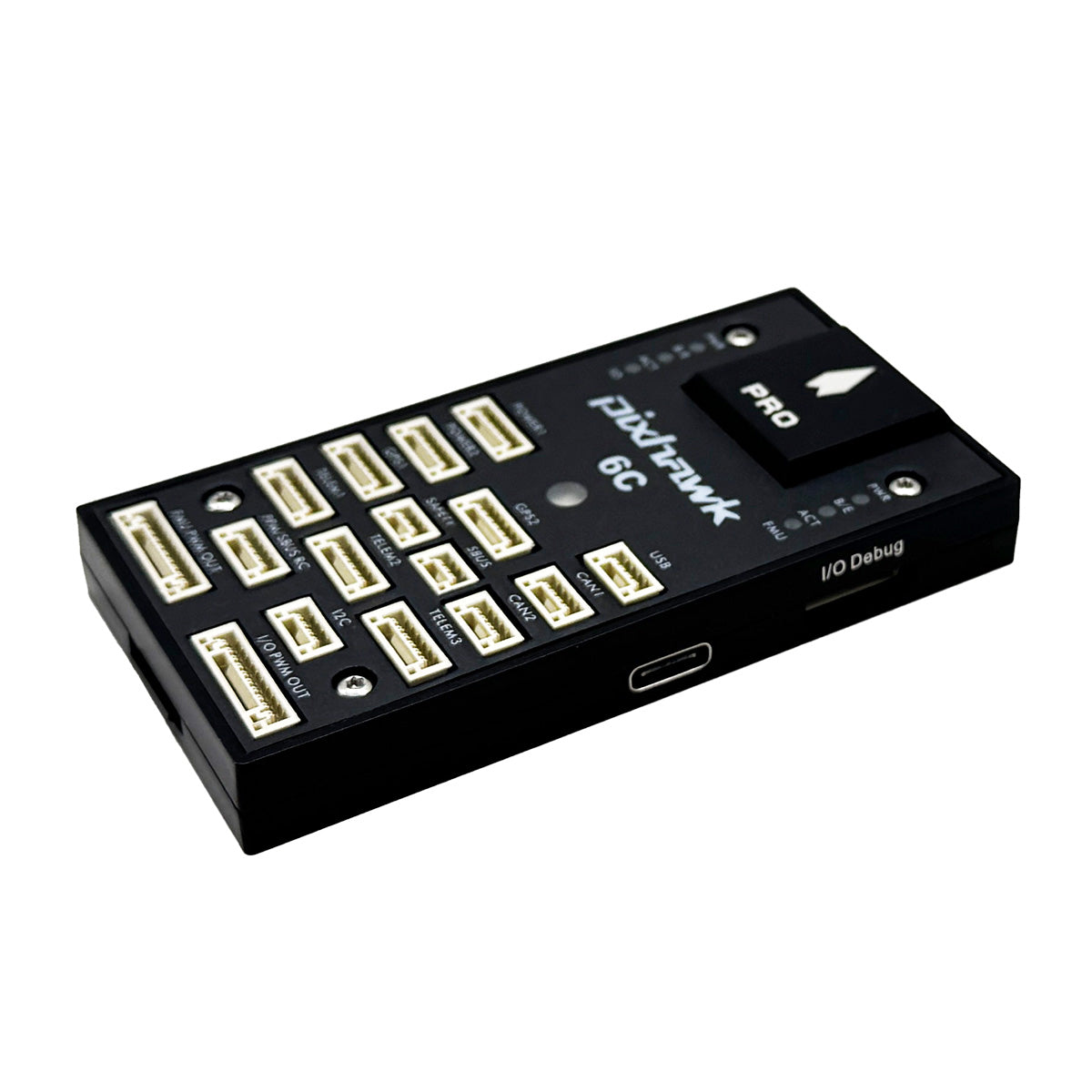

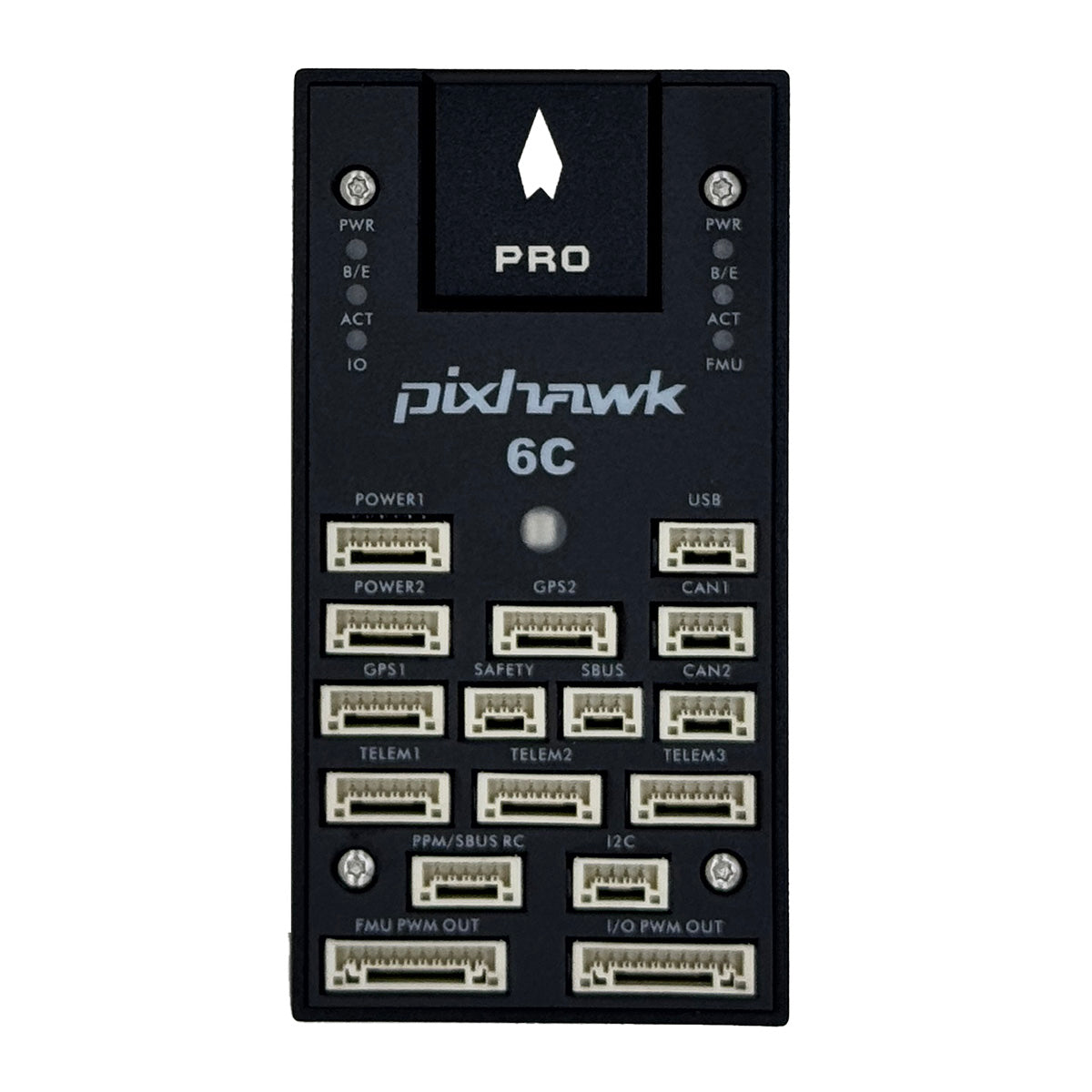

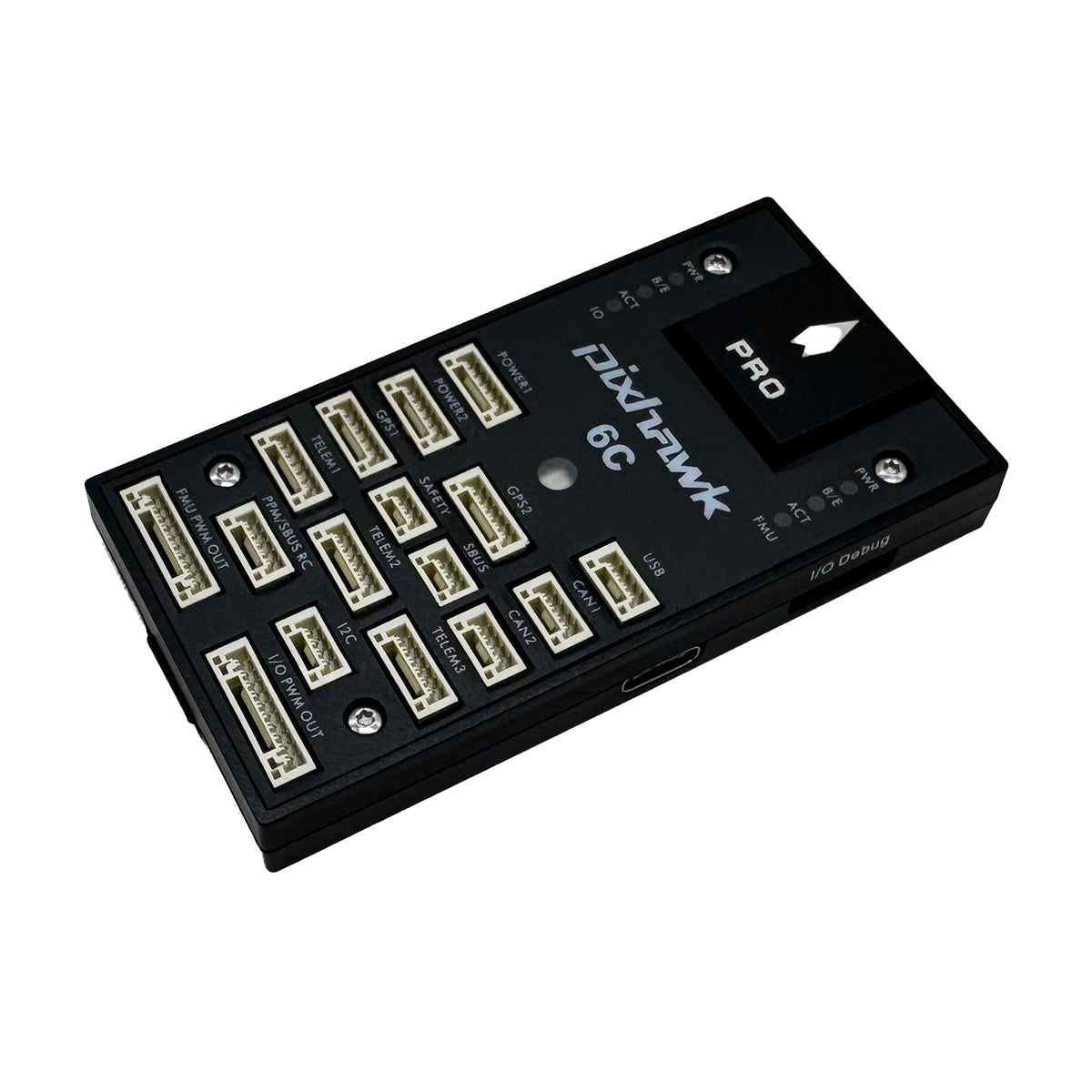

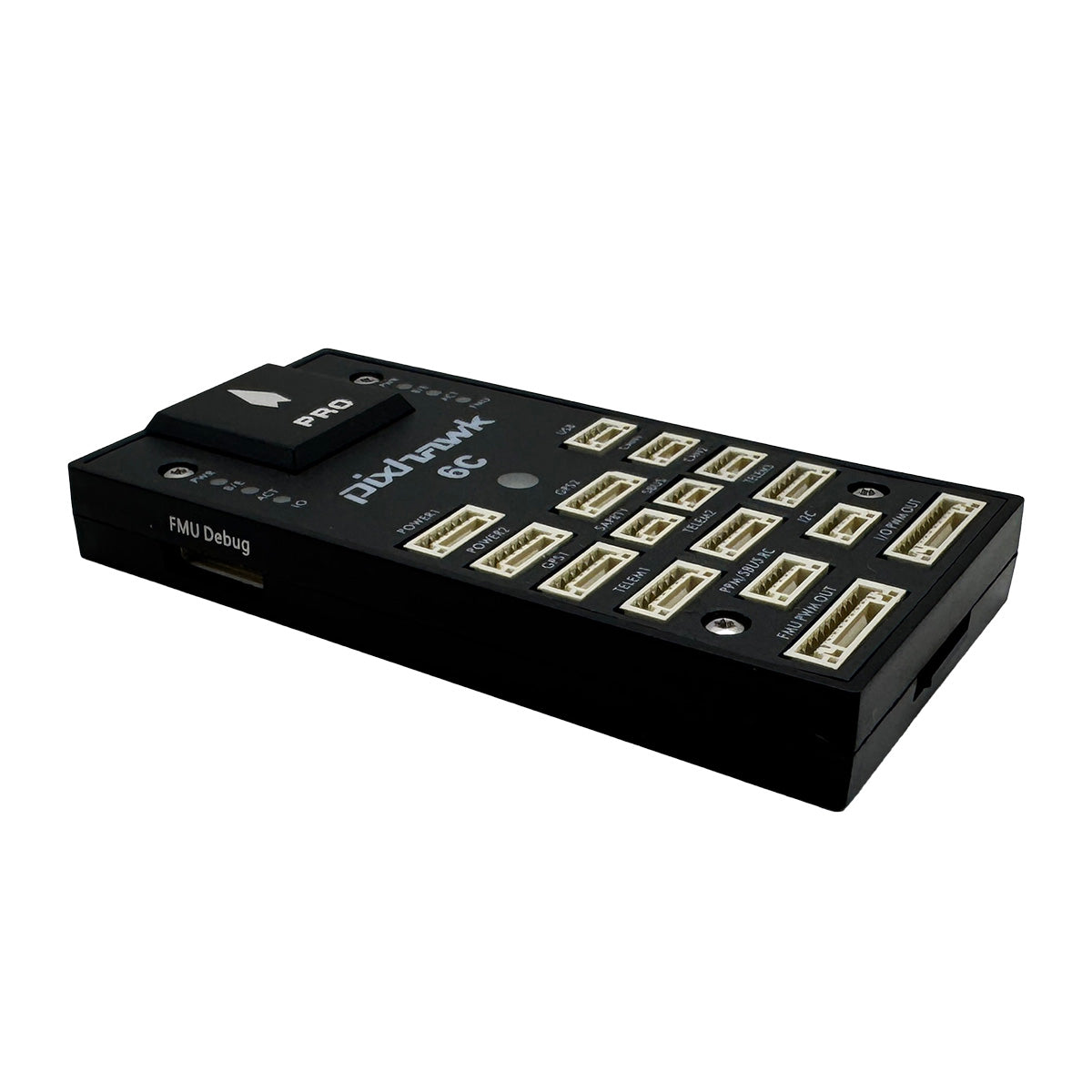

The Pixhawk® 6C PRO is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6C Open Standard and Connector Standard. It comes with PX4 Autopilot® pre-installed. STMicroelectronics® based STM32H743, paired with sensor technology from Bosch® & InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.
The Pixhawk® 6C PRO's H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.
The Pixhawk 6C PRO includes high-performance, low-noise IMUs on board, designed to be cost effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances.
The Pixhawk® 6C PRO is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.
Key Specifications
- High performance STM32H743 Processor with more computing power & RAM
- Build-in Buzzer,Build-in RGB LED,support Independent external Safety Button, with Plastic Case
- New cost-effective design with low-profile form factor
- Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings
- IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs
Technical Specification
-
Processors & Sensors
- FMU Processor: STM32H743 - 32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM
-
IO Processor: STM32F103 - 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
- On-board sensors
- Accel/Gyro: ICM-42688-P
- Accel/Gyro: BMI055
- Mag: IST8310
- Barometer: MS5611
-
Electrical data
-
Voltage Ratings:
- Max input voltage: 6V
- USB Power Input: 4.75~5.25V
- Servo Rail Input: 0~36V
-
Current Ratings:
- TELEM1 Max output current limiter: 1.5A
- All other port combined output current limiter: 1.5A
-
Voltage Ratings:
-
Mechanical data
- Dimensions: 85 x 45 x 10 mm
- Weight (Plastic Case) : 33g

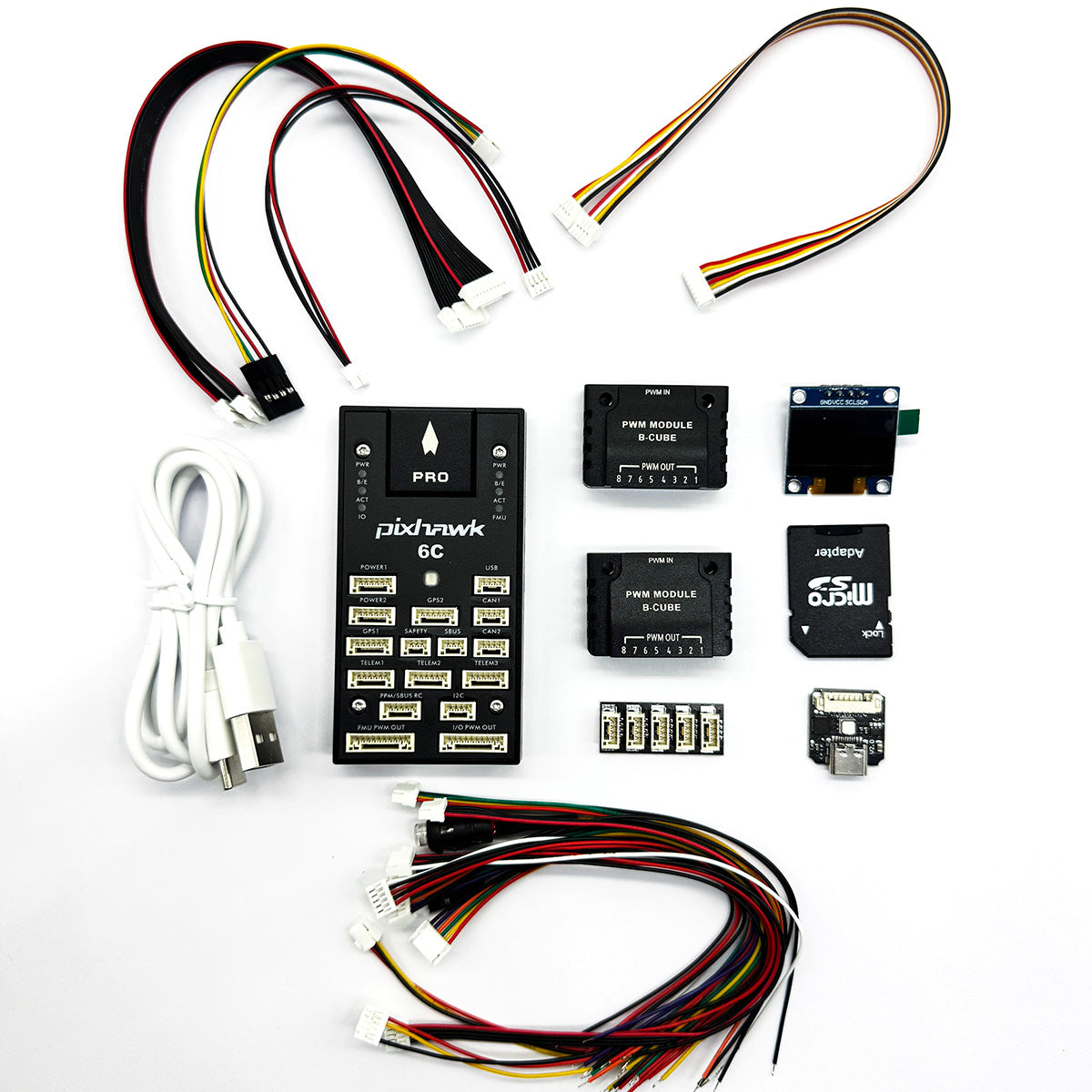

Pixhawk Kit - High Collocation Package includes:
- 1x Pixhawk 6C Pro
- 2x PWM Module
- 1 x SD to MicroSD Card Adaptor
- 1x I2C splitter expansion module and 1x I2C Line
- 1x PPM/SBUS Line
- 1x RGB LED Module

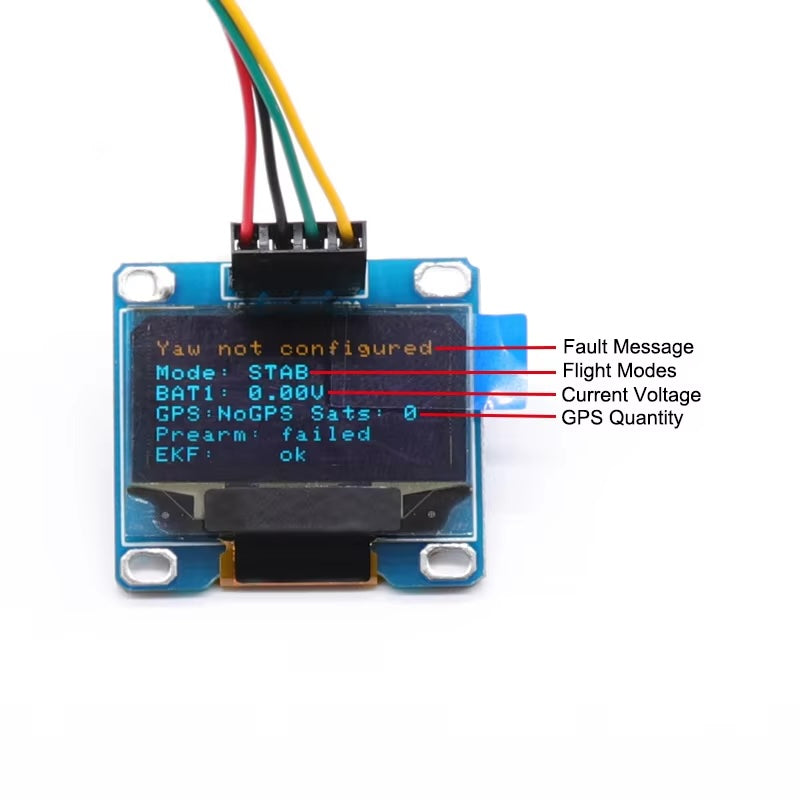

- 1x 0.96" OLED Display Module
- 1x Safety Button

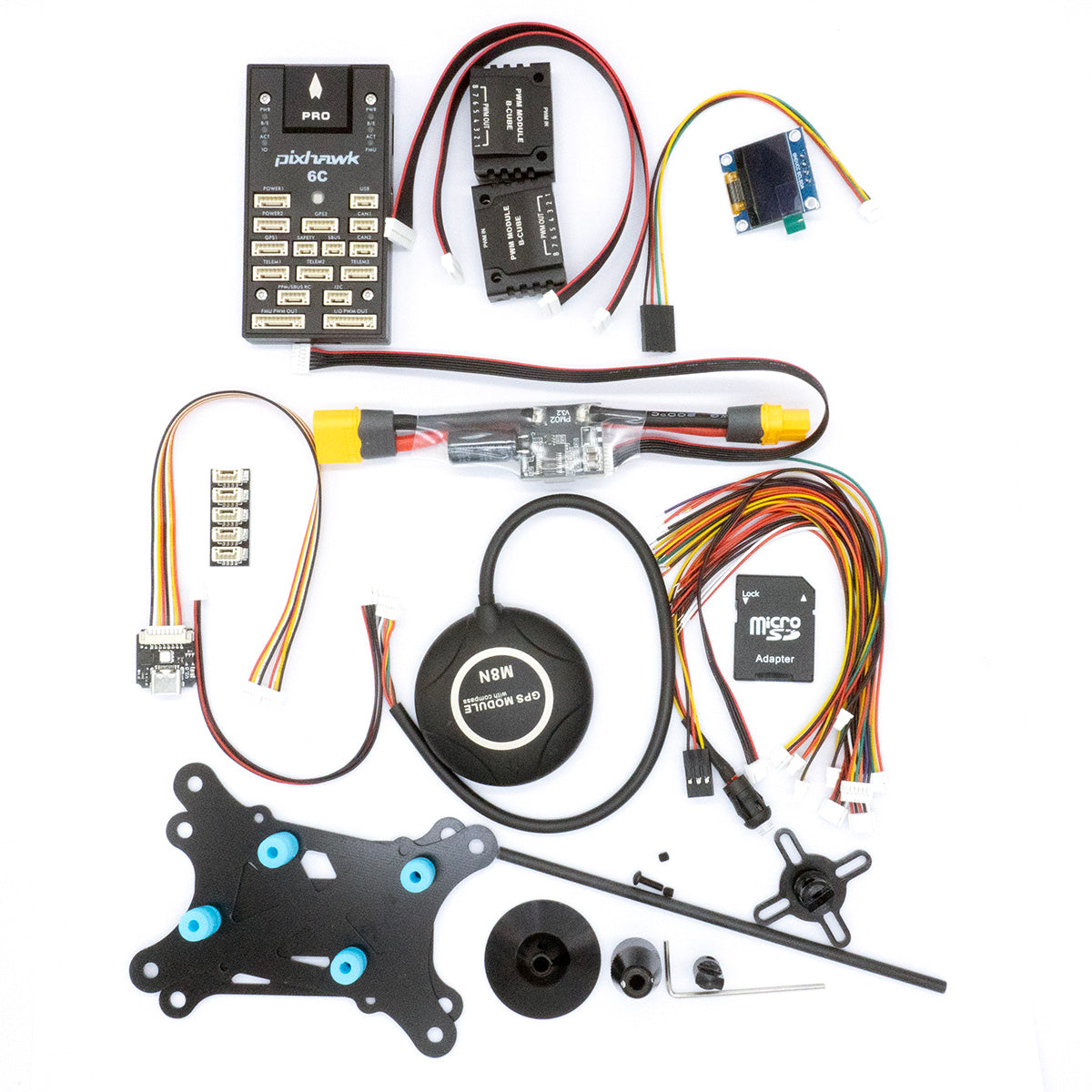

Pixhawk Kit - GPS & Power Package includes:
- 1x Pixhawk 6C Pro
- 2x PWM Module
- 1 x SD to MicroSD Card Adaptor
- 1x I2C splitter expansion module and 1x I2C Line
- 1x PPM/SBUS Line
- 1x RGB LED Module
- 1x 0.96" OLED Display Module
- 1x Safety Button

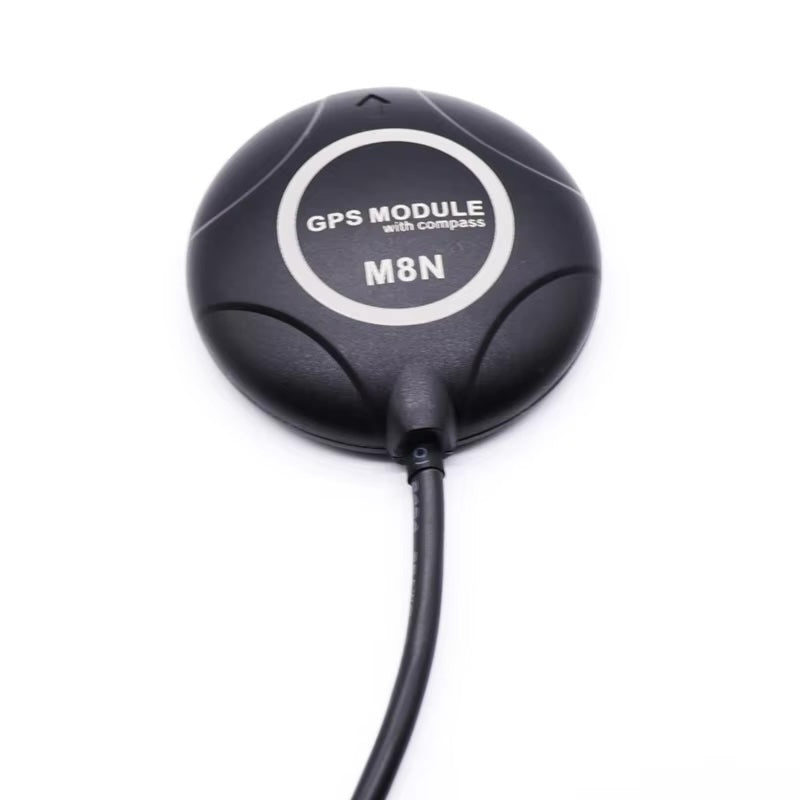

- 1x M8N GPS Module with Stand
- 1x Shock Absorber

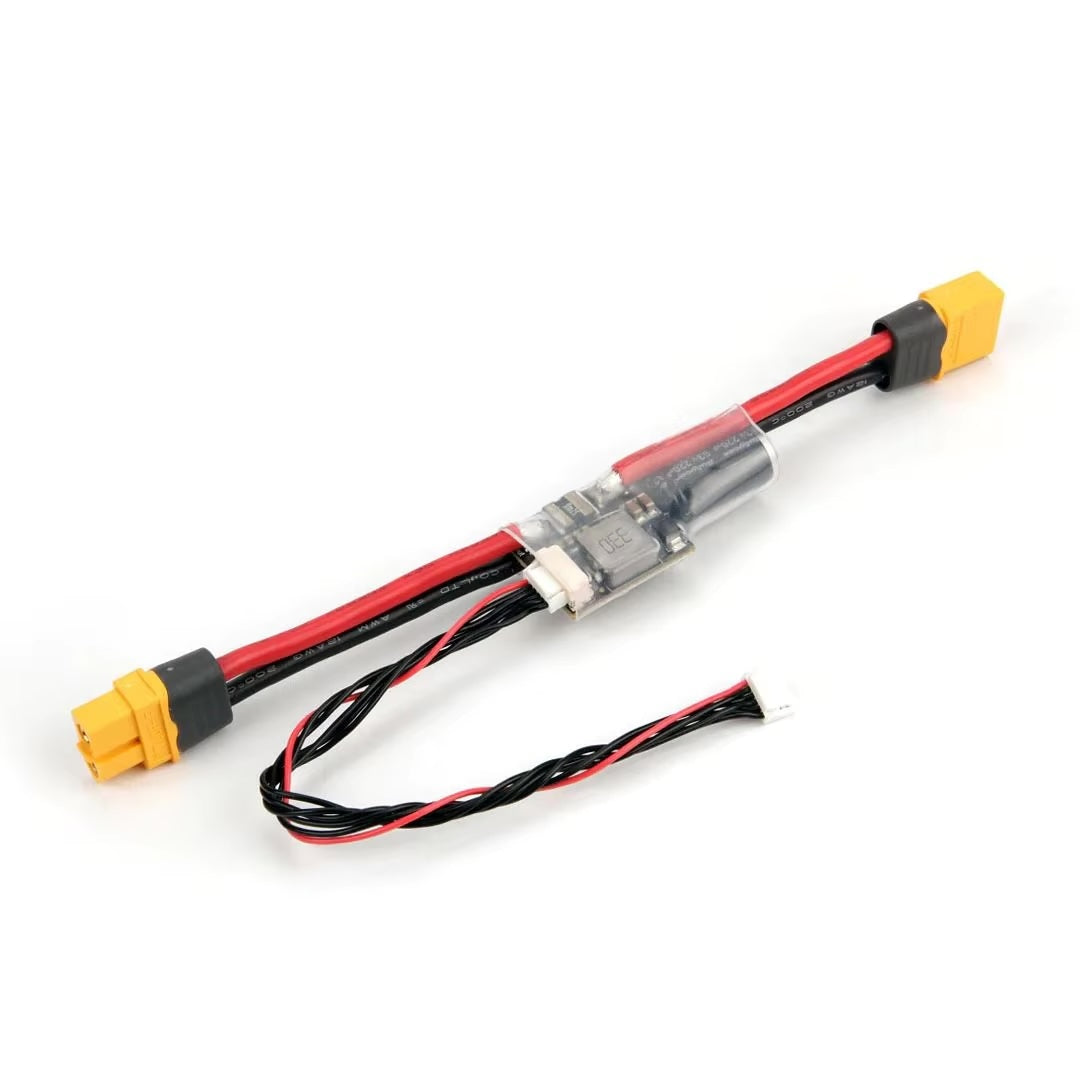

- 1x PM02 Power Module (supports 12S)

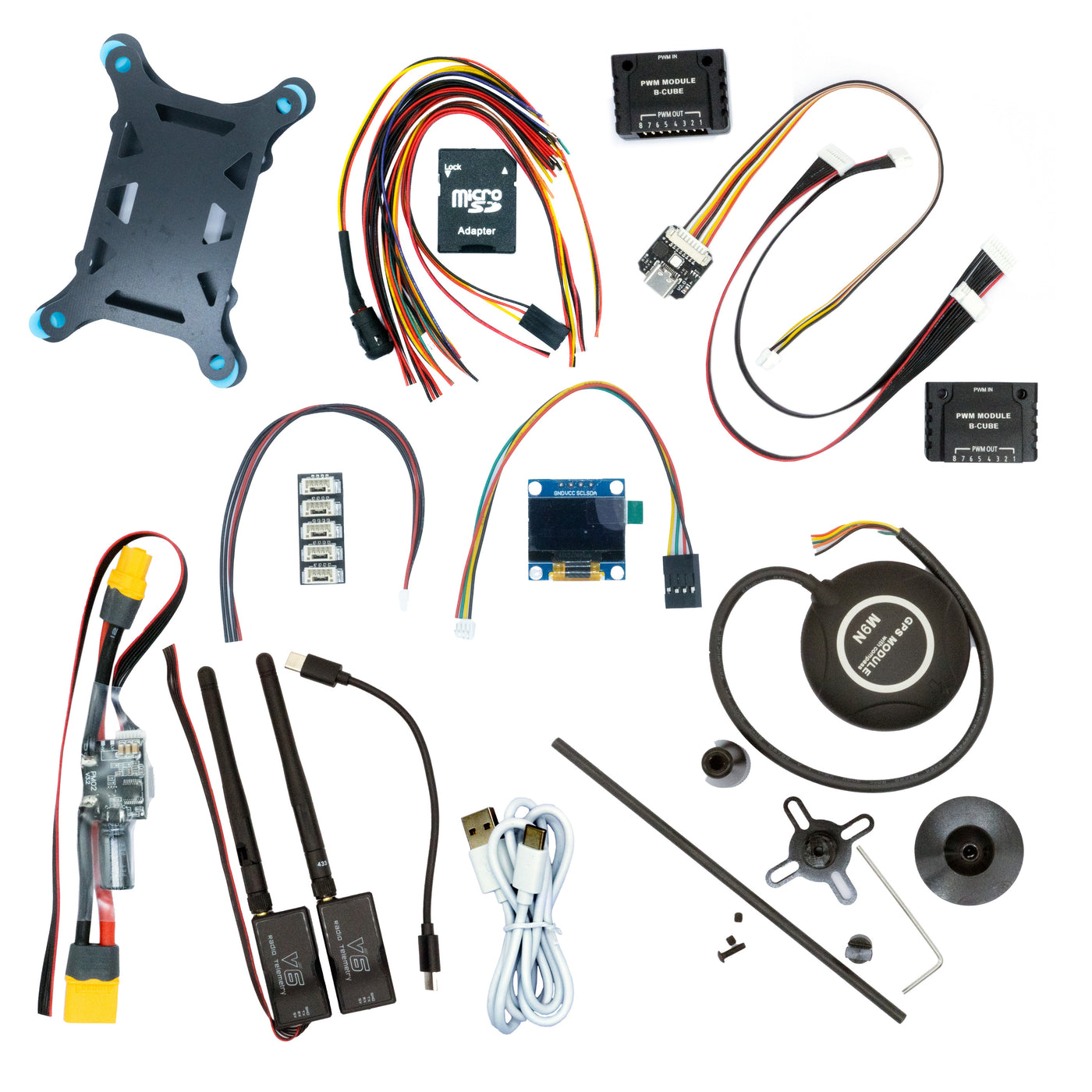

Pixhawk Kit - Telemetry Package includes:
- 1x Pixhawk 6C Pro
- 2x PWM Module
- 1 x SD to MicroSD Card Adaptor
- 1x I2C splitter expansion module and 1x I2C Line
- 1x PPM/SBUS Line
- 1x RGB LED Module
- 1x 0.96" OLED Display Module
- 1x Safety Button
- 1x M9N GPS Module with Stand
- 1x Shock Absorber
- 1x PM02 Power Module (supports 12S)
- 1x Radio Telemetry V6 (433MHz or 915Mhz / 100mW or 500mW or 1000mW)
What is included in the Pixhawk 6C Pro kit and what variants are available?
The kit variants are the High Collocation Package, GPS and Power Package, and Telemetry Package. Each variant includes the common core items such as the Pixhawk 6C Pro, 2x PWM Module, SD to MicroSD Card Adaptor, I2C splitter expansion module and I2C Line, PPM/SBUS Line, RGB LED Module, 0.96 inch OLED Display Module, and Safety Button. The GPS variant adds an M8N GPS Module with Stand and a Shock Absorber, the GPS and Power variant adds a PM02 Power Module (12S), and the Telemetry variant adds a M9N GPS Module with Stand, Shock Absorber, PM02 Power Module (12S), and a Radio Telemetry V6.
What processing power and memory does the flight controller have and how does it affect development?
The FMU Processor is STM32H743 with 32 bit ARM Cortex M7 running up to 480 MHz, featuring 2 MB flash memory and 1 MB SRAM. This higher compute power enables development of complex algorithms and models.
What sensors are onboard and how does the temperature control help accuracy?
On board sensors include Accel/Gyro via ICM-42688-P and BMI055, Mag IST8310, and Barometer MS5611. The IMUs are temperature controlled by onboard heating resistors to maintain optimum operating temperatures. A vibration isolation system is included to filter high frequency vibration and improve readings.
What are the power input specifications and safety features included?
Electrical specifications include max input voltage 6V, USB power input 4.75 to 5.25V, and servo rail input 0-36V. The board also includes a built in buzzer, RGB LED, and support for an independent external safety button.
What about warranty, returns and delivery information for this kit?
Warranty and return policy are not specified on this listing. Delivery times and support options are also not specified here; please check at checkout or contact the seller for current terms.
Description
The Pixhawk® 6C PRO is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6C Open Standard and Connector Standard. It comes with PX4 Autopilot® pre-installed. STMicroelectronics® based STM32H743, paired with sensor technology from Bosch® & InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.
The Pixhawk® 6C PRO's H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.
The Pixhawk 6C PRO includes high-performance, low-noise IMUs on board, designed to be cost effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances.
The Pixhawk® 6C PRO is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.
Key Specifications
- High performance STM32H743 Processor with more computing power & RAM
- Build-in Buzzer,Build-in RGB LED,support Independent external Safety Button, with Plastic Case
- New cost-effective design with low-profile form factor
- Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings
- IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs
Technical Specification
-
Processors & Sensors
- FMU Processor: STM32H743 - 32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM
-
IO Processor: STM32F103 - 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
- On-board sensors
- Accel/Gyro: ICM-42688-P
- Accel/Gyro: BMI055
- Mag: IST8310
- Barometer: MS5611
-
Electrical data
-
Voltage Ratings:
- Max input voltage: 6V
- USB Power Input: 4.75~5.25V
- Servo Rail Input: 0~36V
-
Current Ratings:
- TELEM1 Max output current limiter: 1.5A
- All other port combined output current limiter: 1.5A
-
Voltage Ratings:
-
Mechanical data
- Dimensions: 85 x 45 x 10 mm
- Weight (Plastic Case) : 33g
Pixhawk Kit - High Collocation Package includes:
- 1x Pixhawk 6C Pro
- 2x PWM Module
- 1 x SD to MicroSD Card Adaptor
- 1x I2C splitter expansion module and 1x I2C Line
- 1x PPM/SBUS Line
- 1x RGB LED Module
- 1x 0.96" OLED Display Module
- 1x Safety Button
Pixhawk Kit - GPS & Power Package includes:
- 1x Pixhawk 6C Pro
- 2x PWM Module
- 1 x SD to MicroSD Card Adaptor
- 1x I2C splitter expansion module and 1x I2C Line
- 1x PPM/SBUS Line
- 1x RGB LED Module
- 1x 0.96" OLED Display Module
- 1x Safety Button
- 1x M8N GPS Module with Stand
- 1x Shock Absorber
- 1x PM02 Power Module (supports 12S)
Pixhawk Kit - Telemetry Package includes:
- 1x Pixhawk 6C Pro
- 2x PWM Module
- 1 x SD to MicroSD Card Adaptor
- 1x I2C splitter expansion module and 1x I2C Line
- 1x PPM/SBUS Line
- 1x RGB LED Module
- 1x 0.96" OLED Display Module
- 1x Safety Button
- 1x M9N GPS Module with Stand
- 1x Shock Absorber
- 1x PM02 Power Module (supports 12S)
- 1x Radio Telemetry V6 (433MHz or 915Mhz / 100mW or 500mW or 1000mW)
FAQ
What is included in the Pixhawk 6C Pro kit and what variants are available?
The kit variants are the High Collocation Package, GPS and Power Package, and Telemetry Package. Each variant includes the common core items such as the Pixhawk 6C Pro, 2x PWM Module, SD to MicroSD Card Adaptor, I2C splitter expansion module and I2C Line, PPM/SBUS Line, RGB LED Module, 0.96 inch OLED Display Module, and Safety Button. The GPS variant adds an M8N GPS Module with Stand and a Shock Absorber, the GPS and Power variant adds a PM02 Power Module (12S), and the Telemetry variant adds a M9N GPS Module with Stand, Shock Absorber, PM02 Power Module (12S), and a Radio Telemetry V6.
What processing power and memory does the flight controller have and how does it affect development?
The FMU Processor is STM32H743 with 32 bit ARM Cortex M7 running up to 480 MHz, featuring 2 MB flash memory and 1 MB SRAM. This higher compute power enables development of complex algorithms and models.
What sensors are onboard and how does the temperature control help accuracy?
On board sensors include Accel/Gyro via ICM-42688-P and BMI055, Mag IST8310, and Barometer MS5611. The IMUs are temperature controlled by onboard heating resistors to maintain optimum operating temperatures. A vibration isolation system is included to filter high frequency vibration and improve readings.
What are the power input specifications and safety features included?
Electrical specifications include max input voltage 6V, USB power input 4.75 to 5.25V, and servo rail input 0-36V. The board also includes a built in buzzer, RGB LED, and support for an independent external safety button.
What about warranty, returns and delivery information for this kit?
Warranty and return policy are not specified on this listing. Delivery times and support options are also not specified here; please check at checkout or contact the seller for current terms.
