Playstation PS2 Receiver adaptor, 4 DC Motors & 8 PWM Servo controls

SKU: ARD2013

₹ 2,449.99 ₹ 5,999.99

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Playstation PS2 Receiver adaptor, 4 DC Motors & 8 PWM Servo controls₹ 2,449.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini
Arduino Shield with Playstation PS2 Receiver adaptor, 4 DC Motors & 8 PWM Servo control uses a PCA9685 and TB6612FNG combination.
It is the ideal robot control expansion board that offers scalability and versatile controls for any application.

Compatible with the Arduino line of products. Trademark registrations throughout the world for ARDUINO or Arduino® are owned by: Arduino AG and Arduino SA.

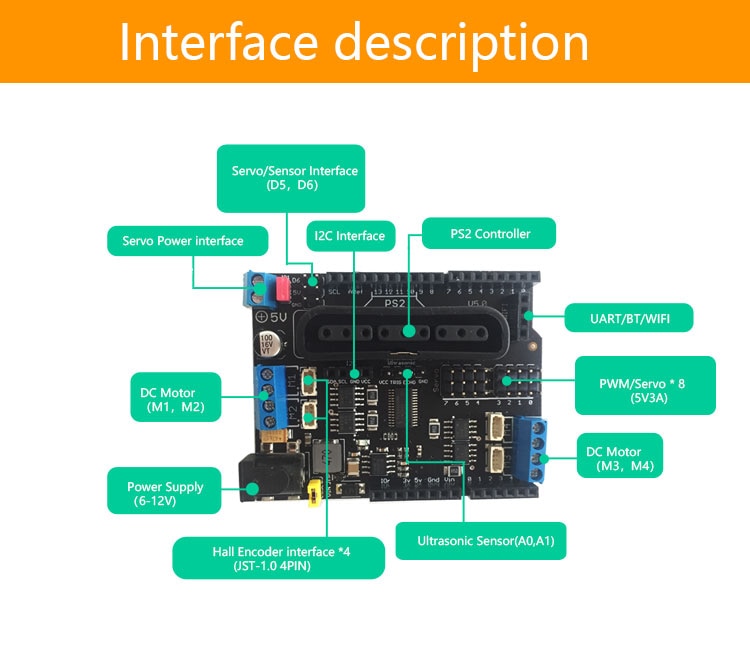

Features:

  • Arduino shield communicates with TB6612FNG motor driver with 1.2A drive capability and 3.2A peak current requirements.
  • Equipped with a slot for PS2 joystick

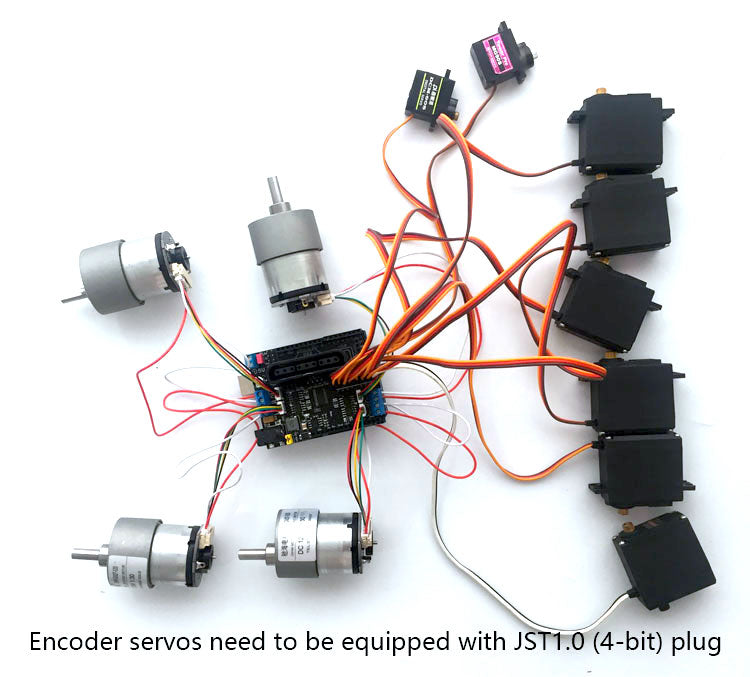

  • Support external connection with 4 DC brush motors and eight servos
  • Built-in ultrasonic sensor and Bluetooth (WIFI) module interface
  • Voltage: 6-12V
  • Servo: 8 channels, 1A output current max



For the Arduino, C library, click here! Or for Python, click here!

Is this shield compatible with Arduino boards?
Yes, it is compatible with the Arduino line of products and is designed to work as an Arduino shield.
How many motors and servos can be controlled and what is the voltage range?
It supports 4 DC brush motors and eight PWM servo channels with a supply voltage of 6-12V.
Does it provide a PS2 joystick slot and wireless module interface?
Yes, it includes a slot for a PS2 joystick and offers an interface for Bluetooth or WiFi modules.
What are the motor driver and servo current specifications?
The shield uses a TB6612FNG motor driver with 1.2A drive capability and 3.2A peak current, and it has 8 servo channels with up to 1A output current per channel.
Where can I find programming libraries and documentation?
Documentation is available for the Arduino C library and for Python as referenced in the product description.
A
Admin
Welcome to the discussion thread for Playstation PS2 Receiver adaptor, 4 DC Motors & 8 PWM Servo controls
Feel free to ask questions, share tips or report issues.

Discover More In:

Arduino Compatible Shields → Arduino Compatible → Robot Accessories →

Category: View similar items (Playstation)

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini
Arduino Shield with Playstation PS2 Receiver adaptor, 4 DC Motors & 8 PWM Servo control uses a PCA9685 and TB6612FNG combination.
It is the ideal robot control expansion board that offers scalability and versatile controls for any application.

Compatible with the Arduino line of products. Trademark registrations throughout the world for ARDUINO or Arduino® are owned by: Arduino AG and Arduino SA.

Features:

  • Arduino shield communicates with TB6612FNG motor driver with 1.2A drive capability and 3.2A peak current requirements.
  • Equipped with a slot for PS2 joystick
  • Support external connection with 4 DC brush motors and eight servos
  • Built-in ultrasonic sensor and Bluetooth (WIFI) module interface
  • Voltage: 6-12V
  • Servo: 8 channels, 1A output current max



For the Arduino, C library, click here! Or for Python, click here!

FAQ
Is this shield compatible with Arduino boards?
Yes, it is compatible with the Arduino line of products and is designed to work as an Arduino shield.
How many motors and servos can be controlled and what is the voltage range?
It supports 4 DC brush motors and eight PWM servo channels with a supply voltage of 6-12V.
Does it provide a PS2 joystick slot and wireless module interface?
Yes, it includes a slot for a PS2 joystick and offers an interface for Bluetooth or WiFi modules.
What are the motor driver and servo current specifications?
The shield uses a TB6612FNG motor driver with 1.2A drive capability and 3.2A peak current, and it has 8 servo channels with up to 1A output current per channel.
Where can I find programming libraries and documentation?
Documentation is available for the Arduino C library and for Python as referenced in the product description.
