16340 Battery Shield

SKU: ELC5048

ā‚¹ 349.99 ā‚¹ 499.00

In stock | Ready to ship

āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
16340 Battery Shieldā‚¹ 349.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Compatible withĀ Ā Arduino / Raspberry Pi. Line of products.Ā Trademark registrations throughout the world for ARDUINO orĀ ArduinoĀ®Ā are owned by: Arduino AG, Arduino SA.Ā


AĀ carefully designed mobile power supply for your Arduino /Ā Raspberry Pi projects.Ā
The mobile power is stacked on the for Arduino board and powered via the 5V/GND pin.Ā We also provide a USB-A output interface that you can use to connect to other devices using a USB cable.

The charging interface is micro USB, andĀ any standard Micro USB charger can be used to charge the module.


Lithium Battery Model: 16340
Charging current: 500mA
Discharge current: 1000mA

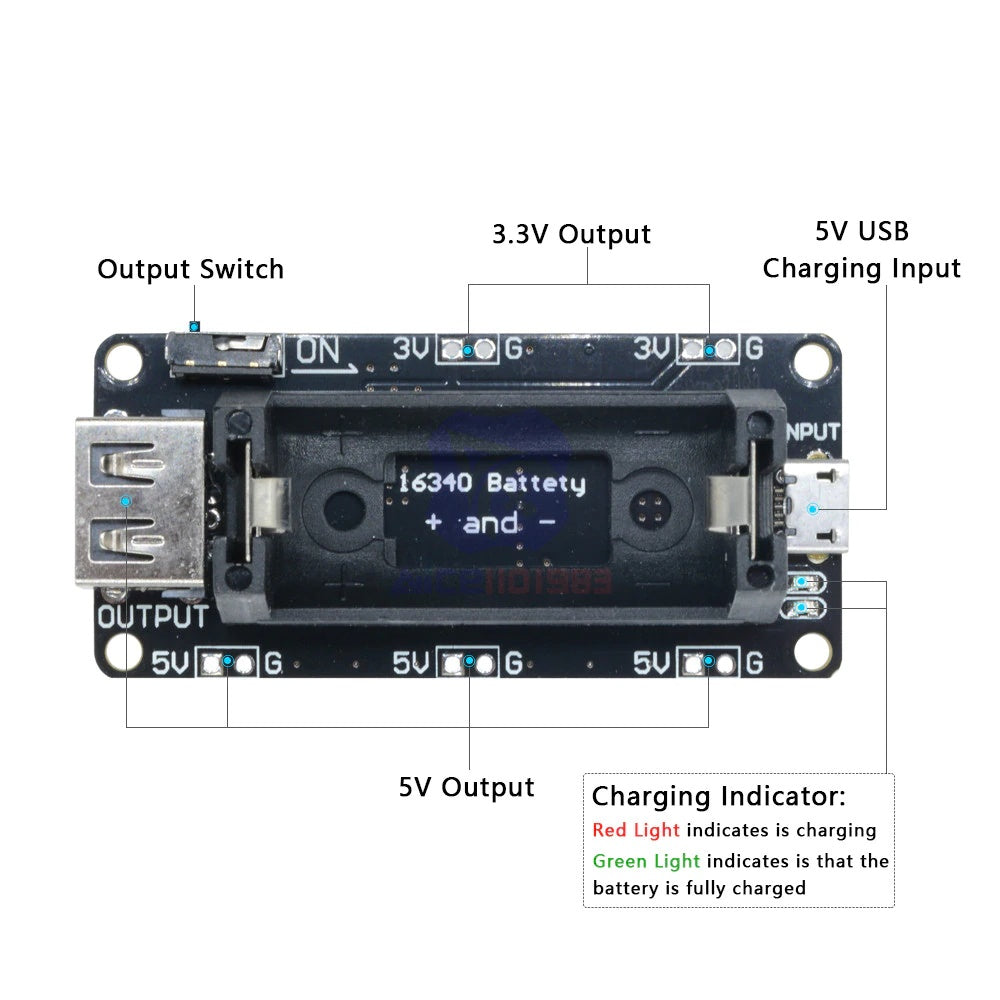

Feature:
1. Adapter 16340 lithium battery
2. 5V and 3.3V dual output
3. Built-in lithium battery protection IC with overcurrent, overvoltage, undervoltage and short circuit protection
4. Built-in battery anti-reverse protection
5. The toggle switch can freely turn the output

Specification

Charging interface: Micro USB (Android port)
Charging voltage: 4.5V -5.5V
Charging current: 580mA max
Output interface: 2.5mm header and standard USB socket
5V output current: 1.3A max
3.3V output current: 1.0A max
Charging indicator: red light during charging, full green light
Product size: 60mm * 28mm * 16mm(L * W * H)

Is this shield compatible with Arduino and Raspberry Pi?
Yes, it is designed to work with Arduino and Raspberry Pi projects and can be stacked on the Arduino board to be powered via the 5V GND pin.
How do I charge the battery and what is the charging current?
The charging interface is Micro USB, you can use any standard Micro USB charger. Charging current is up to 580 mA max, with a red indicator during charging and green when full.
What outputs are available and what are their maximum currents?
The module provides a 5V output up to 1.3 A max and a 3.3V output up to 1.0 A max, plus a USB A output interface for other devices.
What protections are included on this shield?
It includes a built in lithium battery protection IC with overcurrent, overvoltage, undervoltage and short circuit protection, and also features anti reverse protection and a toggle switch to control output.
What are the physical dimensions and mounting notes?
The product measures 60 mm by 28 mm by 16 mm (L x W x H). It is designed to mount on the Arduino board using a 2.5 mm header and provides a USB socket for outputs.
