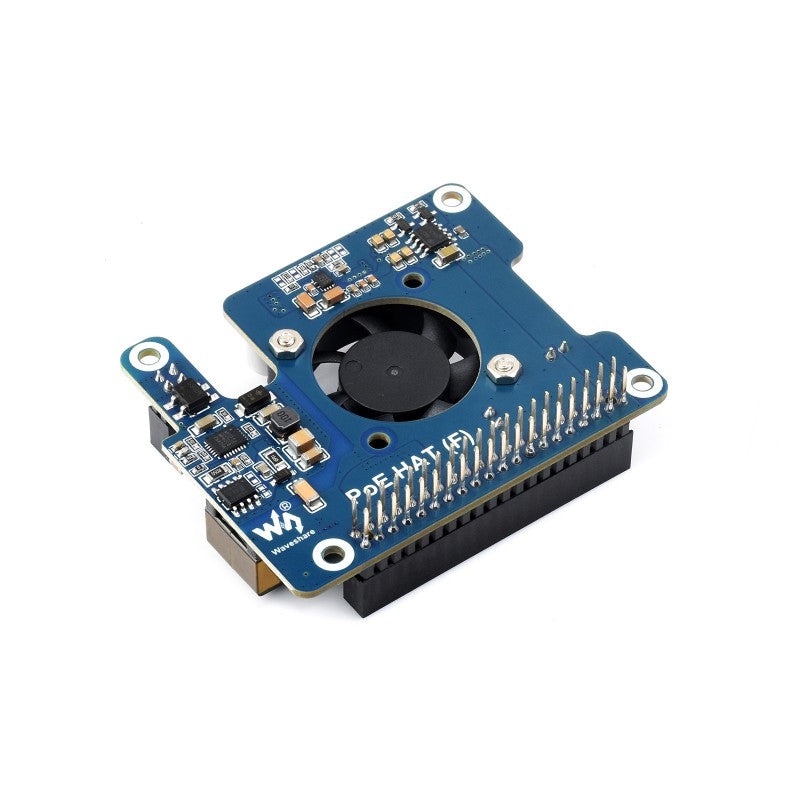

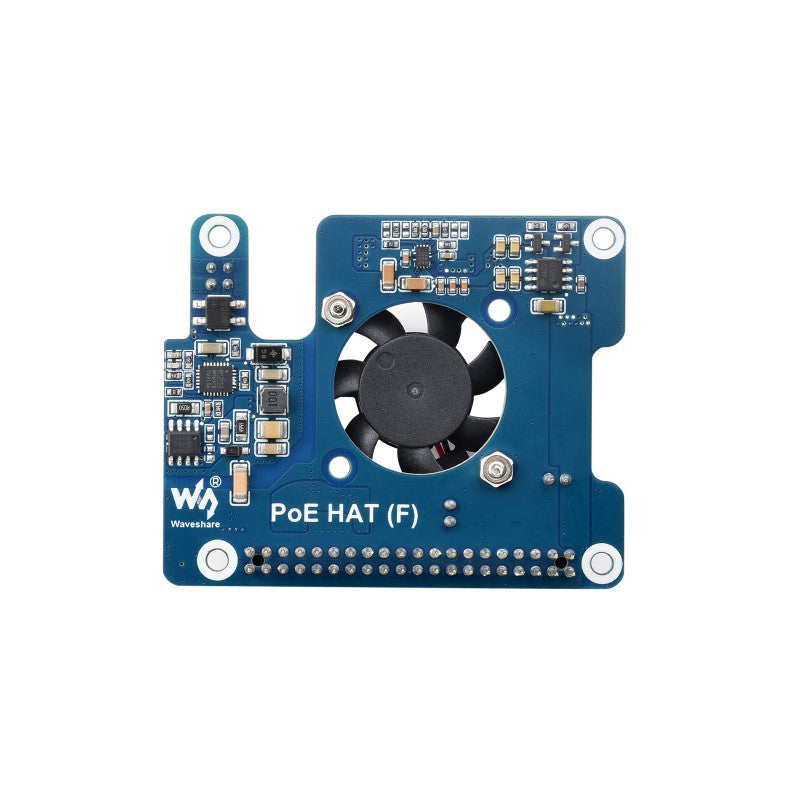

Power Over Ethernet HAT For Raspberry Pi 5
POE HAT For Raspberry Pi 5
Power Over Ethernet HAT For Raspberry Pi 5, Supports 802.3af/at Network Standard
12V And 5V Power Outputs To Support More Peripherals
Features
The PoE HAT (F) is a 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 5 . By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 5
PoE (Power Over Ethernet) capability，IEEE 802.3af/at-compliant
Fully isolated switched-mode power supply (SMPS)
Onboard high speed active cooling fan, with metal heatsink, better heat dissipation
Specifications
POE POWER INPUT
37V ~ 57V DC in
POWER OUTPUT
GPIO header: 5V 4.5A (MAX)
DIMENSIONS
56.5 × 70.0mm
NETWORK STANDARD
IEEE 802.3af/at PoE

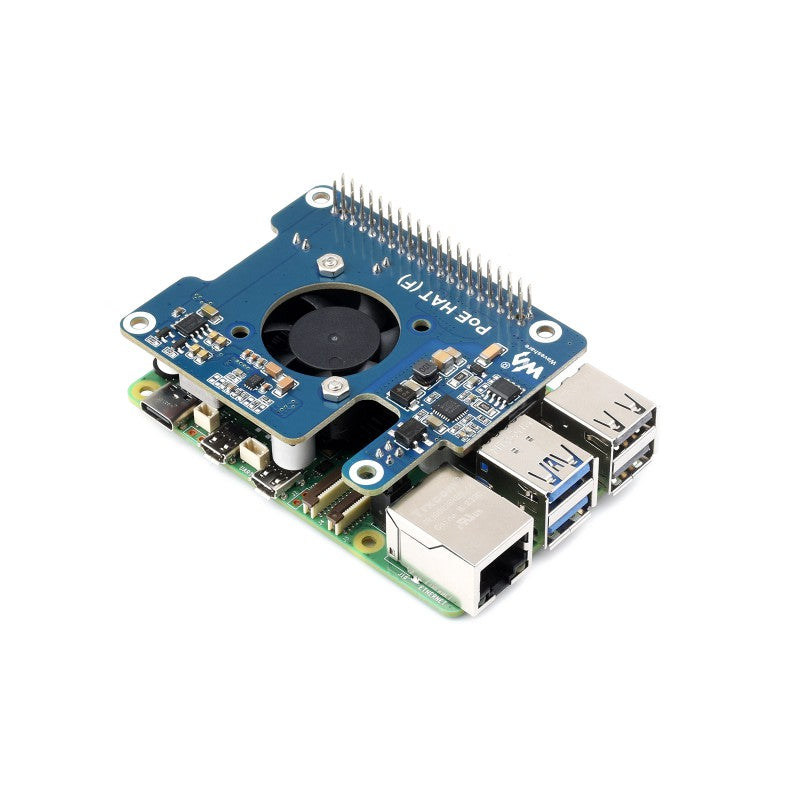

Suitable For Raspberry Pi 5
Standard Raspberry Pi 40PIN GPIO Stackable Header, Allows Connecting Other HATs
Power Over Ethernet
Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable * for reference only, the Raspberry Pi 5 and switch are NOT included.
Onboard 5V & 12V Header Outputs
5V Header Provides Up To 4.5A Output (MAX 25W For 12V+5V Total Output Power)Be Able To Power Extra Devices While Providing Stable Power To Raspberry Pi

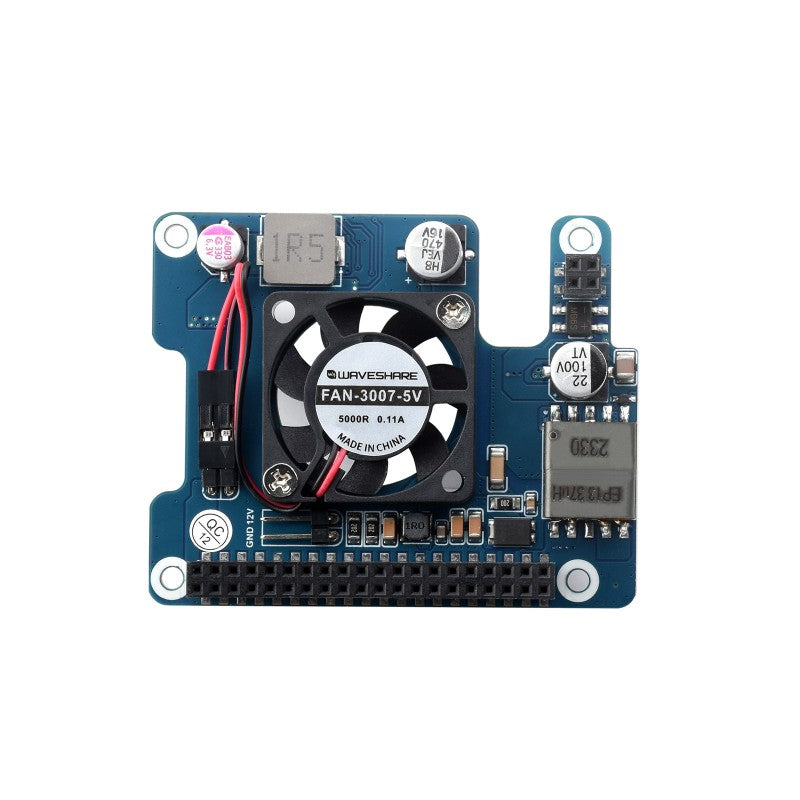

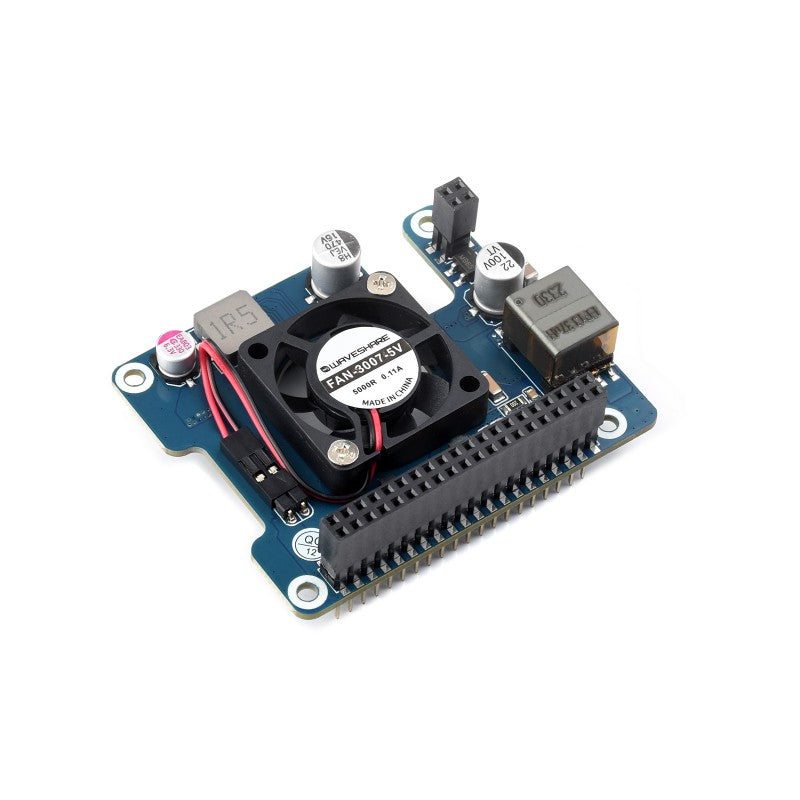

Active Cooling Fan
Accelerate Cooling Effect, More Stable Performance
Onboard MP8759GD Buck Chip
Incorporates Original Voltage Buck Chip
How To Install
Attach The Thermal Tapes First, Then Install Metal Heatsink And Fix The PoE HAT * for reference only, please refer to the Package Content for detailed part list
Outline Dimensions
