Active Cooler for Raspberry Pi 5
Raspberry Pi 5 Active Cooler
Suitable for Raspberry Pi 5
Specifications
INPUT VOLTAGE
5V DC (supplied via four-pin fan header on Raspberry Pi 5)
FAN SPEED CONTROL
Pulse width modulation control with tachometer
MAXIMUM AIRFLOW
2.35 CFM
FAN SPEED
8000±10%RPM
MATERIAL
Anodised aluminium
Based On Raspberry Pi 5

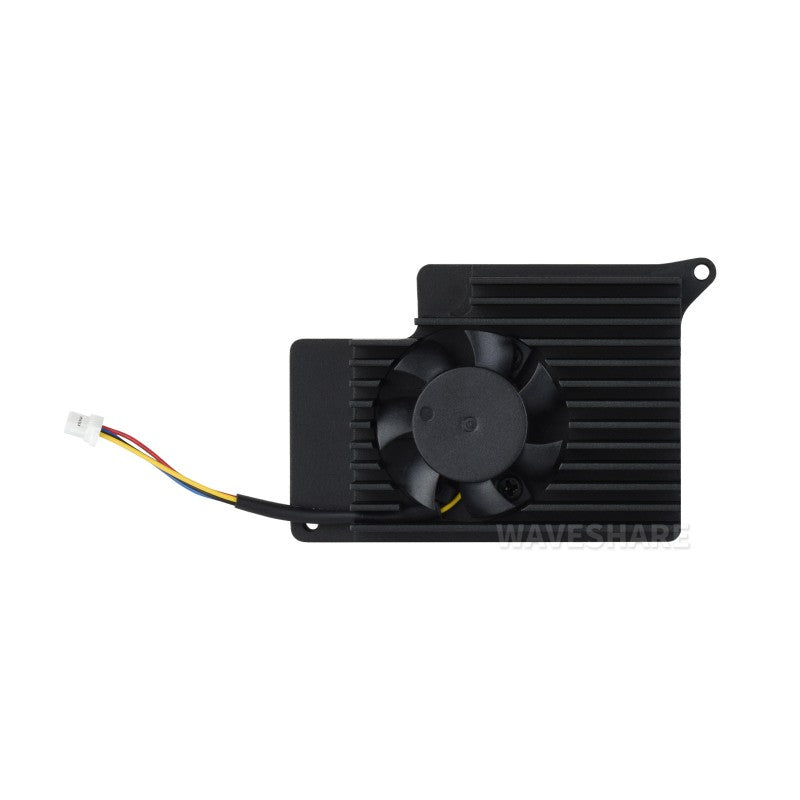

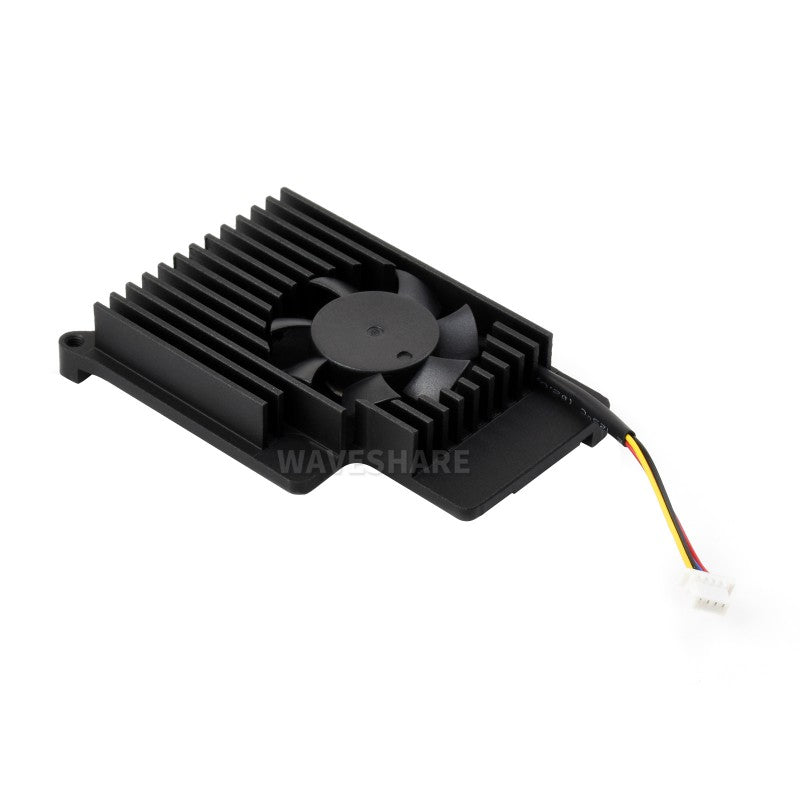

Matching The Size and Mounting Holes of the Raspberry Pi 5, Combines an Aluminium Heatsink with an Active Cooling Fan to Accelerate Heat Dissipation
How To Install

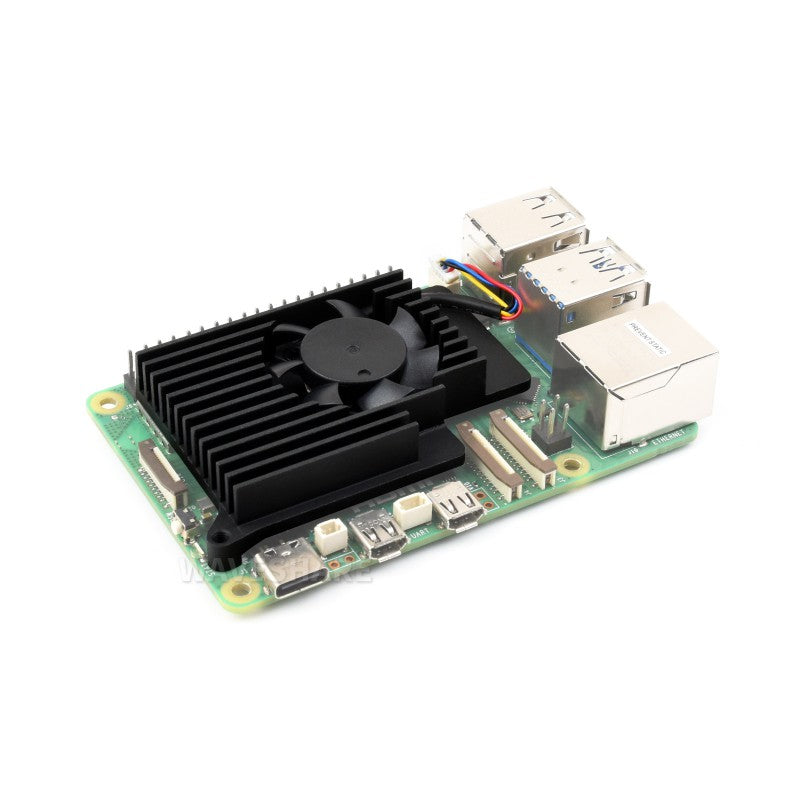

Connect the 4-pin cable to the fan header on Raspberry Pi 5 and fix the Active Cooler via M2.5 nylon screws.
* For reference only, the Raspberry Pi 5 NOT included.
Raspberry Pi 5 Cooling Solution Comparing
Outline Dimensions
Package Contents:
Weight: 0.033 kg
1. Pi5-Active-Cooler-A x1
2. Thermal pad (3PCS) x1
3. Nylon screw (2PCS) x1
