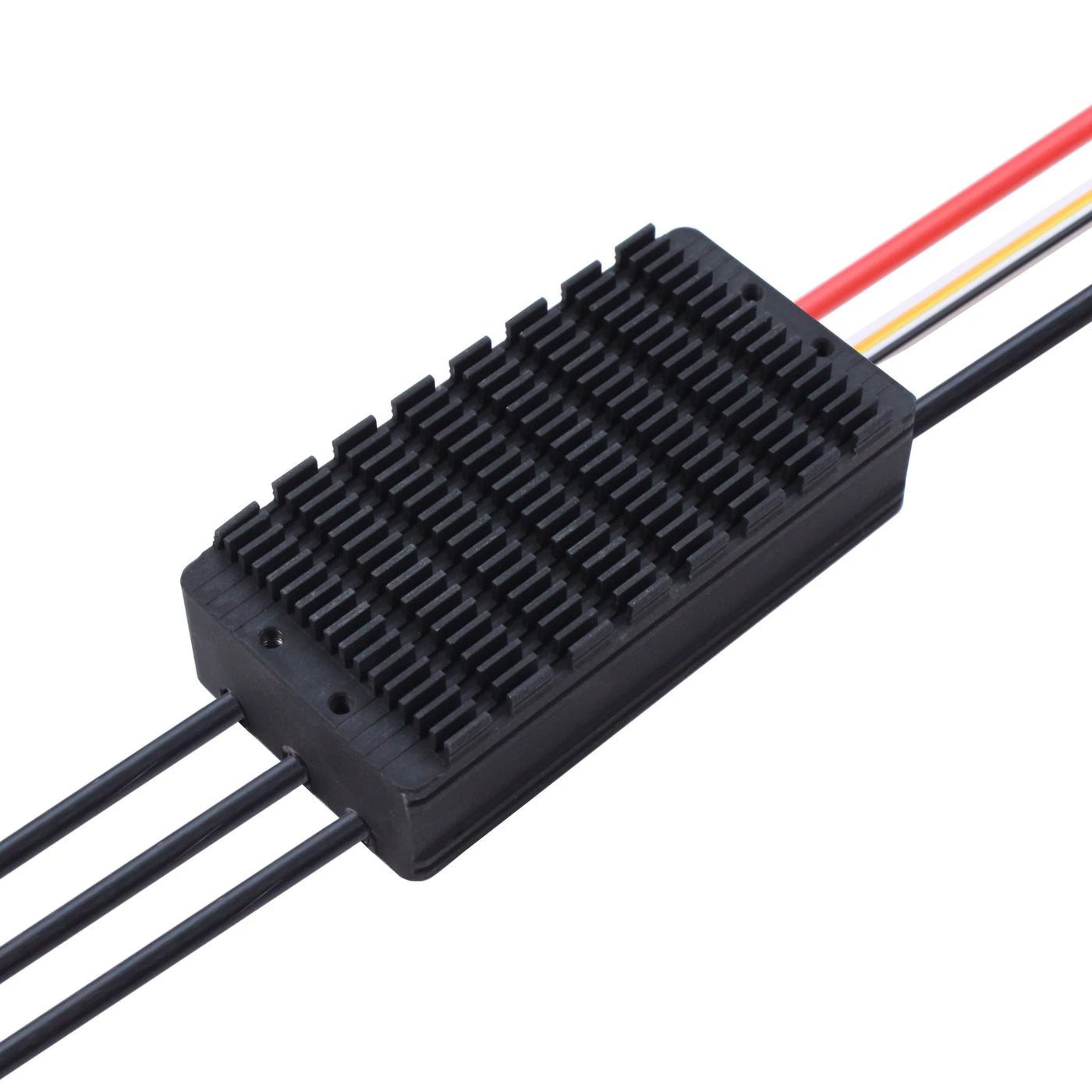

Pulse ESC P80 5-14S 80A
XOAR Pulse ESC - part of the family of XOAR Propulsion System.
Features
Fast Response
High Efficiency
Low Noise
Temperature and Interference
Optimized to work with XOAR Titan T8110, T8115, T8120, Titan Air TA8010, TA8015, TA8020, TA8025, TA8220, TA8225.
Specifications
Model
80A
BEC
NA
PWM Voltage
3.3V/5V(compatible)
Online Update
NA
Accelerator Protection
included
Short -circuit Protection
included
Size(L*W*H)
79.6*36*23.5mm
Power Line
12AWG
Lithium Battery
5-14s
Recommended Battery
12s
Compatible Signal Frequency
50-500Hz
Current Protection
included
Stalling Protection
included
Error Signal Output
included
Protection Grade
IP67（sealing）
Motor Line
14AWG
Continuous Current
80A(good cooling condition)
Instant Current
120A（good cooling condition）
Accelerator Pulse Width
default 1050us-1940us,support accelerator adjustment
Voltage Protection
included
Temperature Protection
included
Speed Signal Output
included
Weight(without lines)
≈90g
Working Temperature
-20~65℃
