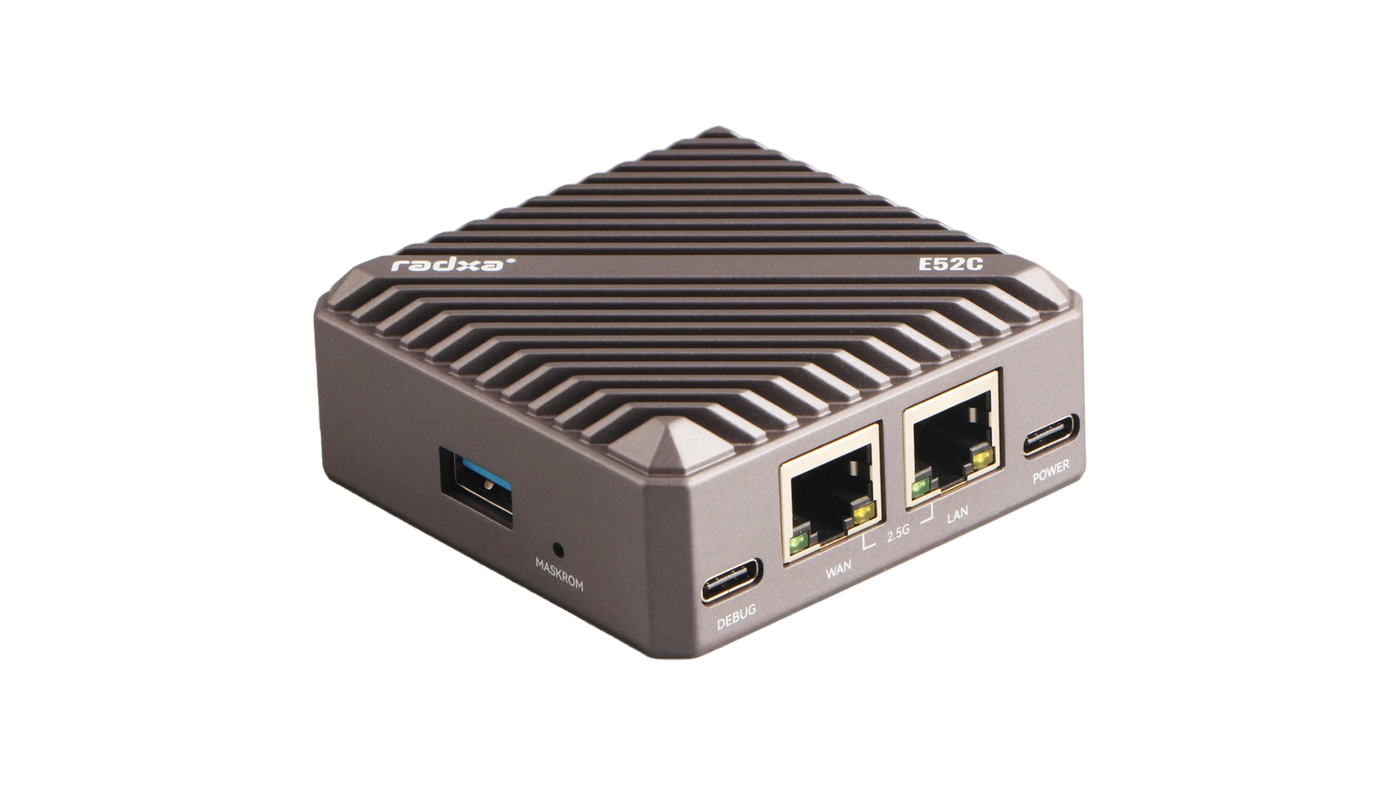

E52C
Enhanced Mini Network Titan
The Radxa E52C is a high-performance, compact network appliance designed for advanced routing, firewall, and edge AI applications. Powered by the Rockchip RK3582 SoC with a hybrid Dual Cortex-A76 + Quad Cortex-A55 CPU and a powerful 5 TOPS NPU, it delivers exceptional compute power in a silent, fanless form factor.
Hardware Features
Powerful Processing Capability
Dual Cortex-A76 Cores and Quad Cortex-A55 Deliver Superior Computing Performance
Love at First Use with a Sleek Design
Aluminum Alloy Case for Efficient Cooling Design
High-Speed Network Connectivity
Dual 2.5G Ethernet Ports for Stable and Fast network
Equipped with Essential Interfaces
Support for iStore OS, Flippy OpenWrt and Debian
Widely Applicable in
Home Network Gateways, Smart Home Hubs, and Enterprise Network Gateways
Build Your Personal Server
with a Vast Array of Applications
Comprehensive Technical Documentation and Active Community
INTERFACES
TECH SPECS
| Specifications - Radxa E52C | |
|---|---|
| SoC | Rockchip RK3582 |
| CPU | Arm Dual Cortex®‑A76 and Quad Cortex®‑A55 (Arm® DynamIQ™ configuration) |
| NPU | Supports INT4 / INT8 / INT16 / FP16 / BF16 / TF32 Up to 5TOPs computing power |
| RAM | LPDDR4x (2GB / 4GB / 8GB) |
| Multimedia | H.265 / H.264 multivideo encoder up to 4K@60fps |
| Storage | 1x Onboard eMMC 1x microSD Card Slot |
| USB | 1x USB 3.0 Type-A OTG / HOST Port 1x USB Type-C for Debug |
| Ethernet | 2x 2.5 Gigabit Ethernet Ports |
| Buttons | 1x Maskrom Button 1x User Button |
| Power | 1x 5V Only USB Type-C Port |
| Operating System | Radxa OS / OpenWrt / iStoreOS |
| Operating Conditions | Temperature: 0 ~ 50°C Throttles above 80°C for reliability Recommend external cooling for sustained performance |
| Dimension | 70 mm x 70 mm |
| Compliance | FCC / CE |
DOWNLOADS
Product Information
| Radxa E52C - Product Brief | Download >> |
| Radxa E52C - Schematic V1.2 | Download >> |
| Radxa E52C - Components Placement Map (SMD V1.2) | Download >> |
| Radxa E52C - 2D Drawings | Download >> |
E52C WORKS WITH
> Radxa Power PD 30W
5A High Current Super-Fast Charge
What are the main use cases for the E52C?
It is designed for advanced routing, firewall, and edge AI applications. It can serve as a home network gateway, smart home hub, or enterprise network gateway.
What network connections does the device provide?
It has two 2.5 Gigabit Ethernet ports for stable and fast networking.
Which operating systems are supported and how do I use them?
The device supports Radxa OS, OpenWrt, and iStoreOS. You can install supported images on the onboard eMMC or microSD according to the documentation.
How is power supplied and what about cooling?
Power is delivered via a USB Type C port at 5V. It is a fanless design with an aluminum case and external cooling is recommended for sustained performance, as throttling can occur above 80 C.
What memory and storage options are available?
RAM options are 2 GB, 4 GB, or 8 GB LPDDR4x. Storage includes onboard eMMC and a microSD card slot.
Description
E52C
Enhanced Mini Network Titan
The Radxa E52C is a high-performance, compact network appliance designed for advanced routing, firewall, and edge AI applications. Powered by the Rockchip RK3582 SoC with a hybrid Dual Cortex-A76 + Quad Cortex-A55 CPU and a powerful 5 TOPS NPU, it delivers exceptional compute power in a silent, fanless form factor.
Hardware Features
Powerful Processing Capability
Dual Cortex-A76 Cores and Quad Cortex-A55 Deliver Superior Computing Performance
Love at First Use with a Sleek Design
Aluminum Alloy Case for Efficient Cooling Design
High-Speed Network Connectivity
Dual 2.5G Ethernet Ports for Stable and Fast network
Equipped with Essential Interfaces
Support for iStore OS, Flippy OpenWrt and Debian
Widely Applicable in
Home Network Gateways, Smart Home Hubs, and Enterprise Network Gateways
Build Your Personal Server
with a Vast Array of Applications
Comprehensive Technical Documentation and Active Community
INTERFACES
TECH SPECS
| Specifications - Radxa E52C | |
|---|---|
| SoC | Rockchip RK3582 |
| CPU | Arm Dual Cortex®‑A76 and Quad Cortex®‑A55 (Arm® DynamIQ™ configuration) |
| NPU | Supports INT4 / INT8 / INT16 / FP16 / BF16 / TF32 Up to 5TOPs computing power |
| RAM | LPDDR4x (2GB / 4GB / 8GB) |
| Multimedia | H.265 / H.264 multivideo encoder up to 4K@60fps |
| Storage | 1x Onboard eMMC 1x microSD Card Slot |
| USB | 1x USB 3.0 Type-A OTG / HOST Port 1x USB Type-C for Debug |
| Ethernet | 2x 2.5 Gigabit Ethernet Ports |
| Buttons | 1x Maskrom Button 1x User Button |
| Power | 1x 5V Only USB Type-C Port |
| Operating System | Radxa OS / OpenWrt / iStoreOS |
| Operating Conditions | Temperature: 0 ~ 50°C Throttles above 80°C for reliability Recommend external cooling for sustained performance |
| Dimension | 70 mm x 70 mm |
| Compliance | FCC / CE |
DOWNLOADS
Product Information
| Radxa E52C - Product Brief | Download >> |
| Radxa E52C - Schematic V1.2 | Download >> |
| Radxa E52C - Components Placement Map (SMD V1.2) | Download >> |
| Radxa E52C - 2D Drawings | Download >> |
E52C WORKS WITH
> Radxa Power PD 30W
5A High Current Super-Fast Charge
FAQ
What are the main use cases for the E52C?
It is designed for advanced routing, firewall, and edge AI applications. It can serve as a home network gateway, smart home hub, or enterprise network gateway.
What network connections does the device provide?
It has two 2.5 Gigabit Ethernet ports for stable and fast networking.
Which operating systems are supported and how do I use them?
The device supports Radxa OS, OpenWrt, and iStoreOS. You can install supported images on the onboard eMMC or microSD according to the documentation.
How is power supplied and what about cooling?
Power is delivered via a USB Type C port at 5V. It is a fanless design with an aluminum case and external cooling is recommended for sustained performance, as throttling can occur above 80 C.
What memory and storage options are available?
RAM options are 2 GB, 4 GB, or 8 GB LPDDR4x. Storage includes onboard eMMC and a microSD card slot.
