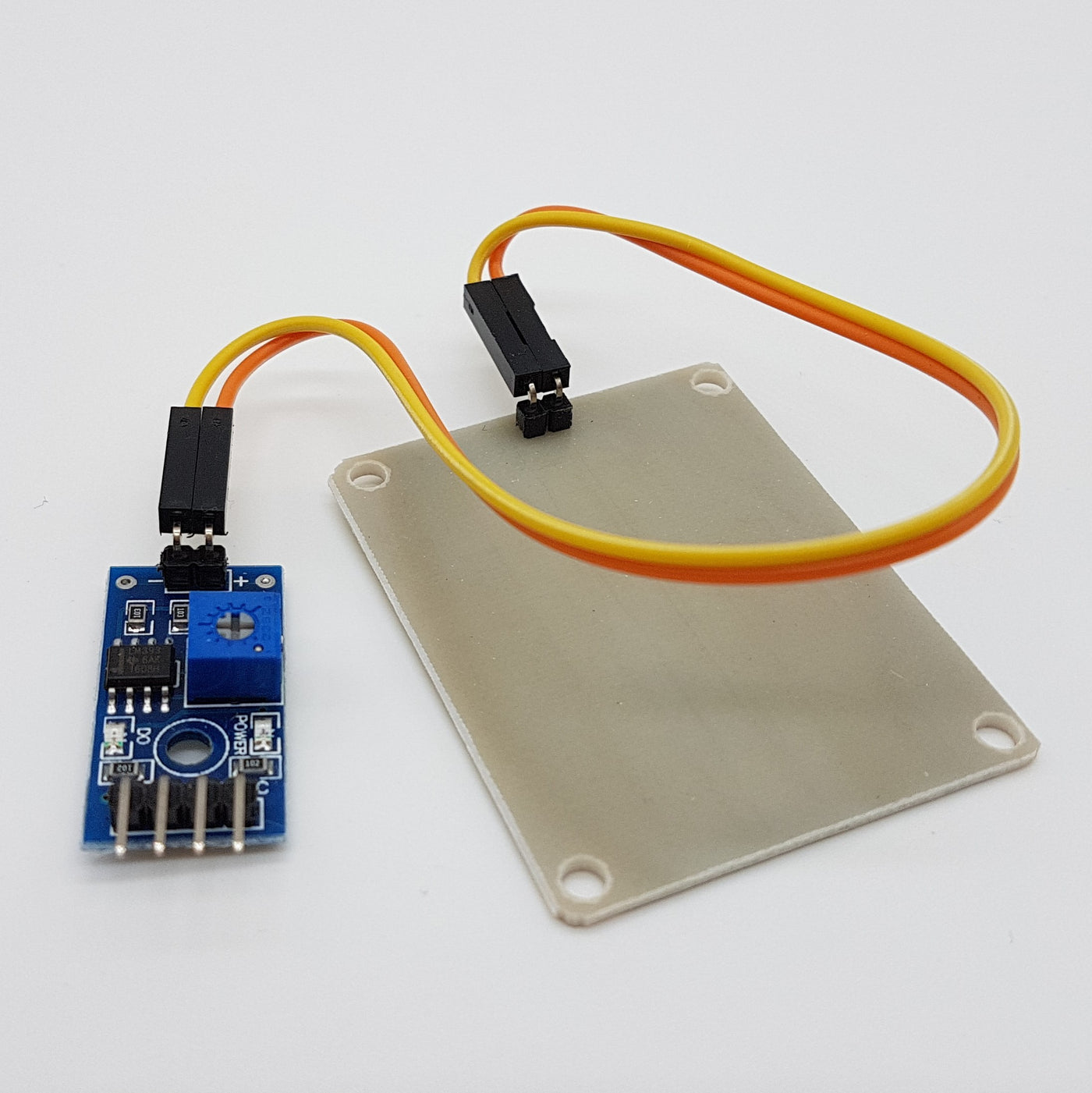

Rain sensors are used in the detection of water beyond what a humidity sensor can detect.

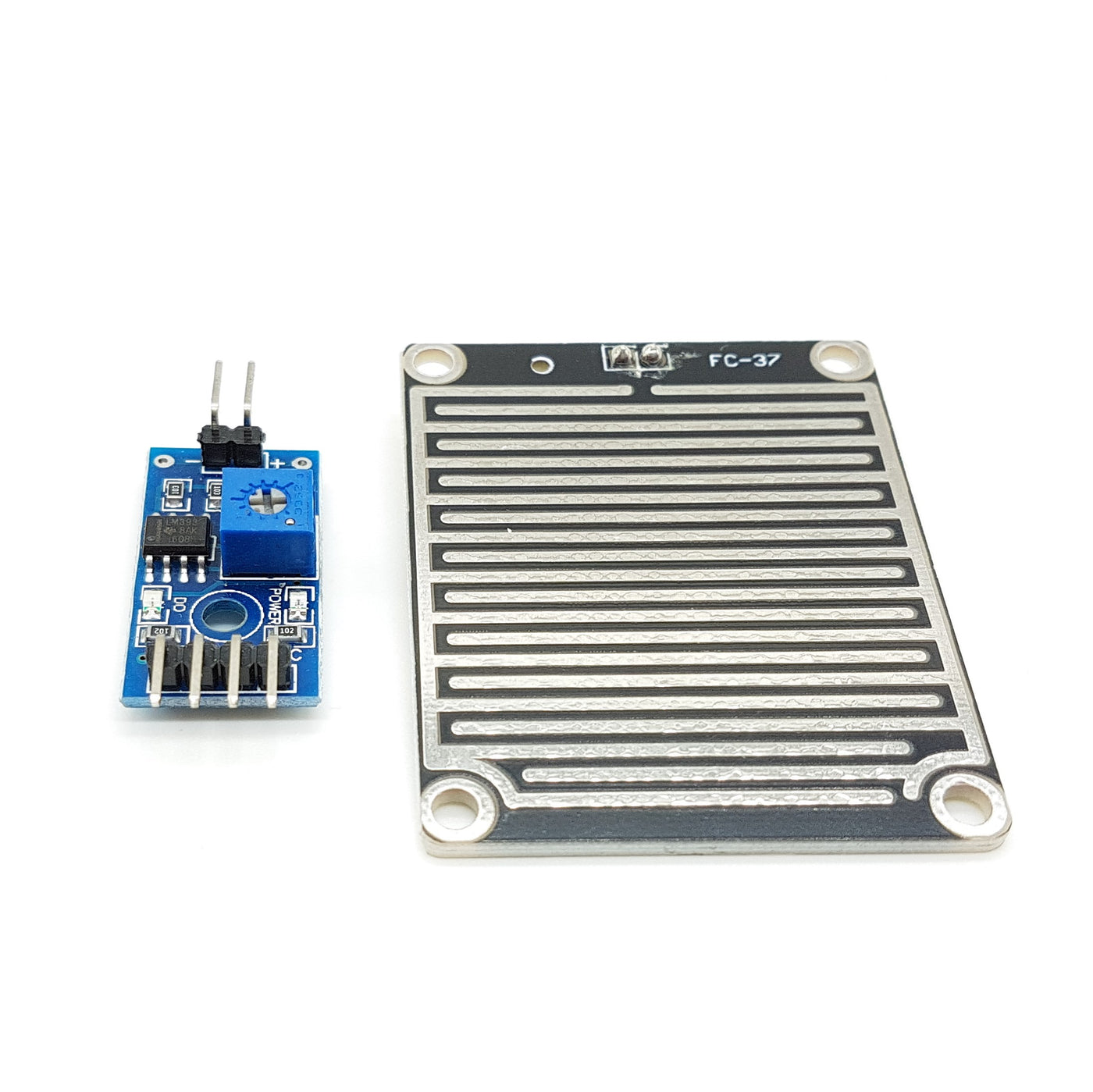

It can be used as a switch when raindrop falls on the rain board and also for measuring rainfall intensity. The module features, a rain board and the control board that is separate for more convenience, power indicator LED and an adjustable sensitivity though a potentiometer.
- Adopts high quality of RF-04 double sided material.
- Area: 5cm x 4cm nickel plate on side,
- Anti-oxidation, anti-conductivity, with long use time;
- Comparator output signal clean waveform is good, driving ability, over 15mA;
- Potentiometer adjust the sensitivity;
- Working voltage 5V;
- Output format: Digital switching output (0 and 1) and analog voltage output AO;
- With bolt holes for easy installation;
- Small board PCB size: 3.2cm x 1.4cm;

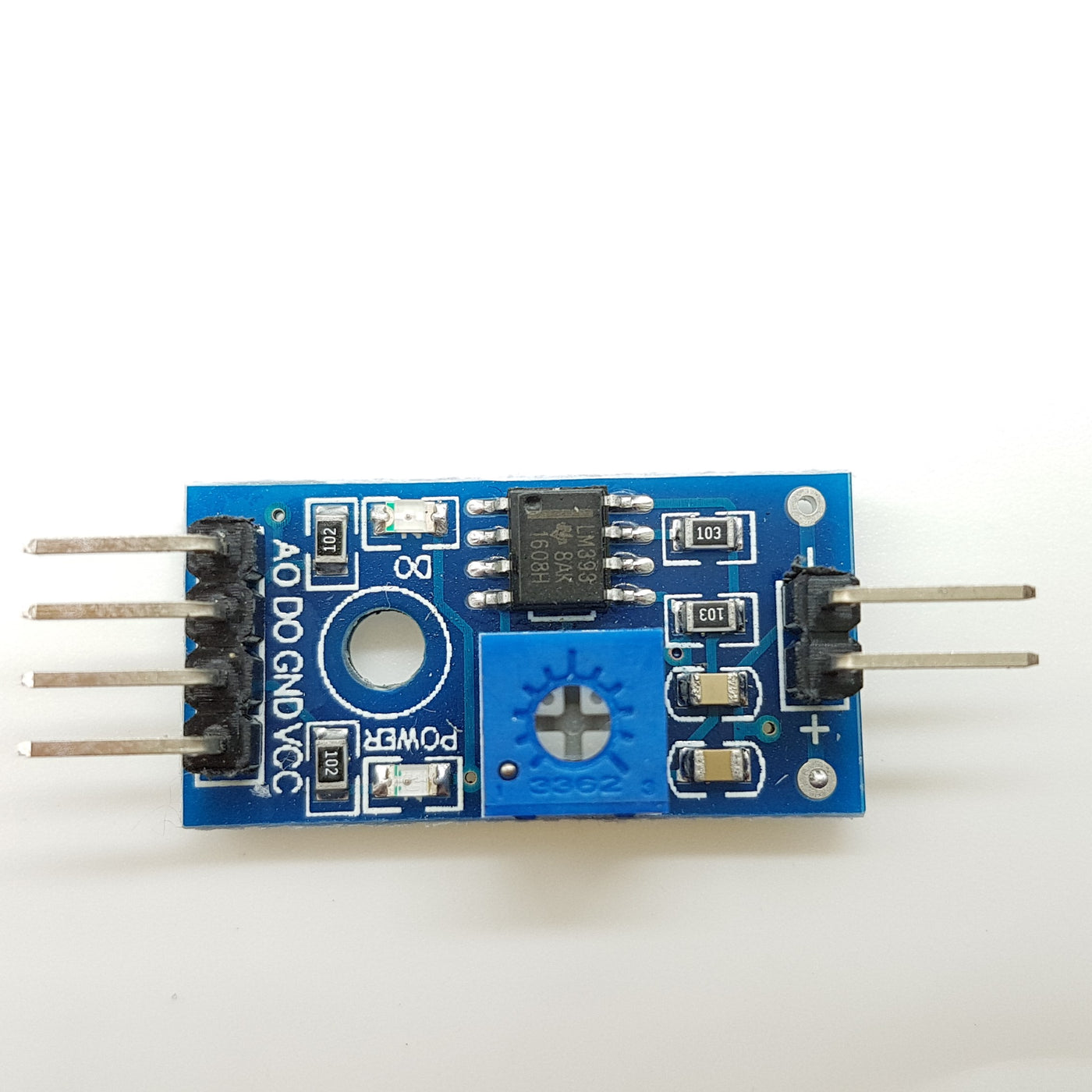

- Uses a wide voltage LM393 comparator
Specifications
Resources
Tutorials
What outputs does the rain detection sensor provide and what supply voltage is required?
The module offers a digital switching output (0 or 1) and an analog voltage output AO, and it operates at 5V with a drive capability of over 15 mA.
How can I adjust the sensitivity of the sensor?
Sensitivity is adjusted with the potentiometer on the board.
How is the sensor assembled and mounted in a project?
The rain board and control board are separate for convenience and the module includes bolt holes for easy installation.
What are the physical details and durability features of the sensor?
The area is 5 cm by 4 cm with a nickel plate on the side, made from RF-04 double sided material, offering anti oxidation and long use time.
What is the recommended usage and compatibility with microcontrollers or projects?
The sensor operates at 5V and provides digital and analog outputs suitable for microcontroller inputs and other 5V electronics.
Description
Rain sensors are used in the detection of water beyond what a humidity sensor can detect.
It can be used as a switch when raindrop falls on the rain board and also for measuring rainfall intensity. The module features, a rain board and the control board that is separate for more convenience, power indicator LED and an adjustable sensitivity though a potentiometer.
- Adopts high quality of RF-04 double sided material.
- Area: 5cm x 4cm nickel plate on side,
- Anti-oxidation, anti-conductivity, with long use time;
- Comparator output signal clean waveform is good, driving ability, over 15mA;
- Potentiometer adjust the sensitivity;
- Working voltage 5V;
- Output format: Digital switching output (0 and 1) and analog voltage output AO;
- With bolt holes for easy installation;
- Small board PCB size: 3.2cm x 1.4cm;
- Uses a wide voltage LM393 comparator
Specifications
Resources
Tutorials
FAQ
What outputs does the rain detection sensor provide and what supply voltage is required?
The module offers a digital switching output (0 or 1) and an analog voltage output AO, and it operates at 5V with a drive capability of over 15 mA.
How can I adjust the sensitivity of the sensor?
Sensitivity is adjusted with the potentiometer on the board.
How is the sensor assembled and mounted in a project?
The rain board and control board are separate for convenience and the module includes bolt holes for easy installation.
What are the physical details and durability features of the sensor?
The area is 5 cm by 4 cm with a nickel plate on the side, made from RF-04 double sided material, offering anti oxidation and long use time.
What is the recommended usage and compatibility with microcontrollers or projects?
The sensor operates at 5V and provides digital and analog outputs suitable for microcontroller inputs and other 5V electronics.
