Raspberry Pi SSD Kit
For Raspberry Pi 5
The Raspberry Pi SSD Kit is a Raspberry Pi M.2 HAT+ with a Raspberry Pi NVMe SSD. It unlocks outstanding performance for I/O intensive applications on Raspberry Pi 5, including super-fast startup when booting from SSD.
The Raspberry Pi SSD Kit is a great-value way to grab both the Raspberry Pi NVMe SSD and Raspberry Pi M.2 HAT+ to unlock outstanding performance for I/O intensive applications on Raspberry Pi 5, including super-fast startup when booting from the SSD.

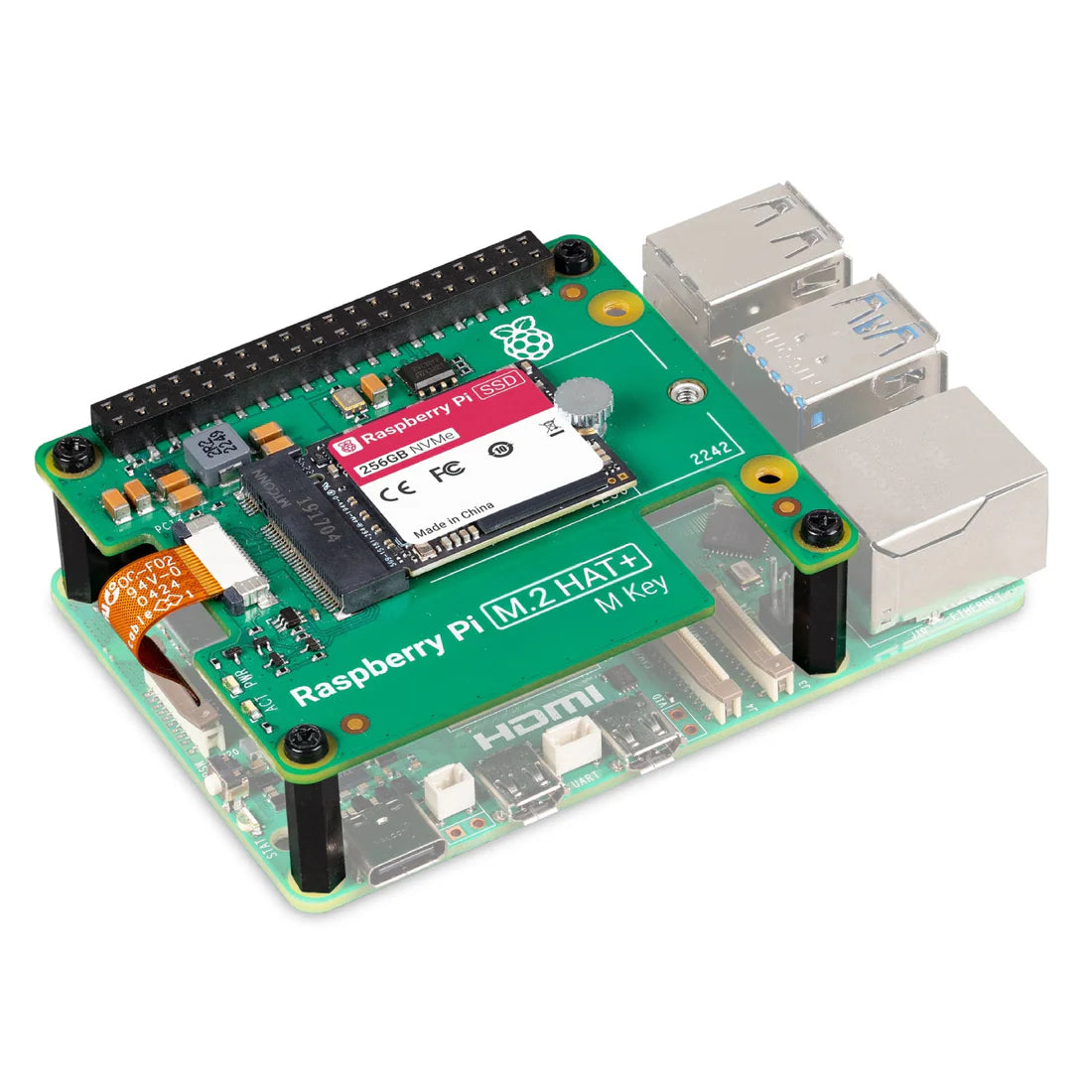

The kit comes pre-assembled with the SSD installed into the M.2 HAT+, ready out of the box to connect to your Raspberry Pi 5 (not included).
The kit includes a 16mm stacking header, spacers, and screws to secure to your Pi 5. A Raspberry Pi Active Cooler can also be used underneath the HAT at the same time when using these spacers.
Feature
| Product Name | SSD + M.2 HAT+ Bundle for Raspberry Pi 5 |
| Storage Capacity | 256GB NVMe SSD |
| Performance | 40k IOPS (4kB random reads) / 70k IOPS (4kB random writes) |
| Compatibility | Conforms to Raspberry Pi HAT+ specification |
| Assembly | SSD pre-assembled to HAT+ (256GB) |
| Accessories | Standoffs and screws included |
Specification
| Capacity | 256GB |
| Operating Temperature | 0℃ to 50℃ (ambient) |
| Production Lifetime | The Raspberry Pi SSD Kit will remain in production until at least January 2032 |
| Compliance | For a full list of local and regional product approvals, please visit pip.raspberrypi.com |
Hardware Overview
Documents
| Raspberry Pi SSD product brief | Download |
| Raspberry Pi SSD Kit product brief | Download |

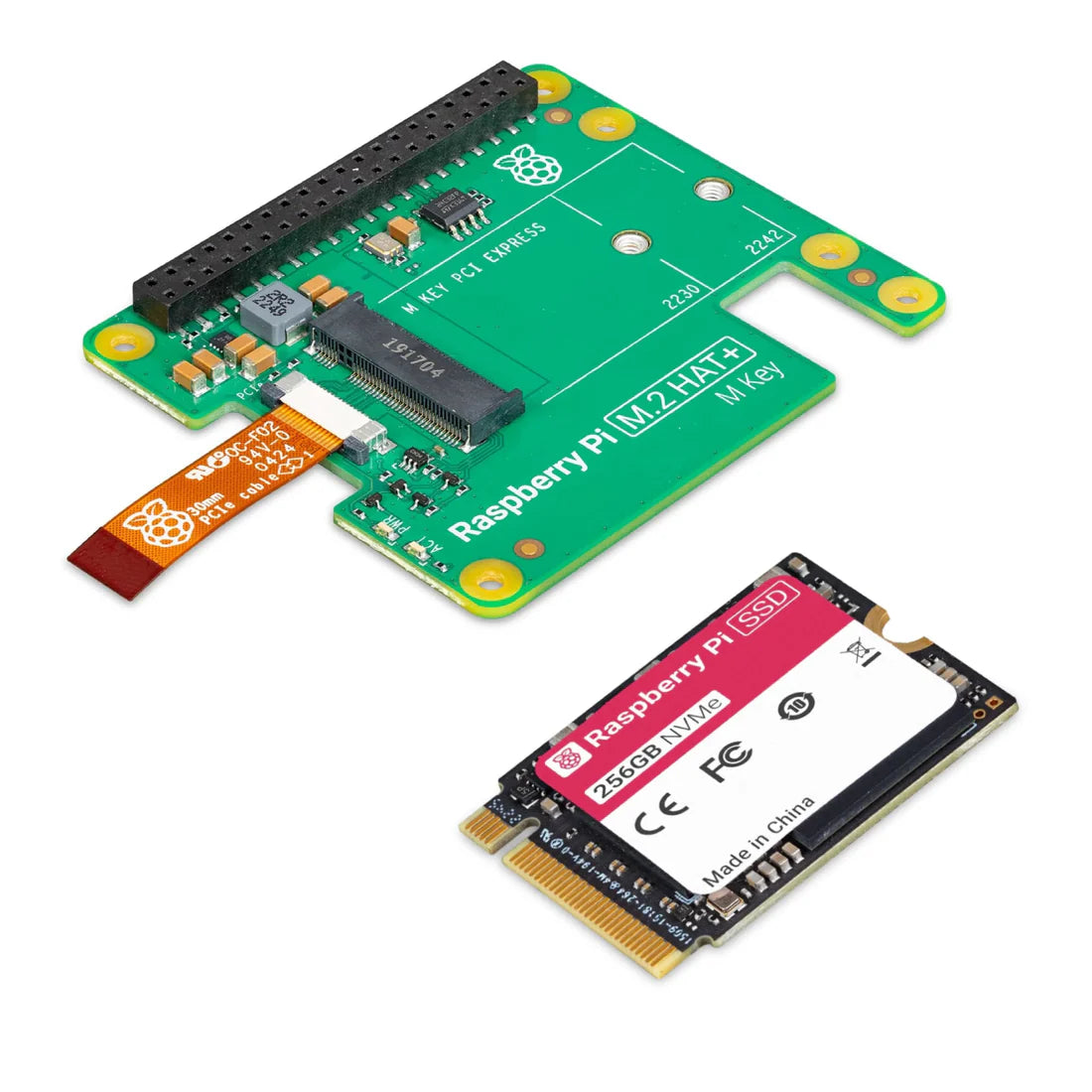

Part List

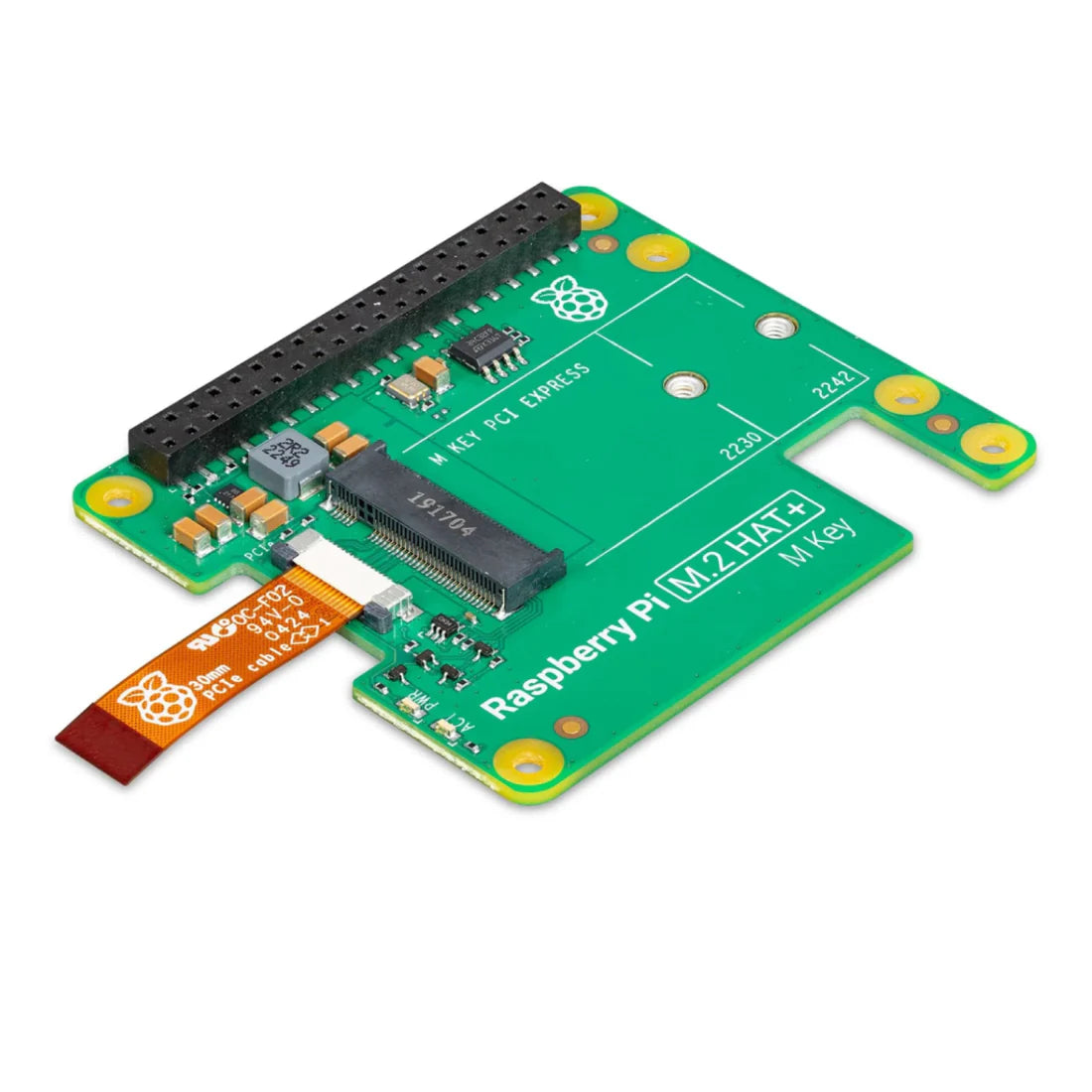

| Raspberry Pi M.2 HAT+ (with PCI-E cable) | X1 |

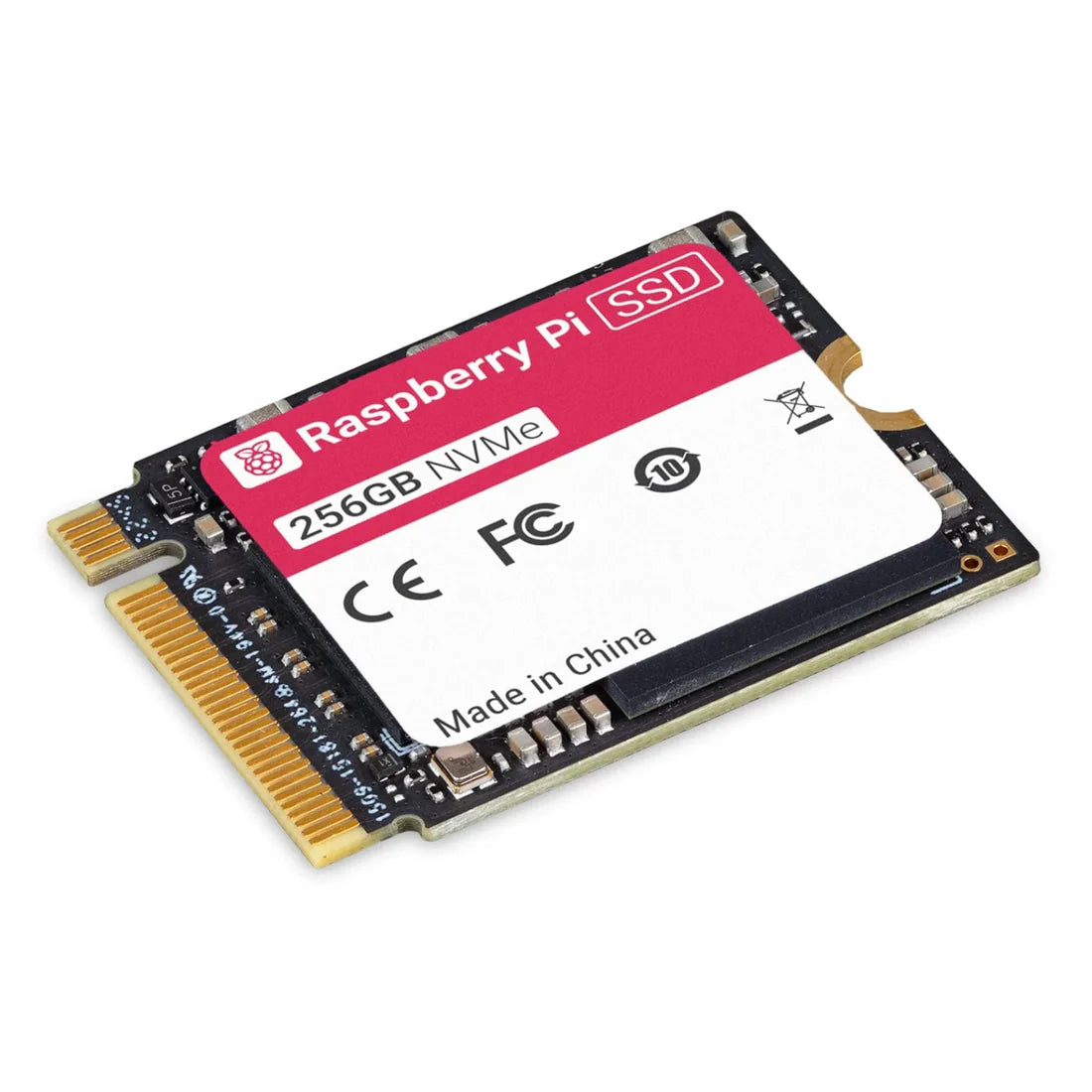

| Raspberry Pi NVMe SSD - 256GB | X1 |
| 16mm GPIO Stacking Header | X1 |
| Nylon Standoff/Screw Set | X1 |
Is this kit compatible with the Raspberry Pi 5?
Yes. The kit is designed for Raspberry Pi 5 and comes with the M.2 HAT+ and a 256 GB NVMe SSD pre installed. The Raspberry Pi 5 board is not included and you connect it using the included header, spacers, and screws.
What is included in the kit?
The kit includes the Raspberry Pi M.2 HAT+ with PCI E cable, a 256 GB NVMe SSD pre installed, a 16 mm GPIO stacking header, and nylon standoff and screw set. Spacers are included to secure to the Raspberry Pi 5 and an active cooler can be used underneath.
What are the performance specifications?
The drive supports 40k IOPS for 4kB random reads and 70k IOPS for 4kB random writes. It enables fast startup when booting from the SSD and is suitable for IO intensive applications.
Do I need to assemble anything before use?
No. The SSD is pre installed to the M.2 HAT+ and the kit is ready out of the box to connect to your Raspberry Pi 5.
What are the operating conditions and production status?
Operating temperature is 0 to 50 C ambient. The Raspberry Pi SSD Kit will remain in production until at least January 2032.
Description
Raspberry Pi SSD Kit
For Raspberry Pi 5
The Raspberry Pi SSD Kit is a Raspberry Pi M.2 HAT+ with a Raspberry Pi NVMe SSD. It unlocks outstanding performance for I/O intensive applications on Raspberry Pi 5, including super-fast startup when booting from SSD.
The Raspberry Pi SSD Kit is a great-value way to grab both the Raspberry Pi NVMe SSD and Raspberry Pi M.2 HAT+ to unlock outstanding performance for I/O intensive applications on Raspberry Pi 5, including super-fast startup when booting from the SSD.
The kit comes pre-assembled with the SSD installed into the M.2 HAT+, ready out of the box to connect to your Raspberry Pi 5 (not included).
The kit includes a 16mm stacking header, spacers, and screws to secure to your Pi 5. A Raspberry Pi Active Cooler can also be used underneath the HAT at the same time when using these spacers.
Feature
| Product Name | SSD + M.2 HAT+ Bundle for Raspberry Pi 5 |
| Storage Capacity | 256GB NVMe SSD |
| Performance | 40k IOPS (4kB random reads) / 70k IOPS (4kB random writes) |
| Compatibility | Conforms to Raspberry Pi HAT+ specification |
| Assembly | SSD pre-assembled to HAT+ (256GB) |
| Accessories | Standoffs and screws included |
Specification
| Capacity | 256GB |
| Operating Temperature | 0℃ to 50℃ (ambient) |
| Production Lifetime | The Raspberry Pi SSD Kit will remain in production until at least January 2032 |
| Compliance | For a full list of local and regional product approvals, please visit pip.raspberrypi.com |
Hardware Overview
Documents
| Raspberry Pi SSD product brief | Download |
| Raspberry Pi SSD Kit product brief | Download |
Part List
| Raspberry Pi M.2 HAT+ (with PCI-E cable) | X1 |
| Raspberry Pi NVMe SSD - 256GB | X1 |
| 16mm GPIO Stacking Header | X1 |
| Nylon Standoff/Screw Set | X1 |
FAQ
Is this kit compatible with the Raspberry Pi 5?
Yes. The kit is designed for Raspberry Pi 5 and comes with the M.2 HAT+ and a 256 GB NVMe SSD pre installed. The Raspberry Pi 5 board is not included and you connect it using the included header, spacers, and screws.
What is included in the kit?
The kit includes the Raspberry Pi M.2 HAT+ with PCI E cable, a 256 GB NVMe SSD pre installed, a 16 mm GPIO stacking header, and nylon standoff and screw set. Spacers are included to secure to the Raspberry Pi 5 and an active cooler can be used underneath.
What are the performance specifications?
The drive supports 40k IOPS for 4kB random reads and 70k IOPS for 4kB random writes. It enables fast startup when booting from the SSD and is suitable for IO intensive applications.
Do I need to assemble anything before use?
No. The SSD is pre installed to the M.2 HAT+ and the kit is ready out of the box to connect to your Raspberry Pi 5.
What are the operating conditions and production status?
Operating temperature is 0 to 50 C ambient. The Raspberry Pi SSD Kit will remain in production until at least January 2032.
