Best seller

reComputer

reComputer Super J401 Carrier Board for Jetson Orin™ Nano/NX in Super Mode

SKU: SBC1160

₹ 22,799.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
reComputer Super J401 Carrier Board for Jetson Orin™ Nano/NX in Super Mode₹ 22,799.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Specification

Carrier Board

Storage

1x M.2 KEY M PCIe for SSD

Networking

M.2 KEY E

1x M.2 Key E for WiFi/Bluetooth module

Mini PCIe

1x mini-PCIe for LTE 4G module

Ethernet

2x RJ45 Gigabit Ethernet

I/O

USB

4x USB 3.2 Type-A (5Gbps);

1x USB 2.0 Type-C (Device Mode/Debug);

Camera

4x mipi CSI(2-lane 15-Pin)

CAN

1 x CAN(4-Pin Header)

Display

1x HDMI 2.1

Fan

1x 4-Pin 1.25mm Fan Connector (5V PWM)

1x 4-Pin 2.54mm Fan Connector (12V PWM)

Extension Port

1x 40-Pin extension header

1x 12-Pin control and UART header

RTC

1x RTC 2-pin

1x RTC Socket

LED

2x LED(PWR and ACT)

Button

1x PWR

1x RESET

Switch

1x REC

Power

12-19V 5525 Barrel DC Jack

Mechanical

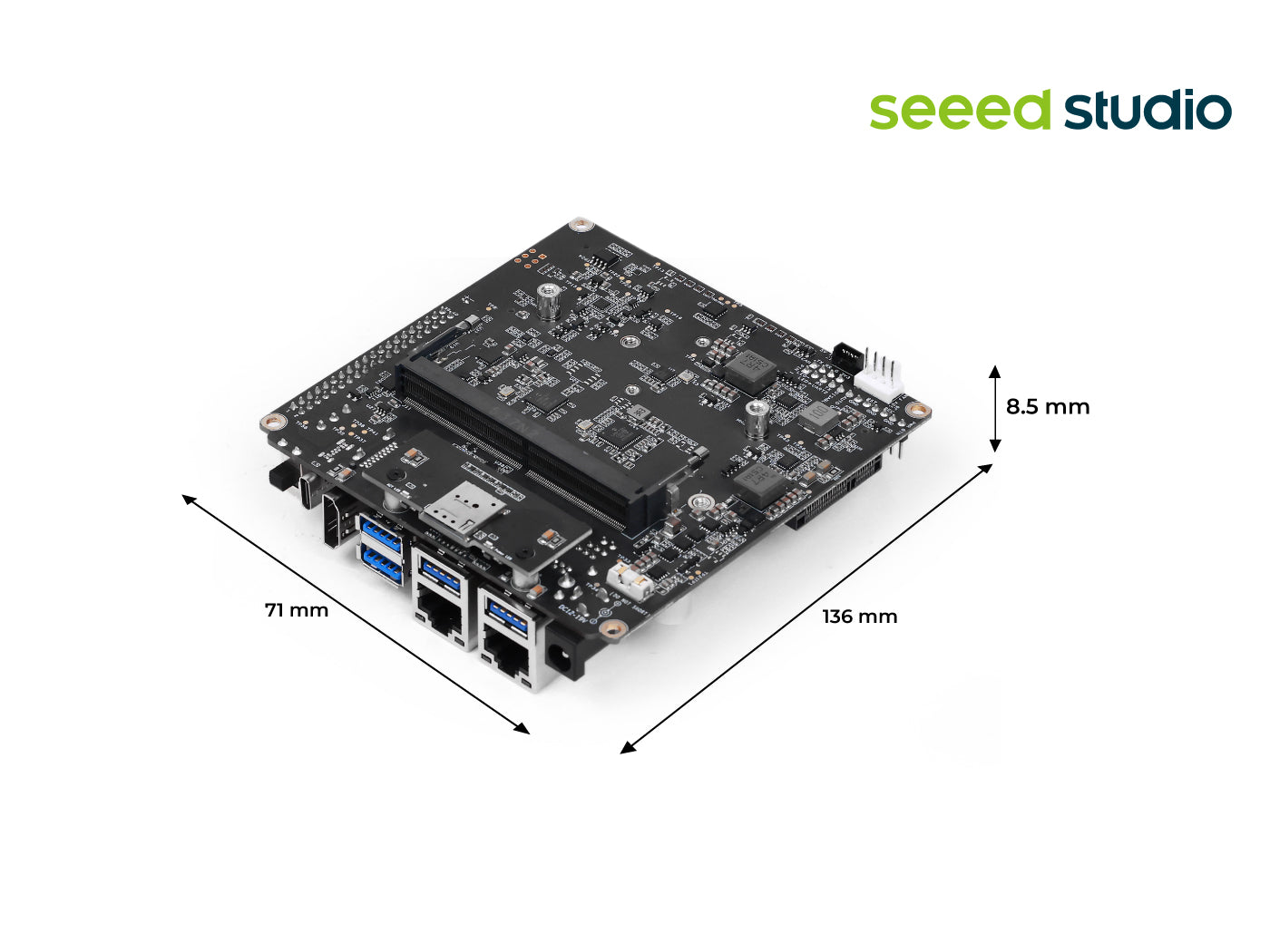

Dimensions (W x D x H)

71mm x 136mm x 8.5mm

Weight

155.8g

Installation

Desk (Copper column include)

Operating Temperature

-20℃~65℃(25W Mode)

-20℃~60℃(MAXN Mode)

Warranty

2 Years

Certification

RoHS,REACH,CE,FCC,KC

Product Feature Description

  • Super Boost AI Performance: Supports Orin Nano and Orin NX module, delivering up to 157 TOPS, ideal for demanding applications like vision AI, robotics, and generative AI.
  • Energy-Efficient Operation: Configurable power modes from 10W to 40W allow for optimized performance and energy consumption.
  • Robust Thermal Design: Operates reliably in temperatures from -20°C to 60°C at 40W, and up to 65°C at 25W.
  • Rich interfaces: Features 2x RJ45, SIM card, 4x USB 3.2, HDMI 2.1 and CAN. Also including M.2 Key E/M, Mini-PCIe, 4x Mipi-CSI for connectivity and cameras.
  • Ready for Deployment: Supports AI frameworks like NVIDIA Isaac, Hugging Face, and ROS2/1, enabling rapid development of various AI applications.





Jetson Orin Nano / Orin NX Modules Performance with Super Mode
  • Memory Bandwidth Upgrade
  • Higher Throughput
  • Improved higher frame rate processing
  • Enhanced Power Management
  • Reduced Inference Latency

Built for developers, the reComputer Super J401 is an enhanced upgrade over the reComputer J401. It takes edge AI development further with key enhancements: dual GbE (RJ45) ports, LTE, 4x Mipi-CSI for Camera, and full support for MAXN Mode.

Hardware Overview

Product Application Description

Designed for Developers — Out-of-the-Box Experience:

Whether you're an experienced developer or a complete beginner for embedded AI/GPU inference, use reComputer Super AI box as your first AI workstation, together diving into NVIDIA Jetson for Beginners — your fast track to vision AI, Generative AI, and robotics development! Through these tutorials, you will learn:
  • From Zero to Real Projects: Master Linux basics on the Jetson environment to build an end-to-end AI NVR/AMR.
  • Hardware Integration: Tailored for reComputer Jetson devices for a seamless, out-of-the-box experience.
  • Coverage of Cutting-Edge Domains: Deep dive into CV, GenAI, ROS, agentic AI, and TensorRT optimization.
  • Toolchain Mastery: Hands-on tutorials with NVIDIA JetPack SDK, CUDA, DeepStream, PyTorch, and TensorFlow.


To improve the developer experience, Seeed offers reComputer AI Lab — a platform that helps you deploy AI applications with one-click tools and ready-to-use resources. It includes optimized edge AI model demos for CV, LLM, VLM, interactive tutorials, deployment tools, containerized applications, and community projects to speed up development on Jetson.



Seeed Jetson Develop Tool is a desktop client for all developers who are going to use reComputer Jetson device for the very first time. It brings the common bring-up and development workflow into one GUI: firmware flashing, first-boot initialization, device diagnostics, remote development, app deployment, skill-based automation, OTA updates, and community resources. All we provide here is to help you to get started with Seeed reComputer Jetson hardware much more easily and seamlessly.

Ready to build a solution for the real world? We have Jetson-example prepared for you! It offers one-line deployable projects compatible with generative AI large models, including LeRobot, Ollama, Qwen, etc; with computer vision such as Ultraslytics YOLO26. We have configured all environment setups for you to provide a single command deployment of projects, easy to try out/verify if the trending model performance is suitable for your GPU needs and application scenarios.


Designed for Multi-Camera Vision AI:

Powered by the reComputer Super AI box, the system supports up to 4x USB cameras or MIPI-CSI cameras to create a 360° panoramic vision network. Leveraging the advanced spatial foundation model, it processes multiple real-time video streams simultaneously to deliver accurate depth perception, comprehensive environmental awareness, and real-time blind-spot elimination for safer autonomous operation.

Documents

Certification Info Part

Seeed Carrier Board (reComputer Super J401)

x1

SIM Board

x1

M3 Stud

x5

M3 Screw

x5

Certification Info Eccn

HSCODE 8473309000
USHSCODE 8473309100
UPC
EUHSCODE 8471707000
COO CHINA
What storage option is provided on the board?
It includes 1x M.2 KEY M PCIe for SSD.
How can I add wireless and Bluetooth connectivity?
The board provides 1x M.2 Key E for WiFi/Bluetooth module.
Is there a slot for LTE connectivity?
Yes, it includes 1x mini PCIe for LTE 4G module.
How many Ethernet ports are available?
The board supports 2x Ethernet.
Which Jetson modules does this carrier board support?
It supports Jetson Orin Nano and NX in Super Mode.
