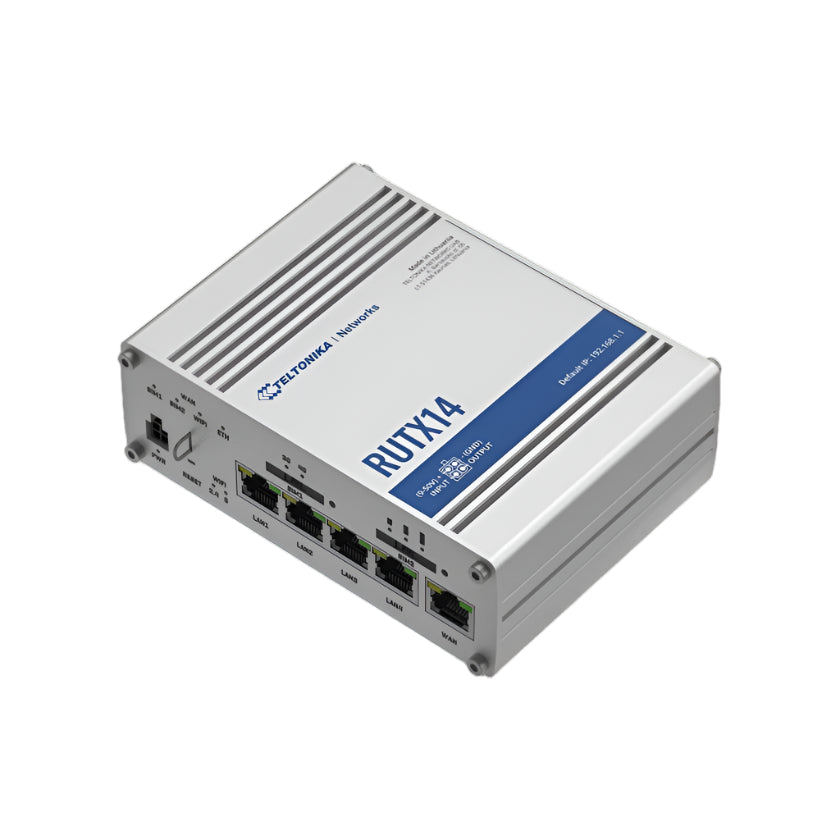

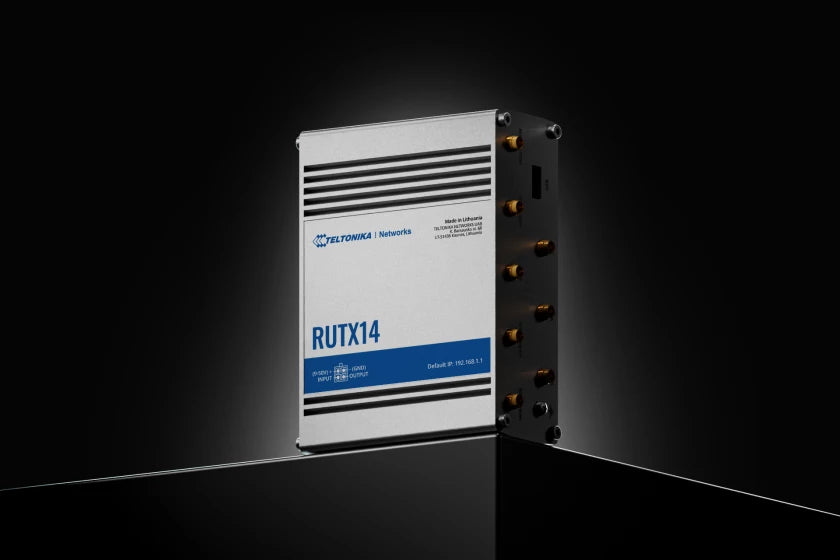

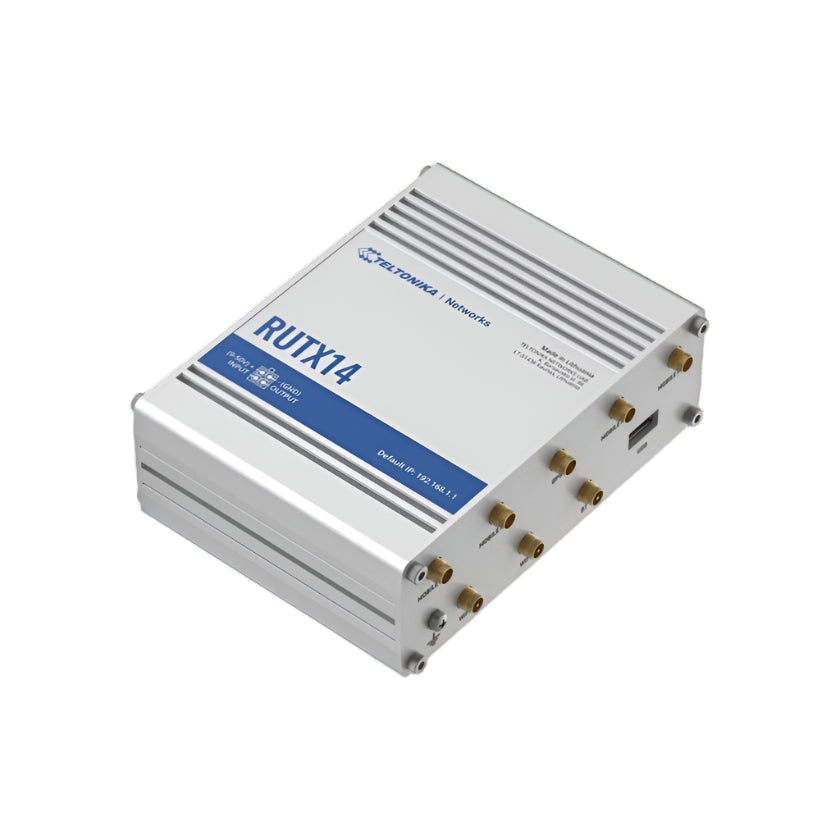

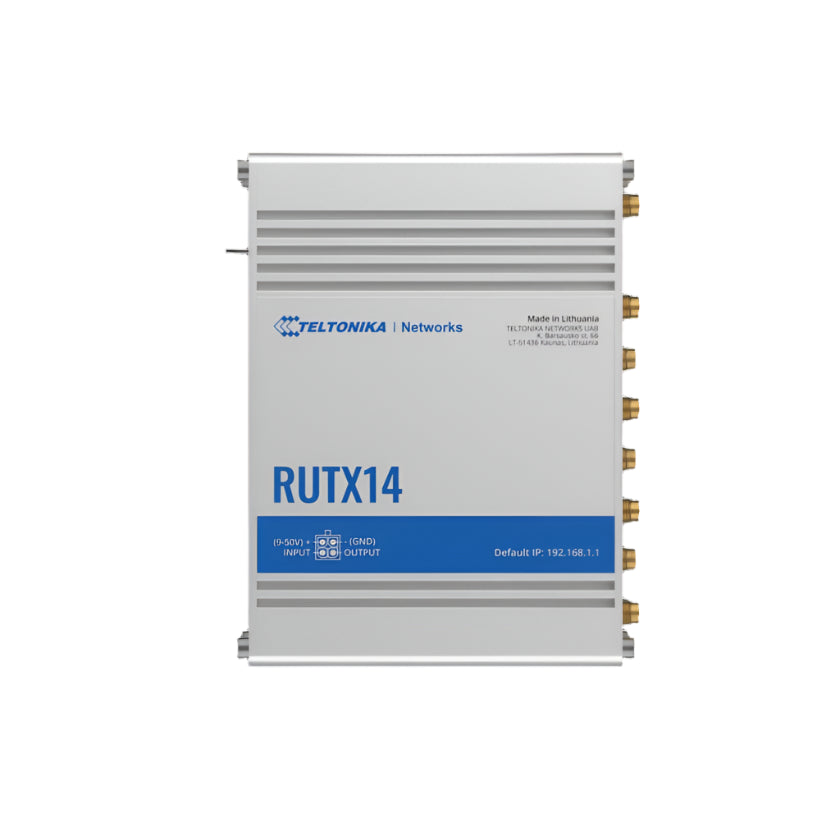

RUTX14 is the fastest single modem LTE-A Cat 12 router in the Teltonika Networks product range. With two SIM cards, Wave-2 dual-band Wi-Fi, five Gigabit Ethernet ports, and automatic failover, you may expect high compatibility, unbeatable network resilience, and exceptional speed.
*Standard package contents may differ based on standard order codes.
| Feature | Details |
|---|---|
| Mobile Module | 4G LTE Cat 12 up to 600 DL/150 UL Mbps; 3G up to 42 DL/11.2 UL Mbps |
| 3GPP Release | Release 12 |
| SIM Switch | 2 SIM cards, auto-switch on weak signal, data limit, roaming, no network, etc. |
| Status | IMSI, ICCID, operator, data connection state, network type, signal strength (RSSI), etc. |
| SMS | SMS status, send/read SMS via HTTP, SMS to Email, SMS autoreply, SMPP |
| USSD | Supports sending/reading Unstructured Supplementary Service Data messages |
| Black/White list | Operator black/white list (by country or operator) |
| Multiple PDN | Supports multiple PDNs for different network access/services |
| Band Management | Band lock, used band status display |
| SIM Idle Protection | Idle SIM protection for unused SIM slots |
| SIM PIN Code Management | Set, change, or disable SIM PIN code |
| APN | Auto APN |
| Bridge | Direct connection (bridge) between mobile ISP and LAN device |
| Passthrough | Router assigns mobile WAN IP to another device on LAN |
| Feature | Details |
|---|---|
| Wireless Mode | 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data rates up to 867 Mbps, Dual Band |
| Wi-Fi Security | WPA2-Enterprise, WPA3, AES-CCMP, TKIP, EAP-TLS with PKCS#12 certificates, etc. |
| SSID/ESSID | ESSID stealth mode |
| Wi-Fi Users | Up to 150 simultaneous connections |
| Wireless Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), 802.11v, etc. |
| Wireless MAC Filter | Allowlist, blocklist |
| Wireless QR Code Generator | Auto network entry for scanned users |
| TravelMate | Forward Wi-Fi hotspot landing page to subsequent device |
| Feature | Details |
|---|---|
| Bluetooth | Bluetooth 4.0, Bluetooth LE for short-range communication |
| Feature | Details |
|---|---|
| WAN | 1 x WAN port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| LAN | 4 x LAN ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
Ā
| Feature | Details |
|---|---|
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN |
| VoIP Passthrough Support | H.323 and SIP-alg protocol NAT helpers for VoIP packet routing |
| Connection Monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forward, traffic rules, custom rules, TTL target customization |
| Firewall Status Page | View all Firewall statistics, rules, and rule counters |
| Ports Management | View device ports, enable/disable, transmission speed changes |
| Network Topology | Visual representation of your network |
| Hotspot | Captive portal, internal/external Radius, SMS/SSO auth, user management, customizable themes |
| DHCP | Static and dynamic IP allocation, DHCP relay/server configuration |
| QoS / Smart Queue Management (SQM) | Traffic priority, WMM, 802.11e |
| DDNS | Supported >25 service providers, manual configuration |
| DNS over HTTPS | Secure DNS resolution via HTTPS |
| Network Backup | Wi-Fi WAN, Mobile, VRRP, Wired for automatic failover |
| Load Balancing | Balance Internet traffic over multiple WAN connections |
| SSHFS | Mount remote file system via SSH |
| VRF Support | Initial virtual routing and forwarding support |
| Traffic Management | Real-time monitoring, signal charts, traffic usage history |
| Feature | Details |
|---|---|
| 802.1x | Port-based network access control |
| Authentication | Pre-shared key, certificates, TACACS+, RADIUS, IP/login block, time-based blocking |
| Firewall | Preconfigured firewall rules via WebUI, unlimited config via CLI, NAT, DMZ, NAT64 |
| Attack Prevention | DDOS prevention, port scan prevention, SSH/HTTP attack prevention |
| VLAN | Port and tag-based VLAN separation |
| Mobile Quota Control | Data limit, customizable period, warning limit, phone number |
| Web Filter | Blacklist/whitelist unwanted or allowed sites |
| Access Control | SSH, Web, CLI, Telnet access control |
| SSL Certificate Generation | Let's Encrypt, SCEP certificate generation |
| Feature | Details |
|---|---|
| OpenVPN | Multiple clients and server, 27 encryption methods |
| OpenVPN Encryption | DES, RC2, AES, BF, CAST, RC2, AES-GCM, etc. |
| IPsec | XFRM, IKEv1, IKEv2, 14 encryption methods (3DES, AES128, AES256, etc.) |
| GRE | GRE tunnel, GRE over IPsec support |
| PPTP, L2TP | Client/server instances, L2TPv3, L2TP over IPsec |
| Stunnel | Adds TLS encryption to existing clients and servers |
| DMVPN | Scalable IPsec VPNs, Phase 2, Phase 3, Dual Hub support |
| SSTP | SSTP client instance support |
| ZeroTier | ZeroTier VPN client support |
| WireGuard | WireGuard VPN client/server support |
| Tinc | Encryption, authentication, compression in tunnels |
| Tailscale | Speed, stability, simplicity with WireGuard protocol |
Ā
| Feature | Details |
|---|---|
| Supported Modes | Client, Server |
| Supported Connection Types | TCP |
| Feature | Details |
|---|---|
| Supported Modes | Server, Client |
| Supported Connection Types | TCP, USB |
| Custom Registers | MODBUS TCP custom register block requests, read/write to a file inside router, extend MODBUS TCP Client functionality |
| Supported Data Formats | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB/LSB first); 32-bit: float, INT, UINT (ABCD, DCBA, CDAB, BADC), HEX, ASCII |
| Feature | Details |
|---|---|
| Protocol | HTTP(S), MQTT, Azure MQTT, Kinesis |
| Data to Server | Extract parameters from multiple sources/protocols, send to a single server; Custom LUA scripting for Data to server functionality |
| Feature | Details |
|---|---|
| Modbus MQTT Gateway | Allows sending commands and receiving data from MODBUS Server via MQTT broker |
| Feature | Details |
|---|---|
| Supported Modes | Station, Outstation |
| Supported Connection | TCP, USB |
| Feature | Details |
|---|---|
| DLMS Support | Standard protocol for utility meter data exchange |
| Supported Modes | Client |
| Supported Connection Types | TCP, USB |
| COSEM (Companion Specification for Energy Metering) | Allows scanning of meter COSEM objects for automatic detection and configuration |
Ā
| Feature | Details |
|---|---|
| Teltonika Networks Web API (beta) support | Expand your device's possibilities with configurable API endpoints to retrieve or change data. For more information, visit Teltonika Web API |
| Feature | Details |
|---|---|
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status |
| FOTA | Firmware update from server, automatic notification |
| SSH | SSH (v1, v2) |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
| Call | Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP Trap, Brute force protection |
| JSON-RPC | Management API over HTTP/HTTPS |
| RMS | Teltonika Remote Management System (RMS) |
| Platform | Details |
|---|---|
| ThingWorx | Allows monitoring of WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| Cumulocity - Cloud of Things | Allows monitoring of Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions |
| Azure IoT Hub | Can be configured with Data to Server to send parameters to the cloud. Supports Direct Method and Plug and Play integration for zero-touch device provisioning to IoT Hubs |
| AWS IoT Core | Utility to interact with AWS cloud platform. Jobs Support for API calls via AWS Jobs functionality |
| Feature | Details |
|---|---|
| CPU | Quad-core ARM Cortex A7, 717 MHz |
| RAM | 256 MB, DDR3 |
| FLASH Storage | 256 MB, SPI Flash |
Ā
| Feature | Details |
|---|---|
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW |
| RMS | Update FW/configuration for multiple devices at once |
| Keep settings | Update FW without losing current configuration |
| Factory settings reset | A full factory reset restores all system settings to default manufacturer's configuration |
| Feature | Details |
|---|---|
| Operating system | RutOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++, Python, Java in Package manager |
| Development tools | SDK package with build environment provided |
| GPL customization | Custom branded firmware and web page application (colours, logos, etc.) |
| Package Manager | Service for installing additional software on the device |
| Feature | Details |
|---|---|
| GNSS | GPS, GLONASS, BeiDou, Galileo, QZSS |
| Coordinates | GNSS coordinates via WebUI, SMS, TAVL, RMS |
| NMEA | NMEA 0183 |
| NTRIP | NTRIP protocol (Networked Transport of RTCM via Internet Protocol) |
| Server software | Supported server software TAVL, RMS |
| Geofencing | Configurable multiple geofence zones |
| Feature | Details |
|---|---|
| Data rate | USB 2.0 |
| Applications | Samba share, USB-to-serial |
| External devices | Connect external HDD, flash drive, modem, printer, USB-serial adapter |
| Storage formats | FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 |
| Feature | Details |
|---|---|
| Input | 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high |
| Output | 1 x Digital Output, Open collector output, max output 30 V, 300 mA |
| Events | Email, RMS, SMS |
| I/O juggler | Set conditions to initiate events based on I/O status |
Ā
| Feature | Details |
|---|---|
| Connector | 4-pin industrial DC power socket |
| Input voltage range | 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE (passive) | Power through LAN1 port, Mode B, 9 - 50 VDC (not compatible with IEEE802.3af, 802.3at, and 802.3bt standards) |
| Power consumption | Idle: < 4 W, Max: < 22 W |
| Feature | Details |
|---|---|

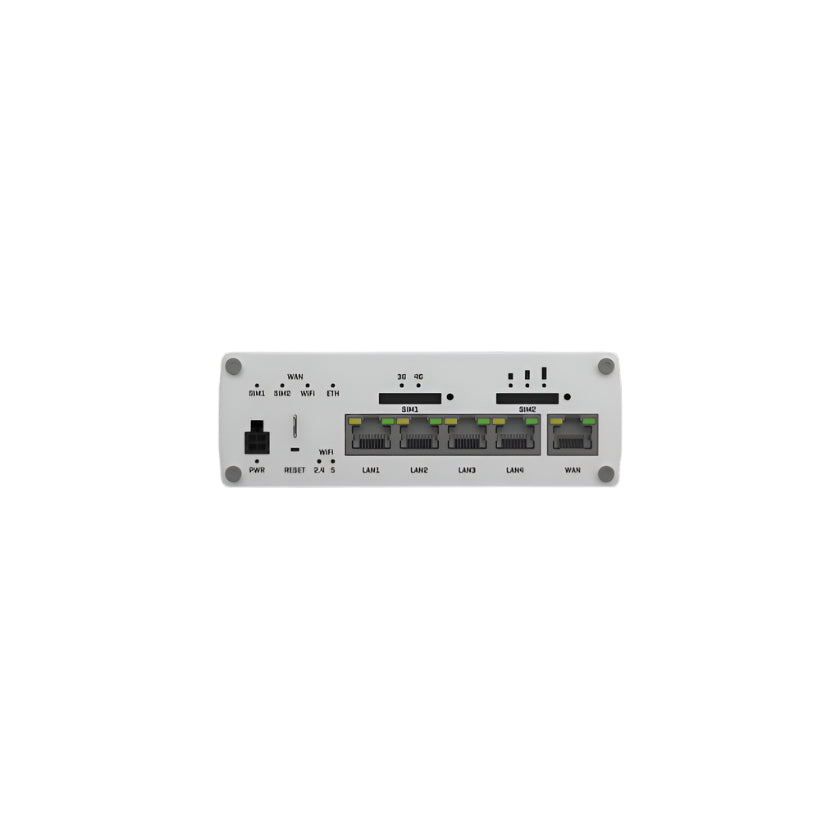

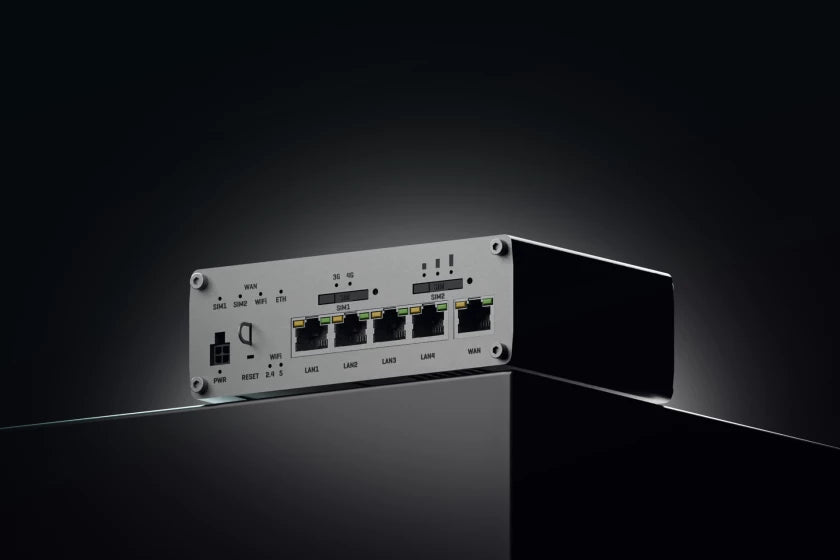

| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| I/O's | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |
| Status LEDs | 2 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders |
| Power | 1 x 4-pin power connector |

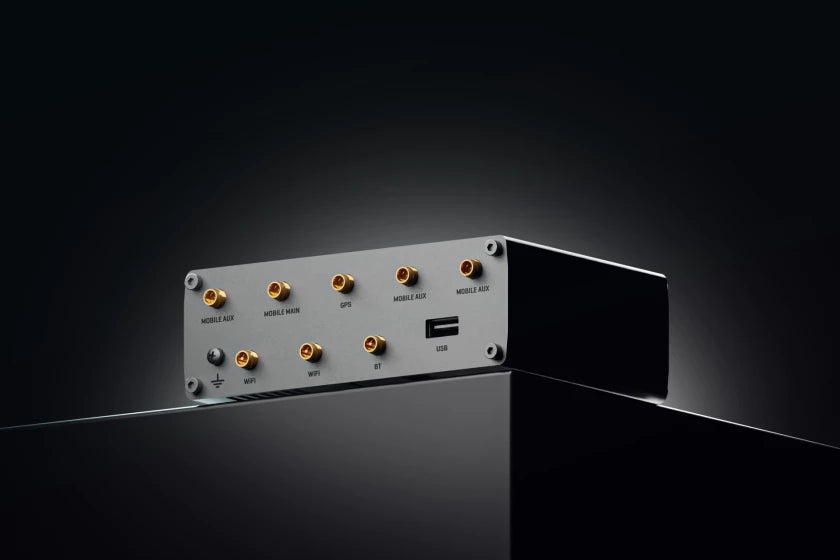

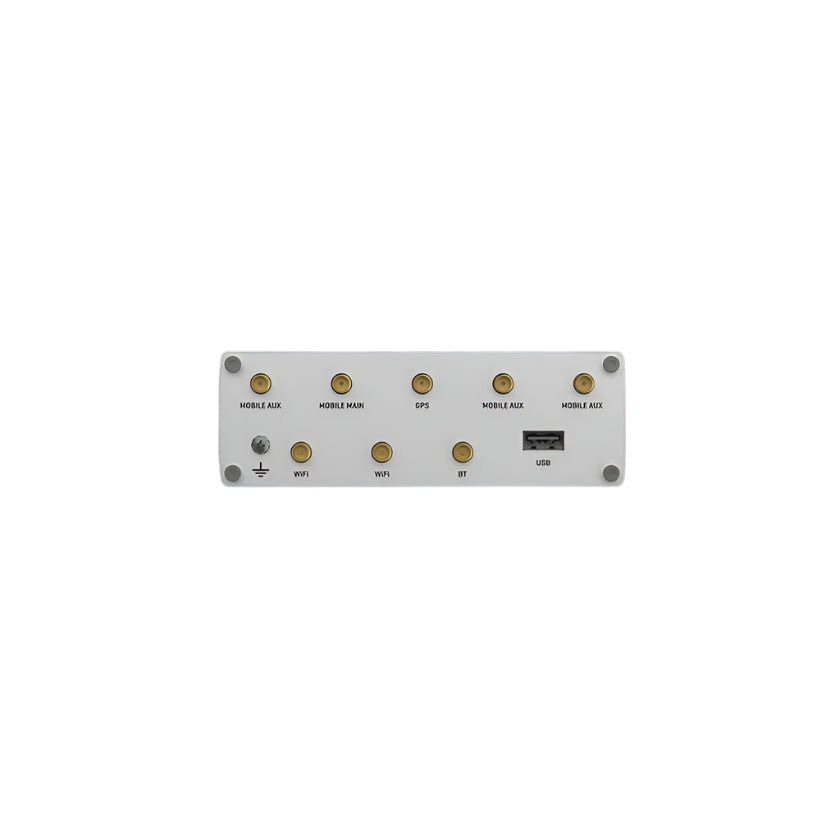

| Antennas | 4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNSS |
| USB | 1 x USB A port for external devices |
| Reset | Reboot/User default reset/Factory reset button |
| Other | 1 x Grounding screw |
| Feature | Details |
|---|---|
| Casing material | Full aluminium housing |
| Dimensions (W x H x D) | 132 x 44 x 95 mm |
| Weight | 515 g |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) |
| Feature | Details |
|---|---|
| Operating temperature | -40 Ā°C to 75 Ā°C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
Ā
| Certification | Details |
|---|---|
| CE | Compliance with European standards |
| UKCA | Compliance with UK regulations |
| RCM | Compliance with Australian regulations |
| UCRF | Compliance with UAE regulations |
| CITC | Compliance with Saudi Arabia regulations |
| Kenya | Compliance with Kenyan standards |
| ICASA | Compliance with South African regulations |
| ANRT | Compliance with Moroccan regulations |
| NTC | Compliance with Thai regulations |
| SIRIM | Compliance with Malaysian regulations |
| GCF | Global Certification Forum compliance |
| CB | International certification for safety and performance |
| RoHS | Compliance with the Restriction of Hazardous Substances directive |
| REACH | Compliance with the Registration, Evaluation, Authorisation and Restriction of Chemicals regulation |
| Standard | Details |
|---|---|
| EN 55032:2015 + A1:2020 | EMC emissions standard for multimedia equipment |
| EN 55035:2017 + A11:2020 | Immunity standard for multimedia equipment |
| EN IEC 61000-3-2:2019 | Harmonic current emissions standard |
| EN 61000-3-3:2013 + A1:2019 | Voltage fluctuations and flicker standards |
| EN 301 489-1 V2.2.3 | General EMC requirements for radio equipment |
| EN 301 489-17 V3.2.4 | EMC requirements for broadband radio communication equipment |
| Draft EN 301 489-19 V2.2.0 | Draft standard for EMC of multi-band radio equipment |
| Draft EN 301 489-52 V1.1.2 | Draft standard for EMC of cellular base stations |
| ESD (EN 61000-4-2:2009) | Electrostatic discharge immunity standard |
| Radiated Immunity (EN IEC 61000-4-3:2020) | Immunity to radiated electromagnetic fields |
| EFT (EN 61000-4-4:2012) | Immunity to electrical fast transients |
| Surge Immunity (AC Mains Power Port EN 61000-4-5:2014 + A1:2017) | Immunity to surge transients |
| CS (EN 61000-4-6:2014) | Immunity to conducted disturbances |
| DIP (EN IEC 61000-4-11:2020) | Immunity to voltage dips and shortĀ |
| Standard | Details |
|---|---|
| EN 300 328 V2.2.2 | Wireless LAN standards for 2.4 GHz |
| EN 301 893 V2.1.1 | Standards for 5 GHz wireless equipment |
| EN 300 440 V2.2.1 | Standards for short-range devices operating in the 5 GHz frequency range |
| EN 301 908-1 V13.1.1 | Standards for IMT cellular equipment |
| EN 301 908-2 V13.1.1 | Standards for base stations and other IMT equipment |
| EN 301 908-13 V13.1.1 | Standards for long-range and public safety communication networks |
| EN 303 413 V1.1.1 | Standards for cellular and radio communication in IoT devices |
| Certification | Details |
|---|---|
| CE | Compliance with CE safety standards (EN 62368-1:2014 + A11:2017, EN 62232:2017, EN 50385:2017) |
| UL/CSA Safety | Compliance with UL 62368-1 (3rd Ed., Rev. December 13, 2019) and CAN/CSA C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019) |
| CB | Compliance with IEC 62368-1:2018 safety standard |
Ā
No reviews yet. Be the first to share your experience!
Discover More In:
Category: View similar items (RUTX14)
Fill out the form below and our team will get back to you with bulk pricing.
RUTX14 is the fastest single modem LTE-A Cat 12 router in the Teltonika Networks product range. With two SIM cards, Wave-2 dual-band Wi-Fi, five Gigabit Ethernet ports, and automatic failover, you may expect high compatibility, unbeatable network resilience, and exceptional speed.
*Standard package contents may differ based on standard order codes.
| Feature | Details |
|---|---|
| Mobile Module | 4G LTE Cat 12 up to 600 DL/150 UL Mbps; 3G up to 42 DL/11.2 UL Mbps |
| 3GPP Release | Release 12 |
| SIM Switch | 2 SIM cards, auto-switch on weak signal, data limit, roaming, no network, etc. |
| Status | IMSI, ICCID, operator, data connection state, network type, signal strength (RSSI), etc. |
| SMS | SMS status, send/read SMS via HTTP, SMS to Email, SMS autoreply, SMPP |
| USSD | Supports sending/reading Unstructured Supplementary Service Data messages |
| Black/White list | Operator black/white list (by country or operator) |
| Multiple PDN | Supports multiple PDNs for different network access/services |
| Band Management | Band lock, used band status display |
| SIM Idle Protection | Idle SIM protection for unused SIM slots |
| SIM PIN Code Management | Set, change, or disable SIM PIN code |
| APN | Auto APN |
| Bridge | Direct connection (bridge) between mobile ISP and LAN device |
| Passthrough | Router assigns mobile WAN IP to another device on LAN |
| Feature | Details |
|---|---|
| Wireless Mode | 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data rates up to 867 Mbps, Dual Band |
| Wi-Fi Security | WPA2-Enterprise, WPA3, AES-CCMP, TKIP, EAP-TLS with PKCS#12 certificates, etc. |
| SSID/ESSID | ESSID stealth mode |
| Wi-Fi Users | Up to 150 simultaneous connections |
| Wireless Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), 802.11v, etc. |
| Wireless MAC Filter | Allowlist, blocklist |
| Wireless QR Code Generator | Auto network entry for scanned users |
| TravelMate | Forward Wi-Fi hotspot landing page to subsequent device |
| Feature | Details |
|---|---|
| Bluetooth | Bluetooth 4.0, Bluetooth LE for short-range communication |
| Feature | Details |
|---|---|
| WAN | 1 x WAN port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| LAN | 4 x LAN ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
Ā
| Feature | Details |
|---|---|
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN |
| VoIP Passthrough Support | H.323 and SIP-alg protocol NAT helpers for VoIP packet routing |
| Connection Monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forward, traffic rules, custom rules, TTL target customization |
| Firewall Status Page | View all Firewall statistics, rules, and rule counters |
| Ports Management | View device ports, enable/disable, transmission speed changes |
| Network Topology | Visual representation of your network |
| Hotspot | Captive portal, internal/external Radius, SMS/SSO auth, user management, customizable themes |
| DHCP | Static and dynamic IP allocation, DHCP relay/server configuration |
| QoS / Smart Queue Management (SQM) | Traffic priority, WMM, 802.11e |
| DDNS | Supported >25 service providers, manual configuration |
| DNS over HTTPS | Secure DNS resolution via HTTPS |
| Network Backup | Wi-Fi WAN, Mobile, VRRP, Wired for automatic failover |
| Load Balancing | Balance Internet traffic over multiple WAN connections |
| SSHFS | Mount remote file system via SSH |
| VRF Support | Initial virtual routing and forwarding support |
| Traffic Management | Real-time monitoring, signal charts, traffic usage history |
| Feature | Details |
|---|---|
| 802.1x | Port-based network access control |
| Authentication | Pre-shared key, certificates, TACACS+, RADIUS, IP/login block, time-based blocking |
| Firewall | Preconfigured firewall rules via WebUI, unlimited config via CLI, NAT, DMZ, NAT64 |
| Attack Prevention | DDOS prevention, port scan prevention, SSH/HTTP attack prevention |
| VLAN | Port and tag-based VLAN separation |
| Mobile Quota Control | Data limit, customizable period, warning limit, phone number |
| Web Filter | Blacklist/whitelist unwanted or allowed sites |
| Access Control | SSH, Web, CLI, Telnet access control |
| SSL Certificate Generation | Let's Encrypt, SCEP certificate generation |
| Feature | Details |
|---|---|
| OpenVPN | Multiple clients and server, 27 encryption methods |
| OpenVPN Encryption | DES, RC2, AES, BF, CAST, RC2, AES-GCM, etc. |
| IPsec | XFRM, IKEv1, IKEv2, 14 encryption methods (3DES, AES128, AES256, etc.) |
| GRE | GRE tunnel, GRE over IPsec support |
| PPTP, L2TP | Client/server instances, L2TPv3, L2TP over IPsec |
| Stunnel | Adds TLS encryption to existing clients and servers |
| DMVPN | Scalable IPsec VPNs, Phase 2, Phase 3, Dual Hub support |
| SSTP | SSTP client instance support |
| ZeroTier | ZeroTier VPN client support |
| WireGuard | WireGuard VPN client/server support |
| Tinc | Encryption, authentication, compression in tunnels |
| Tailscale | Speed, stability, simplicity with WireGuard protocol |
Ā
| Feature | Details |
|---|---|
| Supported Modes | Client, Server |
| Supported Connection Types | TCP |
| Feature | Details |
|---|---|
| Supported Modes | Server, Client |
| Supported Connection Types | TCP, USB |
| Custom Registers | MODBUS TCP custom register block requests, read/write to a file inside router, extend MODBUS TCP Client functionality |
| Supported Data Formats | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB/LSB first); 32-bit: float, INT, UINT (ABCD, DCBA, CDAB, BADC), HEX, ASCII |
| Feature | Details |
|---|---|
| Protocol | HTTP(S), MQTT, Azure MQTT, Kinesis |
| Data to Server | Extract parameters from multiple sources/protocols, send to a single server; Custom LUA scripting for Data to server functionality |
| Feature | Details |
|---|---|
| Modbus MQTT Gateway | Allows sending commands and receiving data from MODBUS Server via MQTT broker |
| Feature | Details |
|---|---|
| Supported Modes | Station, Outstation |
| Supported Connection | TCP, USB |
| Feature | Details |
|---|---|
| DLMS Support | Standard protocol for utility meter data exchange |
| Supported Modes | Client |
| Supported Connection Types | TCP, USB |
| COSEM (Companion Specification for Energy Metering) | Allows scanning of meter COSEM objects for automatic detection and configuration |
Ā
| Feature | Details |
|---|---|
| Teltonika Networks Web API (beta) support | Expand your device's possibilities with configurable API endpoints to retrieve or change data. For more information, visit Teltonika Web API |
| Feature | Details |
|---|---|
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status |
| FOTA | Firmware update from server, automatic notification |
| SSH | SSH (v1, v2) |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
| Call | Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP Trap, Brute force protection |
| JSON-RPC | Management API over HTTP/HTTPS |
| RMS | Teltonika Remote Management System (RMS) |
| Platform | Details |
|---|---|
| ThingWorx | Allows monitoring of WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| Cumulocity - Cloud of Things | Allows monitoring of Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions |
| Azure IoT Hub | Can be configured with Data to Server to send parameters to the cloud. Supports Direct Method and Plug and Play integration for zero-touch device provisioning to IoT Hubs |
| AWS IoT Core | Utility to interact with AWS cloud platform. Jobs Support for API calls via AWS Jobs functionality |
| Feature | Details |
|---|---|
| CPU | Quad-core ARM Cortex A7, 717 MHz |
| RAM | 256 MB, DDR3 |
| FLASH Storage | 256 MB, SPI Flash |
Ā
| Feature | Details |
|---|---|
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW |
| RMS | Update FW/configuration for multiple devices at once |
| Keep settings | Update FW without losing current configuration |
| Factory settings reset | A full factory reset restores all system settings to default manufacturer's configuration |
| Feature | Details |
|---|---|
| Operating system | RutOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++, Python, Java in Package manager |
| Development tools | SDK package with build environment provided |
| GPL customization | Custom branded firmware and web page application (colours, logos, etc.) |
| Package Manager | Service for installing additional software on the device |
| Feature | Details |
|---|---|
| GNSS | GPS, GLONASS, BeiDou, Galileo, QZSS |
| Coordinates | GNSS coordinates via WebUI, SMS, TAVL, RMS |
| NMEA | NMEA 0183 |
| NTRIP | NTRIP protocol (Networked Transport of RTCM via Internet Protocol) |
| Server software | Supported server software TAVL, RMS |
| Geofencing | Configurable multiple geofence zones |
| Feature | Details |
|---|---|
| Data rate | USB 2.0 |
| Applications | Samba share, USB-to-serial |
| External devices | Connect external HDD, flash drive, modem, printer, USB-serial adapter |
| Storage formats | FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 |
| Feature | Details |
|---|---|
| Input | 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high |
| Output | 1 x Digital Output, Open collector output, max output 30 V, 300 mA |
| Events | Email, RMS, SMS |
| I/O juggler | Set conditions to initiate events based on I/O status |
Ā
| Feature | Details |
|---|---|
| Connector | 4-pin industrial DC power socket |
| Input voltage range | 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE (passive) | Power through LAN1 port, Mode B, 9 - 50 VDC (not compatible with IEEE802.3af, 802.3at, and 802.3bt standards) |
| Power consumption | Idle: < 4 W, Max: < 22 W |
| Feature | Details |
|---|---|
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| I/O's | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |
| Status LEDs | 2 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders |
| Power | 1 x 4-pin power connector |
| Antennas | 4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNSS |
| USB | 1 x USB A port for external devices |
| Reset | Reboot/User default reset/Factory reset button |
| Other | 1 x Grounding screw |
| Feature | Details |
|---|---|
| Casing material | Full aluminium housing |
| Dimensions (W x H x D) | 132 x 44 x 95 mm |
| Weight | 515 g |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) |
| Feature | Details |
|---|---|
| Operating temperature | -40 Ā°C to 75 Ā°C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
Ā
| Certification | Details |
|---|---|
| CE | Compliance with European standards |
| UKCA | Compliance with UK regulations |
| RCM | Compliance with Australian regulations |
| UCRF | Compliance with UAE regulations |
| CITC | Compliance with Saudi Arabia regulations |
| Kenya | Compliance with Kenyan standards |
| ICASA | Compliance with South African regulations |
| ANRT | Compliance with Moroccan regulations |
| NTC | Compliance with Thai regulations |
| SIRIM | Compliance with Malaysian regulations |
| GCF | Global Certification Forum compliance |
| CB | International certification for safety and performance |
| RoHS | Compliance with the Restriction of Hazardous Substances directive |
| REACH | Compliance with the Registration, Evaluation, Authorisation and Restriction of Chemicals regulation |
| Standard | Details |
|---|---|
| EN 55032:2015 + A1:2020 | EMC emissions standard for multimedia equipment |
| EN 55035:2017 + A11:2020 | Immunity standard for multimedia equipment |
| EN IEC 61000-3-2:2019 | Harmonic current emissions standard |
| EN 61000-3-3:2013 + A1:2019 | Voltage fluctuations and flicker standards |
| EN 301 489-1 V2.2.3 | General EMC requirements for radio equipment |
| EN 301 489-17 V3.2.4 | EMC requirements for broadband radio communication equipment |
| Draft EN 301 489-19 V2.2.0 | Draft standard for EMC of multi-band radio equipment |
| Draft EN 301 489-52 V1.1.2 | Draft standard for EMC of cellular base stations |
| ESD (EN 61000-4-2:2009) | Electrostatic discharge immunity standard |
| Radiated Immunity (EN IEC 61000-4-3:2020) | Immunity to radiated electromagnetic fields |
| EFT (EN 61000-4-4:2012) | Immunity to electrical fast transients |
| Surge Immunity (AC Mains Power Port EN 61000-4-5:2014 + A1:2017) | Immunity to surge transients |
| CS (EN 61000-4-6:2014) | Immunity to conducted disturbances |
| DIP (EN IEC 61000-4-11:2020) | Immunity to voltage dips and shortĀ |
| Standard | Details |
|---|---|
| EN 300 328 V2.2.2 | Wireless LAN standards for 2.4 GHz |
| EN 301 893 V2.1.1 | Standards for 5 GHz wireless equipment |
| EN 300 440 V2.2.1 | Standards for short-range devices operating in the 5 GHz frequency range |
| EN 301 908-1 V13.1.1 | Standards for IMT cellular equipment |
| EN 301 908-2 V13.1.1 | Standards for base stations and other IMT equipment |
| EN 301 908-13 V13.1.1 | Standards for long-range and public safety communication networks |
| EN 303 413 V1.1.1 | Standards for cellular and radio communication in IoT devices |
| Certification | Details |
|---|---|
| CE | Compliance with CE safety standards (EN 62368-1:2014 + A11:2017, EN 62232:2017, EN 50385:2017) |
| UL/CSA Safety | Compliance with UL 62368-1 (3rd Ed., Rev. December 13, 2019) and CAN/CSA C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019) |
| CB | Compliance with IEC 62368-1:2018 safety standard |
Ā
No reviews yet. Be the first to share your experience!
Discover More In:
Category: View similar items (RUTX14)
Fill out the form below and our team will get back to you with bulk pricing.
Custom Requirements?
Related products
