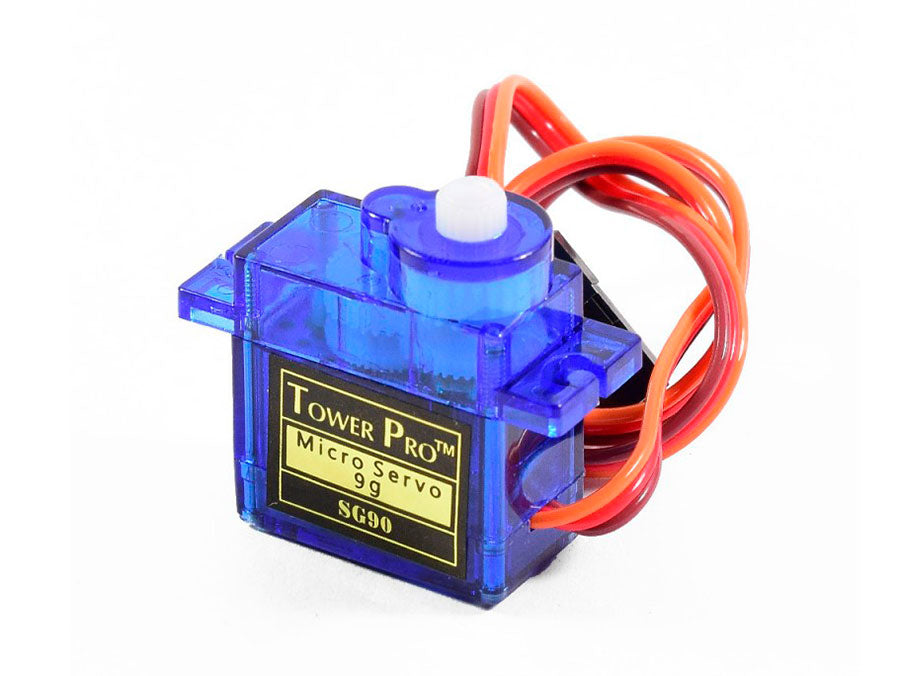

The TowerPro SG90 mini servo is lightweight, high-quality and lightning-fast. The servo is designed to work with almost all radio control systems. The SG90 mini servo with accessories is perfect for R/C helicopter, plane, car, boat and truck use.
It equips Carbon Fiber Gears which makes the servo motor much lighter than the same metal gear motor. For small load applications using the metal gear, servo motor adds on unnecessary weight, so we suggest using these lightweight plastic gear servo motors.
The TowerPro SG90 9g Mini Servo is a 180° rotation servo. It is a Digital Servo Motor that receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.
- Micro Size Servo
- Speed (sec/60deg): 0.10/4.8V
- Torque (Kg-cm): 1.80/4.8V
- Size (mm): 23.1mm x 12.2mm x 29mm

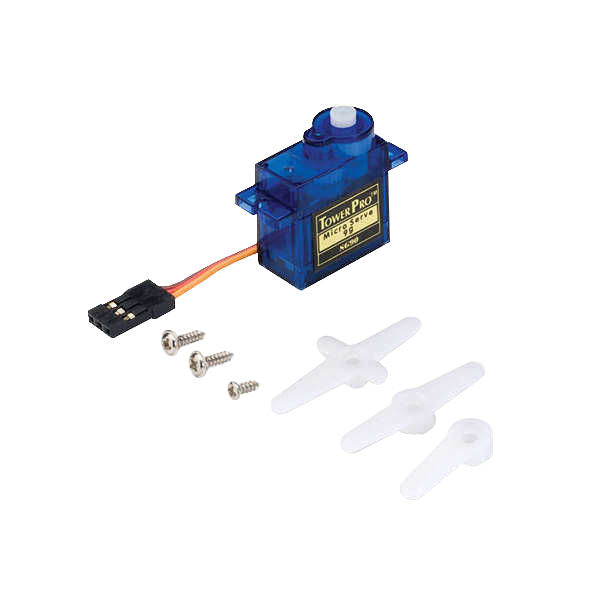

- C/W plastic horn and accessories
- Pulse Width: 500-2400 µs
- Rotation Angle: 180 degree
Specifications
| Model |
SG90 |
| Weight(gm) |
9 |
| Operating Voltage |
3.0 – 7.2 V |
| Operating Speed @4.8V |
0.10sec/60° |
| Stall Torque @4.8V |
1.2 kg-cm |
| Stall Torque @6.6V |
1.6 kg-cm |
| Operating Temperature (°C) |
-30 to 60 |
| Dead Band Width |
7 μs |
| Gear Type |
Glass Fiber |
| Rotational Degree |
180 |
| Servo Plug |
JR |
| Cable Length |
25 cm |
| Length (mm) |
22.8 |
| Width (mm) |
12.6 |
| Height (mm) |
34.5 |
| Shipment Weight |
0.125 kg |
| Shipment Dimensions |
6 × 6 × 4 cm |
Resources
Tutorial
What is the rotation range and speed of this servo?
The servo rotates 180 degrees and, at 4.8 V, its speed is 0.10 sec/60 deg.
What is the operating voltage and stall torque ratings?
Operating voltage is 3.0 to 7.2 V. Stall torque is 1.2 kg-cm at 4.8 V and 1.6 kg-cm at 6.6 V.
What are the physical dimensions and weight?
Size is 23.1 mm x 12.2 mm x 29 mm and weight is 9 g.
What RC system compatibility and connector does it use?
It is designed to work with almost all RC systems and uses a JR plug with a 25 cm cable.
What documentation and resources are available?
Technical resources include a datasheet, library, sample code and tutorials.
Description
The TowerPro SG90 mini servo is lightweight, high-quality and lightning-fast. The servo is designed to work with almost all radio control systems. The SG90 mini servo with accessories is perfect for R/C helicopter, plane, car, boat and truck use.
It equips Carbon Fiber Gears which makes the servo motor much lighter than the same metal gear motor. For small load applications using the metal gear, servo motor adds on unnecessary weight, so we suggest using these lightweight plastic gear servo motors.
The TowerPro SG90 9g Mini Servo is a 180° rotation servo. It is a Digital Servo Motor that receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.
- Micro Size Servo
- Speed (sec/60deg): 0.10/4.8V
- Torque (Kg-cm): 1.80/4.8V
- Size (mm): 23.1mm x 12.2mm x 29mm
- C/W plastic horn and accessories
- Pulse Width: 500-2400 µs
- Rotation Angle: 180 degree
Specifications
| Model |
SG90 |
| Weight(gm) |
9 |
| Operating Voltage |
3.0 – 7.2 V |
| Operating Speed @4.8V |
0.10sec/60° |
| Stall Torque @4.8V |
1.2 kg-cm |
| Stall Torque @6.6V |
1.6 kg-cm |
| Operating Temperature (°C) |
-30 to 60 |
| Dead Band Width |
7 μs |
| Gear Type |
Glass Fiber |
| Rotational Degree |
180 |
| Servo Plug |
JR |
| Cable Length |
25 cm |
| Length (mm) |
22.8 |
| Width (mm) |
12.6 |
| Height (mm) |
34.5 |
| Shipment Weight |
0.125 kg |
| Shipment Dimensions |
6 × 6 × 4 cm |
Resources
Tutorial
FAQ
What is the rotation range and speed of this servo?
The servo rotates 180 degrees and, at 4.8 V, its speed is 0.10 sec/60 deg.
What is the operating voltage and stall torque ratings?
Operating voltage is 3.0 to 7.2 V. Stall torque is 1.2 kg-cm at 4.8 V and 1.6 kg-cm at 6.6 V.
What are the physical dimensions and weight?
Size is 23.1 mm x 12.2 mm x 29 mm and weight is 9 g.
What RC system compatibility and connector does it use?
It is designed to work with almost all RC systems and uses a JR plug with a 25 cm cable.
What documentation and resources are available?
Technical resources include a datasheet, library, sample code and tutorials.
