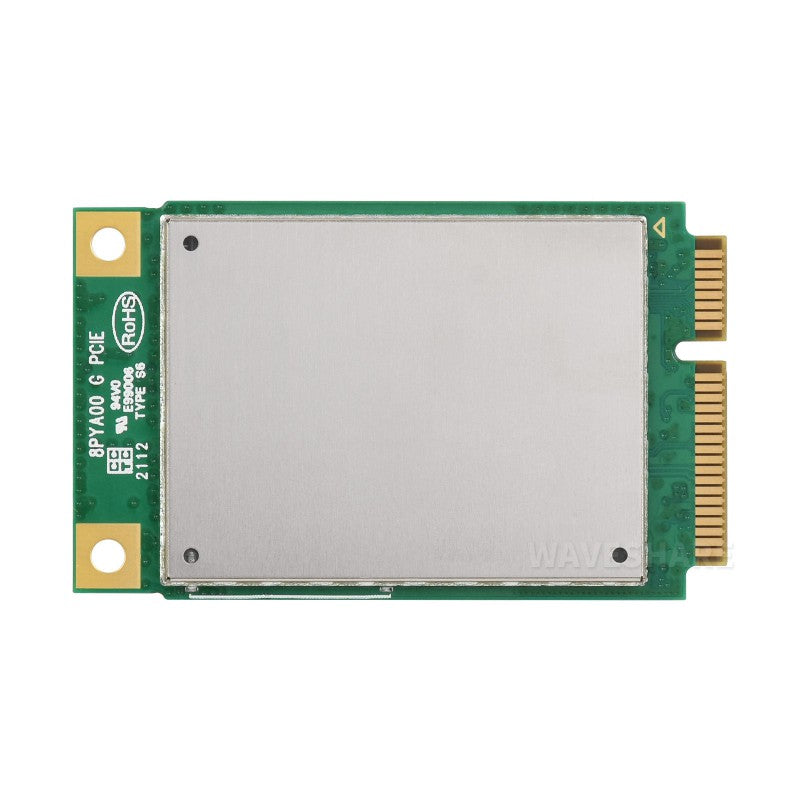

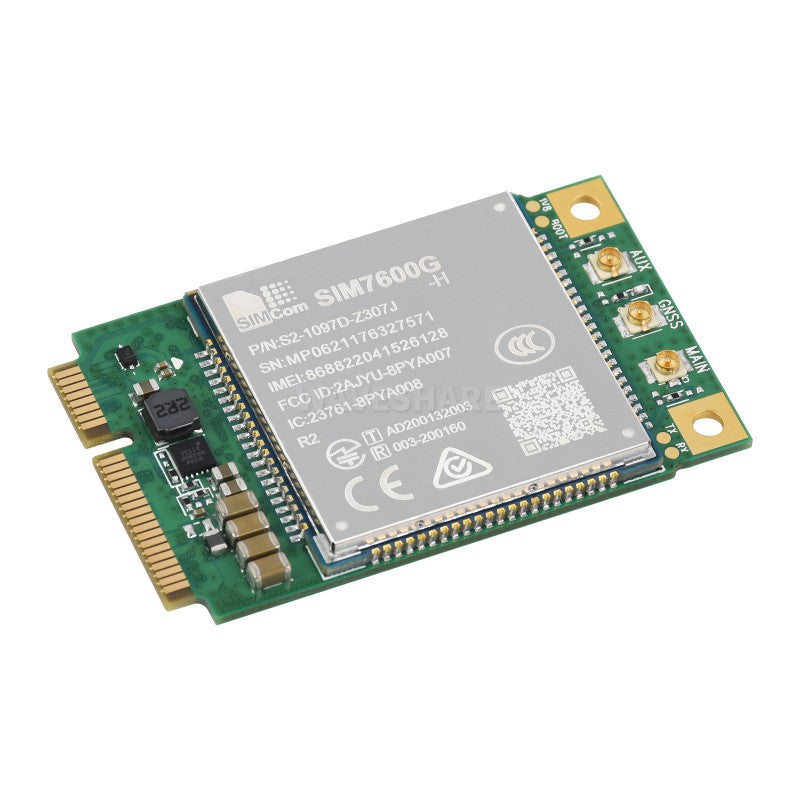

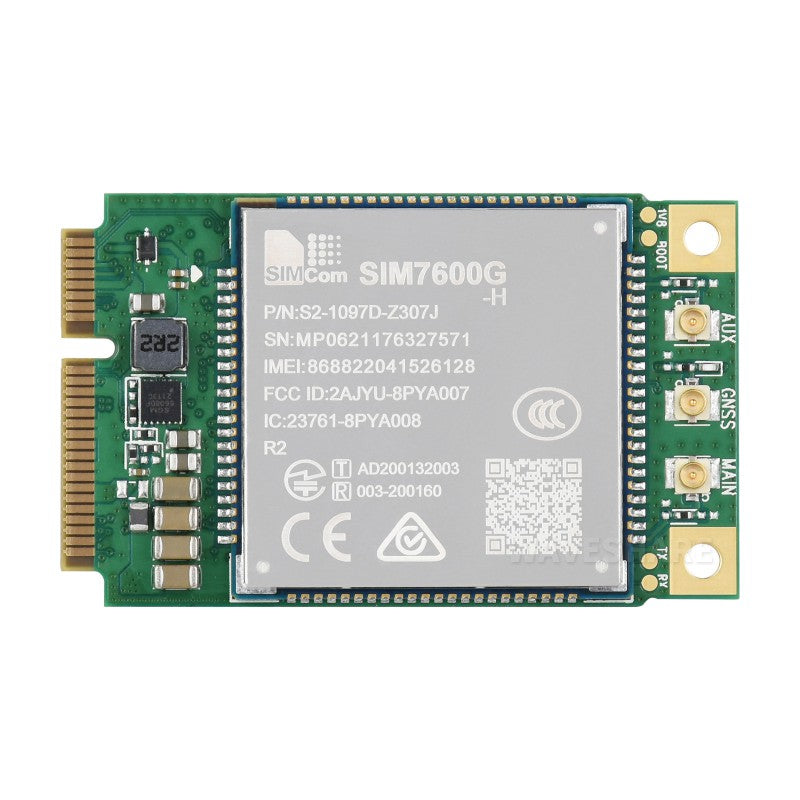

LTE Cat-4 module, Mini-PCIe
The SIM7600G-H-PCIE series is the LTE Cat 4 module which supports wireless communication modes of LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.
The SIM7600G-H-PCIE series adopts mini PCIE form factor and consists of a SIM7600-H series module and a mini PCIE adapter board. It is easy for customers to integrate.
The SIM7600G-H-PCIE series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in networks protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600 series modules.
Meanwhile the SIM7600G-H-PCIE series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.
Ā
> Mini-PCIE interface with strong compatibility
> Multi-constellation GNSS receiver support
> Suitable for LTE, UMTS and GSM networks with global coverage
> Abundant software functions: FOTA, LBS, TLS, VoLTE
> AT commands of the SIM7600-H-PCIE series are compatible with the SIM7500/SIM7600 series modules
Ā
| Parameter | Details |
|---|---|
| Frequency Bands |
LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66 LTE-TDD: B34, B38, B39, B40, B41 WCDMA: B1, B2, B4, B5, B6, B8, B19 GSM: 850, 900, 1800, 1900 MHz |
| GNSS | GPS, Beidou, GLONASS, GALILEO, QZSS |
| Data Transfer |
LTE: 150 Mbps (DL) / 50 Mbps (UL) HSPA+: 42 Mbps (DL) / 5.76 Mbps (UL) WCDMA: 384 Kbps (DL/UL) EDGE: 236.8 Kbps (DL/UL) GPRS: 85.6 Kbps (DL/UL) |
| Operating System | Windows, Linux, Android |
| Protocol Support | TCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS |
| SMS | MT, MO, CB, Text, PDU |
| Firmware Upgrade | USB / FOTA |
| SIM Card | 1.8V / 3.0V |
| Antenna Interface | IPEX-1 connector (LTE main, LTE diversity, GNSS) |
| Power Supply | 3V ~ 3.6V |
| Form Factor | Mini PCIe |
| Dimensions | 50.8 Ć 31.0 Ć 5.5 mm |
| Operating Temperature | -40ā ~ +85ā |
| Applications | Healthcare, smart payment, Internet talk, environmental monitoring, energy monitoring, fleet management, smart industry, intelligent agriculture |
| Applicable Regions | Global Coverage |
Ā
Wiki: SIM7600G-H-PCIE
Ā
Weight: 0.013 kg
SIM7600G-H-PCIE x1
