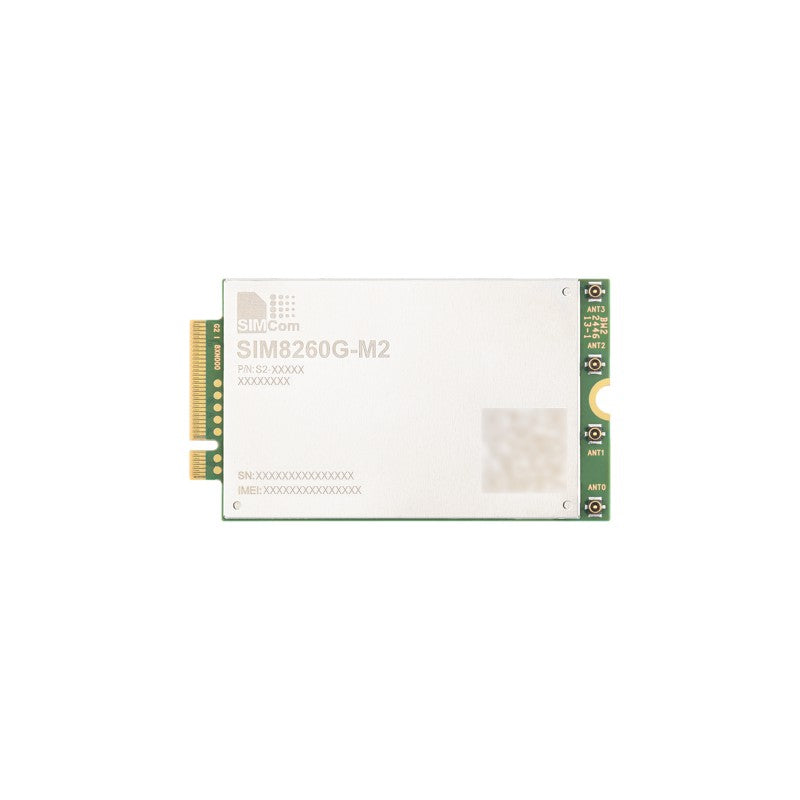

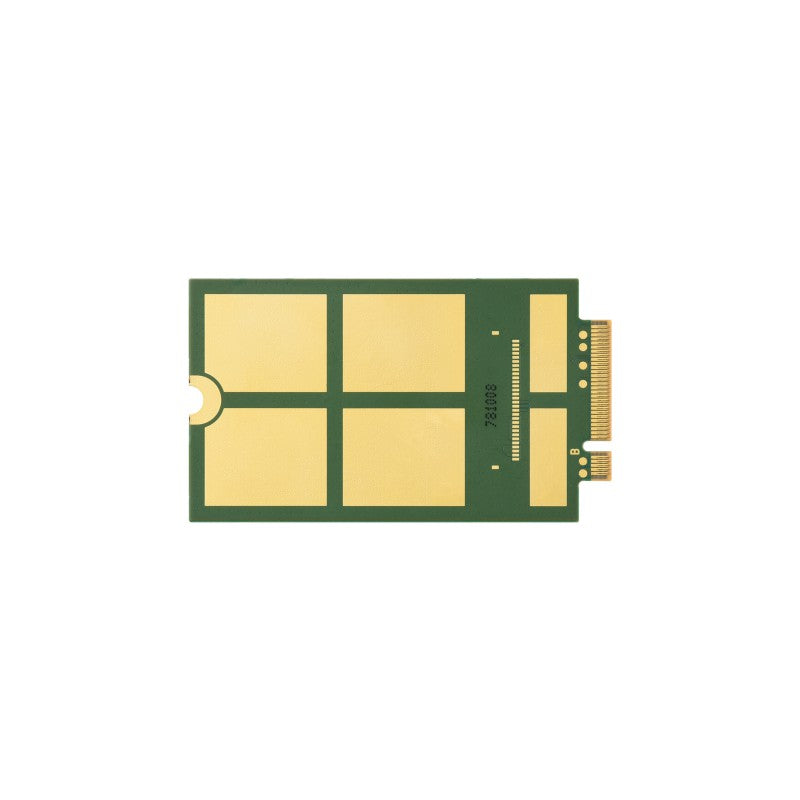

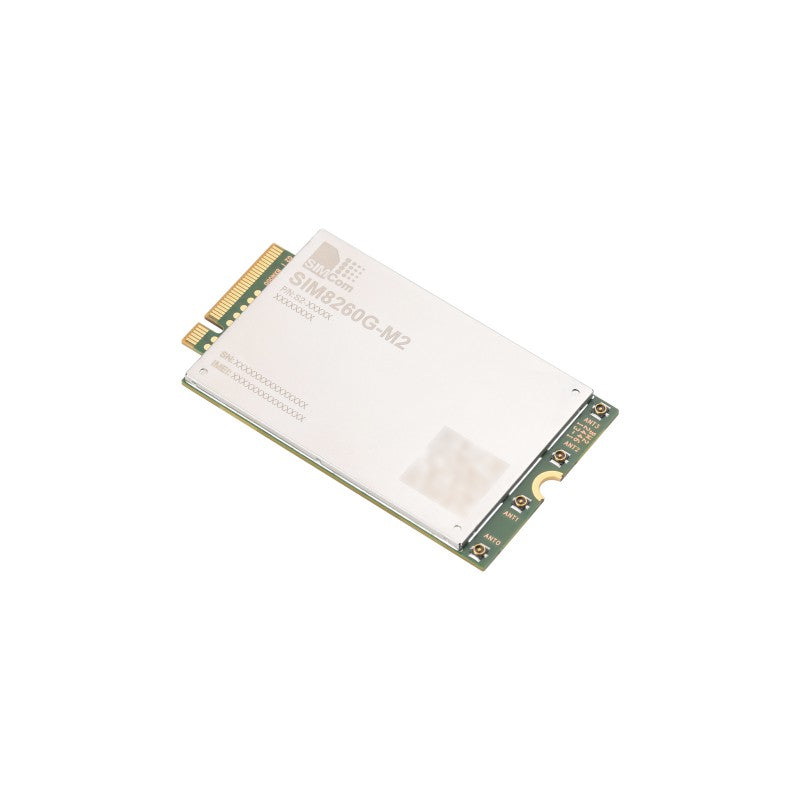

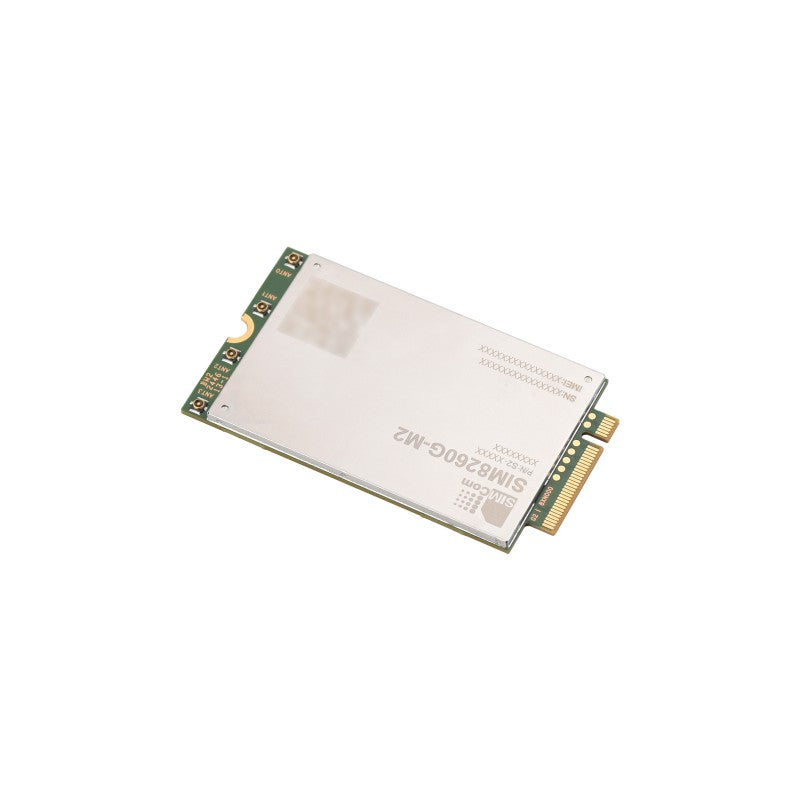

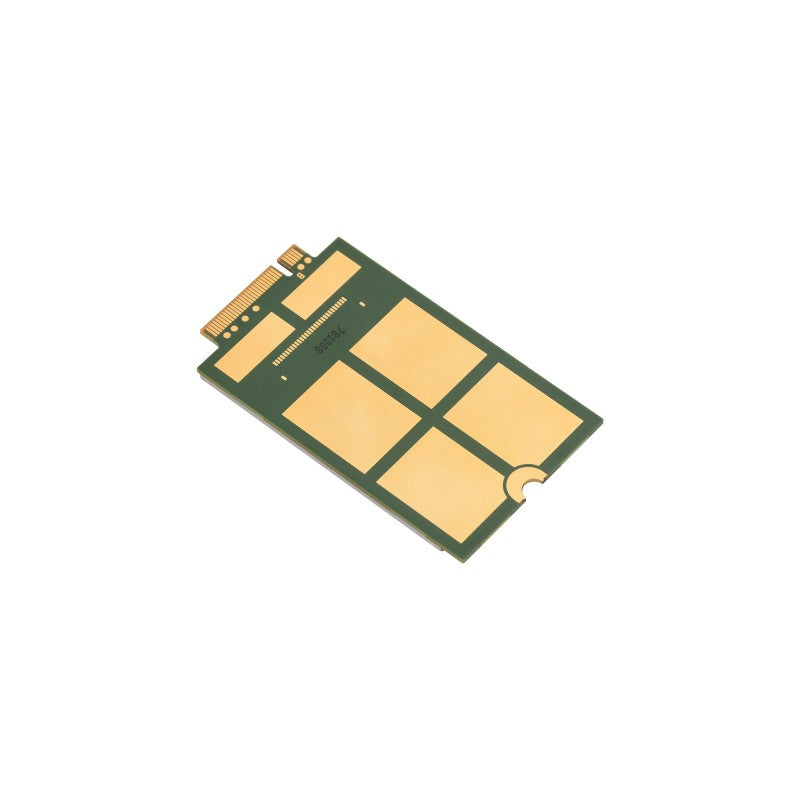

SIMCom 5G Sub-6G Module Based on Qualcomm Snapdragon X62
Adopts 3GPP 5G Release 16 Technology
The SIM8260G-M2 is a multi-band 5G NR / LTE-FDD / LTE-TDD / HSPA+ module, supports R16 5G NSA / SA with a download speed up to 3.47Gbps. It has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.
The SIM8260G-M2 adopts M.2 form factor, and AT commands are compatible with the SIM8200 series modules. This also minimizes the investments of customers and enables a short time-to-market.
It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.
| Standard M.2 B Key interface |
| High-throughput data communication |
| AT commands of the SIM8260G-M2 are compatible with SIM8200 series modules |
| SIM8262E-M2 | SIM8262A-M2 | SIM8260G-M2 | SIM8230G-M2 | |
|---|---|---|---|---|
| 5G Standard | 3GPP R16 | 3GPP R16 | 3GPP R16 | 3GPP R17 |
| Chip | Qualcomm Snapdragon X62 | Qualcomm Snapdragon X35 | ||
| FREQUENCY BAND | ||||
| Sub-6G | n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79 | n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48, n66, n70, n71, n77, n78 |
| LTE-FDD | B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32 | B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B30, B66, B71 |
| LTE-TDD | B38, B39, B40, B41, B42, B43 | B41, B46, B48 | B34, B38, B39, B40, B41, B42, B43, B46, B48 | B34, B38, B39, B40, B41, B42, B43, B48 |
| WCDMA | B1, B5, B8 | B2, B4, B5 | B1, B2, B4, B5, B8, B19 | - |
| GNSS | GPS, GLONASS, Beidou, Galileo, QZSS | GPS, GLONASS, Beidou, Galileo, NavIC | ||
| DATA RATE | ||||
| Sub-6G | 2.4 Gbps / 500 Mbps | 2.4 Gbps / 500 Mbps | 3.47 Gbps / 460 Mbps | 220 Mbps / 100 Mbps |
| LTE | 1 Gbps / 200 Mbps | 1 Gbps / 200 Mbps | 1.6 Gbps / 200 Mbps | 200 Mbps / 50 Mbps |
| HSPA+ | 42 Mbps / 5.76 Mbps | 42 Mbps / 5.76 Mbps | 42 Mbps / 5.76 Mbps | - |
| Applicable Regions | Except Americas | Americas | Global | |
| Application Examples | CPE, Smart Gateway, Live Streaming, Remote Medical Treatment, Intelligent Security | |||
| SIM8262E-M2 | SIM8262A-M2 | SIM8260G-M2 | SIM8230G-M2 | |
|---|---|---|---|---|
| SOFTWARE FUNCTIONS | ||||
| Operating Systems | Windows / Linux / Android | |||
| Communication Protocols | TCP/IP, IPv4, IPv6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0 | |||
| Dial-Up | RNDIS, NDIS, PPP, MBIM | RNDIS, NDIS, PPP, MBIM | RNDIS, NDIS, PPP, MBIM | RNDIS, ECM, PPP |
| SMS | Supports MT, MO, CB, Text, PDU | |||
| Firmware Upgrade | Supports firmware upgrade via USB port | |||
| HARDWARE SPECIFICATIONS | ||||
| SIM Card | 1.8 V / 2.95 V | |||
| Antenna | For 3G / 4G / 5G / GNSS | |||
| IPEX-4 Connectors | 6 × IPEX-4 | 4 × IPEX-4 | 4 × IPEX-4 | 3 × IPEX-4 |
| Power Supply | 3.135 V ~ 4.4 V | 3.135 V ~ 4.4 V | 3.135 V ~ 4.4 V | 3.4 V ~ 4.4 V |
| Form Factor | M.2 | |||
| Dimensions | 42.0 × 30.0 × 2.3 mm | 42.0 × 30.0 × 2.3 mm | 52.0 × 30.0 × 2.3 mm | 42.0 × 31.4 × 3.4 mm |
| Operating Temperature | -30 ℃ ~ +70 ℃ | |||
Dongle Modules
 USB TO M.2 B KEY |
 USB 3.2 Gen1 5G DONGLE |
 5G M.2 TO Gigabit ETH |
HATs
 5G HAT (with case) |
 PCIe TO 4G/5G M.2 USB3.2 HAT+ |
 5G for Jetson Nano |
Wiki: www.waveshare.com/wiki/SIM8260G-M2
Weight: 0.009 kg
This is an M.2 module without antenna or base board.
SIM8260G-M2 x1
