SX1262 LoRaWAN/GNSS HAT

SX1262 RF Chip LoRa Module, Suitable For Sub-GHz Band Network

Ā

Ā

Features At A Glance

This series of products are LoRa modules using the new generation of SX1262 RF chip, with the features of long communication distance and strong anti-interference ability. Suitable for Sub-GHz frequency band network, and is available in LF (410~510MHz) or HF (850~930MHz) frequency band versions. Combined with a LoRa gateway, it can be connected to servers such as TTN to build a LoRaWAN network. In addition to the basic LoRaWAN version, it also provides optional GNSS positioning function with GPS/BD support.

Common features:

  • Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi series boards
  • The new generation SX1262 has higher power efficiency and longer transmission distance than the SX1278
  • Suitable for Sub-GHz band, combined with the gateway, can be quickly connected to a cloud server such as TTN to build a LoRaWAN network

GNSS version features:

  • Onboard L76K module with GPS/BD support, provides accurate clock and location info for node module

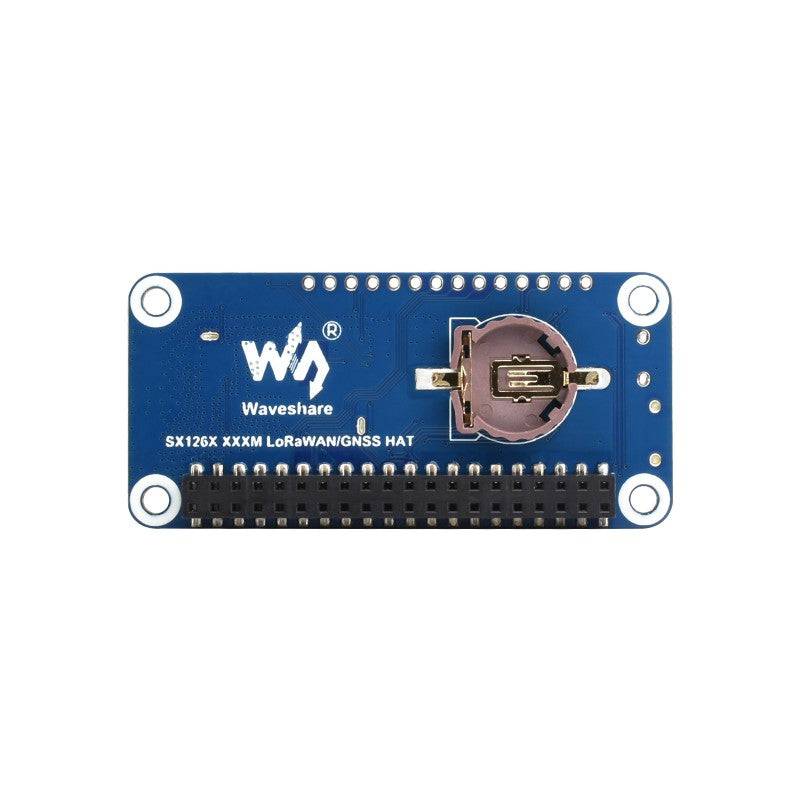

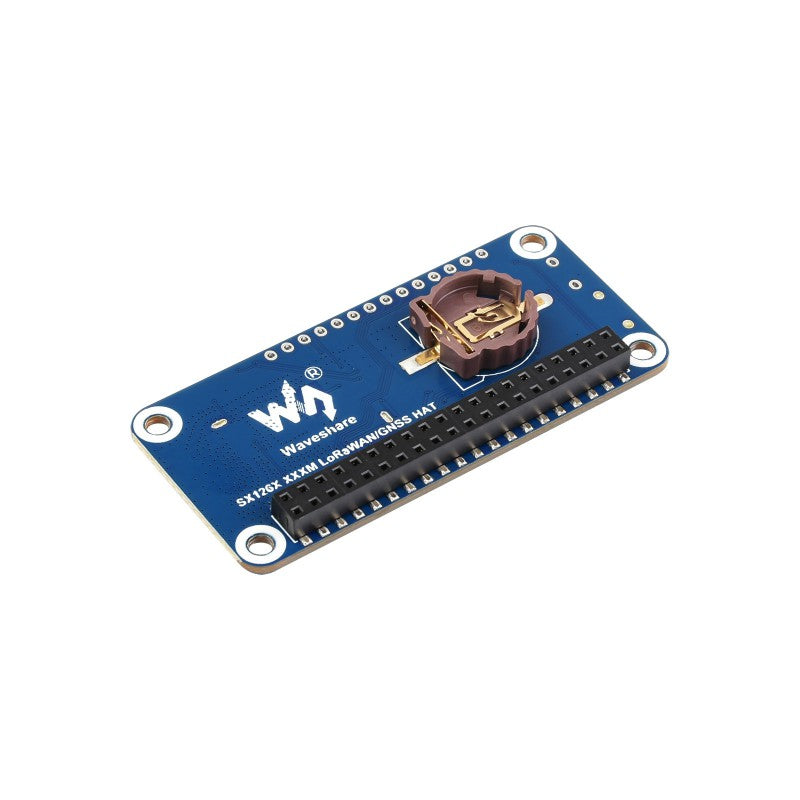

  • Onboard button cell holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
  • Onboard 4 LED indicators for module operating status
  • Comes with online development resources and manual (example in C)

Ā

Version Option: SX1262 868/915M LoRaWAN/GNSS HAT

Suitable for HF band, comes with a magnetic CB antenna, a GPS antenna and IPEX adapter cables (2PCS)

Ā

Specifications

LORA PARAMETERS
RF CHIP SX1262
FREQUENCY BAND LF: 410 ~ 510MHz
HF: 850 ~ 930MHz
MODULATION LoRa / (G)FSK
DATA RATE LoRa: 0.018 ~ 62.5Kbps
(G)FSK: 0.6 ~ 300Kbps
EMIT POWER 22dBm@3.3V
SPREADING FACTOR SF7 ~ SF12
OPERATING VOLTAGE 3.3V
MODULE CURRENT CONSUMPTION emitting current:Ā 107mA@22dBm
receiving current:Ā 5.3mA@125KHz
COMMUNICATION BUS SPI
OPERATING TEMPERATURE 0 ~ 50ā„ƒ
INTERFACE 40PIN GPIO header
GNSS PARAMETERS
GNSS MODULE L76K
GNSS TYPE GPS/GLONASS/BDS/QZSS
L1 BAND RECEIVER (CHANNELS) 32 Tracking ch/72 Acquisition ch
A-GNSS support
RECEIVING SENSITIVITY
(ACQUISITION, RE-ACQUISITION, TRACKING)		 -148dBm, -160dBm, -162dBm
TTFF (TIME TO FIRST FIX)
COLD STARTS		 30s, Autonomous
5.5s, With AGNSS
POSITION ACCURACY 2.0m CEP
SPEED ACCURACY 0.1m/s
ACCELERATION ACCURACY (MAX) 0.1m/sĀ²
UART RATE Range: 4800~115200bps
Default: 9600bps
GNSS DATA UPDATE RATE Max: 5Hz
Default: 1Hz

Ā

Pinout Definition

Ā

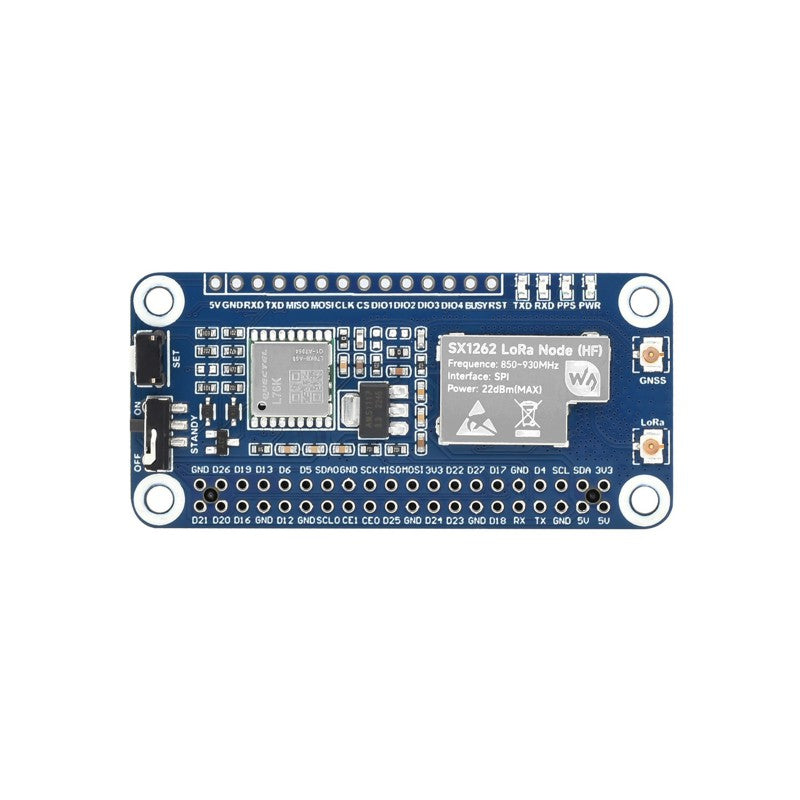

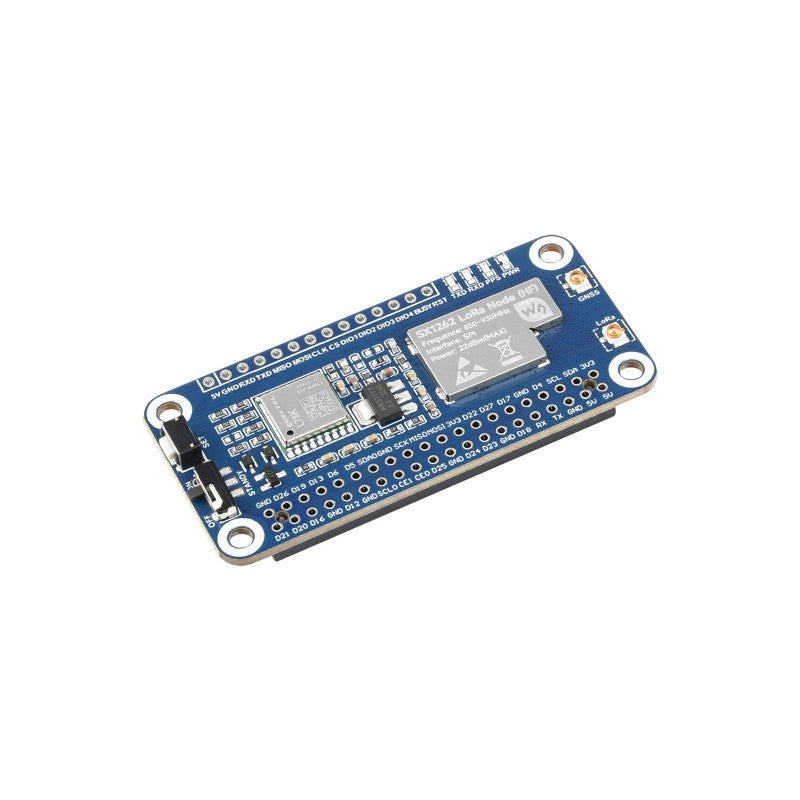

What's On Board

  1. SX1262
    LoRa module
  2. L76K
    GNSS module
  3. Power chip
    5V to 3.3V LDO
  4. GPS STANDY mode ON/OFF
    OFF: turn off STANDY and GPS works normally
    ON: turn on STANDY, GPS stops outputting NMEA
  5. SET button
    Press to wake up the GNSS module in sleep mode
  6. GNSS module IPEX 1 connector
    L76K antenna connector
  7. LoRa module IPEX 1 connector
    LoRa antenna connector
  8. Status Indicator
    PWR: power indicator
    RXD/TXD: UART RX/TX indicator
    PPS: GPS status indicator
  9. Raspberry Pi 40PIN GPIO header
    for connecting with Raspberry Pi series boards
  10. LoRa module and GNSS module pin header

Ā

Application Examples

Industrial Control, Intelligent Home, And Data Acquisition...


Ā

Outline Dimensions



Wiki:Ā www.waveshare.com/wiki/SX1262_XXXM_LoRaWAN/GNSS_HAT

Ā

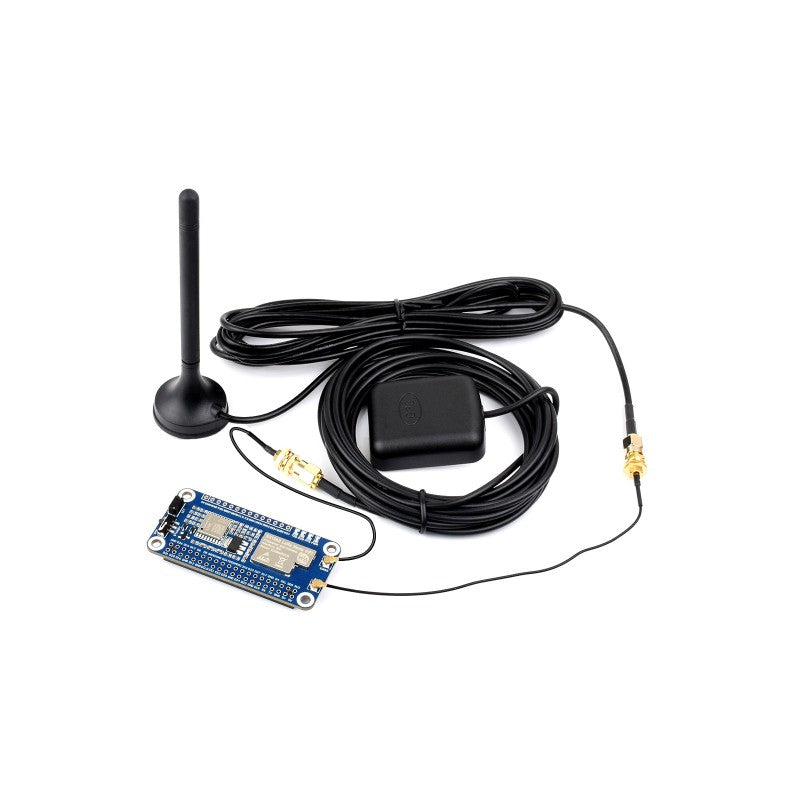

Package Contents:

SX1262 868/915M LoRaWAN/GNSS HAT

  1. SX1262 868/915M LoRaWAN/GNSS HAT x1
  2. 868/915M Magnetic CB antenna x1
  3. GPS antenna x1
  4. IPEX to SMA adapter cable ~17cm x2
  5. Screws pack x1
  6. 2Ɨ20PIN female pinheader x1
123456
What Raspberry Pi compatibility does this HAT offer?
It uses the standard Raspberry Pi 40 pin GPIO header and is compatible with Raspberry Pi series boards.
Which frequency bands and variants are supported by this module?
It supports LF 410 to 510 MHz and HF 850 to 930 MHz. The HF variant SX1262 868/915M LoRaWAN GNSS HAT is included with antennas.
What GNSS features are included in the GNSS version?
It includes an onboard L76K GNSS module with GPS and BD support, 32 tracking channels, standby wake control, ephemeris storage, and four LED indicators.
What is included in the package?
The package contains the SX1262 LoRaWAN GNSS HAT, a magnetic CB antenna, a GPS antenna, two IPEX to SMA adapter cables, screws, and a 2x20 pin header.
How can I use this with LoRaWAN networks like TTN?
The module can be connected to a LoRa gateway and servers such as TTN to build a LoRaWAN network via the Raspberry Pi SPI interface and 40 pin header.
