Nano Base Board (B) for Raspberry Pi Compute Module 4

SKU: WVSH0496

₹ 1,799.99 ₹ 2,199.99

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Nano Base Board (B) for Raspberry Pi Compute Module 4₹ 1,799.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Nano Base Board (B) For CM4

Suitable For Evaluating The Raspberry Pi CM4
Or Being Integrated Into End Products

Base Board for Compute Module 4 Lite/eMMC




Compact, Yet Complete

Standard CM4 Socket, 40PIN GPIO, Gigabit Ethernet,
USB2.0, DSI, CSI, 3.5mm Audio Jack...
All In The Compact Body Just As The Size Of CM4

Note: the CM4 is NOT included. Please buy it separately if necessary.



Specifications

CM4 SOCKET suitable for all variants of Compute Module 4
NETWORKING Gigabit Ethernet RJ45 connector
CONNECTOR Raspberry Pi 40PIN GPIO header × 1
USB USB 2.0 Type A connector × 1
DISPLAY MIPI DSI port × 1 (15pin 1.0mm FPC connector)
CAMERA MIPI CSI-2 port × 1 (15pin 1.0mm FPC connector)
VIDEO Mini HDMI port × 1, supports 4K 30fps output
AUDIO 3.5mm jack
STORAGE Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
POWER INPUT 5V
DIMENSIONS 56 × 41mm

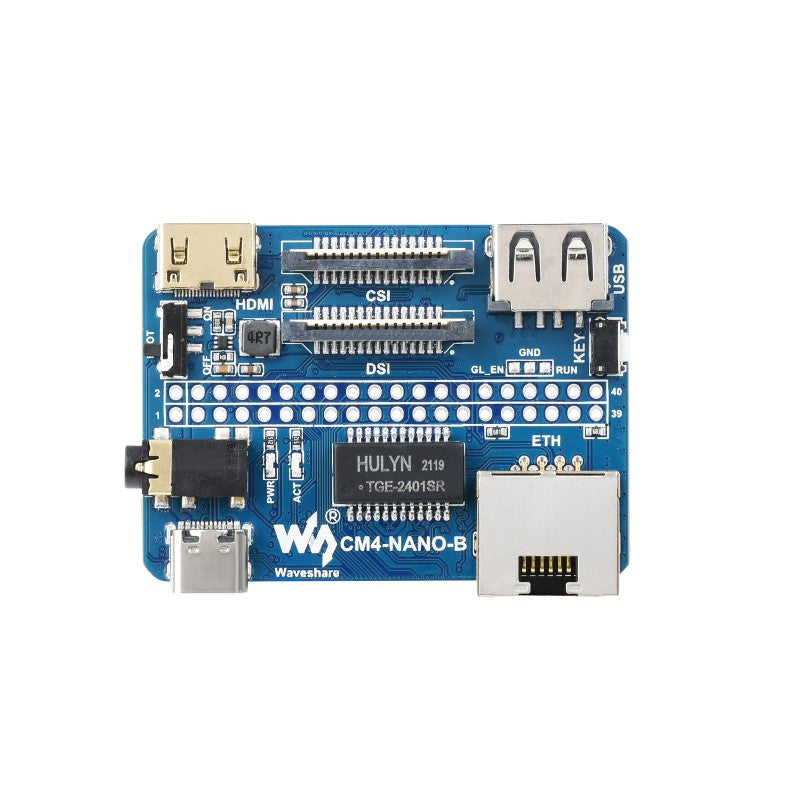

What's On Board

  1. CM4 socket
    suitable for all variants of Compute Module 4
  2. Micro SD card slot
    for connecting a Micro SD card with pre-burnt image (Lite variant ONLY)
  3. 40PIN GPIO header
    for connecting sorts of HATs
  4. Gigabit Ethernet RJ45 connector
  5. Power supply / Programming
    5V power supply, or used for eMMC burning
  6. 3.5mm audio jack
  7. User button
  8. USB2.0 connector
    for connecting sorts of USB devices
  1. CSI connector
    MIPI CSI camera interface
  2. DSI connector
    MIPI DSI display interface
  3. MP1658
  4. Mini HDMI connector
    supports 4K 30fps output
  5. BOOT switch
    ON: Switch USB to Type C interface, will enter download mode when powered on (configured as a large-capacity disk through RPI boot)
    OFF: Switch USB to Type A interface, will not enter download mode when powered on (booted from eMMC or Micro SD card)



Outline Dimensions



Resources & Services

WIKI: CM4-NANO-B



Package Contains:

Weight: 0.019 kg

  1. CM4-NANO-B x1
  2. 2*20PIN color-coded straight pinheader x1
1
2
Is the Raspberry Pi Compute Module 4 included with this base board?
No, the CM4 is not included and must be purchased separately.
Which Compute Module 4 variants are supported by the base board?
The CM4 socket is suitable for all variants of Compute Module 4.
What interfaces and connectors does this base board provide?
It includes a Gigabit Ethernet RJ45, USB 2.0 Type A, a 40 pin GPIO header, MIPI DSI and CSI ports, a Mini HDMI port for 4K 30fps, a 3.5 mm audio jack, and a Micro SD card slot for the Lite variant.
How do I boot the board into normal mode or into download mode?
Use the BOOT switch. ON switches USB to Type C and enables download mode when powered on; OFF switches USB to Type A for normal boot from eMMC or Micro SD card.
What is included in the package and what are the board dimensions?
The package includes the CM4-NANO-B base board and a 2x20 pin color coded straight header. The board measures 56 x 41 mm.
