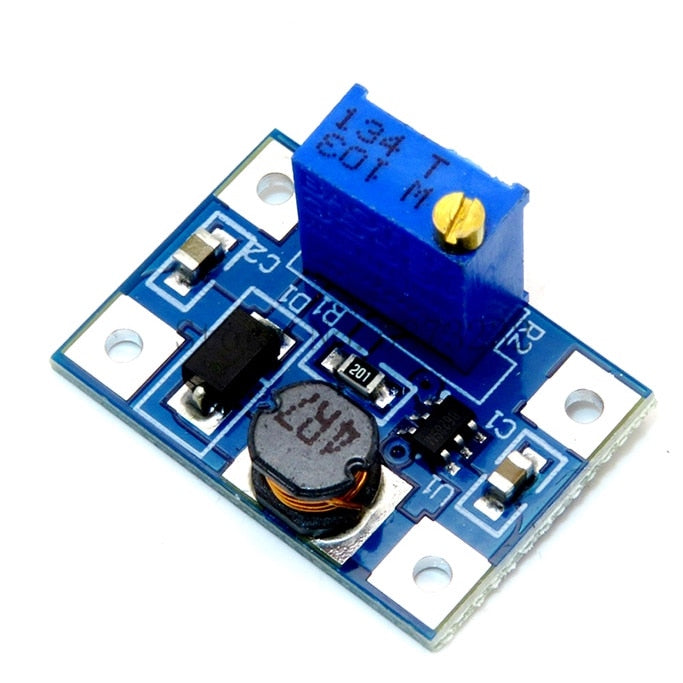

SX1308 booster module offers a small package, and high efficiency. The output power can be adjusted to 28V and this is a low resistance (100mΩ) metal oxide semiconductor field effect transistor (MOSFET), which can realize large current output of up to 2A.
It is widely used in 3G network products, digital products, mobile power supply, battery power supply, equipment, etc.
Features:
Oscillation frequency 1.2MHz
Efficiency is as high as 95%
The circuit has short circuit protection, overheating protection function
10k potentiometer, to adjust the output voltage
Package Includes :
1 x DC-DC Step Up SX1308 Adjustable Power Supply Module
