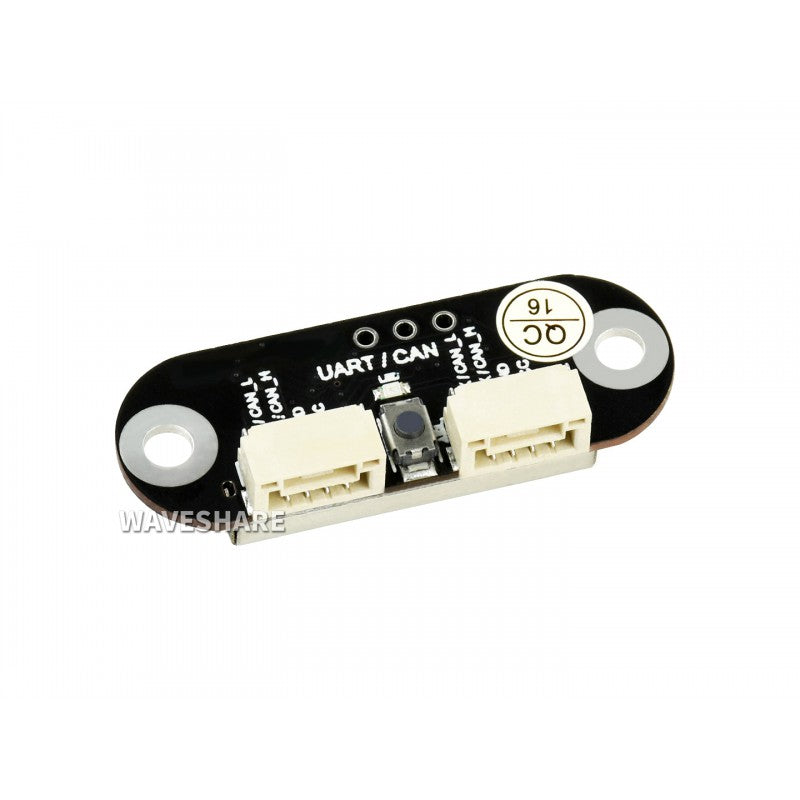

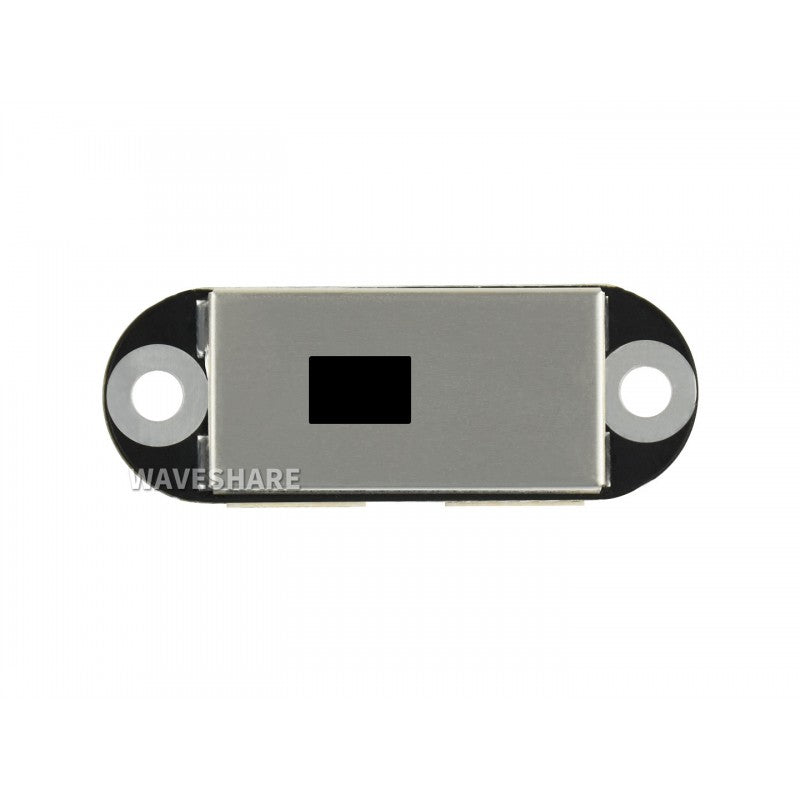

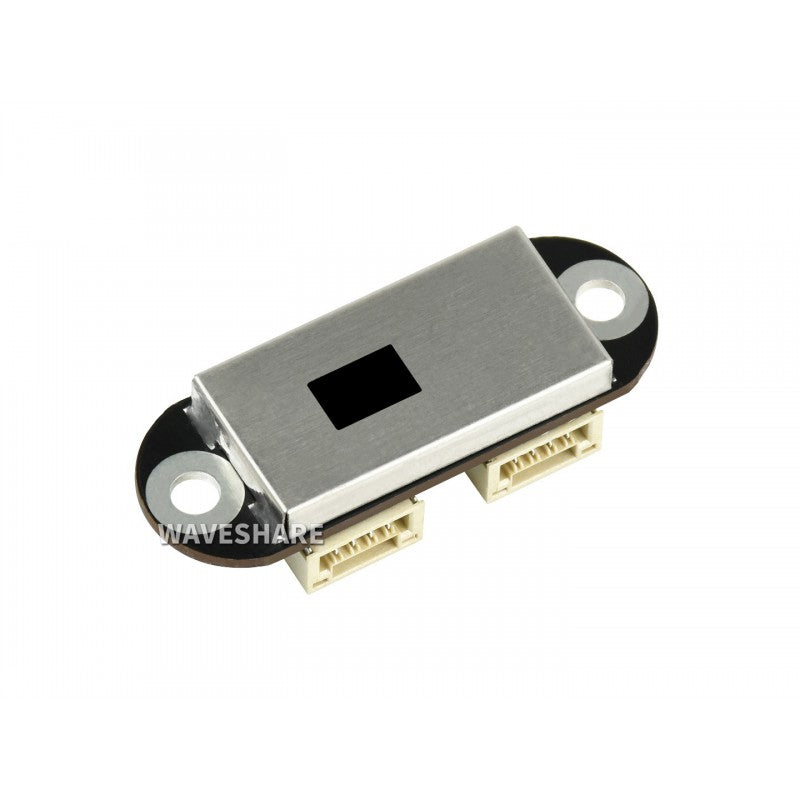

TOF (Time Of Flight) Laser Range Sensor, UART / CAN Bus, Cascading Support, Comes With Host Computer Assistant Software
TheTOF Laser Range Sensoris a TOF-based (time of flight) laser ranging sensor with embedded MCU and ranging algorithm, which is capable of offering up to 5m measuring range, ±1.5cm accuracy, and 1mm resolution. It supports cascade ranging via UART or CAN bus, configurable data output including active output and query output.
This sensor can be widely used in applications like common distance measuring, robot obstacle avoidance / route planning, as well as drone altitude setting / ceiling detection, and more...
Specifications
TYPICAL MEASURING RANGE
Short range: 0.012~2.16m
Mid range: 0.012~3.60m
Long range: 0.01~5.00m
TYPICAL MEASURING ACCURACY
Short range: accuracy ±1.0cm, standard deviation<0.3cm
Mid range: accuracy ±1.0cm, standard deviation<1.5cm
Long range: accuracy ±1.5cm, standard deviation<0.5cm@0.01~3m, standard deviation<8cm@3~5m
RESOLUTION
1mm
WAVELENGTH
940nm (Class1 standard compliant)
FIELD OF VIEW (FOV)
15°~27° (adjustable)
COMMUNICATION INTERFACE
UART: both of the two ports can be used as UART simultaneously, 3.3V TTL signal level
CAN: both of the two ports can be used as CAN simultaneously
BAUDRATE
UART: 115200~3000000bps (921600bps by default)
CAN: 100000~3000000bps (100000bps by default)
CASCADE SUPPORT
UART: supports up to 8x cascades
CAN: supports up to 7x cascades
POWER SUPPLY
3.7~5.2V
POWER CONSUMPTION
290mW (UART active output, long-range mode, 5.0V power supply, 58mA current)
WEIGHT
2.7g

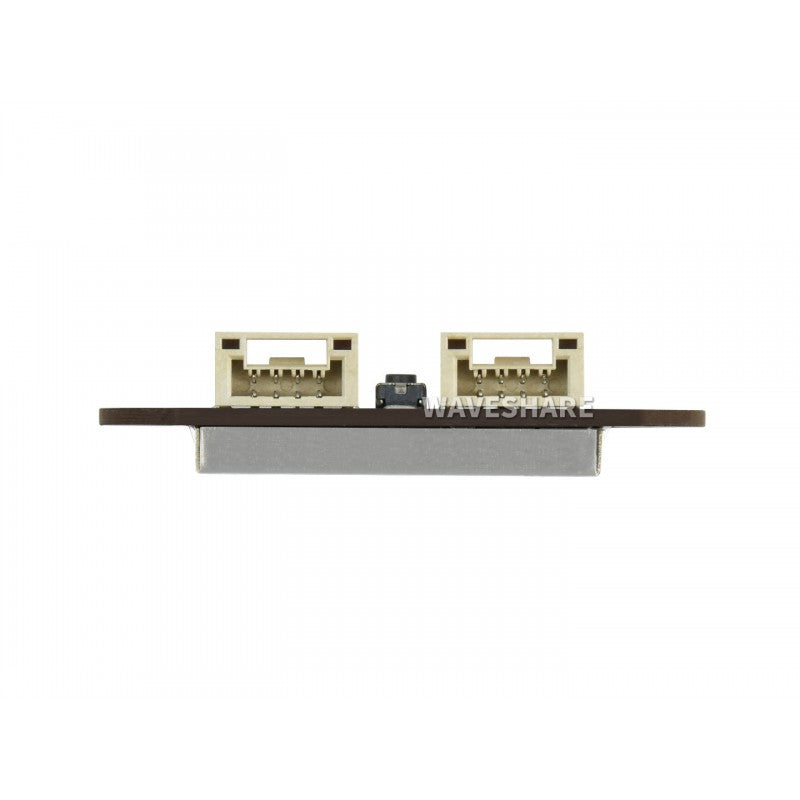

DIMENSIONS (L × W × H)
35.58 × 12 × 8.05mm
Embedded MCU & Ranging Algorithm
UART / CAN Support, Configurable Output
UART / CAN COMMUNICATION

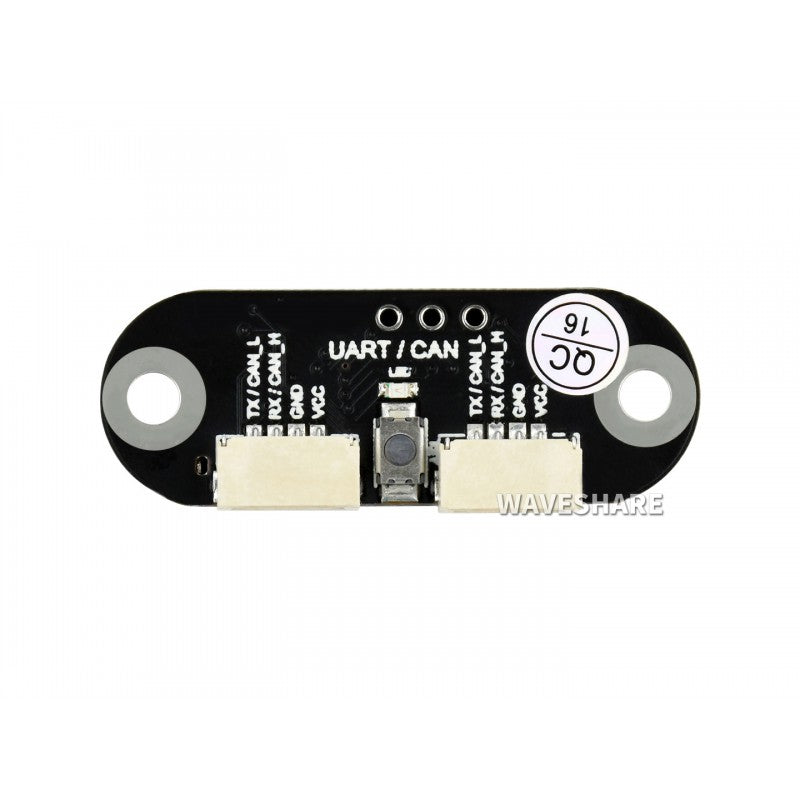

Configurable communication bus, providing two ports (identical electric connection) for cascade ranging
ACTIVE OUTPUT / QUERY OUTPUT
Configurable data output mode, make it more flexible to acquire data
Cascade Ranging Support

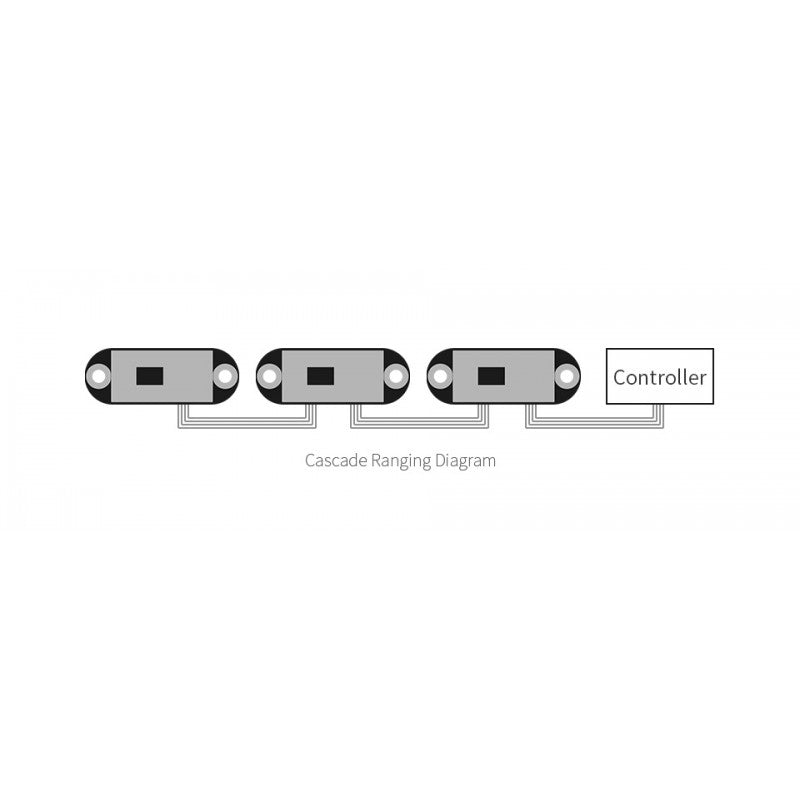

Multiple sensors can connected in series thanks to onboard two identical ports, and each sensor can be configured with an ID, therefore, the ranging data of all sensors can be acquired through one single communication bus. When using cascade ranging, three output modes are available: UART query, CAN query, and CAN active output
Up To 8x Cascades On UART Bus, Up To 7x Cascades On CAN Bus
Comes With Assistant Software
Provides Host Computer Assistant Software, Offering Functions Including Sensor Configuration, Wave Form Monitor, Data Analysis, Data Record Export And Replay, Firmware Upgrade, And So On.
