Description

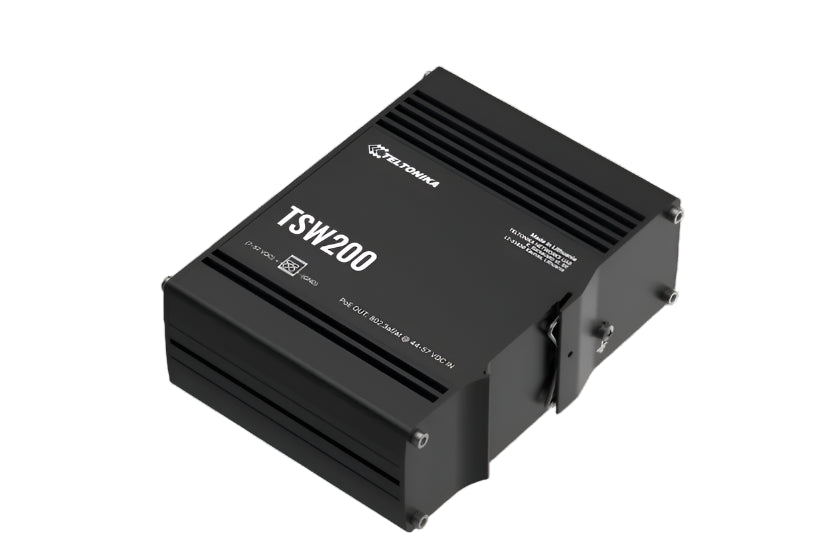

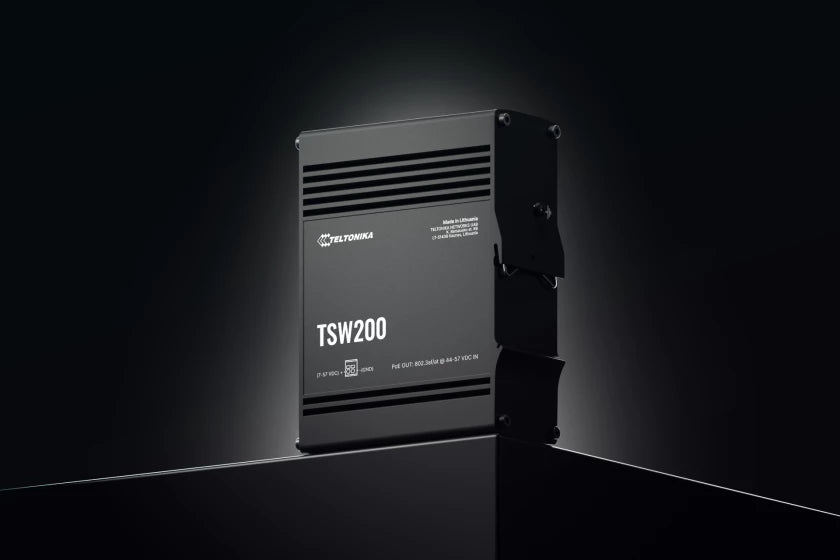

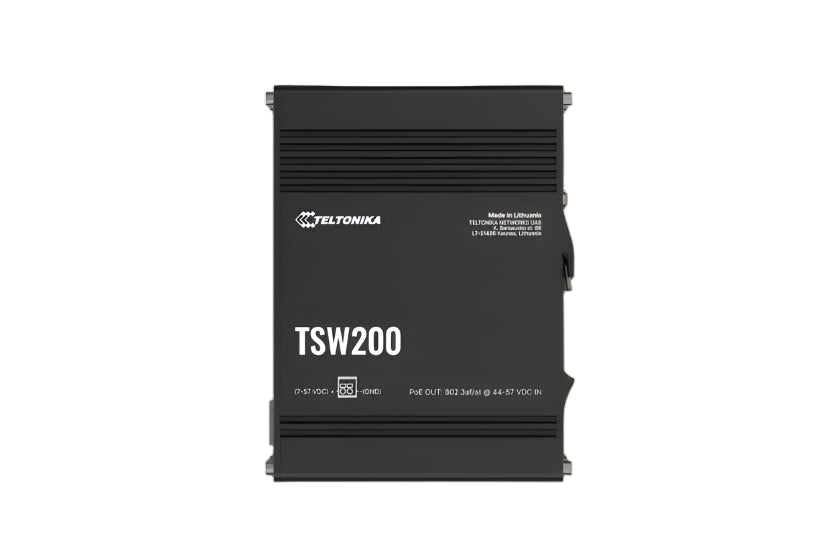

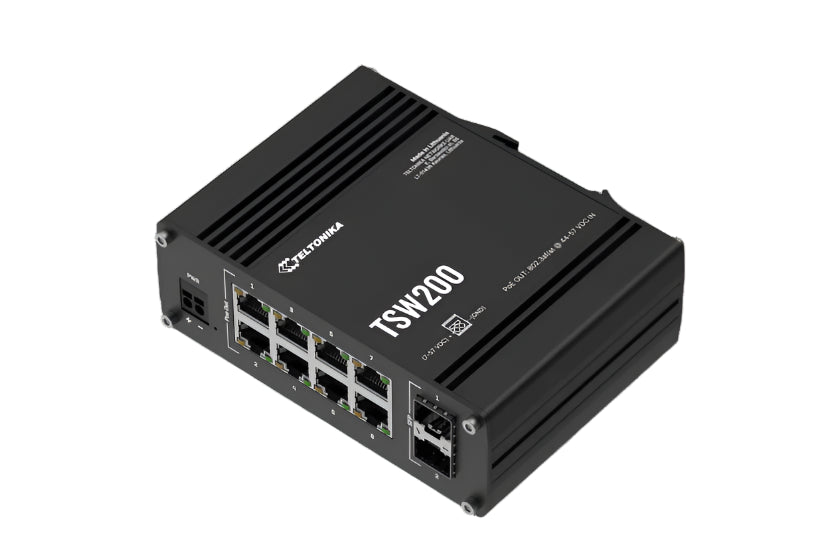

TSW200 is an industrial Ethernet switch with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables the centralization of the power supply, providing up to 30 watts per port and reducing the effort to install power.
Standard package*
- TSW200
- QSG (Quick Start Guide)
- Packaging box
*Standard package contents may differ based on standard order codes.
Features
Ethernet (ETH)
| Specification | Details |
|---|---|
| Ports | 8 x ETH ports, 10/100/1000 Mbps |
| Features | Supports auto MDI/MDIX crossover |
Fibre
| Specification | Details |
|---|---|
| Ports | 2 x SFP ports |
IEEE 802.3 Series Standards
| Standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
POE OUT
| Specification | Details |
|---|---|
| PoE Ports | Port 1 - 8 |
| PoE Standards | 802.3af and 802.3at Alternative B |
| PoE Max Power per Port (at PSE) | 30 W |
| Total PoE Power Budget (at PSE) | 240 W |
Performance Specifications
| Specification | Details |
|---|---|
| Bandwidth (Non-blocking) | 20 Gbps |
| Packet Buffer | 128 KB |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9216 bytes |
Power
| Specification | Details |
|---|---|
| Connector | 2-pin industrial DC power socket |
| Input Voltage Range | 7 – 57 VDC |
| PoE-out Input Voltage Range | 44 – 57 VDC |
| Power Consumption | Idle: 1.81 W / Max: 5.5 W / PoE Max: 245.5 W |

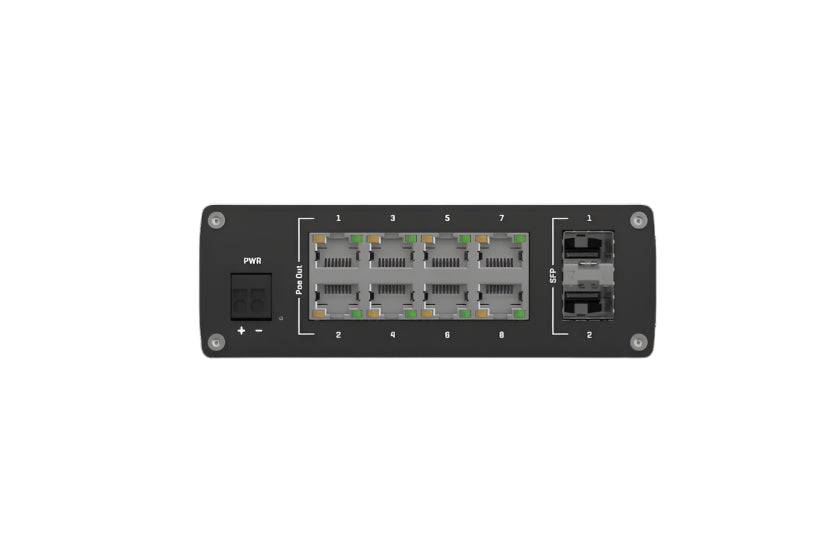

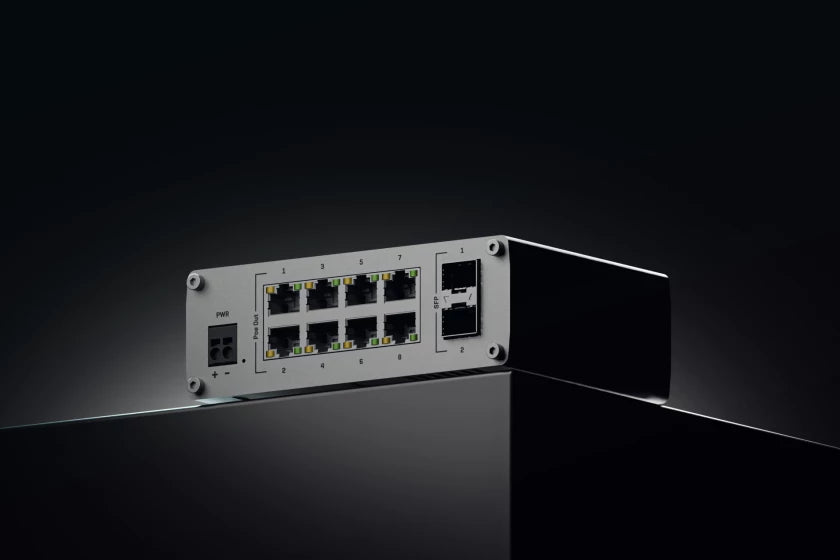

Physical Interfaces
| Specification | Details |
|---|---|
| Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
| Fibre | 2 x SFP ports |
| Status LEDs | 1 x Power LED, 16 x ETH status LEDs, 2 x SFP status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| Other | 1 x Grounding screw |
Physical Specification
| Specification | Details |
|---|---|
| Casing Material | Full aluminum housing |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Weight | 517 g |

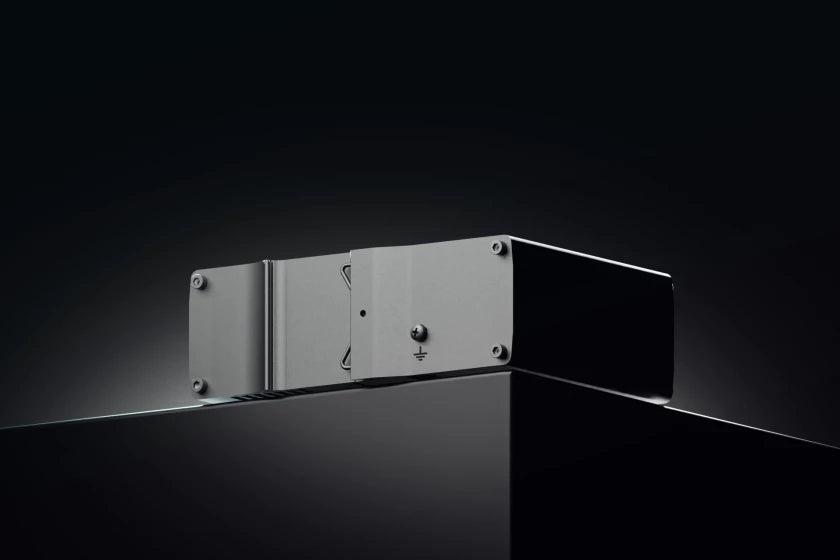

| Mounting Options | Integrated DIN rail bracket, wall mount, flat surface (additional kit needed) |
Operating Environment
| Specification | Details |
|---|---|
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP30 |
Regulatory & Type Approvals
| Specification | Details |
|---|---|
| Regulatory | CE, UKCA, CITC, ANRT, FCC, IC, CB |
EMC Emissions & Immunity
| Specification | Details |
|---|---|
| Standards | EN 55032:2015 + A1:2020 |
| EN 55035:2017 + A11:2020 | |
| EN IEC 61000-3-2:2019 + A1:2021 | |
| EN 61000-3-3:2013 + A1:2019 | |
| ESD | EN 61000-4-2:2009 |
| Radiated Immunity | EN IEC 61000-4-3:2020 |
| EFT | EN 61000-4-4:2012 |
| Surge Immunity (AC Mains Power Port) | EN 61000-4-5:2014 + A1:2017 |
| CS | EN 61000-4-6:2014 |
| DIP | EN IEC 61000-4-11:2020 |
Safety Standards
| Specification | Details |
|---|---|
| Standards | IEC 62368-1:2018 |
| EN IEC 62368-1:2020+A11:2020 |
Downloads
Manual & Documentation
Links
How many PoE capable ports does the switch have and what is the maximum power per port?
The unit provides 8 PoE ports and each port can deliver up to 30 W per port under the PoE budget, with a total PoE budget of 240 W.
What network interfaces are available on this switch?
It has 8 Ethernet ports supporting 10 100 1000 Mbps and 2 SFP fiber ports for long range connections.
What are the power input requirements and PoE power details?
The device uses a 2 pin industrial DC power socket with input range 7 to 57 VDC. PoE ports can deliver up to 30 W per port, with a total PoE budget of 240 W.
What are the environmental and protection ratings of the switch?
It operates from -40 C to 75 C and supports 5 percent to 95 percent non condensing humidity. The enclosure is rated IP30.
What mounting options and physical dimensions does the switch offer?
The case is a full aluminum housing with dimensions 132 x 44.2 x 95.1 mm and weighs 517 g. It supports integrated DIN rail mounting, wall mounting, or flat surface mounting with an additional kit.
