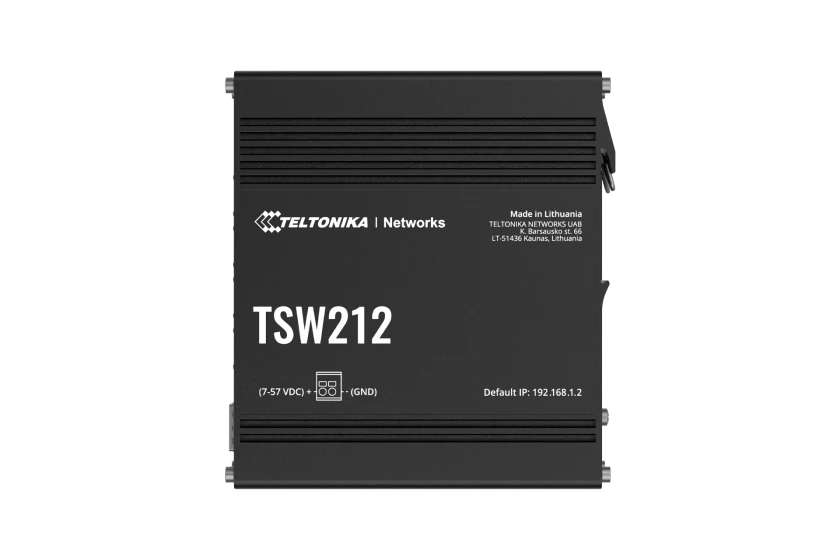

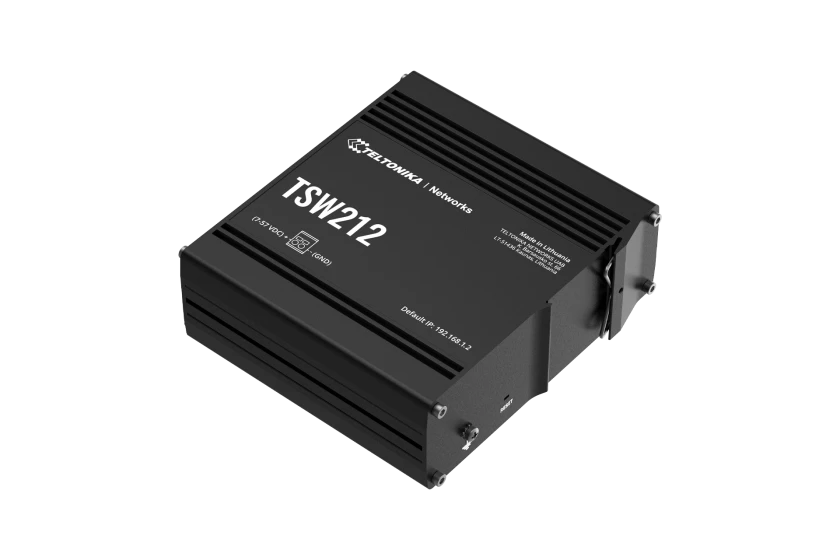

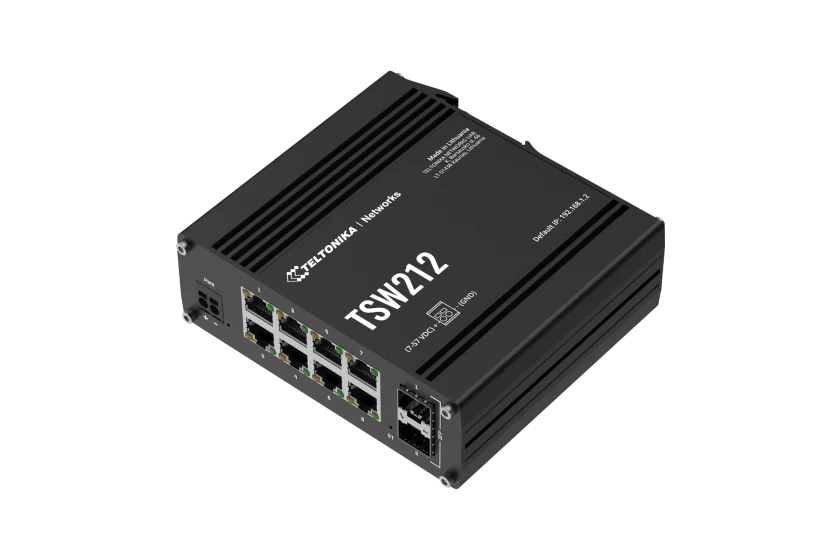

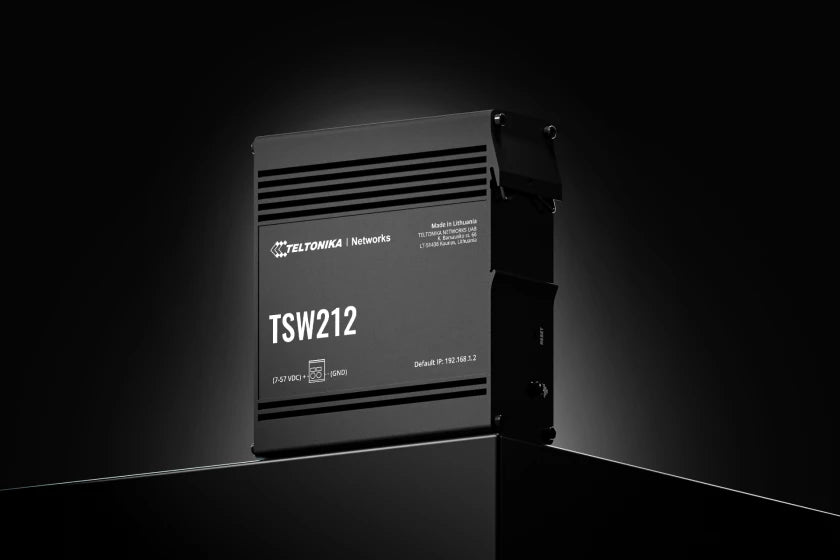

TSW212 - Managed Ethernet Switch

SKU: ELC8754

₹ 18,549.99 ₹ 27,199.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
⏱ This is a pre-order item. We'll ship it as soon as it's back in stock.
TSW212 - Managed Ethernet Switch₹ 18,549.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Description

TSW212 is an L2 managed Ethernet switch with additional L3 features, like DHCPv6 client support and static IPv6 routing. This switch supports protocols, including EtherNet/IP, PROFINET, and MRP, and has 8 Gigabit Ethernet ports and 2 SFP ports to ensure robust long-range fibre optic communication.

Standard package*

  • TSW212
  • QSG (Quick Start Guide)
  • Packaging box

*Standard package contents may differ based on standard order codes.

Features

Ethernet and Network Features Table

Category Feature
Ethernet (ETH) Multi-layer managed: 8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
Fibre 2 x SFP ports
Standards IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3z
Services
EtherNet/IP Yes
PROFINET (class B) Yes
SNMP V2, V3 Yes
LLDP Yes
Network Management
Class of Service 802.1p
Network Access Control 802.1x port-based
VLAN 802.1Q
Network Features
MRP MRP client role, MRP manager role
L2 Features Loop protection, Forwarding table, VLAN, STP/RSTP
DHCP DHCP server, DHCP client, DHCP static leases (MAC with wildcards)
Port Settings Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring
L3 Features Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address



Security, QoS, Diagnostics, and System Characteristics Table

Category Feature
Authentication PAM — preshared key, Radius & TACACS+, IP & login attempts block
QoS
Port Priority DSCP priority, 802.1p priority, TOS
Scheduling Method SP/WFQ/WRR
Bandwidth Control Rate limiting, storm control
Traffic Shaper Port-based shaping
Diagnostics Tools
Diagnostics Tools Cable diagnostic, ping, traceroute, nslookup
API Teltonika Networks Web API (beta) support – Expand your device's possibilities using a set of configurable API endpoints. For more details, refer to the documentation
System Characteristics
RAM 128MB, DDR3
FLASH Storage 16 MB serial flash


Firmware, Configuration, and Performance Specifications Table

Category Feature
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep Settings Update FW without losing current configuration
Firmware Customization Feature
Operating System TSWOS (OpenWrt based Linux OS)
Supported Languages Busybox shell, Lua, C, C++
Development Tools SDK package with build environment provided
Performance Specifications Feature
Bandwidth (Non-blocking) 20 Gbps
Forwarding Rate 14.88 Mpps
Packet Buffer 512 KB
MAC Address Table Size 8K entries
Jumbo Frame Support 10000 bytes
Power Feature
Connector 2-pin industrial DC power socket
Input Voltage Range 7 – 57 VDC
Power Consumption Idle: < 2.5 W / Max: 6 W
Physical Interfaces Feature

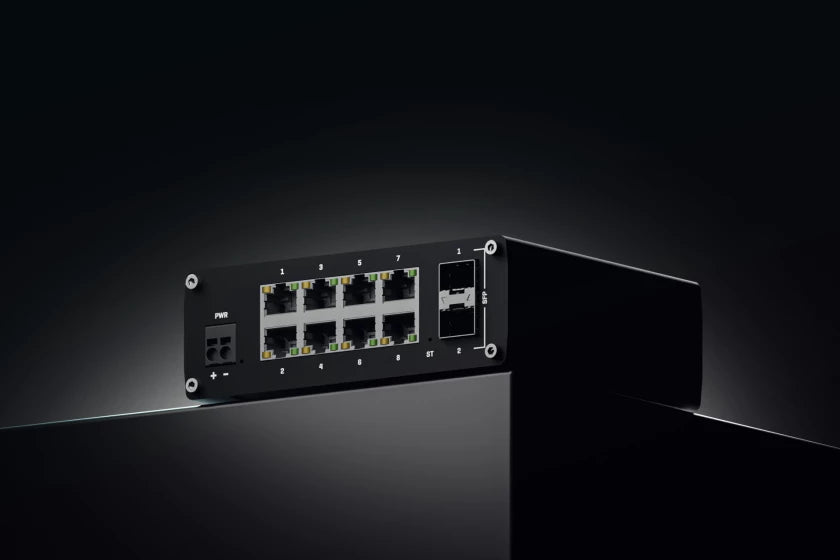

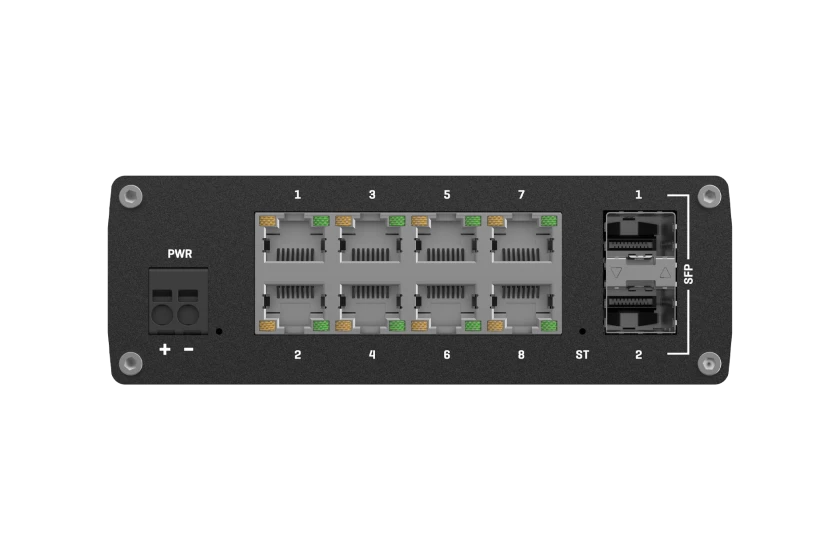

Ethernet 8 x RJ45 ports, 10/100/1000 Mbps
Fibre 2 x SFP ports
Status LEDs 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
Power 1 x 2-pin industrial DC power socket

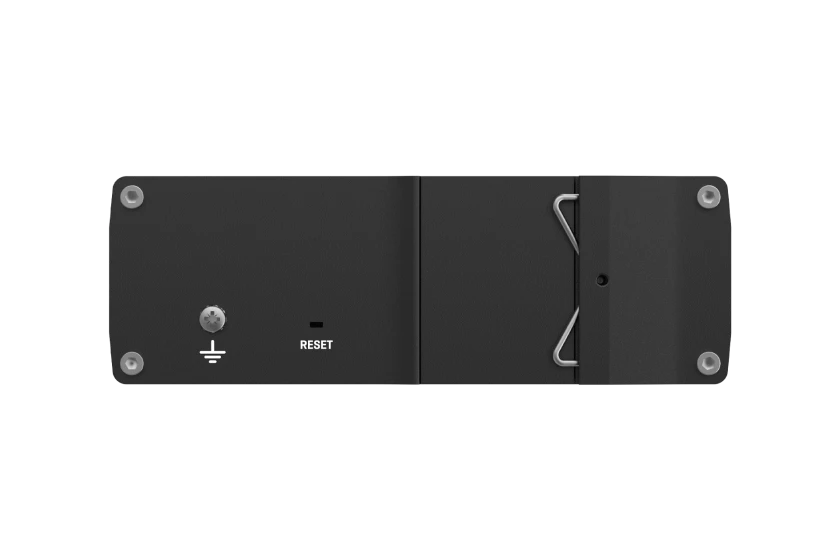

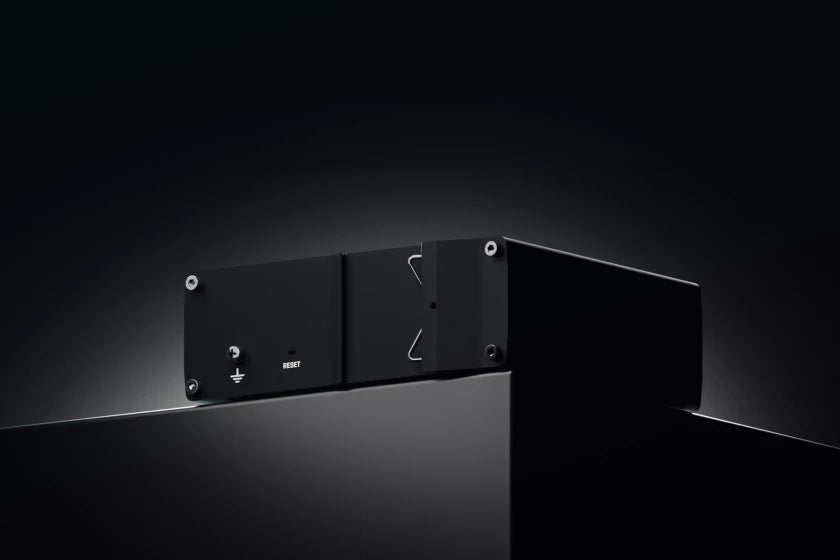

Reset Software reset button
Other Feature
Grounding Screw 1 x Grounding screw



Physical Specifications and Regulatory Approvals Table

Category Feature
Casing Material Anodized aluminum housing and panels
Dimensions (W x H x D) 132 x 44.2 x 122.2 mm
Weight 615 g
Mounting Options Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)
Operating Environment Feature
Operating Temperature -40 °C to 75 °C
Operating Humidity 5% to 95% non-condensing
Ingress Protection Rating IP30
Regulatory & Type Approvals Feature
Regulatory CE, UKCA, RCM, ANRT, FCC, IC, CB, WEEE, RoHS, REACH, SDPPI (POSTEL), JATE, Kenya, ICASA, Giteki, NBCT, ICASA, PROFINET
EMC Emissions & Immunity Standards Feature
EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2: 2019 + A1:2021
EN 61000-3-3: 2013 + A1:2019 + A2:2021
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2020
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2020
Safety Standards Feature
CE EN IEC 62368-1:2020 + A11:2020
RCM AS/NZS 62368.1:2022
CB IEC 62368-1:2018



Downloads

Manual & Documentation


Links

What ports are available on the switch?
The switch includes 8 x Gigabit Ethernet ports and 2 x SFP ports for fibre, with 10 100 1000 Mbps operation and auto MDI MDIX crossover.
Does it support IPv6 and DHCPv6?
Yes, it supports static IPv6 routing and a DHCPv6 client as part of its L3 features.
What management and security features are included?
It is a multi layer managed switch with SNMP v2/v3, LLDP, 802.1X port based access control, VLAN 802.1Q, and QoS options such as DSCP and 802.1p priority.
Is it suitable for industrial use and how is it installed?
Yes. It operates from -40 C to 75 C, has IP30 enclosure, and uses a 7-57 VDC industrial power input with mounting options including DIN rail, wall mount, or flat surface.
What software and development options are available?
The device runs the TSWOS OpenWrt based Linux OS. Firmware updates can be applied via the web UI or server, and there is an SDK package and a beta Web API for developers.
