V-One PCB Printer
Prototype and assemble PCBs in an hour and get immediate feedback on new designs.
The Voltera V-One is a desktop-sized dispensing system for PCB printing. Import your Gerber file into the Voltera software, press print, and the V-One will bring your board to life. Use the solder paste dispensing and reflow features to mount components onto your printed board, or mount components on a prefabricated board with ease.

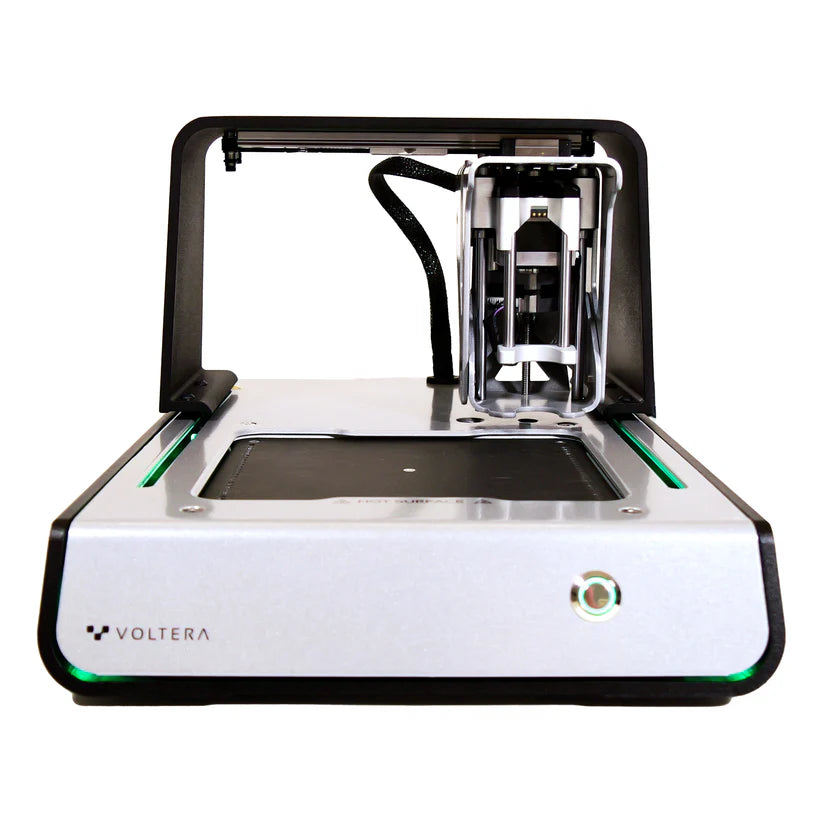

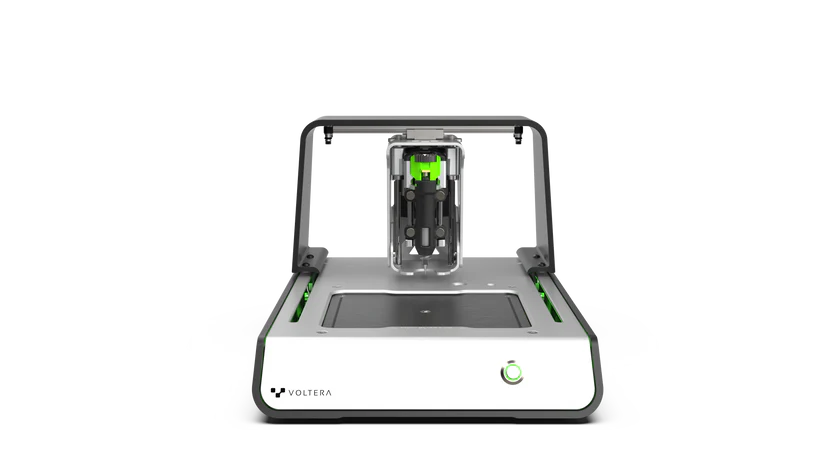

Meet V-One — A desktop circuit board printer
 4-in-1 functionality V-One has everything needed to prototype PCBs. It can drill through holes for vias, print traces, dispense solder paste, and reflow — all in one compact form factor. |
 Fast, low-volume prototyping Iterate quickly and get immediate feedback on new designs. Print and assemble functional PCBs in an hour. Identify design errors early and reduce time to market. |
 Intuitive user experience V-One is designed for all skill levels. From students in a classroom to electrical engineers in industry, V-One makes PCB prototyping easy at every stage of electrical development. |
 Intellectual property protection Protecting patents, copyrights, and trademarks is important. Prototyping electronics with V-One means keeping intellectual property completely in-house. |
V-One features overview
|
Circuit printing Print conductive ink to create traces and pads. |
Solder paste dispensing Stencil-free solder paste improves solder joint quality over manual application. |
|
Drilling Drill holes for through-hole components and vias for two-layer PCBs. |
Built-in reflow Reflow solder PCBs directly on the build area without a dedicated reflow oven. |
V-One features
|
Fast, hands-on, in-house PCB prototyping Quicker development time IP protection Hands-on learning |
|
Solder paste dispensing and built-in reflow Stencil-free soldering Consistent soldering Reflow for PCB assembly |
|
Intuitive user experience Easy to use Use universal file formats Hassle-free updates  |
Anatomy of V-One
|
Print area The 4.5” x 5” print area has clamping features to secure PCBs during the printing process. The entire print area heats up to cure conductive inks and to reflow solder components.
|
|
|

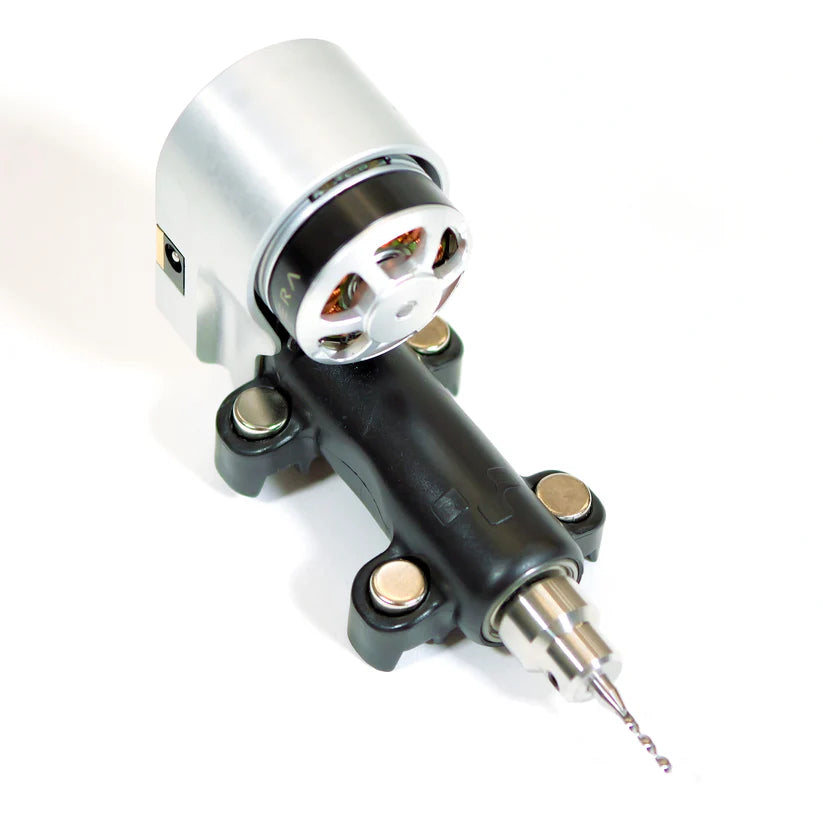

Drill Features an 11,000 RPM brushless DC motor that can drill holes for through-hole components and vias. |
|
|

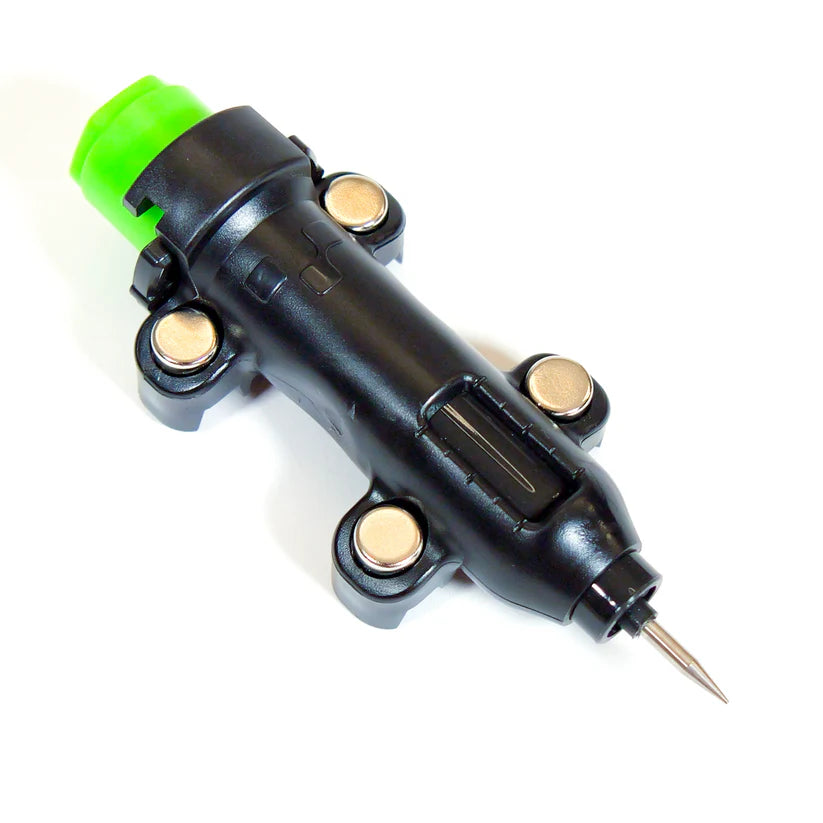

Probe Create a height map of the surface to ensure a consistent print height during dispensing. |
|
|

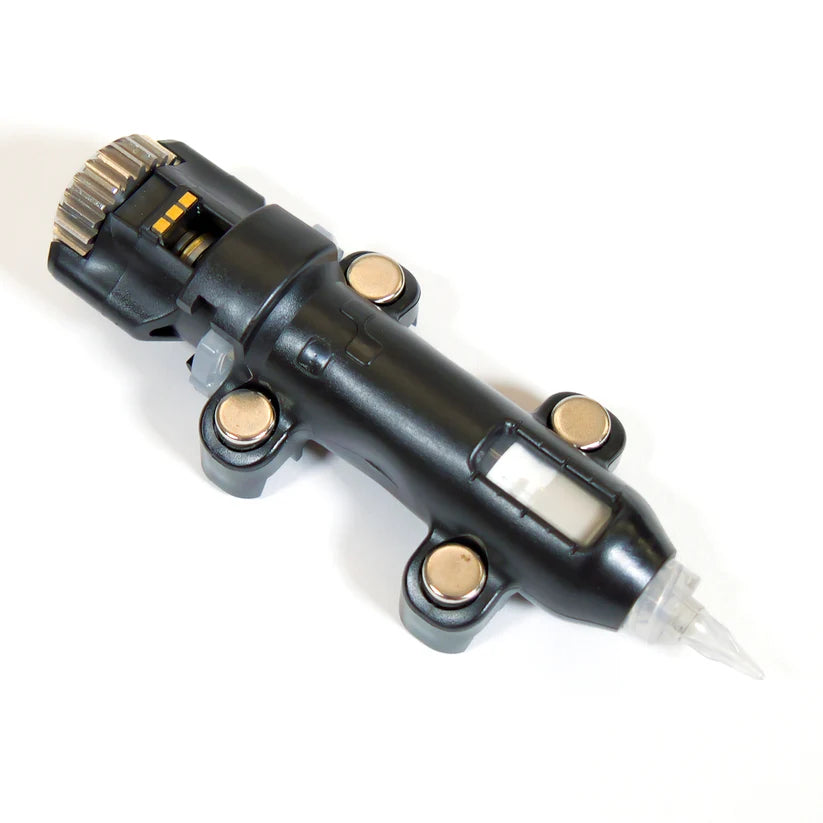

Dispenser Uses positive displacement to print conductive ink to create PCB traces and solder paste to attach components. |
|
Tech Specs of Voltera V1
| Printing | Soldering | Software |
|---|---|---|
| Minimum Trace Width: 0.2mm | Print Area: 128mm x 105mm | Operating Systems: Windows 7, 8, 10 (64bit), OSX 10.11+ |
| Minimum Passive Size: 1005 | Max. Heated Bed Temperature: 240°C | Compatible File Format: Gerber |
| Minimum Pin-To-Pin Pitch: 0.65mm | Minimum Pin-To-Pin Pitch: 0.5mm | Connection Type: Wired USB |
| Resistivity: 12mΩ/Sq @ 70μm Height | Solder Paste Alloy: Sn42/Bi57.6/Ag0.4 | |
| Supplied Substrate Material: FR4 | Solder Wire Alloy: SnBiAg1 | |
| Maximum Board Thickness: 3mm | Soldering Iron Temperature: 180–210°C |
Hands On With The Voltera V-One PCB Printer
Print your own circuit boards
On your desktop and on your schedule, the Voltera V1 gets you from prototype to production faster than ever before. Create two layer circuit boards on your desk. Load your Gerber files and watch the dispenser lay down a silver-based conductive ink to print your circuit right before your eyes.
Skip the soldering iron
Focus on designing, not soldering. Regardless if your boards come from a factory, or from your desk - just mount them on the V1 and off you go. Say goodbye to stencils and cut your assembly time in half. Assembling boards is easy - it is quick turn PCBA at your desk!
Software you will love
Voltera’s software is designed to be understood. From importing your Gerber files to the moment you press print, the software walks you though each step with built in videos and tutorials. Compatible with EAGLE, Altium, KiCad, Mentor Graphics, Cadence, DipTrace and Upverter. Is your CAD tool not on this list? Contact us to find out if we're compatible!

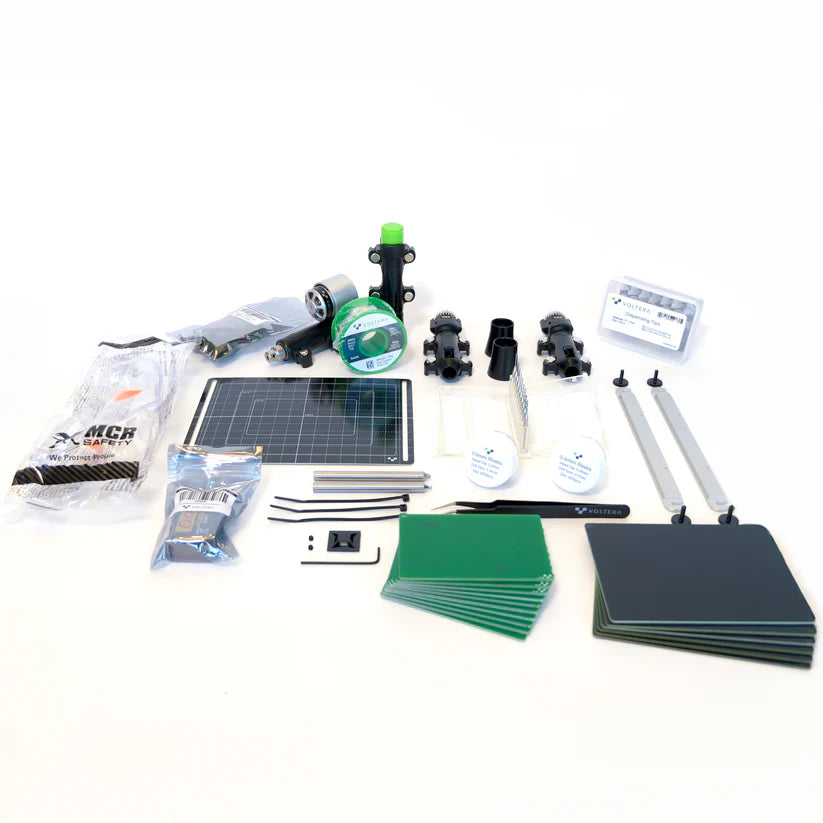

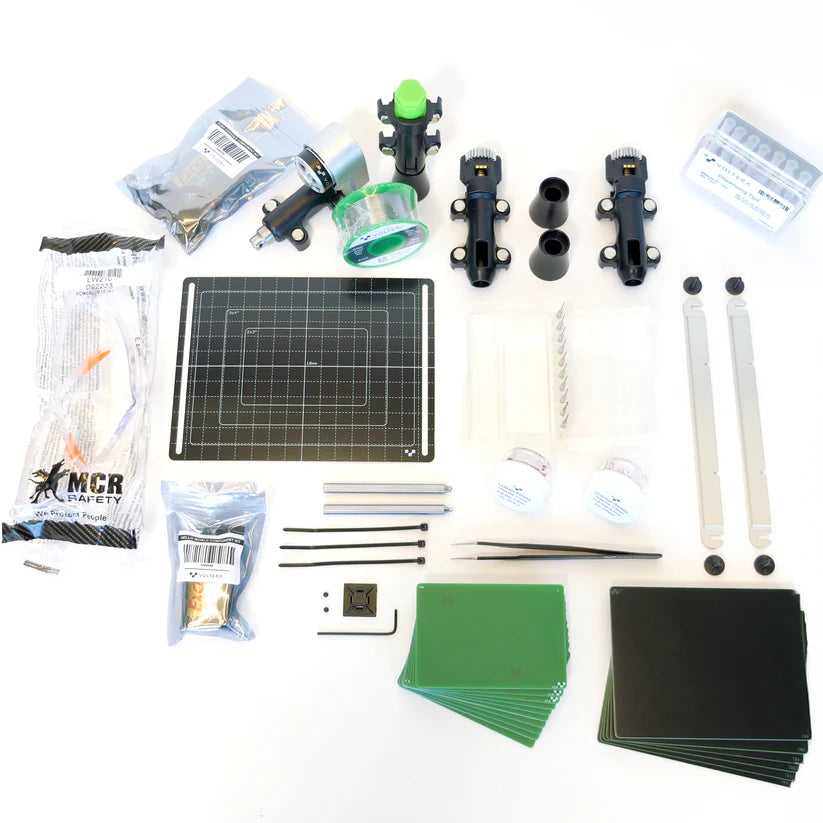

What's in the box?
The V-One includes all the accessories you need to get started. Here's what you'll find in the box:
| Included Items |
|---|
| V-One |
| V-One Dispenser |
| V-One Probe |
| Nozzle Pack |
| Tip Caps |
| 3” x 4” FR1 Substrate Pack |
| 2” x 3” FR1 Substrate Pack |
| Substrate Clamps |
| Thumbscrew Pack |
| Hello World Kit |
| Solder Wire |
| Tweezers |
| Power Supply, Power Adapter, Cables, and User Guides |
How long does it take to print and assemble a PCB with this system?
Functional PCBs can be printed and assembled in about one hour, enabling fast in house prototyping and immediate design feedback.
What file formats and software are supported for use with the V-One?
Gerber files can be imported and the software runs on Windows 7, 8 and 10 64 bit as well as OSX 10.11 and later. The software automatically generates paths and supports EAGLE, Altium, KiCad, Mentor Graphics, Cadence, DipTrace and Upverter.
What is included in the box when I purchase the V-One?
Included items are V-One, V-One Dispenser, V-One Probe, Nozzle Pack, Tip Caps, 3 by 4 inch FR1 Substrate Pack, 2 by 3 inch FR1 Substrate Pack, Substrate Clamps, Thumbscrew Pack, Hello World Kit, Solder Wire, Tweezers, Power Supply, Power Adapter, Cables, and User Guides.
Is the V-One suitable for beginners and educational use?
Yes, it is designed for all skill levels with an intuitive user experience, making it suitable for students and engineers.
What are the main capabilities and limits of the V-One regarding board size and reflow?
It provides four core functions in one unit: printing conductive ink traces, stencil free solder paste dispensing, drilling holes, and reflow. The print area is 4.5 by 5 inches, max board thickness is 3 mm, and reflow is up to 240 C for up to 60 minutes with a 550 W heater, using FR4 substrate.
Description
V-One PCB Printer
Prototype and assemble PCBs in an hour and get immediate feedback on new designs.
The Voltera V-One is a desktop-sized dispensing system for PCB printing. Import your Gerber file into the Voltera software, press print, and the V-One will bring your board to life. Use the solder paste dispensing and reflow features to mount components onto your printed board, or mount components on a prefabricated board with ease.
Meet V-One — A desktop circuit board printer
|
4-in-1 functionality V-One has everything needed to prototype PCBs. It can drill through holes for vias, print traces, dispense solder paste, and reflow — all in one compact form factor. |
Fast, low-volume prototyping Iterate quickly and get immediate feedback on new designs. Print and assemble functional PCBs in an hour. Identify design errors early and reduce time to market. |
|
Intuitive user experience V-One is designed for all skill levels. From students in a classroom to electrical engineers in industry, V-One makes PCB prototyping easy at every stage of electrical development. |
Intellectual property protection Protecting patents, copyrights, and trademarks is important. Prototyping electronics with V-One means keeping intellectual property completely in-house. |
V-One features overview
|
Circuit printing Print conductive ink to create traces and pads. |
Solder paste dispensing Stencil-free solder paste improves solder joint quality over manual application. |
|
Drilling Drill holes for through-hole components and vias for two-layer PCBs. |
Built-in reflow Reflow solder PCBs directly on the build area without a dedicated reflow oven. |
V-One features
|
Fast, hands-on, in-house PCB prototyping Quicker development time IP protection Hands-on learning |
|
Solder paste dispensing and built-in reflow Stencil-free soldering Consistent soldering Reflow for PCB assembly |
|
Intuitive user experience Easy to use Use universal file formats Hassle-free updates |
Anatomy of V-One
|
Print area The 4.5” x 5” print area has clamping features to secure PCBs during the printing process. The entire print area heats up to cure conductive inks and to reflow solder components.
|
|
|
Drill Features an 11,000 RPM brushless DC motor that can drill holes for through-hole components and vias. |
|
|
Probe Create a height map of the surface to ensure a consistent print height during dispensing. |
|
|
Dispenser Uses positive displacement to print conductive ink to create PCB traces and solder paste to attach components. |
|
Tech Specs of Voltera V1
| Printing | Soldering | Software |
|---|---|---|
| Minimum Trace Width: 0.2mm | Print Area: 128mm x 105mm | Operating Systems: Windows 7, 8, 10 (64bit), OSX 10.11+ |
| Minimum Passive Size: 1005 | Max. Heated Bed Temperature: 240°C | Compatible File Format: Gerber |
| Minimum Pin-To-Pin Pitch: 0.65mm | Minimum Pin-To-Pin Pitch: 0.5mm | Connection Type: Wired USB |
| Resistivity: 12mΩ/Sq @ 70μm Height | Solder Paste Alloy: Sn42/Bi57.6/Ag0.4 | |
| Supplied Substrate Material: FR4 | Solder Wire Alloy: SnBiAg1 | |
| Maximum Board Thickness: 3mm | Soldering Iron Temperature: 180–210°C |
Hands On With The Voltera V-One PCB Printer
Print your own circuit boards
On your desktop and on your schedule, the Voltera V1 gets you from prototype to production faster than ever before. Create two layer circuit boards on your desk. Load your Gerber files and watch the dispenser lay down a silver-based conductive ink to print your circuit right before your eyes.
Skip the soldering iron
Focus on designing, not soldering. Regardless if your boards come from a factory, or from your desk - just mount them on the V1 and off you go. Say goodbye to stencils and cut your assembly time in half. Assembling boards is easy - it is quick turn PCBA at your desk!
Software you will love
Voltera’s software is designed to be understood. From importing your Gerber files to the moment you press print, the software walks you though each step with built in videos and tutorials. Compatible with EAGLE, Altium, KiCad, Mentor Graphics, Cadence, DipTrace and Upverter. Is your CAD tool not on this list? Contact us to find out if we're compatible!
What's in the box?
The V-One includes all the accessories you need to get started. Here's what you'll find in the box:
| Included Items |
|---|
| V-One |
| V-One Dispenser |
| V-One Probe |
| Nozzle Pack |
| Tip Caps |
| 3” x 4” FR1 Substrate Pack |
| 2” x 3” FR1 Substrate Pack |
| Substrate Clamps |
| Thumbscrew Pack |
| Hello World Kit |
| Solder Wire |
| Tweezers |
| Power Supply, Power Adapter, Cables, and User Guides |
FAQ
How long does it take to print and assemble a PCB with this system?
Functional PCBs can be printed and assembled in about one hour, enabling fast in house prototyping and immediate design feedback.
What file formats and software are supported for use with the V-One?
Gerber files can be imported and the software runs on Windows 7, 8 and 10 64 bit as well as OSX 10.11 and later. The software automatically generates paths and supports EAGLE, Altium, KiCad, Mentor Graphics, Cadence, DipTrace and Upverter.
What is included in the box when I purchase the V-One?
Included items are V-One, V-One Dispenser, V-One Probe, Nozzle Pack, Tip Caps, 3 by 4 inch FR1 Substrate Pack, 2 by 3 inch FR1 Substrate Pack, Substrate Clamps, Thumbscrew Pack, Hello World Kit, Solder Wire, Tweezers, Power Supply, Power Adapter, Cables, and User Guides.
Is the V-One suitable for beginners and educational use?
Yes, it is designed for all skill levels with an intuitive user experience, making it suitable for students and engineers.
What are the main capabilities and limits of the V-One regarding board size and reflow?
It provides four core functions in one unit: printing conductive ink traces, stencil free solder paste dispensing, drilling holes, and reflow. The print area is 4.5 by 5 inches, max board thickness is 3 mm, and reflow is up to 240 C for up to 60 minutes with a 550 W heater, using FR4 substrate.
