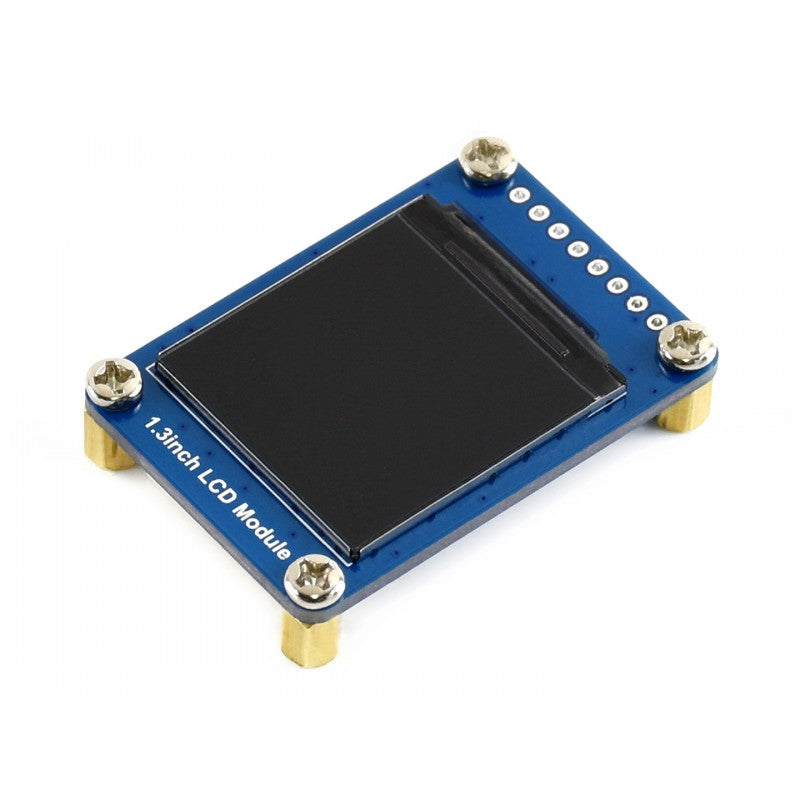

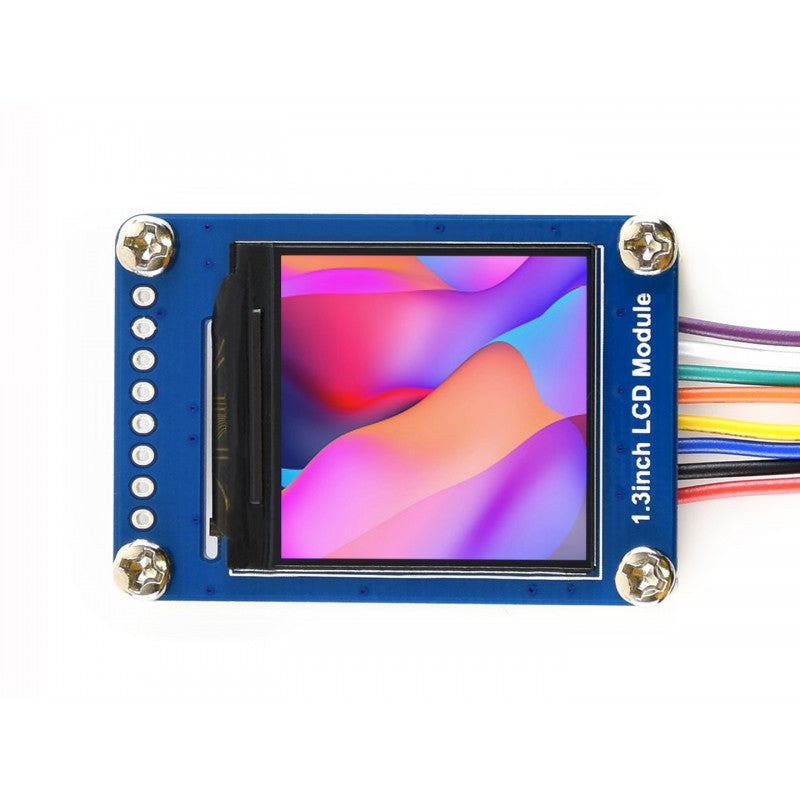

1.3inch LCD Display Module, IPS Screen, 240x240 HD Resolution, SPI Interface
This is a general LCD display Module, IPS screen, 1.3inch diagonal, 240x240 HD resolution, with embedded controller, communicating via SPI interface.
Features:
- SPI interface, requires minimum GPIO for controlling
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications:
- Driver: ST7789
- Interface: SPI
- Display color: RGB, 65K color
- Resolution: 240x240
- Backlight: LED
- Operating voltage: 3.3V/5V

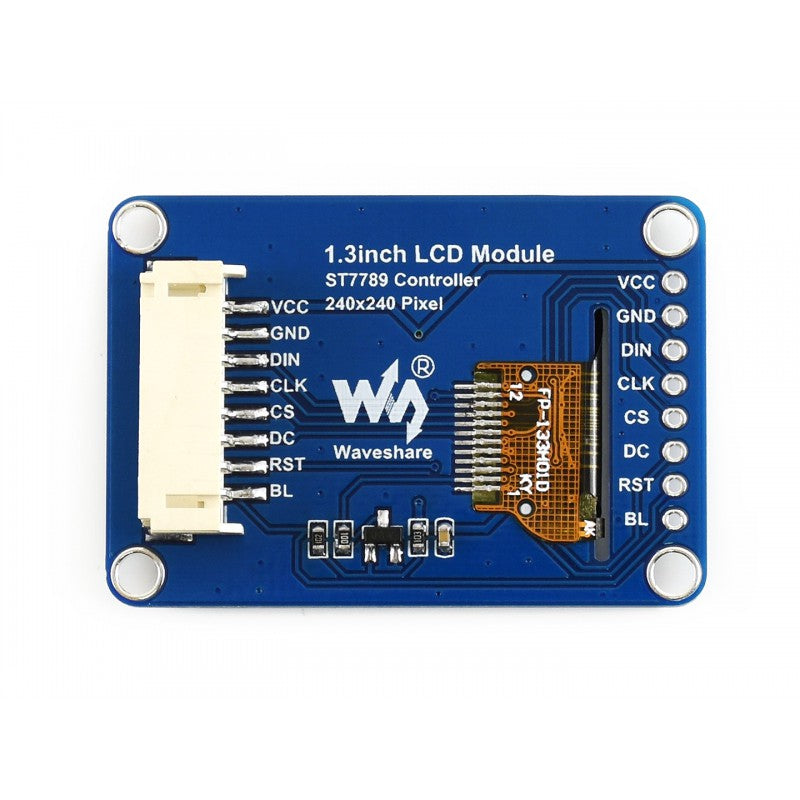

Interface
- VCC - 3.3V / 5V power input
- GND - Ground
- DIN - SPI MOSI pin
- CLK - SPI SCK pin
- CS - SPI chip selection, low active
- DC - Data/Command selection (high for data, low for command)
- RST - External reset, low active
- BL - Backlight
Outline Dimensions
Development Resources
What interface does this display use and what pins are required?
It uses the SPI interface to talk to the host. The required pins are DIN, CLK, CS, DC, RST and BL, with VCC supporting 3.3V or 5V and GND as ground.
Is there support material for common boards such as Raspberry Pi, Arduino or STM32?
Yes, development resources and examples are provided for Raspberry Pi, Jetson Nano, Arduino and STM32.
What is the screen resolution and color capability?
The display is 240 by 240 pixels and supports RGB 65K color.
What are the power and voltage requirements?
The module operates at 3.3V or 5V with a ground reference.
Where can I find official documentation and development resources?
Documentation and examples are available in the Waveshare wiki at www.waveshare.com/wiki/1.3inch_LCD_Module.
Description
1.3inch LCD Display Module, IPS Screen, 240x240 HD Resolution, SPI Interface
This is a general LCD display Module, IPS screen, 1.3inch diagonal, 240x240 HD resolution, with embedded controller, communicating via SPI interface.
Features:
- SPI interface, requires minimum GPIO for controlling
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications:
- Driver: ST7789
- Interface: SPI
- Display color: RGB, 65K color
- Resolution: 240x240
- Backlight: LED
- Operating voltage: 3.3V/5V
Interface
- VCC - 3.3V / 5V power input
- GND - Ground
- DIN - SPI MOSI pin
- CLK - SPI SCK pin
- CS - SPI chip selection, low active
- DC - Data/Command selection (high for data, low for command)
- RST - External reset, low active
- BL - Backlight
Outline Dimensions
Development Resources
FAQ
What interface does this display use and what pins are required?
It uses the SPI interface to talk to the host. The required pins are DIN, CLK, CS, DC, RST and BL, with VCC supporting 3.3V or 5V and GND as ground.
Is there support material for common boards such as Raspberry Pi, Arduino or STM32?
Yes, development resources and examples are provided for Raspberry Pi, Jetson Nano, Arduino and STM32.
What is the screen resolution and color capability?
The display is 240 by 240 pixels and supports RGB 65K color.
What are the power and voltage requirements?
The module operates at 3.3V or 5V with a ground reference.
Where can I find official documentation and development resources?
Documentation and examples are available in the Waveshare wiki at www.waveshare.com/wiki/1.3inch_LCD_Module.
