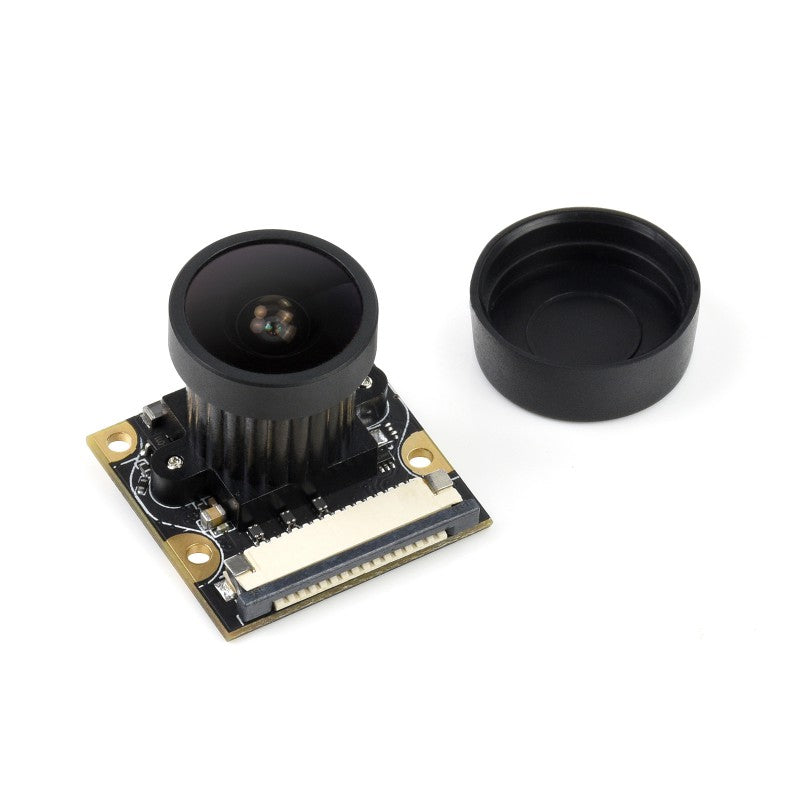

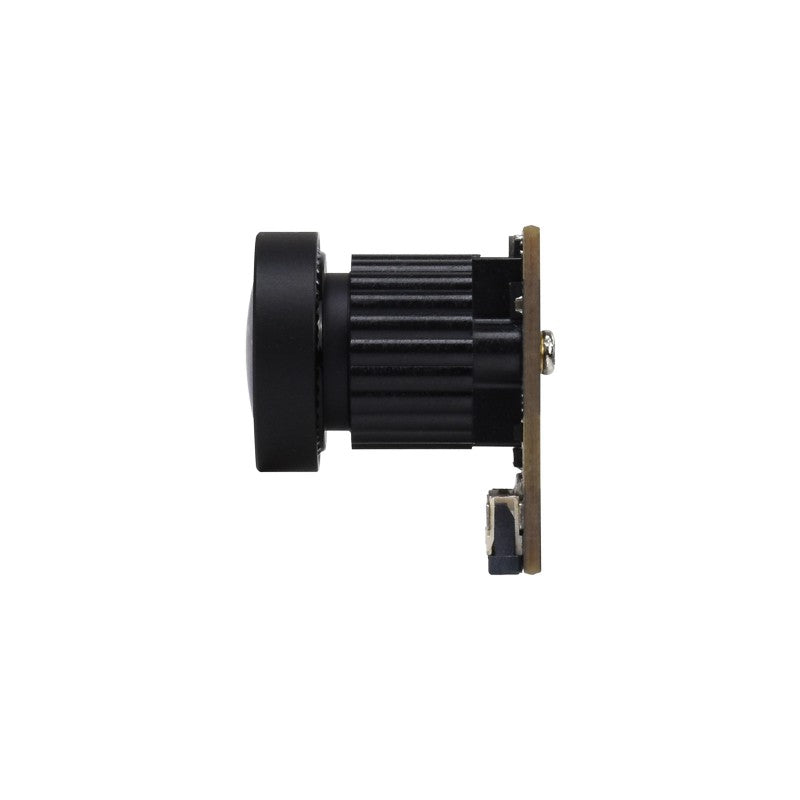

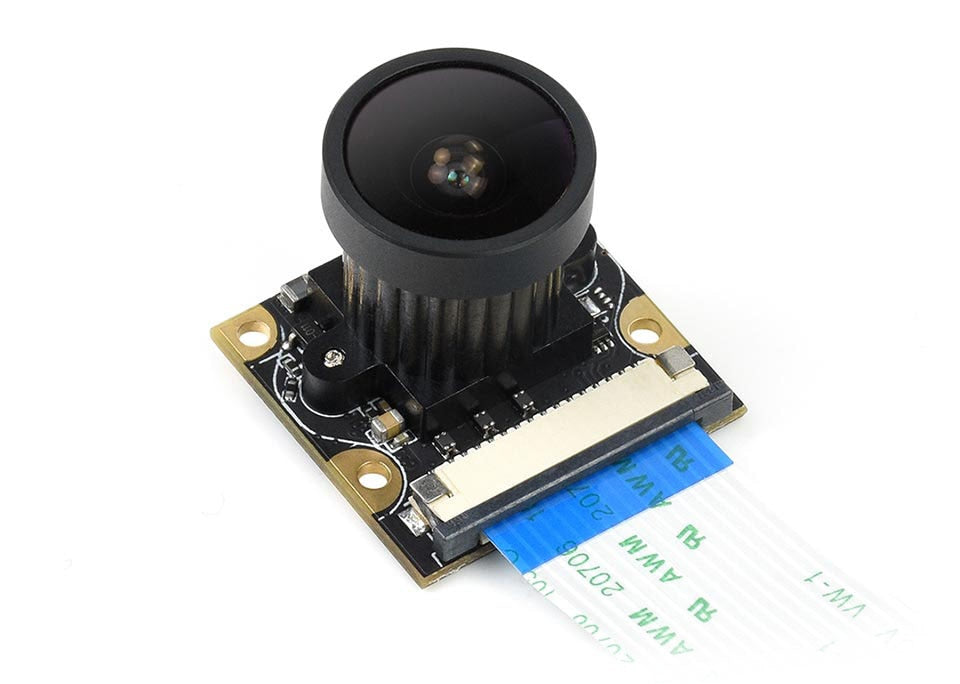

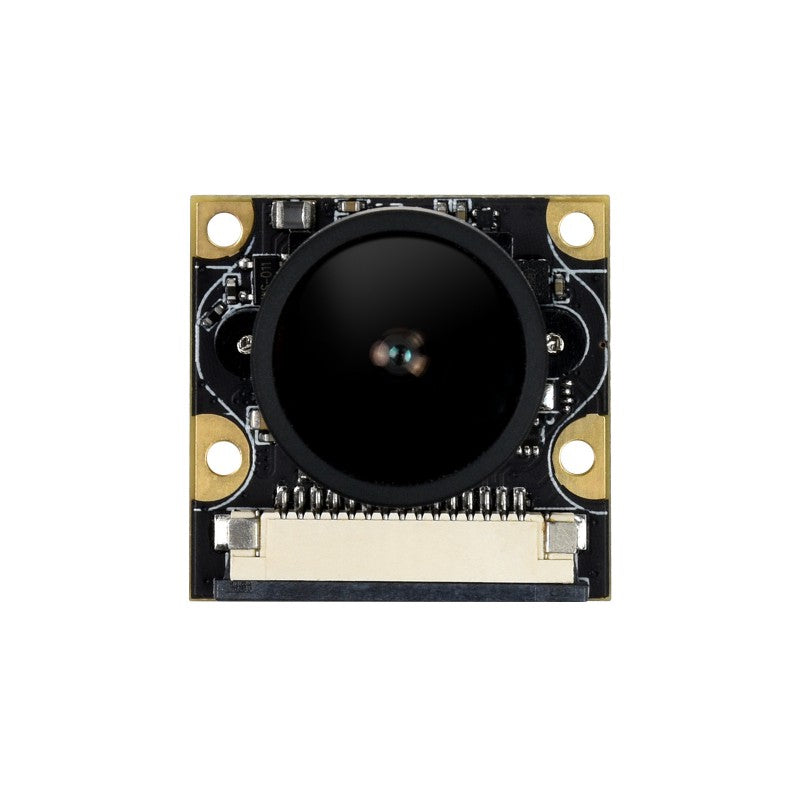

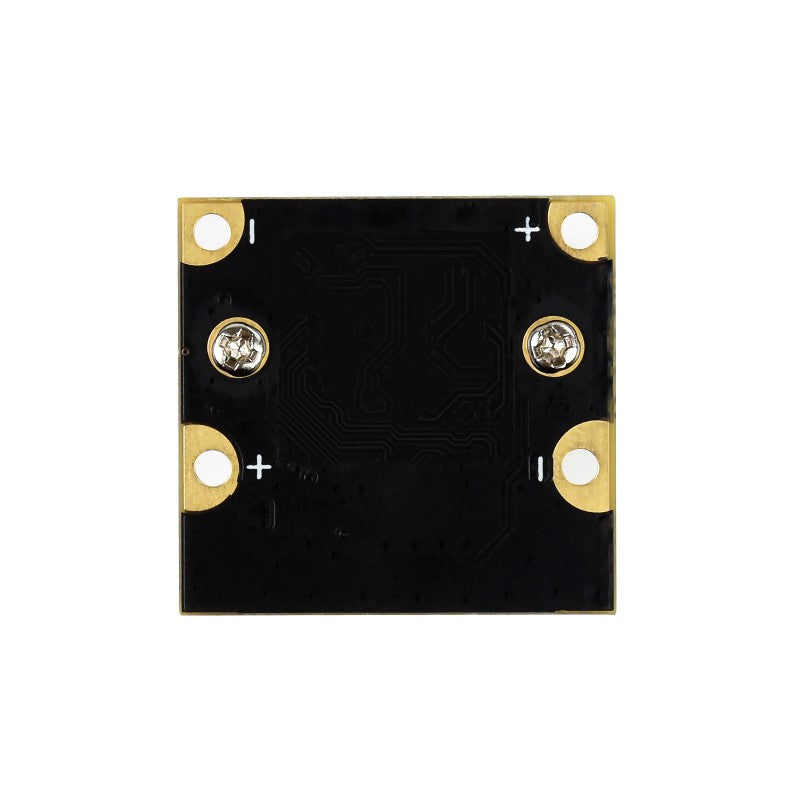

IMX477-160 12.3MP Camera, 160Ā° FOV, Applicable For Jetson Nano / Compute Module
MIPI-CSI Camera, based on Sony IMX477 sensor, 1230M pixels. Supports Raspberry Pi Compute Module series and Jetson Nano developer Kit. Suitable for AI applications such as license plate number recognition, and facial gesture recognition.Ā
Ā
Ā
Specifications
| SENSOR | Model | IMX477 |
|---|---|---|
| Resolution | 12.3MP, 4056 Ć 3040 | |
| CMOS diagonal length | 7.9mm | |
| pixel size | 1.55Āµm (H) Ć 1.55Āµm (V) | |
| CAMERA | Aperture (F) | 2.2 |
| Focal length (BFL) | 2.75 | |
| Field of view (FOV) | 160Ā°(D) 118Ā°(H) 87Ā°(V) | |
| DistortionĀ | <16% | |
| OPERATING VOLTAGE | 3.3V | |
| APPLICATIONS | suitable for AI applications like: facial recognition, road mark recognition, license plate number recognition, and so on. | |
Working With Jetson Nano
Jetson Nano Developer Kit B01 (Left) And Jetson Nano 2GB Developer Kit (Right)
*Jetson Nano is NOT included, and specific driver is required for the Jetson Nano to use the IMX477 camera module.
Working With Raspberry Pi Compute Module
Compute Module 4 + IO Board (Left) And Compute Module 3 + IO Board (Right)
*CM4, CM3, IO Board, and theĀ yellow FFCĀ are NOT included.
Dimensions
What platforms is this camera compatible with?
The camera is designed for Jetson Nano developer kit and Raspberry Pi Compute Module series. A driver is required for the Jetson Nano to use the IMX477 module, and the Jetson Nano itself is not included.
What sensor and resolution does it use?
It uses the Sony IMX477 sensor with a 12.3 MP resolution of 4056 by 3040.
What is the field of view and distortion?
Field of view is 160 degrees diagonally, with 118 degrees horizontal and 87 degrees vertical; distortion is less than 16 percent.
What is the operating voltage?
Operating voltage is 3.3 volts.
What are common AI use cases and what is included or excluded?
It is suitable for AI applications such as facial recognition, road mark recognition, and license plate recognition. The CM4, CM3, IO Board and the yellow FFC are not included.
