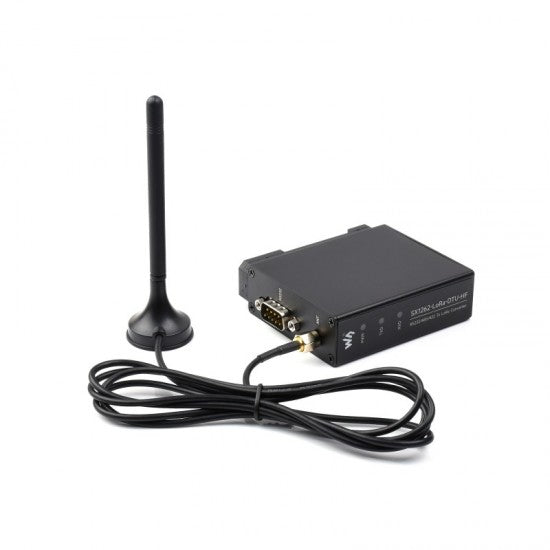

Rail-mount SX1262 LoRa Data Transfer unit 868Mhz/915Mhz

SKU: ELC8072

Regular price ₹ 2,399.99
Sale price ₹ 2,399.99 Regular price ₹ 3,999.99
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

Rail-Mount SX1262 LoRa DTU

RS232 / RS485 / RS422 To LoRa

Suitable for data acquisition in industry and agriculture

Features:

SX1262-LoRa-DTU is a wireless data transfer unit with RS232, RS485 and RS422 interfaces based on the SX1262 module. Adopts LoRa Modulate and Demodulate technology, with the advantages of anti-interference and long-distance communication (up to 5KM). Supports point-to-point, point-to-multipoints, relay network, AES, etc. Compact size and easy to install, suitable for the wireless data transmission and device control of industrial standard or non-standard user protocol

  • Adopts LoRa Modulate and Demodulate technology, anti-interference and long-distance communication
  • Adopts the original SX1262 chip, with -148dBm reception sensitivity and 22dBm emitt power
  • Supports preamble detection, with CRC, automatic packetization, 960 bytes cache functions
  • Supports LBT sending, RSSI output, AT command configuration
  • AES communication to ensure data transmission security
  • Supports multi-level relay networking to increase the wireless communication distance
  • Supports host configuration and firmware upgrade (support firmware customization for batch order)
  • Adopts high-quality components such as TCXO to ensure stable operation under harsh working conditions
  • Comes with development resources and manual
WIKI: www.waveshare.com/wiki/SX1262-LoRa-DTU-xF







    Specifications

    COMMUNICATION INTERFACE
    Interface Screw terminals: RS485 × 1, RS422 × 1
    DB9 male connector: RS232 × 1

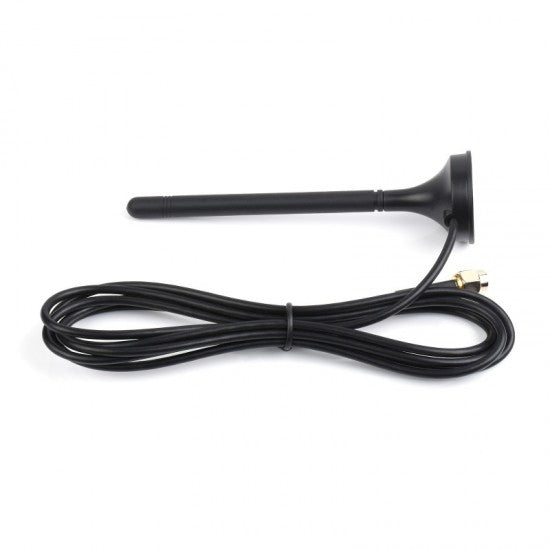

    SMA-KE female connector: 6dBi omni-directional antenna × 1
    RS485 Anti-surge, overcurrent protection (reserved 120R balanced resistor header)
    RS232 TVS diode, anti-surge and ESD protection
    RS422 Anti-surge, overcurrent protection (reserved 120R balanced resistor header)
    WIRELESS PARAMETERS
    Frequency Band Sub-GHz (410~510MHz, 850~930MHz)
    Signal Modulation LoRa
    Encryption Type AES
    Emit Power +22dBm Max
    Reception Sensitivity -148dBm
    SERIAL PARAMETERS
    Baud Rate 1200 ~ 115200bps
    Parity Bit None, Odd, Even
    Data Bit 8 ~ 9 bits
    Flow Control N/A
    ENVIRONMENTAL REQUIREMENT
    Operating Temperature 0 ~ 85℃
    Humidity Range 5% ~ 95% relative humidity
    OTHERS
    Power Supply Screw terminals 6 ~ 28V or DC 12V, overcurrent, overvoltage and reverse-proof
    Case Aluminum alloy
    Dimensions 77.0 × 24.0 × 64.2mm



    Primary Function

    Support RS232 / RS485 / RS422 To LoRa

    * Note: It does not support RS232, RS485, RS422 to LoRa at the same time, and RS232, RS485, RS422 cannot be converted to each other at the same DTU.






    Rail-Mount LoRa Data Transfer Unit

    Industrial Rail-Mount Design, Small In Size, Easy To Install, And Cost-Effective



    The LoRa Spread Spectrum Technology

    Compared to traditional communication, LoRa Chirp Spread Spectrum (CSS) and Frequency Hopping Spread Spectrum (FHSS) technologies greatly improve the performance of long-range communication and anti-interference, widely used in military and industrial communication fields.



    Multiple Communication Methods
    Can Be Set Via Software





    Relay Networking

    The Radio Station Can Realize Multi-Level Relay Networking, Suitable For Ultra Long-Range Distance Or Complex Environment Networking Communication, Allows Multi Networking On The Same Region



    AT Command Mode

    Users Can Query The Current Status Of The Module Or Set Parameters By Sending AT Commands





    AES Communication

    The Secret Key Is Writable But Unreadable, The Devices With The Encrypted Transmission Enabled And The Same Key Can Communicate With Each Other Normally For Greater Security



    Listen Before Talk (LBT)

    The module will actively monitor the environmental noise of the channel before sending. If the noise exceeds the threshold, the sending will be delayed. This function can improve the communication success rate of the module in harsh environments, suitable for networking transmission and anti-collision processing



    Receive Signal Strength Indication (RSSI)

    Supports serial port output of data packet signal strength, can be used to evaluate signal quality, improve communication network, and measure distance. Supports serial port output of environmental noise signal strength, can be used to manually realize LBT function.



    Multiple Protection, Safe And Stable

    Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable output of current and voltage, prevents over-current and over-voltage proof, improve shock resistance



    Aluminium Alloy Enclosure

    Aluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation
    Solid And Durable, Fashion And Good Hand Feeling



    Interface



    Actual Test Environment

    Sunny Weather With An Open Field, 22dBm Emit Power, Airspeed 0.3kbps,
    6dBi Magnetic CB Antenna, 3m Antenna Height, 5km Distance



    Dimensions
