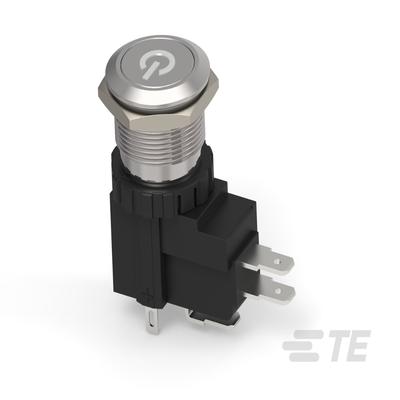

TE Connectivity/AMP Brand Pushbutton Switch SPDT 16A Solder Terminal Panel
Introducing the TE Connectivity/AMP Brand Pushbutton Switch, part number 1-2364574-3, designed for high-current applications with reliable performance and versatile installation options. This SPDT (Single Pole Double Throw) switch is ideal for machinery, control systems, automotive, electronics, and other industrial uses requiring robust switching capabilities.
Key Features:
High current rating of 16A, with available options for 26A
Flat button type for easy operation
Momentary and locking actuation options
Independent LED control with 7 color options and various LED voltages
Available bushing sizes: 19mm, 22mm, and 25mm
UL Recognized for safety and quality
Sealed silicone construction for ingress protection (IP67) and durability (IK08)
This switch features solder terminal connections and is packaged in a box for convenient handling and installation. The product complies with RoHS standards and is classified under ECCN EAR99.
Specifications:
Type
Bushing Size
Actuation
Rating
Contact Resistance
Operation Temperature
Mechanical Life
Electrical Life
Sealing
Operation Force
Travel
Ingress Protection
Pollution Degree
AVH19, AVH22, AVH25
19mm, 22mm, 25mm
Momentary / Locking
16A, 26A / 125VAC, 250VAC
50mΩ Max
-25°C to 85°C
1,000,000 cycles (Momentary: 500,000 cycles)
50,000 cycles (16A), 10,000 cycles (26A)
Silicone
3.5±1.5N
3.2mm
IP67, IK08
2, Marco and Micro
For detailed application instructions, refer to the datasheet.
Part Number: 1-2364574-3 Manufacturer: TE CONNECTIVITY/AMP BRAND Country of Origin: TW UOM: EA ECCN: EAR99 Package Type: BOX
Note: Datasheet was not processed. Please search the internet for the part number for more details.
