13.3inch E Ink Spectra 6 (E6) Full color E-Paper Display, 1600Ɨ1200 Pixels, SPI Communication with RPi HAT

SKU: WVSH0119

ā‚¹ 35,249.99

In stock | Ready to ship

āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
13.3inch E Ink Spectra 6 (E6) Full color E-Paper Display, 1600Ɨ1200 Pixels, SPI Communication with RPi HATā‚¹ 35,249.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

13.3ā€³ Full Color E-Paper Display

Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity

Ideal for price tags, shelf labels, industrial instruments...

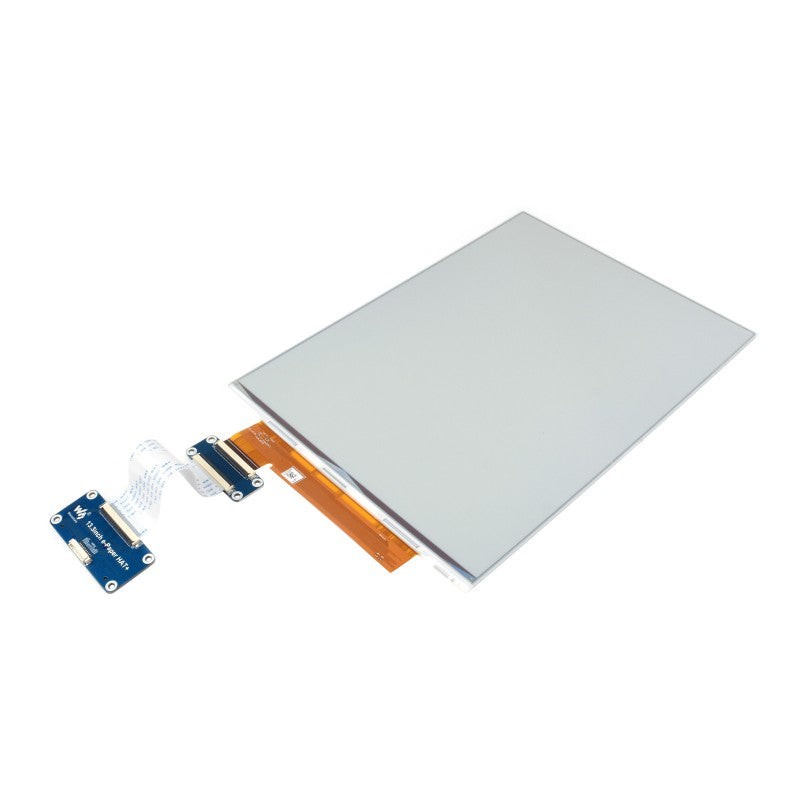

13.3inch e-Paper HAT+ (E), front view

Note: the e-Paper Driver HAT is optional, please refer to the Package Content for detailed part list

Ā

Features

  • Adopts E Ink Spectra 6 (E6) technology, featuring high contrast and high color saturation
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with online development resources and manual (e-Paper driver HAT circuit diagram, examples for Raspberry Pi / Arduino / ESP32 / STM32)
  • Optional for e-Paper Driver HAT:
    • Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi series boards
    • Adopts Raspberry Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi
    • Adapting SPI interface for connecting with controller boards like Arduino / ESP32 / STM32 / Raspberry Pi, etc.
    • Onboard voltage translator, compatible with 3.3V / 5V MCUs

Ā

Specifications

OPERATING VOLTAGE Raw display: 3.3V DISPLAY COLOR E6 full color
(E Ink Spectra 6)
with Driver HAT: 3.3V/5V
INTERFACE 3-wire SPI, 4-wire SPI GREY SCALE 2
OUTLINE DIMENSIONS Raw display: 284.70 Ɨ 208.80 Ɨ 0.85mm FULL REFRESH TIME 19s
e-Paper driver HAT: 65.00 Ɨ 30.50mm
DISPLAY SIZE 270.40 Ɨ 202.80mm TOTAL REFRESH POWER <0.5W
DOT PITCH 0.169 Ɨ 0.169mm STANDBY CURRENT OF RAW DISPLAY <0.01uA (almost none)
RESOLUTION 1600 Ɨ 1200 pixels VIEWING ANGLE >170Ā°

Ā

Ā

E Ink Spectra 6 Technology

E Ink Spectra 6 is a newly launched full color e-paper technology that brings fresh vitality to the e-paper industry with excellent color performance, high resolution and high contrast.

Ā

Adopts red, yellow, and blue as the primary colors, it offers more possibilities for e-paper color display, featuring high contrast and high saturation to make images clearer and colors brighter.

E Ink Spectra 6 technology introduction 1

Spectra displays are made of millions of Microcups which suspend the four different colored particles in clear fluid.

Ā

More Advanced Performance

The Resolution Is Up To 200ppi, Features A Wider Range Of Operating Temperature And Faster Screen Refresh Time. And It Is More Power-Saving, Aligning With ESG Trends For Energy Efficiency And Carbon Reduction

Comparison of e-Paper display technologies

Ā

Innovative Microcup Full Color Technology Platform

Using Blue Charged Particles To Produce Six Primary Colors, And Employing Dithering Technology To Create Vivid And Saturated Full Color Images.

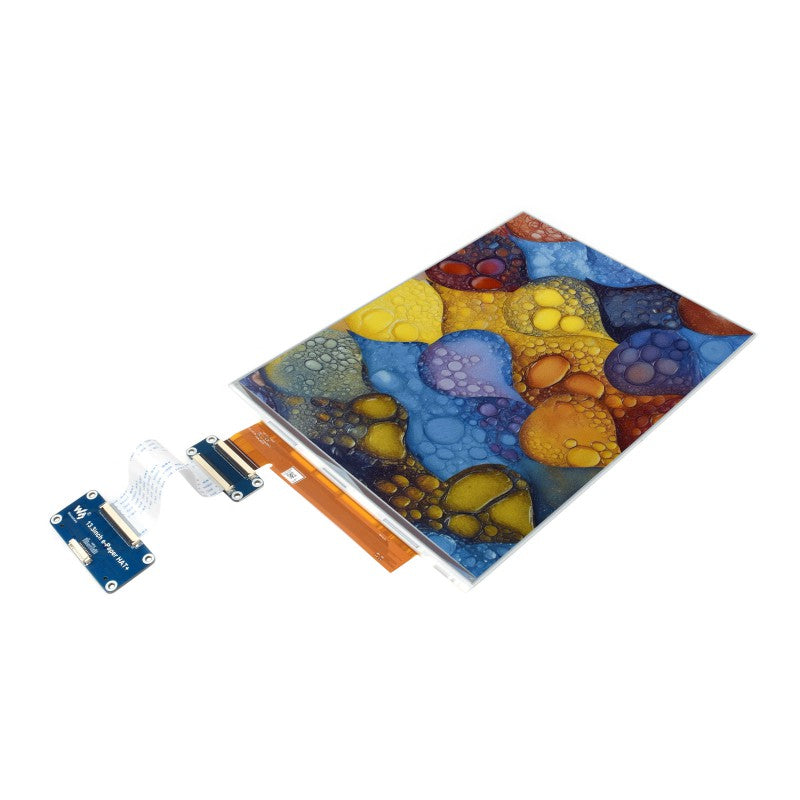

13.3inch E Ink Spectra 6 (E6) Full-color E-Paper Display, supports full-color image display

Ā

Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.

E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180Ā° viewing angle. It is usually used as e-reader due to its paper-like effect.

Ā

Standard Raspberry Pi 40PIN GPIO Header

Suitable For Raspberry Pi Series Boards

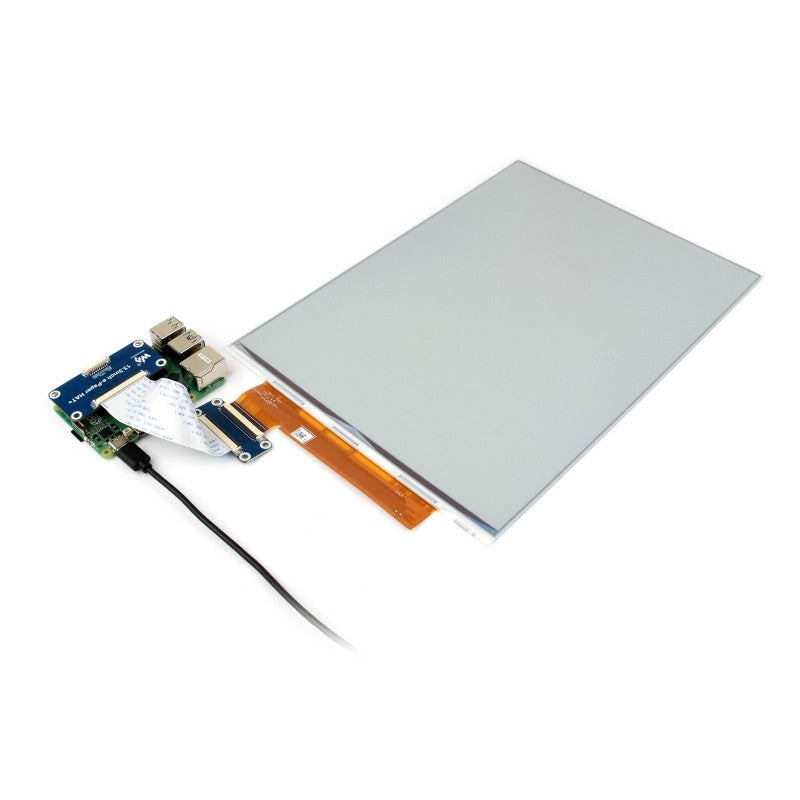

13.3inch E Ink Spectra 6 (E6) Full-color E-Paper Display with 40PIN GPIO header

* for reference only, the Raspberry Pi is NOT included.

Ā

Onboard SPI Control Interface
On E-Paper Driver HAT

For Use With Controller Boards Like Arduino / ESP32 / STM32 / Raspberry Pi

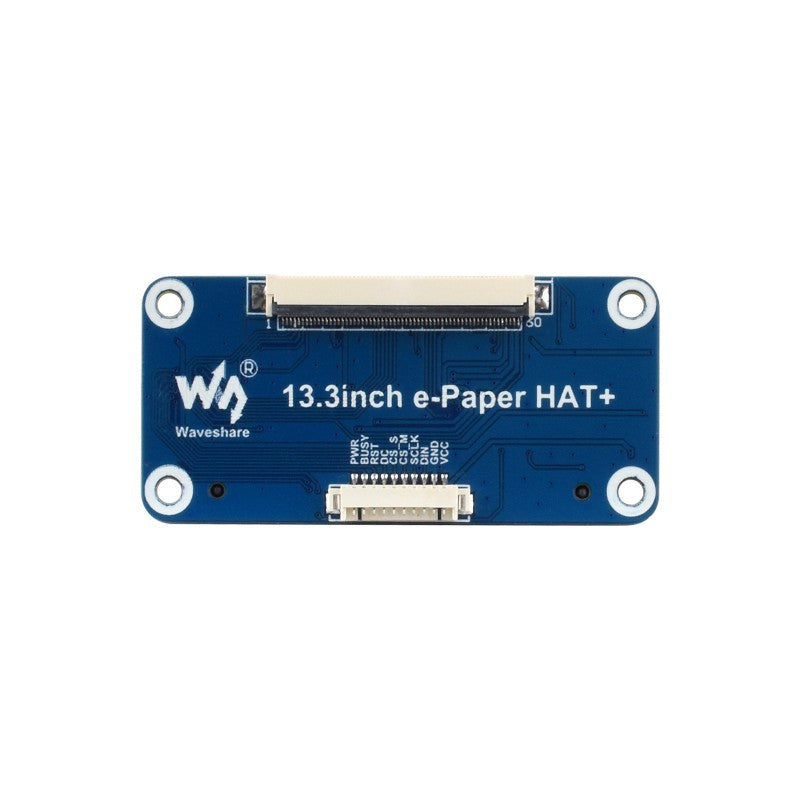

13.3inch e-Paper HAT+ (E) e-Paper Driver HAT front view, interface introduction
E Ink Spectra 6 technology introduction 2

By applying a negative charge the red particles rise to the top and become visible

 E Ink Spectra 6 technology introduction 3

A split charge raises blue particles to the top and become visible
VCC 3.3V/5V
GND Ground
DIN SPI MOSI pin
SCLK SPI SCK pin
CS_M e-paper M area chip selection, low active
CS_S e-paper S area chip selection, low active
DC Data / Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output
PWR Power control pin


New HAT+ Standard

Ā  Ā

Outline Dimensions

13.3inch e-Paper (E), e-Paper HAT, outline dimensions

Ā

Ā

Resources

WIKI: www.waveshare.com/wiki/13.3inch_e-Paper_HAT+_(E)

Ā

Ā

Package Contents:

Weight: 2.508 kg

Actual Weight: 0.1290 kg


  1. 13.3inch e-Paper HAT+ (E) x1
  2. MX1.25 10PIN cable x1
  3. Screws pack x1
113.3inch e-Paper HAT+ (E)22
What is the display resolution and color capability?
The panel has a resolution of 1600 x 1200 pixels. It uses E Ink Spectra 6 technology for full color with red, yellow and blue and features high color saturation. It is readable under ambient light with no backlight.
How can I connect and use it with a microcontroller or single board computer?
The display supports 3 wire SPI or 4 wire SPI and includes an onboard voltage translator for 3.3V or 5V MCUs. The e-Paper Driver HAT option provides a standard Raspberry Pi 40PIN GPIO header for easy Pi integration. It is compatible with Arduino, ESP32, STM32 and Raspberry Pi via SPI.
What are the power consumption and voltage requirements?
No backlight is used and power is mainly required for refreshing. Raw display operates at 3.3V. Total refresh power is less than 0.5W and standby current is less than 0.01 uA.
How long does a full refresh take and what is the viewing angle?
Full refresh time is 19 seconds. The display has a viewing angle greater than 170 degrees.
What is included in the package and is the driver hat optional?
Package contents include the 13.3 inch e-Paper HAT+ (E), MX1.25 10PIN cable, and screws. The e-Paper Driver HAT is optional; please check the package contents for the exact included parts in your order.
