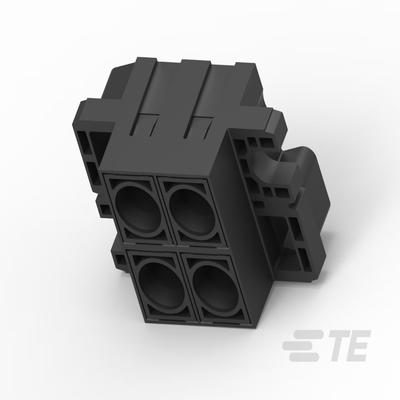

2212243-1
TE Connectivity AMP Brand - FORGE ASSY PIN 0#0-4#4-0#8-0#12-0#22
Part Number: 2212243-1Download Datasheet
Product Overview
TE Connectivity’s FORGE drawer connectors are modular power interconnects designed for versatile power systems and electrical hardware applications, including data communications. These connectors offer a flexible modular tooling platform, allowing up to 10 modules per housing with the ability to incorporate five different contact types per module. This design ensures a precise fit for various applications without the need for custom tooling, reducing costs and lead times.
Key Features
Modular configuration support for evolving design requirements
Available in configurations from 2x2 to 2x5, including 1x5 options
Supports five contact types per module, from high power (size #0) to signal (size #22)
Cost-efficient design minimizes tooling and lead time expenses
Compatibility with existing tooling and contacts for easy integration
Utilizes existing infrastructure for streamlined deployment
Mechanical Specifications
Insertion Force (max): 16.8N
Extraction Force (max): 10.6N
Operating Temperature Range: -40°C to 105°C
Durability: Minimum 250 cycles
Electrical Specifications
Current Rating: Refer to Product Specification Figure 1
Voltage Rating (size #22 signals): 50V AC
Voltage Rating (power contacts): 250V AC
Insulation Resistance: ≥ 5000 MΩ
Temperature Rise at Specified Current: Max 30°C at 50°C T-rise
Contact Types Include:
Size
Type
Description
Part Number
Size 0
Pin
Standard, Crimp Termination
1766811-1
Size 0
Pin
Probe-proof, Crimp Termination
2212374-1
Size 0
Socket
Standard, Crimp Termination
6648405-1
Size 4
Pin
Standard, Crimp Termination
1766232-1
Size 4
Pin
Post-Mate, Crimp Termination
2212216-1
Size 4
Pin
Probe-proof, Crimp Termination
2212372-1
Size 4
Socket
Standard, Crimp Termination
6648434-1
Size 8
Pin
.125 POWERBAND Pin, Standard
213840-8
Size 8
Pin
.125 POWERBAND Pin, Pre-Mate
1-213840-0
Size 8
Socket
.125 POWERBAND Socket
213843-7
Size 12
Pin
Crimp, Standard
1766193-1
Size 12
Pin
Crimp, Pre-Mate
1766195-1
Size 12
Pin
Crimp, Post-Mate
1766196-1
Size 12
Socket
Crimp
6648318-1
Size 12
Socket
Hot-Plug Crimp
1648384-1
Size 22
Pin
HDP-22 crimp-snap pin
1658670-2
Size 22
Socket
HDP-22 crimp-snap socket
1658686-2
Assembly Configurations
Configuration
Modular Assignment
Type
Part Number
1x5
single row = 0,0,0,0,0
Pin Housing
2212282-1
Socket Housing
2212284-1
2x2
lower row = 4,4 upper row = 4,4
Pin Housing
2212243-1
Socket Housing
2212245-1
2x3
lower row = 0,0,0 upper row = 0,0,0
Pin Housing
2212254-1
Socket Housing
2212256-1
Note
For additional housing configurations and contact options, please contact TE Connectivity. Refer to the datasheet for detailed specifications and assembly instructions.
Disclaimers: The information provided is believed to be reliable but not guaranteed. TE Connectivity disclaims liability for any damages arising from use. Please evaluate the product's suitability for your application.
