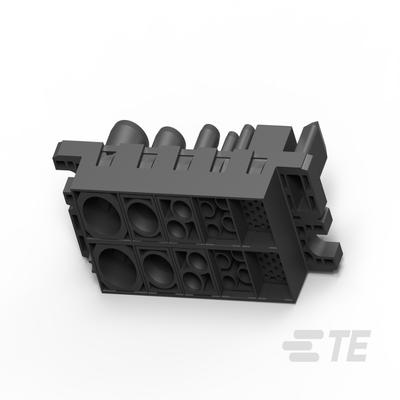

TE CONNECTIVITY AMP PART NUMBER 2212341-1 Connector Accessory SOCKET HOUSING
Optimize your electrical and power system designs with the TE Connectivity/AMP BRAND FORGE drawer connectors, a modular power interconnect solution suitable for data centers, industrial, energy, and medical applications. This connector support is designed to provide flexible configurations, high durability, and reliable electrical performance.
Part Number: 2212341-1
Manufacturer: TE CONNECTIVITY/AMP BRAND
Country of Origin: US
Unit of Measure: EA
ECCN: EAR99
Package Type: BOX
For detailed technical specifications and application guidelines, refer to the datasheet.
Key Features
Modular design supports evolving power and data communication needs
Flexible configurations including 2x2 to 2x5 modules, with up to 10 modules per housing
Use of five different contact types within a single housing for tailored applications
Cost-efficient, eliminating the need for new tooling with existing infrastructure compatibility
High electrical performance with current ratings, voltage ratings up to 250V AC, and insulation resistance of at least 5000 MΩ
Mechanical durability with a minimum of 250 insertion/extraction cycles
Operating temperature range from -40°C to 105°C
Electrical Specifications
Current rating: Refer to Product Specification Figure 1
Voltage rating: 50V AC for size #22 signal contacts; 250V AC for power contacts
Temperature rise at specified current: Max 30°C at 50°C T-rise
Insulation Resistance: ≥5000 MΩ
Mechanical Specifications
Maximum insertion force: 16.8N
Maximum extraction force: 10.6N
Durability: Minimum of 250 cycles
Application Configurations
Configuration
Modular Assignment
Type
Part Number
1x5
single row = 0,0,0,0,0
Pin Housing
2212282-1
Socket Housing
2212284-1
2x2
lower row = 4,4 upper row = 4,4
Pin Housing
2212243-1
Socket Housing
2212245-1
For additional housing configurations and contact types, please contact TE Connectivity.
