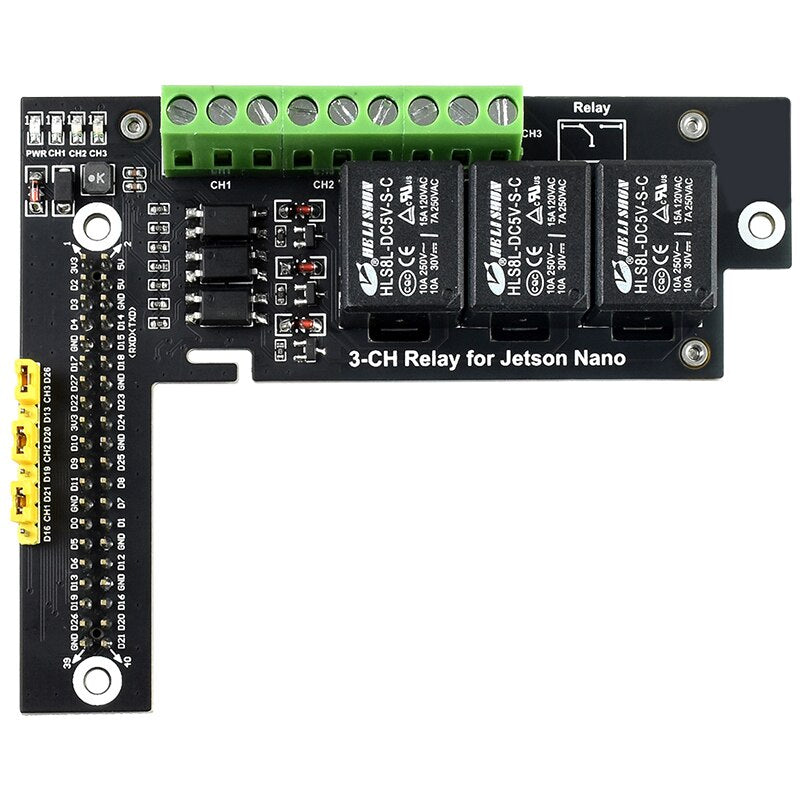

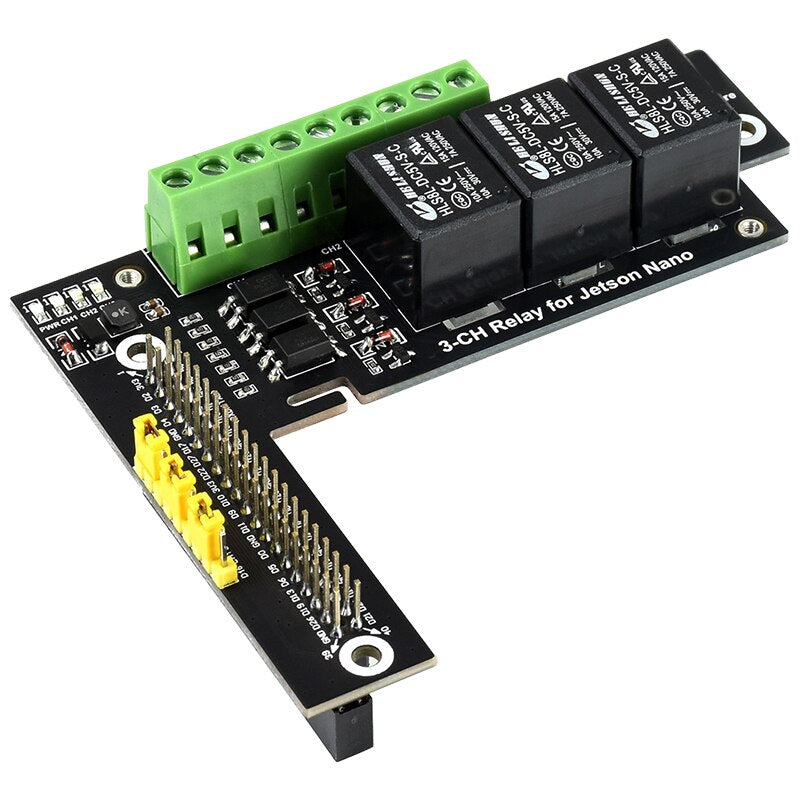

3-Ch Relay Expansion Board for Jetson Nano

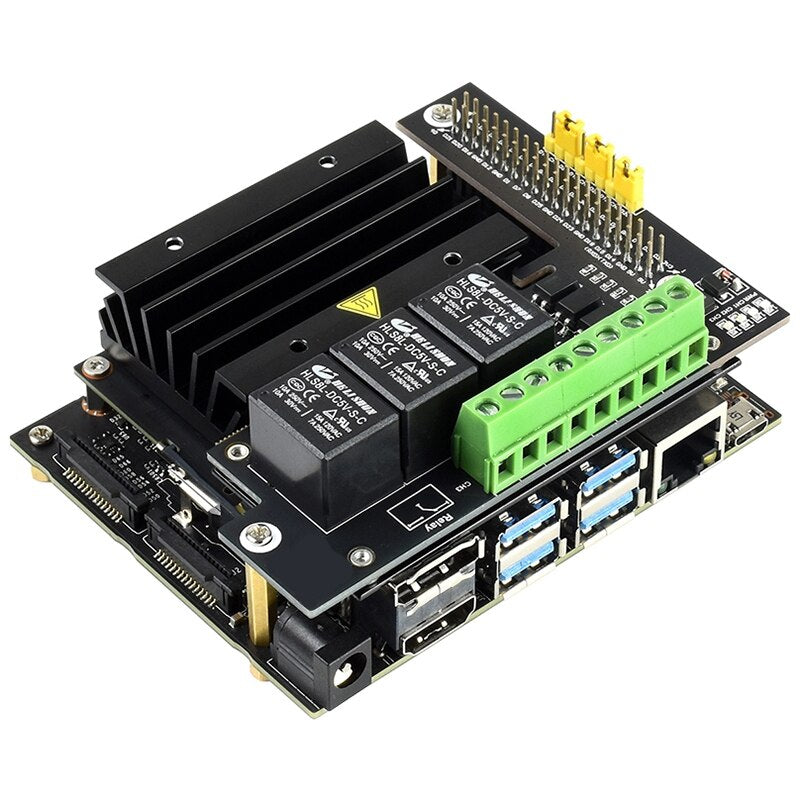

Standard 40PIN GPIO header, directly pluggable onto the Jetson Nano
Incorporate quality relay component, max load: ≤5A 250V AC or ≤5A 30V DC
Optocoupler isolation, prevent interference from the high voltage circuitry
Indicators for monitoring the relay operating status;Control pins of relays are configurable via jumpers
Acrylic bottom panel, isolating the Jetson Nano from the relay expansion board

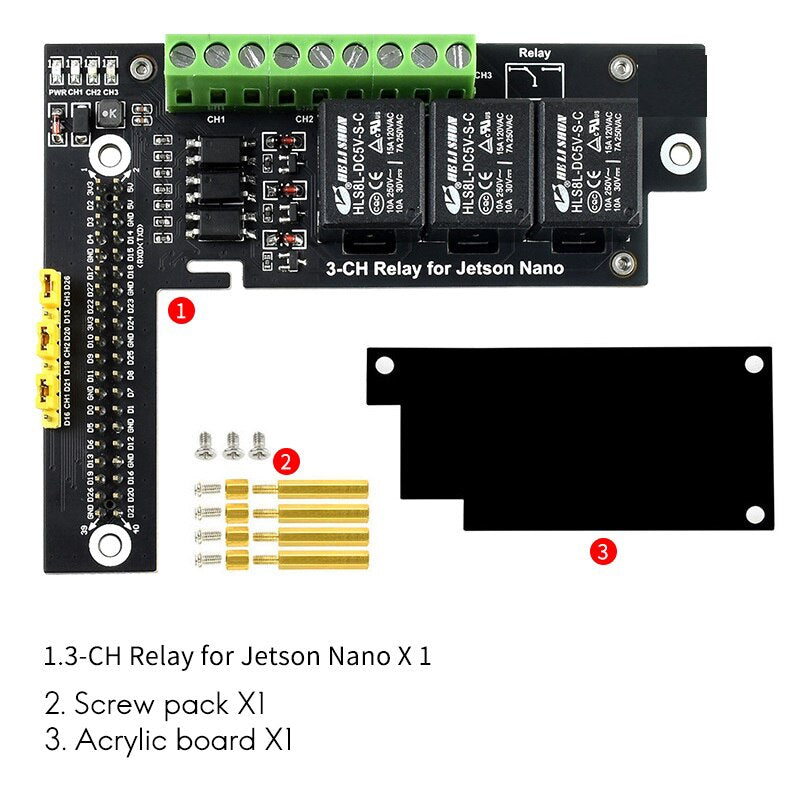

Package Contents:
1x 3-Ch Relay Expansion Board
NOTE: Jetson Nano is not included.
