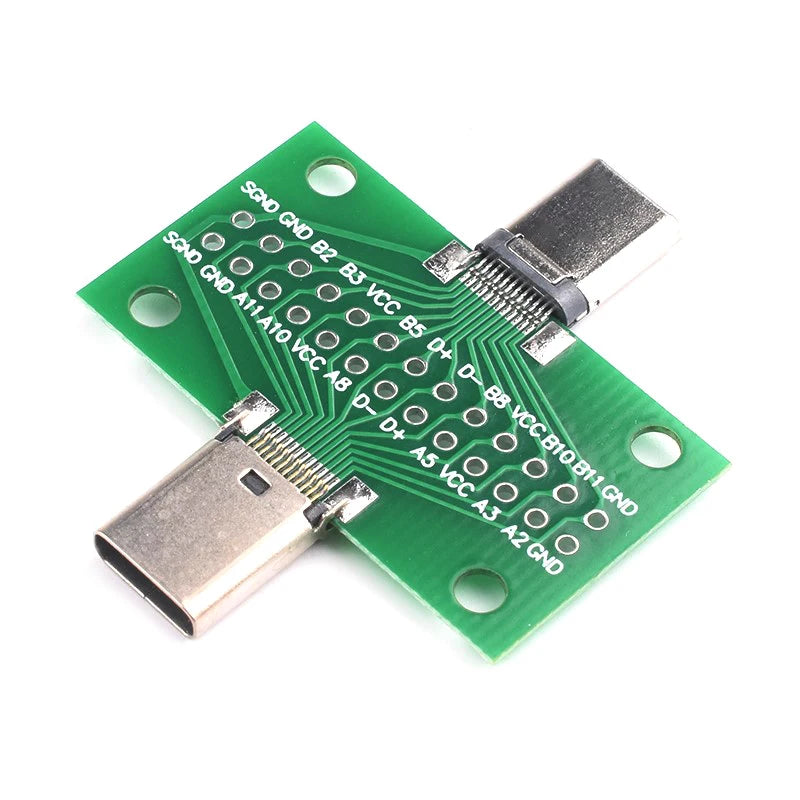

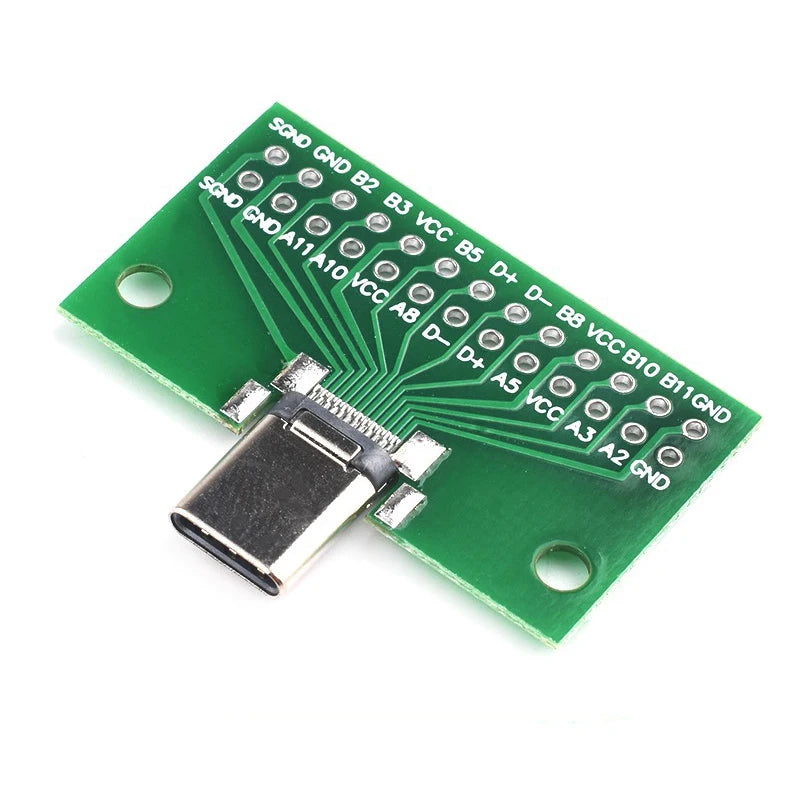

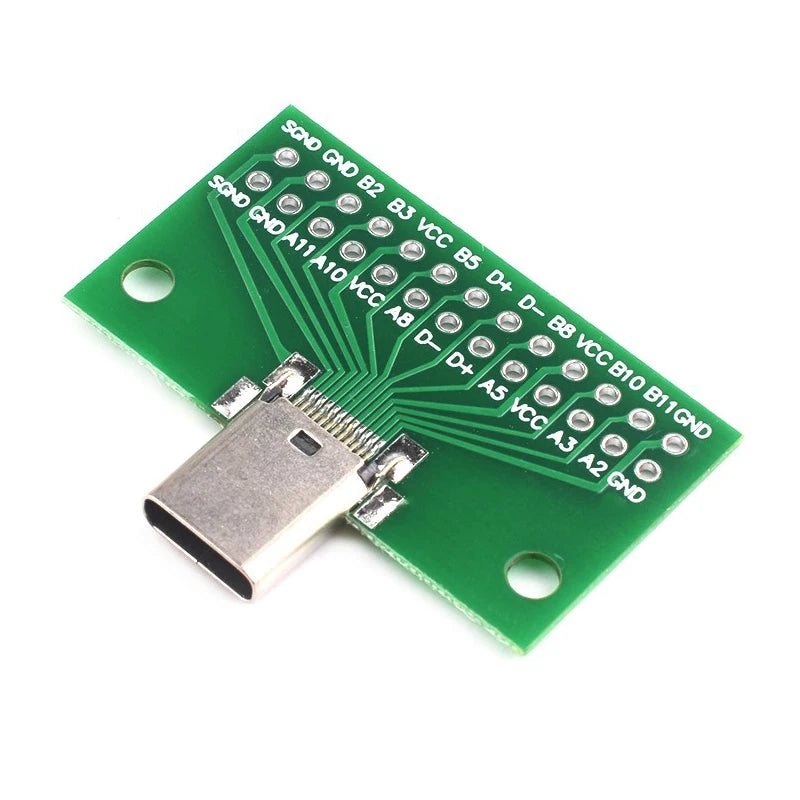

USB 3.1 Test PCB Board Adapter Type C 24P 2.54mm Connector

SKU: ELC6012M

₹ 199.99 ₹ 499.00

In stock | Ready to ship

Select variant

Male
⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
USB 3.1 Test PCB Board Adapter Type C 24P 2.54mm ConnectorMale₹ 199.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

USB Type C connectors are expected to be widely used as a next-generation interface. They support a variety of protocols such as USB2.0/3.0/3.1 and meet Superspeed communication 10Gb/s, 5A and 20V power supply.

The usability for USB 3.1 Type C connector is enhanced also by its low profile and reversible product design. It is ideal for emerging product designs.

  • Reversible plug and cable orientation
  • Meets USB 3.1/3.0/2.0 speed performance
  • Supports high speed transmission up to 10Gb/s
  • Extended 5A current rating for USB Power delivery
  • Vertical, right angle and straddle mount configurations and waterproof type available
  • Board size: 20.6x10mm
  • Board thickness: 0.8MM
  • Plate: FR-4 glass fiber board
  • Process: high-quality green oil spray tin process



Specifications





What is this product used for?
It is a USB Type C connector mounted on a PCB adapter intended for prototyping and integrating USB C connections into electronics projects. It supports USB 3.1/3.0/2.0 speeds up to 10 Gb/s and an extended 5A current rating at 20V.
What mounting options are available?
It supports vertical, right angle and straddle mount configurations, and a waterproof type is available.
What are the physical dimensions and materials?
The board size is 20.6 by 10 mm, thickness 0.8 mm, and the plate uses FR-4 glass fiber material. The process is a high quality green oil spray tin process.
What speeds and power can it support?
It meets USB 3.1/3.0/2.0 speed performance and supports high speed transmission up to 10 Gb/s and an extended 5A current rating for USB power delivery.
Is this suitable for new product designs?
Yes, it is ideal for emerging product designs due to its low profile and reversible plug and cable orientation.
