ANENG SZ20 25000 Counts Professional Digital Multimeter
Need Support? Click Here
Free Delivery Above ₹999

Best seller

Aneng

ANENG SZ20 25000 Counts Professional Digital Multimeter

SKU: TOL3014

₹ 5,799.99 ₹ 6,599.90

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
ANENG SZ20 25000 Counts Professional Digital Multimeter₹ 5,799.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

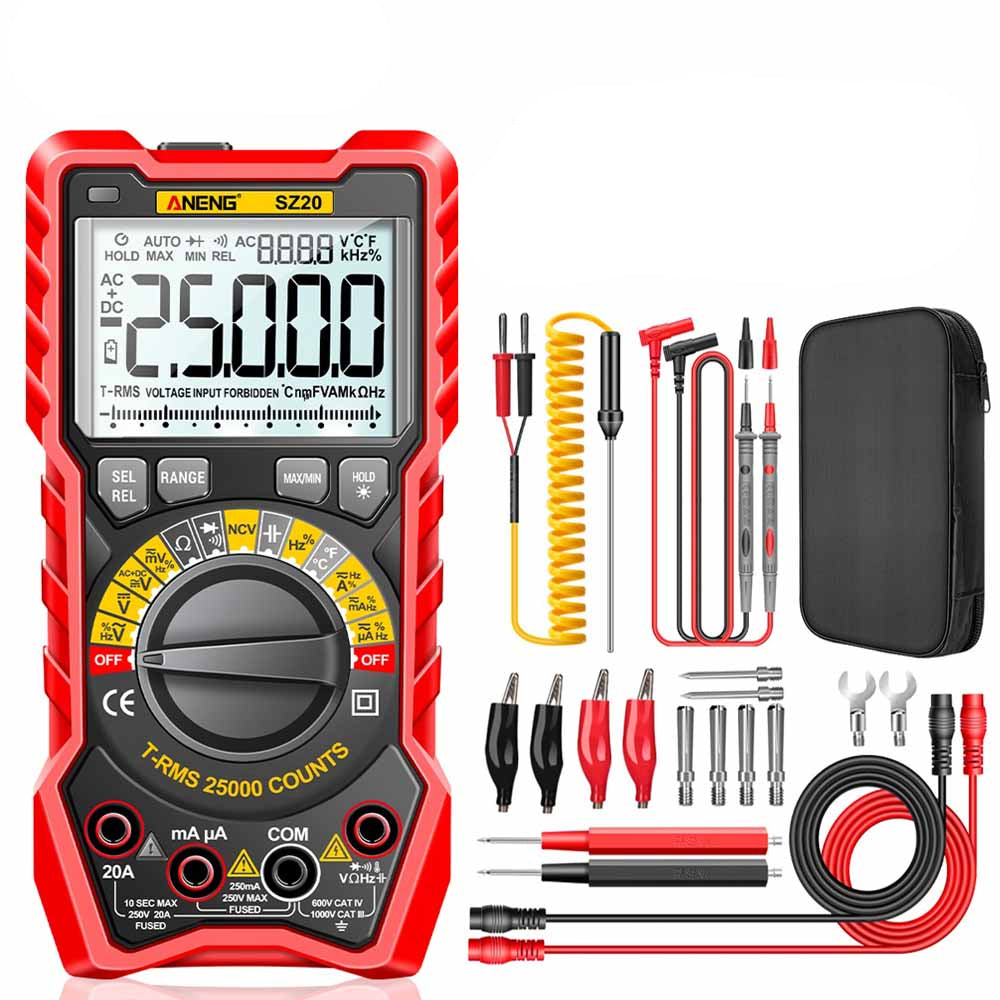

This is a battery-powered , true-rms, auto-ranging digital multimeter with a 25000 counts LCD display and a backlight.

  • Easy to use. This product is a battery-driven automatic range digital multimeter with true RMS.
  • Digital display. Instrument for LCD display, backlight display, clear reading.
  • Strip lighting. The strip lights on both sides of the screen will change synchronously with the intensity of the electric field.
  • Multimeter. Voltage, current, resistance, on-off, diode, frequency, non-contact voltage detection can be used.
  • Automatic shutdown. The multimeter will shut down automatically after 15 minutes.


Specification:

Functional parameters Model: SZ20

Function

Range

Resolution

Accuracy

DC voltage

OmV-1000V

0.001mV-0.1V

±(0.2%+10)

AC voltage

OmV-750V

0.001mV-0.1V

±(0.3%+3)

DC current

OuA-20A

0.01uA-0.001A

±(0.5%+3)

AC current

OuA-20A

0.01uA-0.001A

±(0.8%+3)

Duty cycle

1%~99%

0.1%

±(0.1%+2)

Resistance

0 Ω -250M Ω

0.01Ω-0.1MΩ

±(5%+5)

Capacitance

OnF-99.99mF

0.001nF-0.01mF

±(5%+20)

Frequency

0Hz-10MHz

0.01Hz-0.001MHz

±(0.1%+2)

Temperature℃

-20~1000°℃

1℃

±(3%+5)

Temperature°F

-4~1832°F

1°F

±(3%+5)

Flashlight

√

Diode

√

Data retention

√

On and off beep

√

Screen backlight

√

NCV detection

√

Low battery prompt

√

Silicone sheath

√

Automatic shutdown

√

Back support

√

Maximum count

25000

Size

7.08*3.54*2.16inch

Material

ABS/Silicone

Weight

384g( Battery free)

above parameters are for reference only, and the actual measurement of the specific equipment shall prevail

Please note: Batteries are not included in the shipment



What measurement functions does this multimeter support?
It supports DC voltage, AC voltage, DC current, AC current, resistance, capacitance, frequency, temperature, diode test, non contact voltage detection, and duty cycle measurement. It also includes data retention.
Do I need to provide batteries for this unit?
Batteries are not included in the shipment. The meter is powered by batteries.
How does the auto shutdown feature work?
The multimeter automatically shuts down after 15 minutes of inactivity to save power.
Is there a backlight and what is the strip lighting on the display?
Yes, it has a backlight for easy reading, and the strip lights on both sides of the screen change with the electric field intensity.
Does it support data retention and non contact voltage detection?
Yes, it includes data retention and non contact voltage detection for quick checks.
A
Admin
Welcome to the discussion thread for ANENG SZ20 25000 Counts Professional Digital Multimeter
Feel free to ask questions, share tips or report issues.
Add Post

For more discussion Click Here

Discover More In:

Multimeters, USB Testers → Tools & Accessories →

Category: View similar items (ANENG)

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

This is a battery-powered , true-rms, auto-ranging digital multimeter with a 25000 counts LCD display and a backlight.

  • Easy to use. This product is a battery-driven automatic range digital multimeter with true RMS.
  • Digital display. Instrument for LCD display, backlight display, clear reading.
  • Strip lighting. The strip lights on both sides of the screen will change synchronously with the intensity of the electric field.
  • Multimeter. Voltage, current, resistance, on-off, diode, frequency, non-contact voltage detection can be used.
  • Automatic shutdown. The multimeter will shut down automatically after 15 minutes.


Specification:

Functional parameters Model: SZ20

Function

Range

Resolution

Accuracy

DC voltage

OmV-1000V

0.001mV-0.1V

±(0.2%+10)

AC voltage

OmV-750V

0.001mV-0.1V

±(0.3%+3)

DC current

OuA-20A

0.01uA-0.001A

±(0.5%+3)

AC current

OuA-20A

0.01uA-0.001A

±(0.8%+3)

Duty cycle

1%~99%

0.1%

±(0.1%+2)

Resistance

0 Ω -250M Ω

0.01Ω-0.1MΩ

±(5%+5)

Capacitance

OnF-99.99mF

0.001nF-0.01mF

±(5%+20)

Frequency

0Hz-10MHz

0.01Hz-0.001MHz

±(0.1%+2)

Temperature℃

-20~1000°℃

1℃

±(3%+5)

Temperature°F

-4~1832°F

1°F

±(3%+5)

Flashlight

√

Diode

√

Data retention

√

On and off beep

√

Screen backlight

√

NCV detection

√

Low battery prompt

√

Silicone sheath

√

Automatic shutdown

√

Back support

√

Maximum count

25000

Size

7.08*3.54*2.16inch

Material

ABS/Silicone

Weight

384g( Battery free)

above parameters are for reference only, and the actual measurement of the specific equipment shall prevail

Please note: Batteries are not included in the shipment



FAQ
What measurement functions does this multimeter support?
It supports DC voltage, AC voltage, DC current, AC current, resistance, capacitance, frequency, temperature, diode test, non contact voltage detection, and duty cycle measurement. It also includes data retention.
Do I need to provide batteries for this unit?
Batteries are not included in the shipment. The meter is powered by batteries.
How does the auto shutdown feature work?
The multimeter automatically shuts down after 15 minutes of inactivity to save power.
Is there a backlight and what is the strip lighting on the display?
Yes, it has a backlight for easy reading, and the strip lights on both sides of the screen change with the electric field intensity.
Does it support data retention and non contact voltage detection?
Yes, it includes data retention and non contact voltage detection for quick checks.
