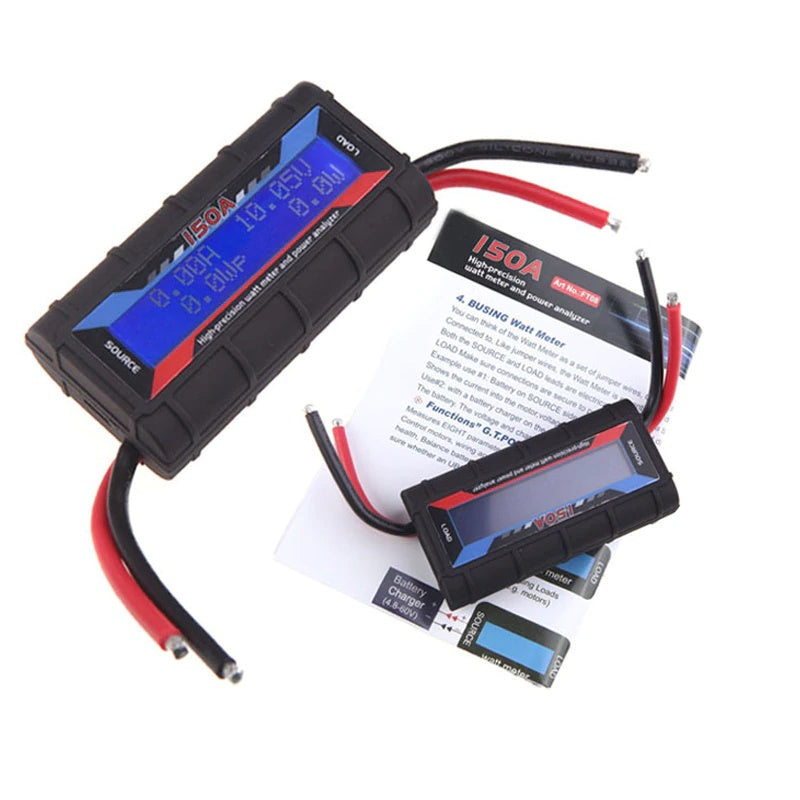

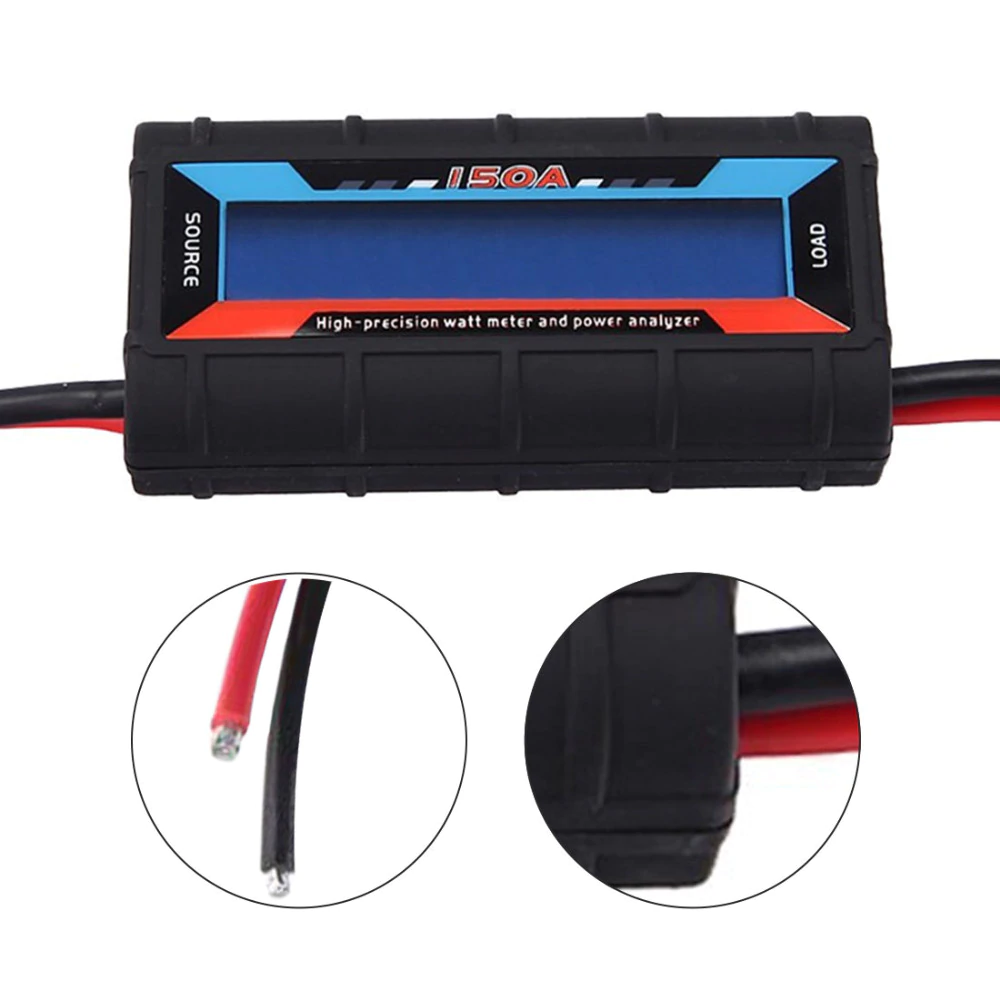

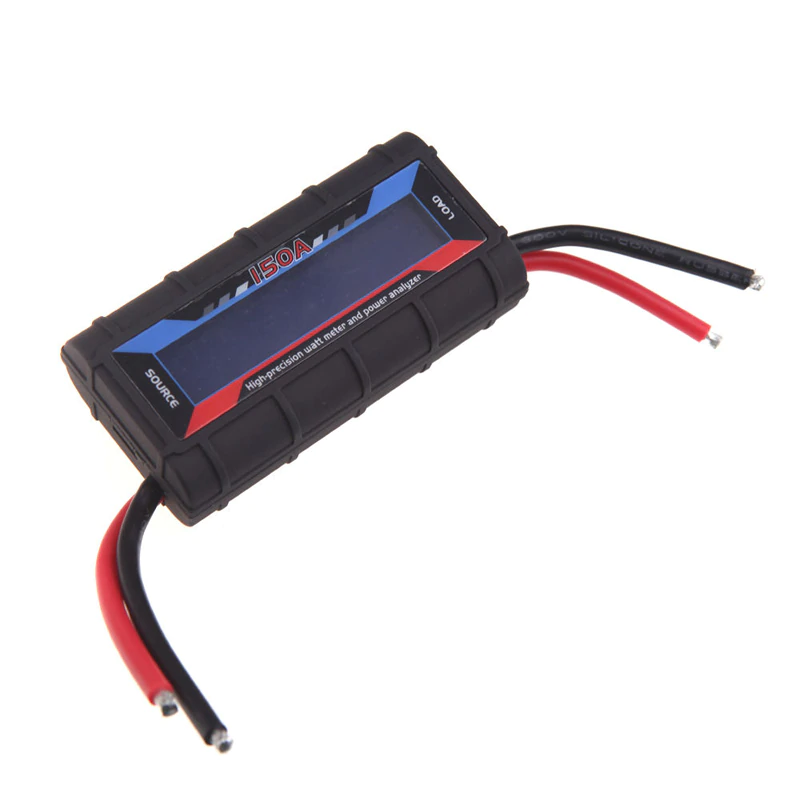

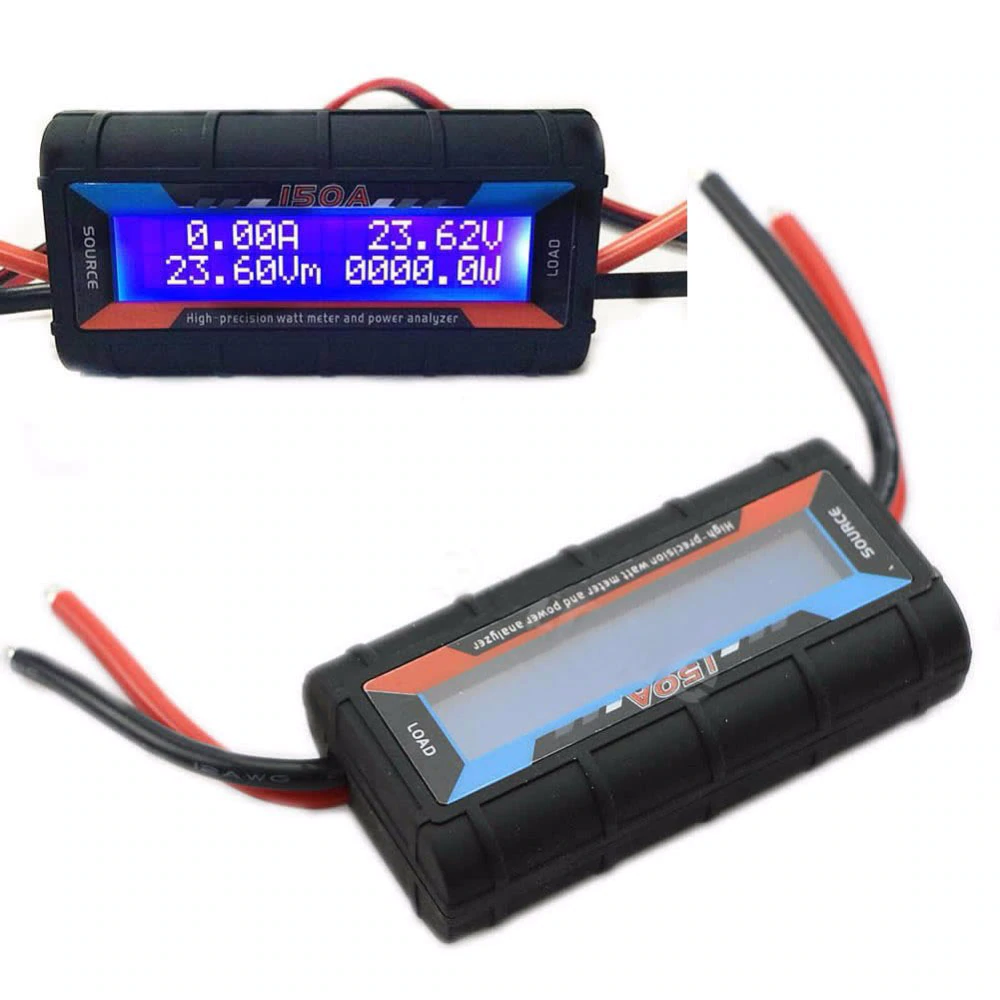

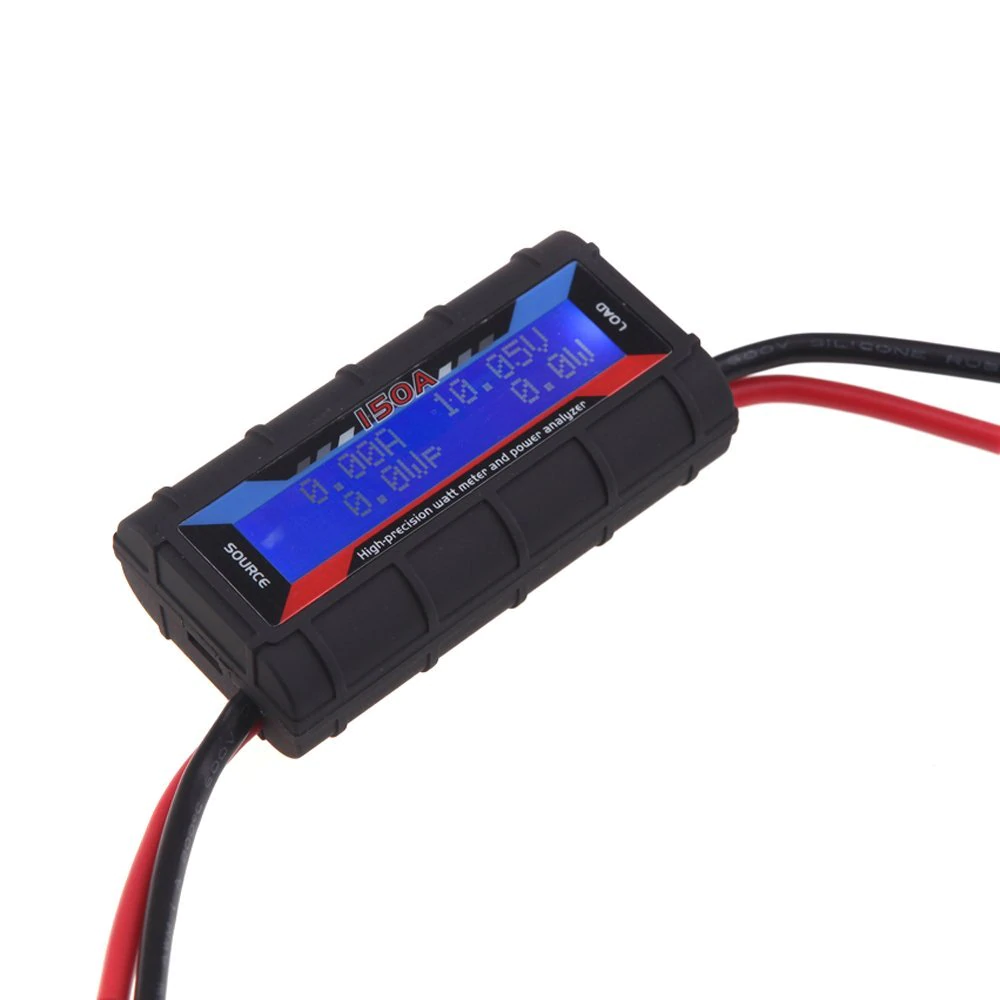

Digital LCD Screen: Easy to read LCD screen provides clear number readings. And Real Time Reading: The Watt Meter will continuously provide real time readings of the amps, volts, and watts after connection.
Multifunction Tool: Verifies sufficient operating voltage under load. Prevents peak currents damaging battery, ESC, motors, wiring and connectors. Confirms proper battery charger operation (connect between your battery and charger). Individual cell balancing. Set cutoff voltages, check battery capacity health. Detect receivers and actual operating current so as to make sure whether an UBEC is needed.
Ā
Examples of uses:
How Much Power Does my Fridge Use ā with the Battery connected to the SOURCE side andĀ Car Fridge (or other accessories) connected to the LOAD side. The Watt MeterĀ shows the current into the Fridge, voltage, and power at the battery and accumulates the Ah and Wh while the fridge is running.
How much charge is going into my batteryĀ ā With a battery charger (or alternator) on the SOURCE side and the aux battery on the LOAD side, the Watt Meter shows the charging current into the battery, the voltage and charging power at the battery and accumulates the charge (Ah) and energy (Wh) into the battery.
What is the output of my solar panelĀ Ā ā With a solar panel on the SOURCE side and solar regulator on the LOAD side, the Watt Meter shows the charging current into the regulator, the voltage and charging power at the solar panel and accumulates the charge (Ah) and energy (Wh) into the regulator.
How much charge is my solar panelĀ putting into my batteryĀ ā Now with a solar regulator on the SOURCE side and battery on the LOAD side, the Watt Meter shows the charging current into the battery, the voltage and charging power at the regulator and accumulates the charge (Ah) and energy (Wh) into the battery.
Specifications
Operates voltage: 4.8V-60V OV with optional auxiliary battery Dimension (L*W*T): 8.3 x 4.2 x2.4cm/3.27"x1.65"x0.94"(approx) Measures: 0-150A/200A, resolution 0.01A; 0-60V, resolution 0.01v; 0-6554W, resolution 0.1w; 0-65Ah,resolution 0.001An; 0-6441Wh,resolution 0.1Wh; backlit LCD display Package Includes 1 Unit of High Precision WATT Meter And Power Analyzer Module
It shows real time measurements of current, voltage, watts, amp hours, watt hours, peak amps, minimum volts and peak watts.
What are the measurement ranges and resolutions?
It measures 0 150A or 200A with 0.01 A resolution, 0 60 V with 0.01 V resolution, 0 6554 W with 0.1 W resolution, 0 65 Ah with 0.001 Ah resolution, and 0 6441 Wh with 0.1 Wh resolution.
How can I use this module in practical setups?
It can be connected between a battery and charger or between the source and load to verify operation, monitor charge or discharge, and accumulate Ah and Wh for devices like fridges, solar regulators or UBEC related configurations.
What is the operating voltage range and is an auxiliary battery required?
The device operates from 4.8 to 60 V and can use an optional auxiliary battery for extended use.
Where can I find additional information and guidance?
Resources include a datasheet and a tutorial to help you install, configure and use the meter effectively.
