RDK S100 Camera Expansion Board

Onboard MIPI + GMSL interfaces, Suitable For RDK S100 Development Kit

This module is specifically designed for the RDK S100 development board, and converts the camera interface into two MIPI interfaces and one GMSL interface. Supports connecting to MIPI visual cameras and GMSL industrial cameras. It is suitable for various visual development scenarios and offers a plug-and-play hardware expansion solution for image acquisition, object detection, and other algorithm verification tasks, accelerating the deployment of robotic vision systems.

Specifications

Deserializer	Maxim MAX96712
MIPI Interface	2 × 22PIN MIPI CSI-2
GMSL Connector	Fakra-Mini 4-in-1
External Power Supply	12V DC (only required when power from main board is insufficient)
Board Supported	RDK S100 Development Kit

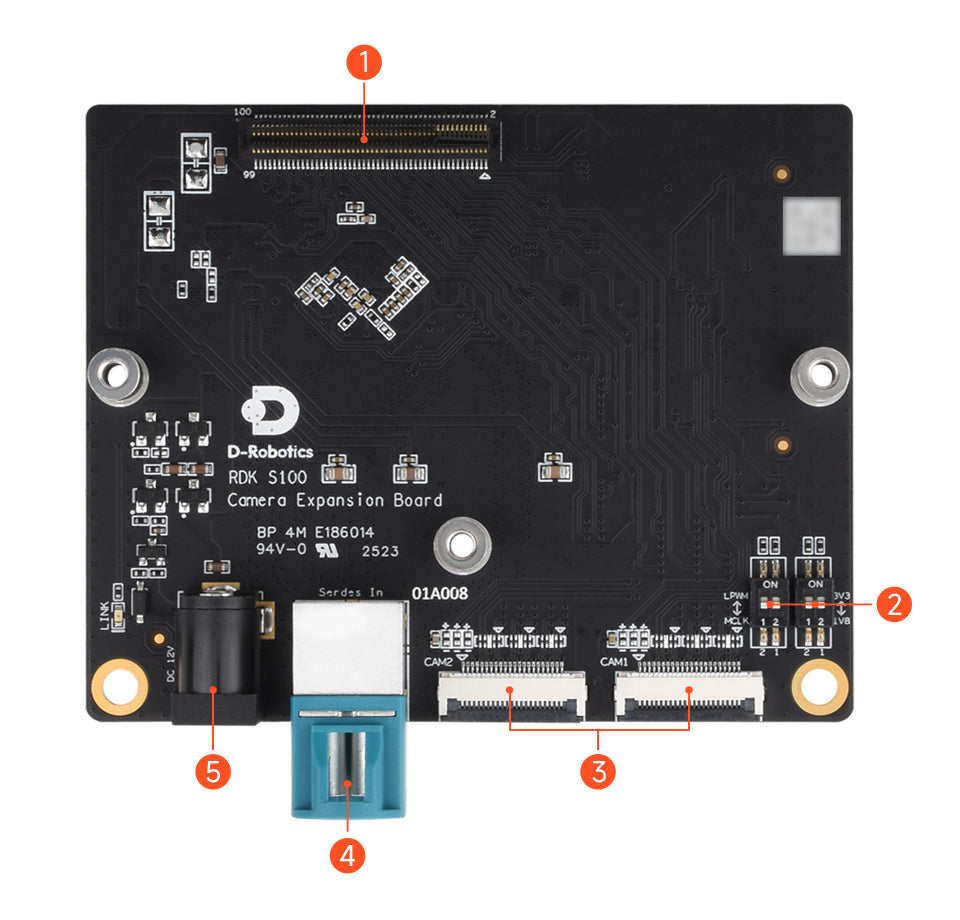

What's On Board

1. Camera Expansion Board 100PIN Connector	For connecting to the RDK S100 Development Board
2. DIP Switches	For switching the logic level of the MIPI cameras
3. 2 × 22PIN MIPI CSI Connector	Supports dual MIPI camera input
4. Fakra-Mini 4-in-1 Port	For multi-camera connectivity
5. External Power Supply DC Jack	Provides independent power input for connected cameras

Outline Dimensions

Resources

Wiki: www.waveshare.com/wiki/RDK-S100-Camera-Expansion-Board

Package Content

Weight: 0.059 kg

RDK S100 Camera Expansion Board x1

Is this expansion board compatible with the RDK S100 Development Kit?

Yes, it is designed for the RDK S100 Development Kit and provides two MIPI CSI-2 inputs and a GMSL connection.

What camera interfaces can be used with this board?

It supports two MIPI CSI-2 inputs via 22 pin connectors and a GMSL connection for industrial cameras.

Does it require external power to operate?

An external 12V DC power supply is only required when power from the main board is insufficient.

How is the MIPI camera logic level configured?

The board includes DIP switches to switch the logic level of the MIPI cameras.

What is included in the package and where can I find documentation?

Package contents include the RDK S100 Camera Expansion Board x1; you can access the Waveshare wiki at www.waveshare.com/wiki/RDK-S100-Camera-Expansion-Board for setup and guidance.
