All-in-One Computing and Control
The RDK S100 Series Development Kit is powered by the RDK S100 intelligent computing chip, with 80 TOPS computing power BPU, which is designed for intelligent computing and robotic applications. Onboard rich interfaces, easy to start, features a unique heterogeneous architecture that enables seamless integration of perception inference and real-time motion control, reducing the size and complexity of the control system.
Ā
| RDK S100 Development Kit | RDK S100P Development Kit | |
|---|---|---|
| AI Performance | 80 TOPS | 128 TOPS |
| BPU | 1 Ć BPU Nash | 1 Ć BPU Nash |
| CPU | 6 Ć Arm Cortex-A78AE @ 1.5 GHz | 6 Ć Arm Cortex-A78AE @ 2.0 GHz |
| MCU | 4 Ć Arm Cortex-R52+ @ 1.2 GHz | |
| GPU | 1 Ć Arm Mali-G78AE @ 100 GFLOPS | |
| Memory | 12 GB LPDDR5 (96-bit) | 24 GB LPDDR5 (96-bit) |
| Storage | 64 GB eMMC, M.2 Key M (PCIe 3.0 Ć1) Ć 1 | |
| Display Interface | HDMI 1.4, up to 2K @ 60 FPS | |
| Network | Gigabit Ethernet (RJ45) Ć 2 M.2 Key E (PCIe 3.0 Ć1, UART) slot for Wi-Fi & Bluetooth module |
|
| Ports | USB 2.0 (Type-C) Ć 1 (for flashing & debugging) USB 3.0 Ć 4 |
|
| Expansion Header | JTAG Header Ć 1, Automatic Header Ć 1, 40-PIN Main GPIO Header Ć 1, 16-PIN MCU GPIO Header Ć 1, Camera Expansion Header Ć 1, MCU Port Expansion Header Ć 1 |
|
| Power Input | 12 V ~ 20 V DC (Input Range), Rated 20 V @ 10 A | |
| Recommended Power Supply | Typical: 70 W (12 V @ 5.5 A) Extreme: 150 W (20 V @ 7.5 A) |
|
| Size (with Case) | 120 Ć 121 Ć 51 mm | |
Ā
Integrates CPU + BPU + MCU for Efficient Collaboration
Ā
Seamless fusion and dynamic switching from perception to execution
Note:
ā Equivalent computing power, INT8 quantization.
ā” Includes 1 pair of DCLS cores for lockstep operation and 2 cores supporting Split-Lock mode. Lockstep operation or independent operation can be selected according to the application requirements.
ā¢ The BPU is responsible for motion control model inference, and the MCU is responsible for motion instruction interpolation and high-frequency communication, reducing the CPU load.
Ā
Hardware-Software Collaboration, End-Cloud Integration, One-Stop Solution to Development Challenges
200+ open-source algorithms and application examples to accelerate multi-scenario deployment
Ā
Ā

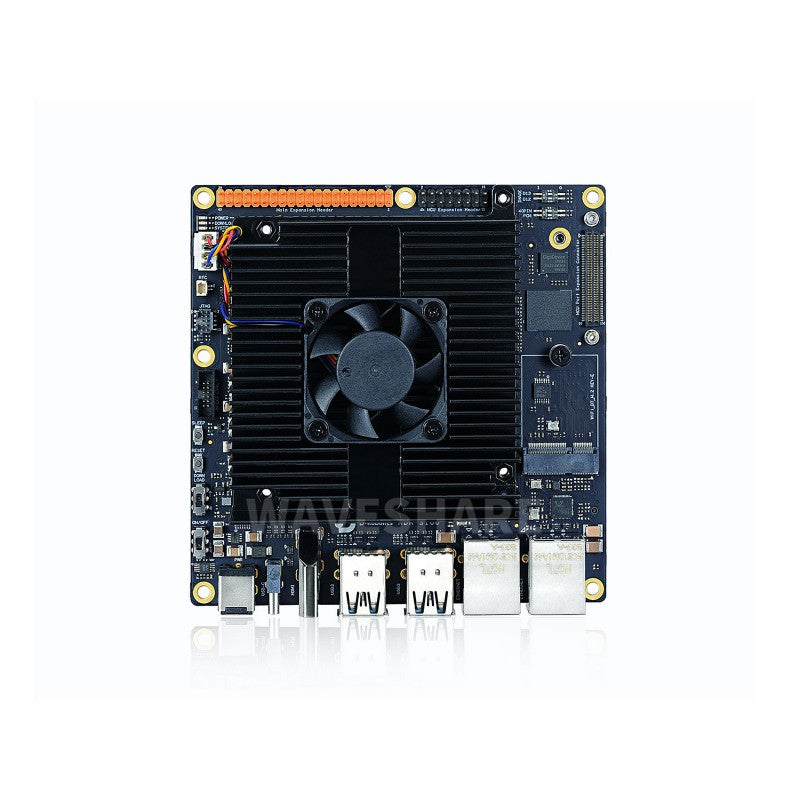

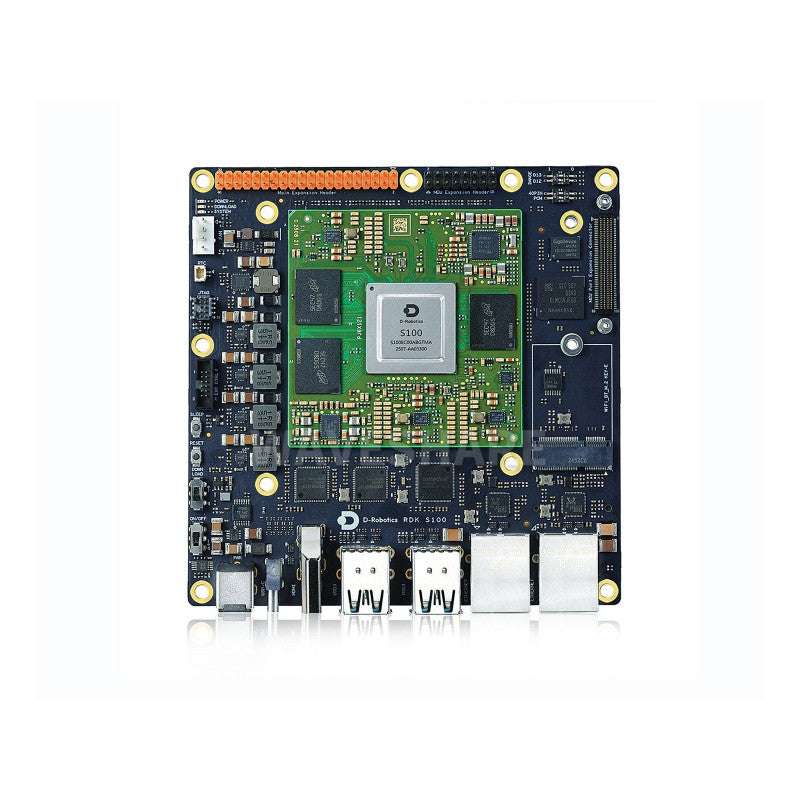

| 1. 40PIN GPIO header | 2. MCU 16PIN header |
| 3. Pin function DIP switches | 4. MCU expansion board 100PIN connector |

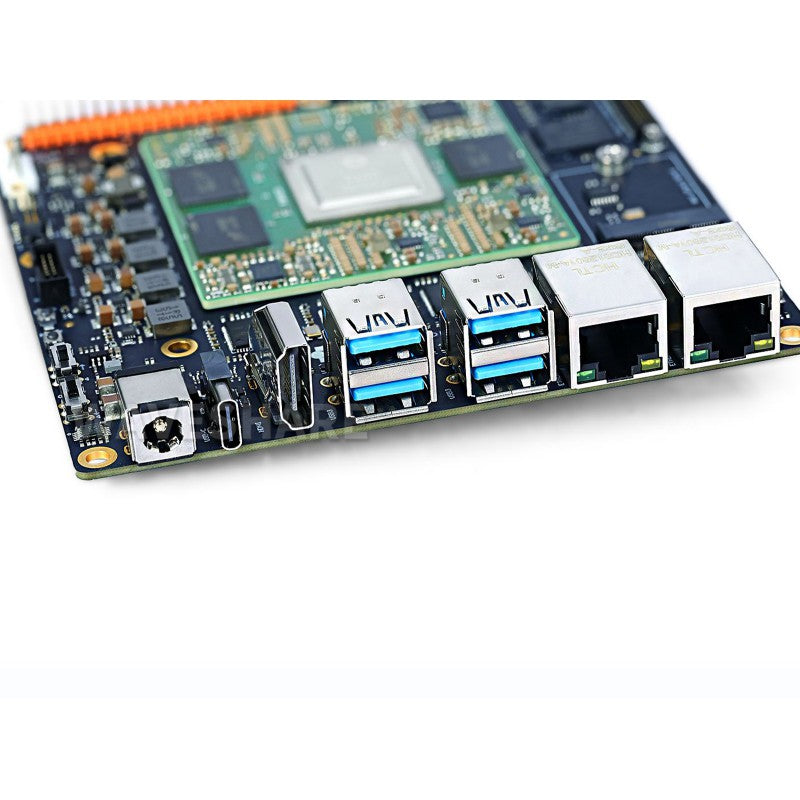

| 5. M.2 Key E slot | 6. 2 Ć Gigabit RJ45 Ethernet port |
| 7. 4 Ć USB3.0 Type-A port | 8. HDMI port |
| 9. Type-C port (for flashing, Main domain and MCU domain debugging) | 10. Power supply port |
| 11.Ā Power ON/OFF | 12. Download mode switch |
| 13. Reset button | 14. Sleep button |
| 15. Mainboard function connector | 16. Main domain and MCU domain JTAG header |
| 17. RTC battery header | 18. Fan connector |
| 19. M.2 Key M Solid State Drive slot | 20. 100PIN camera expansion header |
Ā
Ā
Wiki:Ā https://developer.d-robotics.cc/rdk_doc/en/rdk_s/Quick_start
Ā
Weight: 0.126 kg

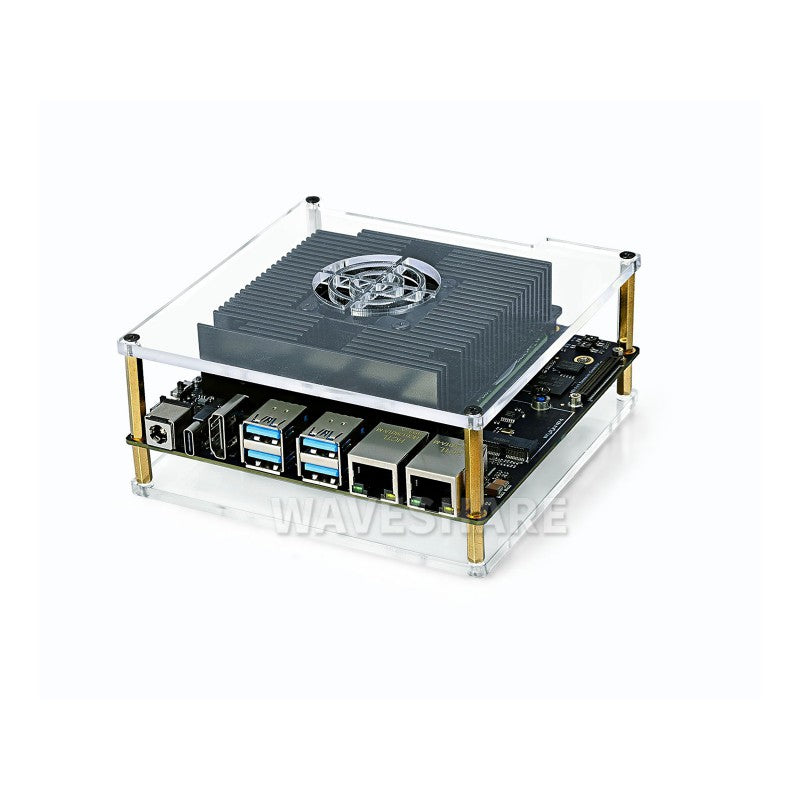

RDK S100 Series Development Kit (with pre-installed acrylic protective case) Ć 1

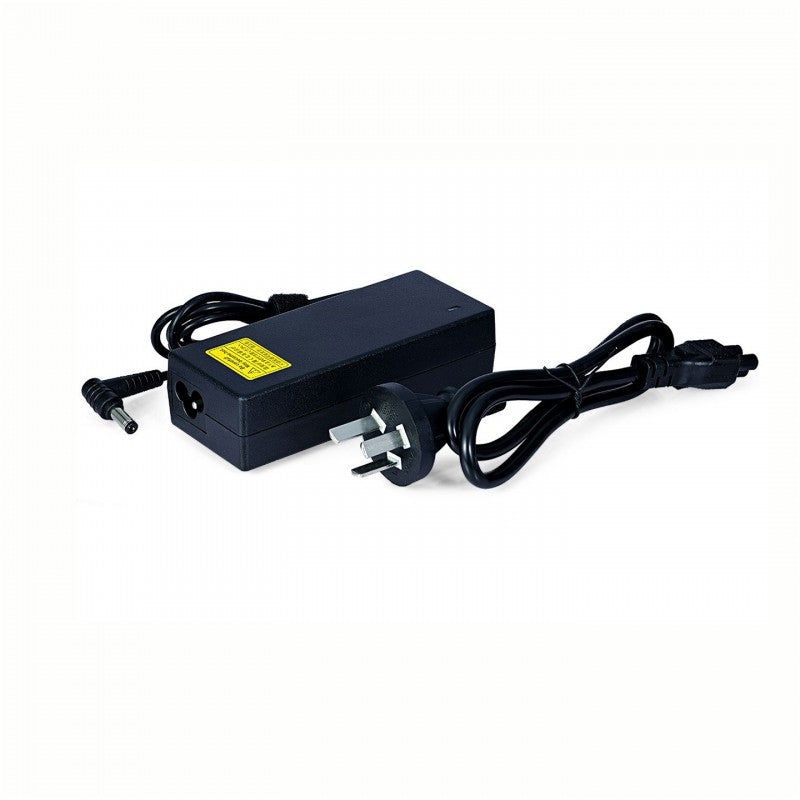

Power supply (CN plug) Ć 1
Note: the power supply in the package is CN plug by default, which is compatible with US plug.
For other regions, please purchase the power supply separately according to your required plug type. It is recommended to use a 12V~20V DC power supply with a 6mm outer diameter and 2.5mm inner diameter output jack.
