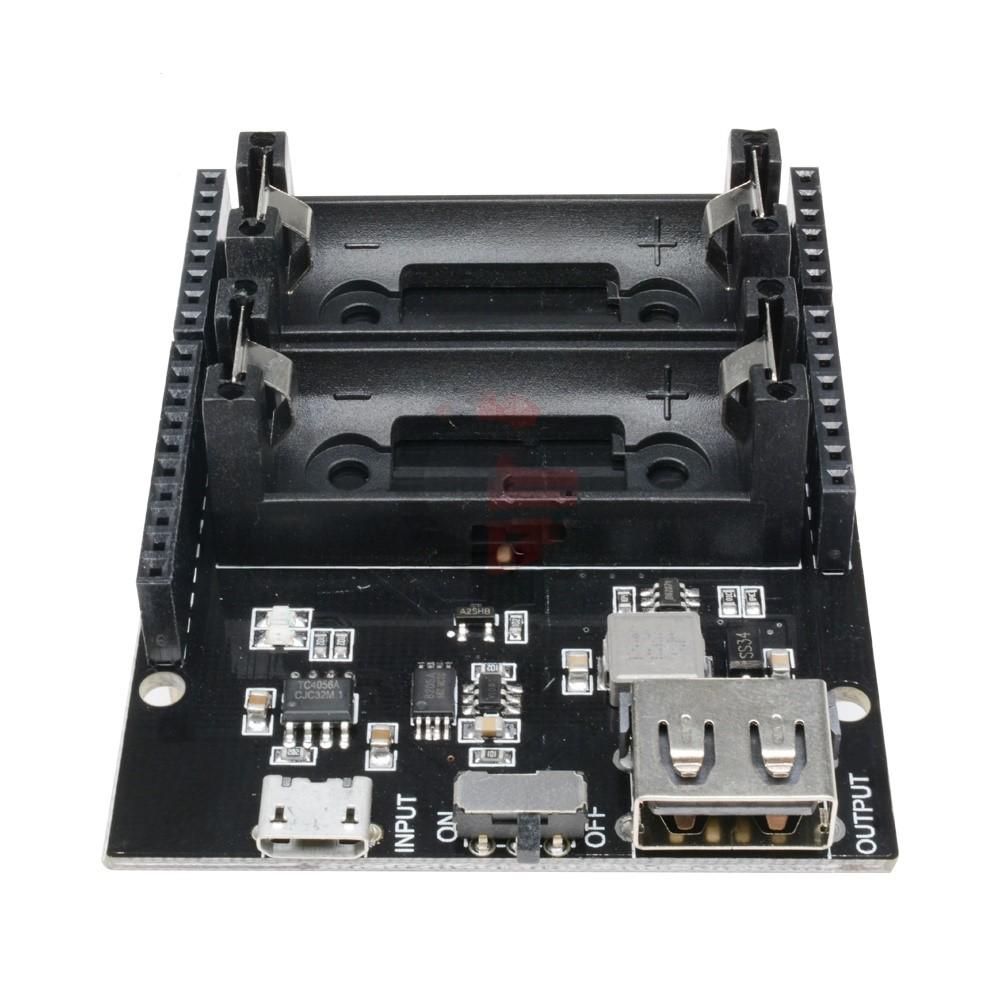

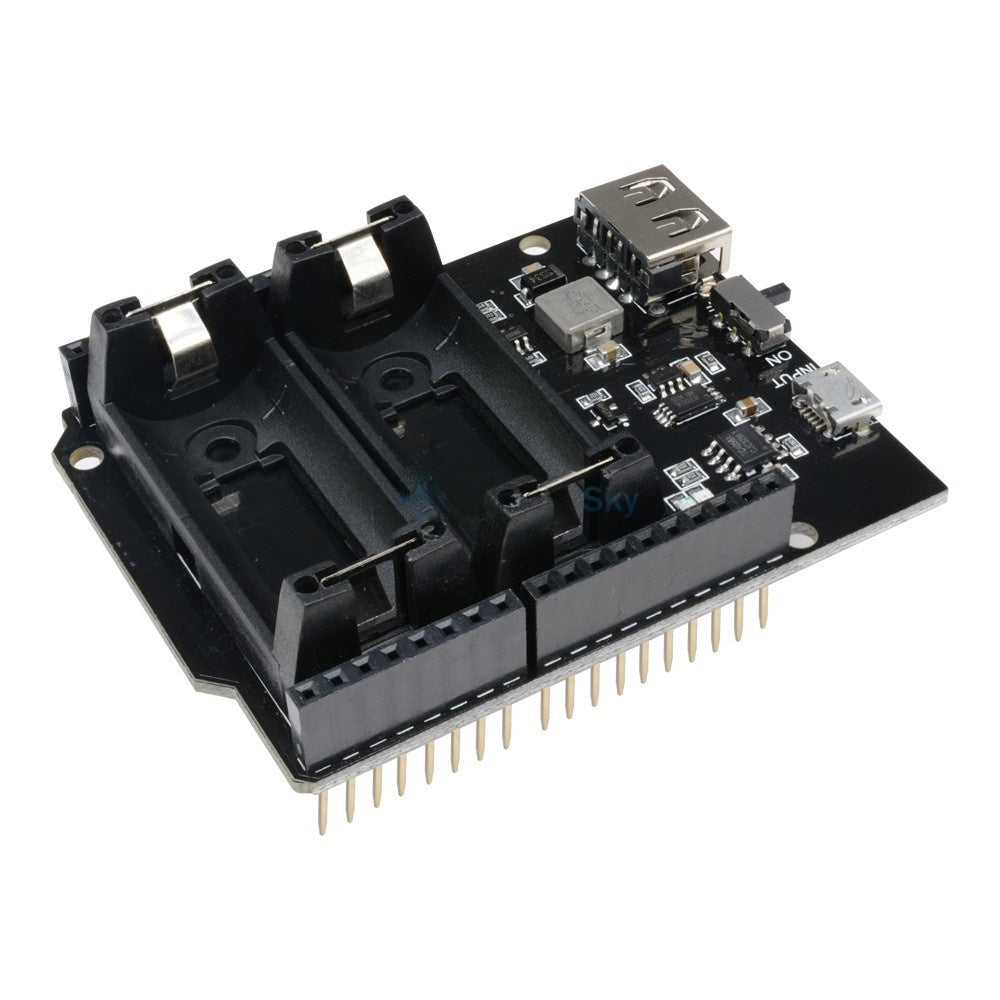

Dual 16340 Battery Shield for Arduino

SKU: ELC5001

ā‚¹ 595.99 ā‚¹ 799.99

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Dual 16340 Battery Shield for Arduinoā‚¹ 595.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini
The mobile power is stacked on the for Arduino board and powered via the 5V/GND pin. It has a USB-A output interface that you can use to connect to other devices using a USB cable. The charging interface is micro USB, and the charging tool is convenient to obtain (such as: for Android mobile phone adapter). When it is stopped, it is recommended to turn off the power output and let the mobile power supply enter the standby state, thus saving limited battery energy.
Ā
It uses 16340 lithium battery (battery not included), the shield works with one or two batteries. Two 16340 lithium batteries (depending on the battery capacity) has about 1500mAH capacity.
Ā
Lithium Battery Model: 16340
Charging current: 500mA
Discharge current: 1000m
Specifications

Is the battery included with the shield?
No, the 16340 batteries are not included.
How do I power an Arduino with this shield?
Stack the shield on the Arduino board and power via the 5V and GND pins.
How do I charge the batteries and what is the charging current?
The charging interface is micro USB and supports standard micro USB chargers; charging current is 500 mA.
What is the discharge current and capacity when using two cells?
Two 16340 cells provide about 1500 mAh capacity depending on the cells and support up to 1000 mA discharge.
How can I save energy when the power is not needed?
When not in use, turn off the power output and let the power supply enter standby to conserve energy.
