ESP32-P4-NANO-WIFI6-DB Development Board

Based on ESP32-P4NRW32X chip with RISC-V dual-core and single-core processors

Kit Selection

Kit Connection Examples

10.1″ DSI Capacitive Touch Display

IPS Optical bonding toughened glass panel with 800 × 1280 Resolution and 178° Wide Viewing Angle. Supports 10-Point Touch and delivers clear visuals with a high-quality viewing experience

* the 10.1inch DSI LCD is only included in the ESP32-P4-NANO-WIFI6-DB-KIT-D version.

Raspberry Pi Camera (B)

5MP | Manual Focus

* for reference only, please refer to the Package Content for the detailed part list.

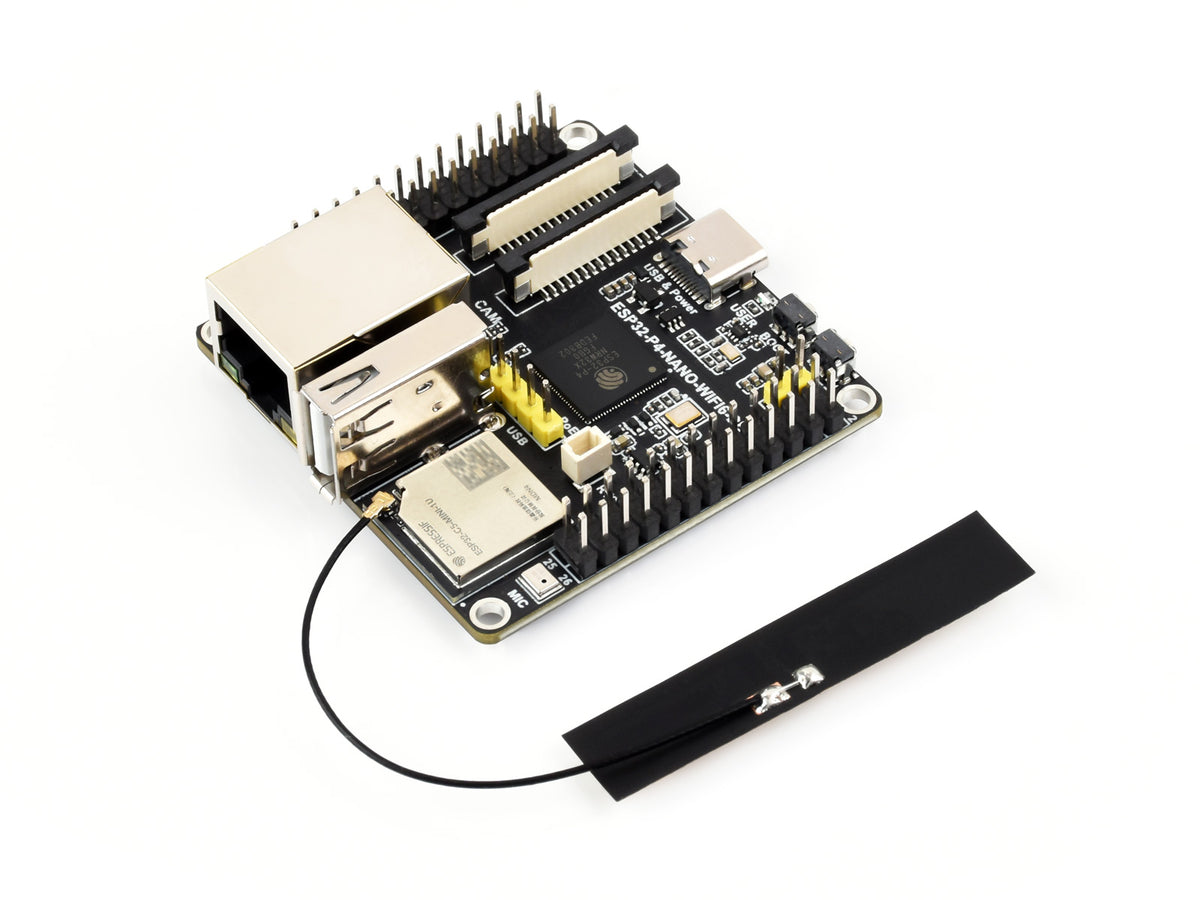

Development Board Introduction

This product is a powerful RISC-V development board based on the ESP32-P4NRW32X, featuring a dual-core high-performance processor running at up to 400MHz and a single-core low-power processor running at up to 40MHz. It provides a wide range of human-machine interface (HMI) capabilities, including MIPI-CSI with an integrated Image Signal Processor (ISP) and MIPI-DSI interface, as well as commonly used peripherals such as SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, and TWAI. It also supports USB 2.0 OTG High-Speed, Ethernet, and TF Card storage expansion for high-speed connectivity.

The ESP32-P4NRW32X chip integrates the Digital Signature Peripheral and a dedicated Key Management Unit to enhance data and operation security. Designed for high-performance and security-sensitive applications, the ESP32-P4-NANO-WIFI6-DB is well suited for applications including human-machine interfaces, edge computing, and I/O connectivity.

Key features include:

Features a 32-bit RISC-V dual-core high-performance processor running at up to 400MHz and a single-core low-power processor running at up to 40MHz

128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP Static RAM, 8KB TCM

Integrates a JPEG codec, Pixel Processing Accelerator (PPA), Image Signal Processor (ISP), and H.264 encoder

32MB PSRAM in the ESP32-P4NRW32X chip's package, with onboard 16MB Nor Flash

Onboard rich resources include MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, TF card slot, microphone, speaker, and RTC Batt connectors

Onboard 2 x 2 x 13 GPIO headers with 28 x programmable GPIOs

Onboard ESP32-C5-MINI-1U module with an external antenna for 2.4GHz / 5GHz dual-band Wi-Fi 6 and Bluetooth 5 (LE)

Supports Secure Boot, Flash Encryption, hardware cryptographic accelerators, hardware random number generator, Access Permission Management (APM), and privilege separation

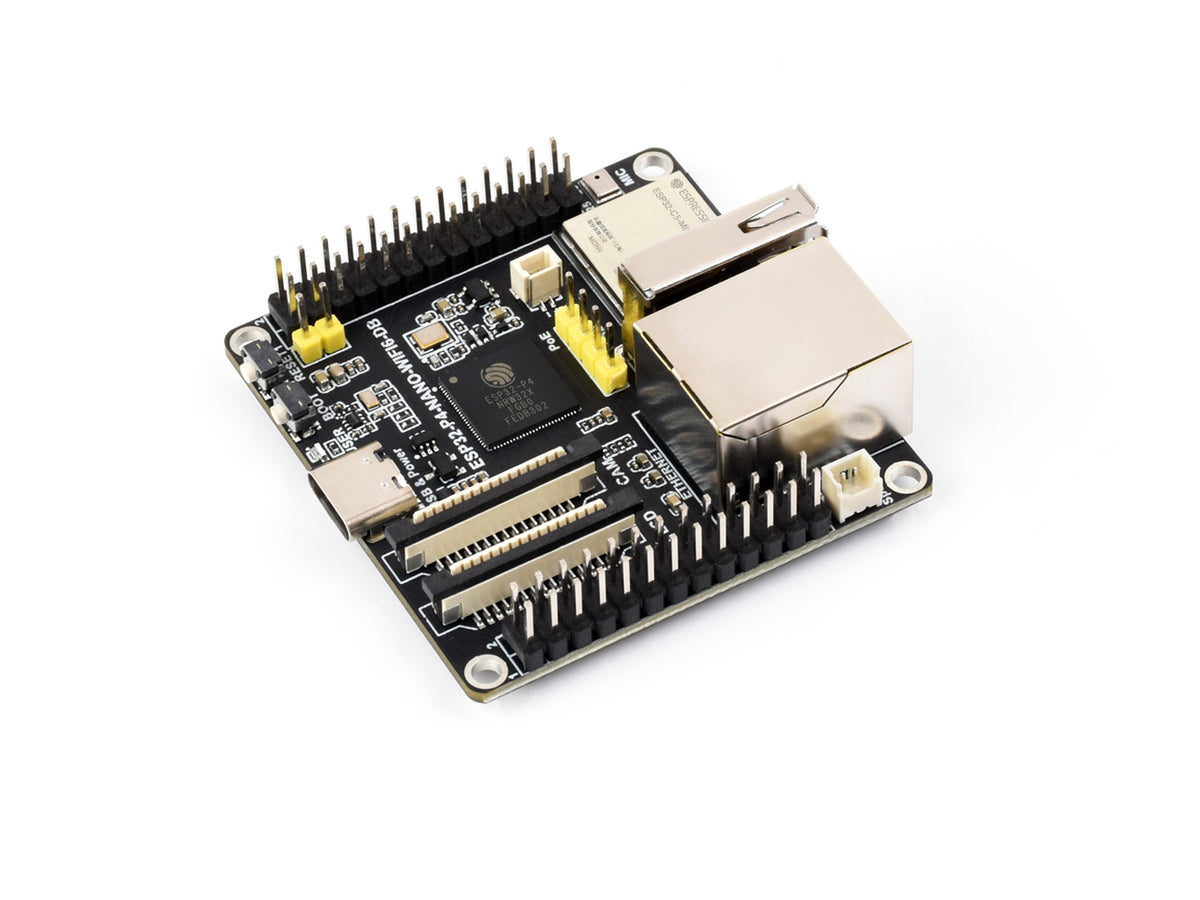

Highly integrated and powerful performance

Adopts ESP32-P4NRW32X high-performance MCU

WiFi 6 and Bluetooth module

Onboard ESP32-C5-MINI-1U module with an external antenna to extend 2.4GHz / 5GHz dual-band Wi-Fi 6 and Bluetooth 5 (LE) for ESP32-P4NRW32X

* Actual functionality depends on the firmware and software provided for this model.

Reserved PoE Module Header

supports connecting PoE module, allowing data and power to be transmitted simultaneously over an Ethernet cable

Optional for PoE Module

Provides Both Network Connection And Power Supply for ESP32-P4-Module-DEV-KIT board In Only One Ethernet Cable

* The PoE module is optional and only included with Kits B / C / D.
The switch in the picture above is NOT included.

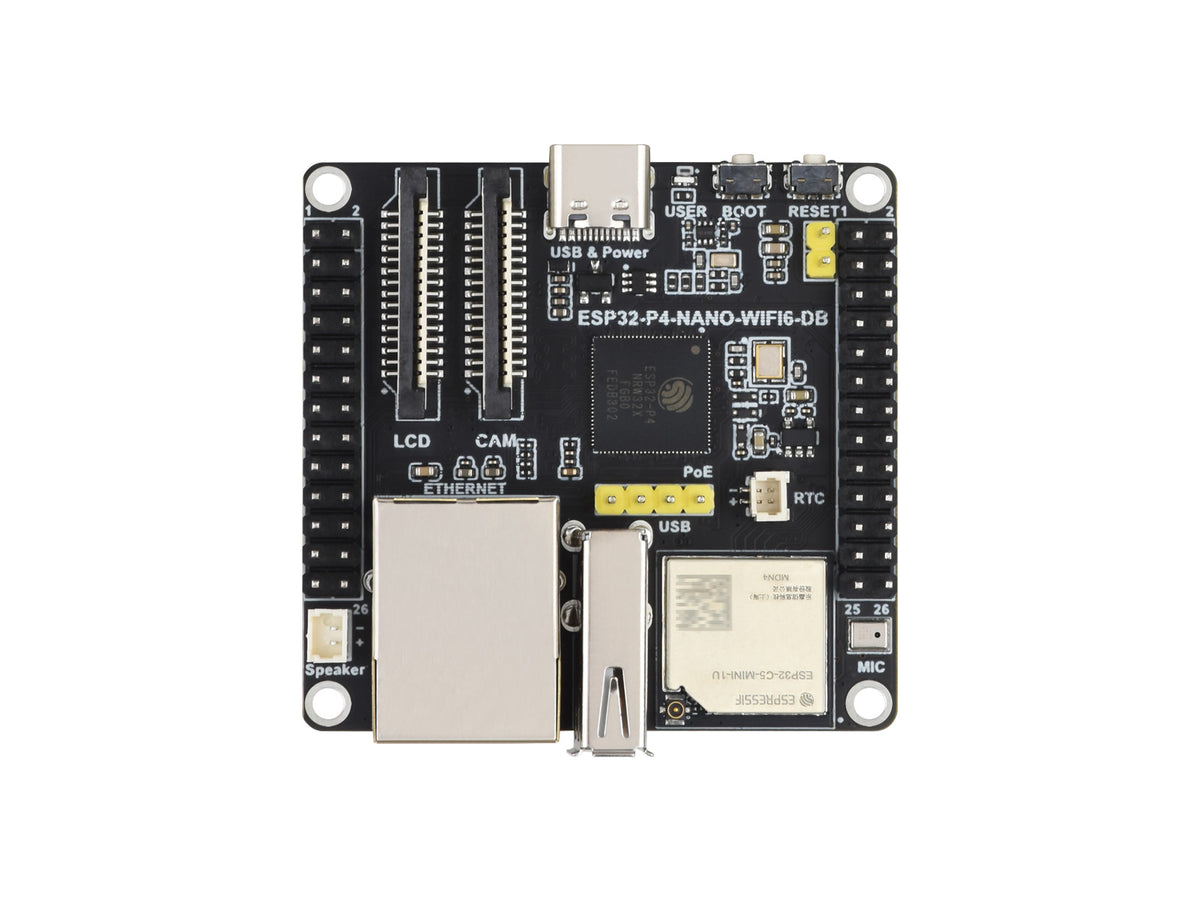

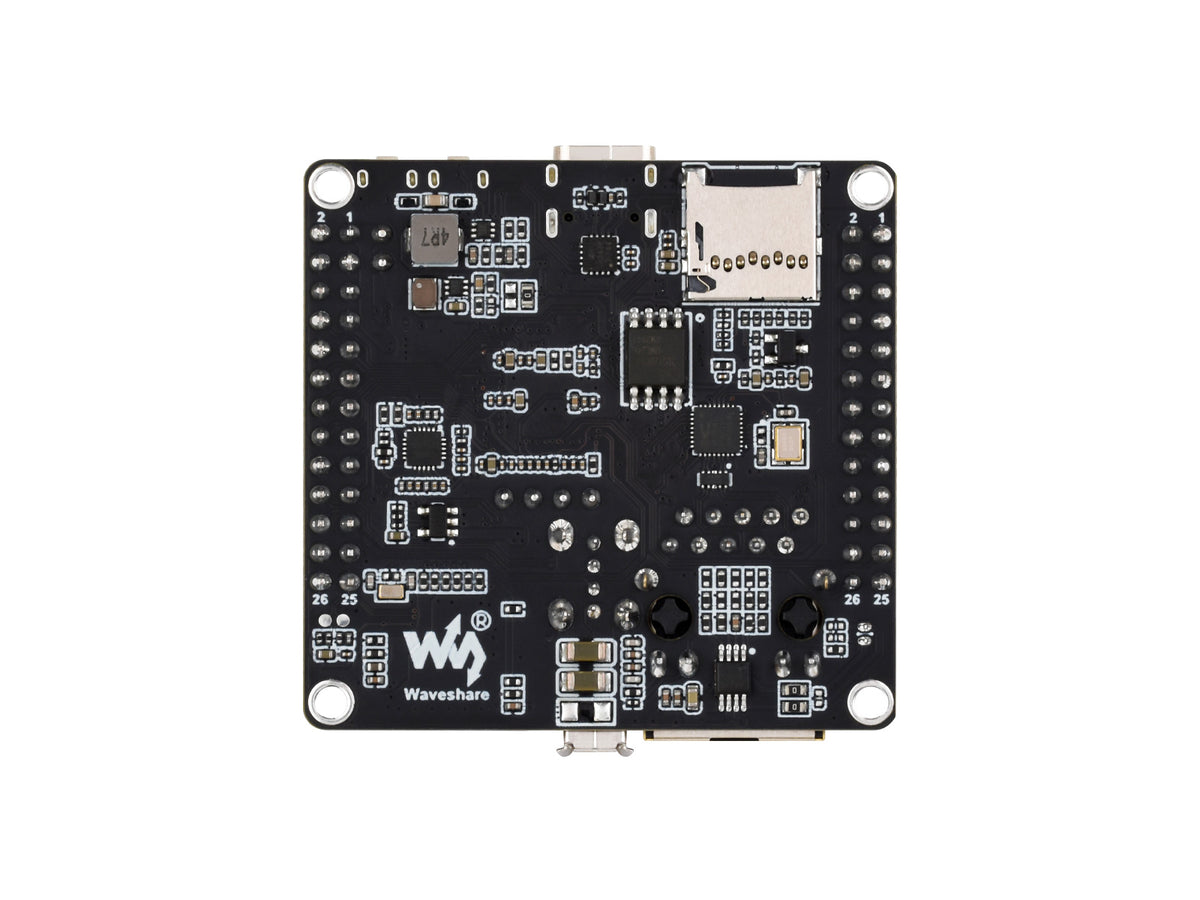

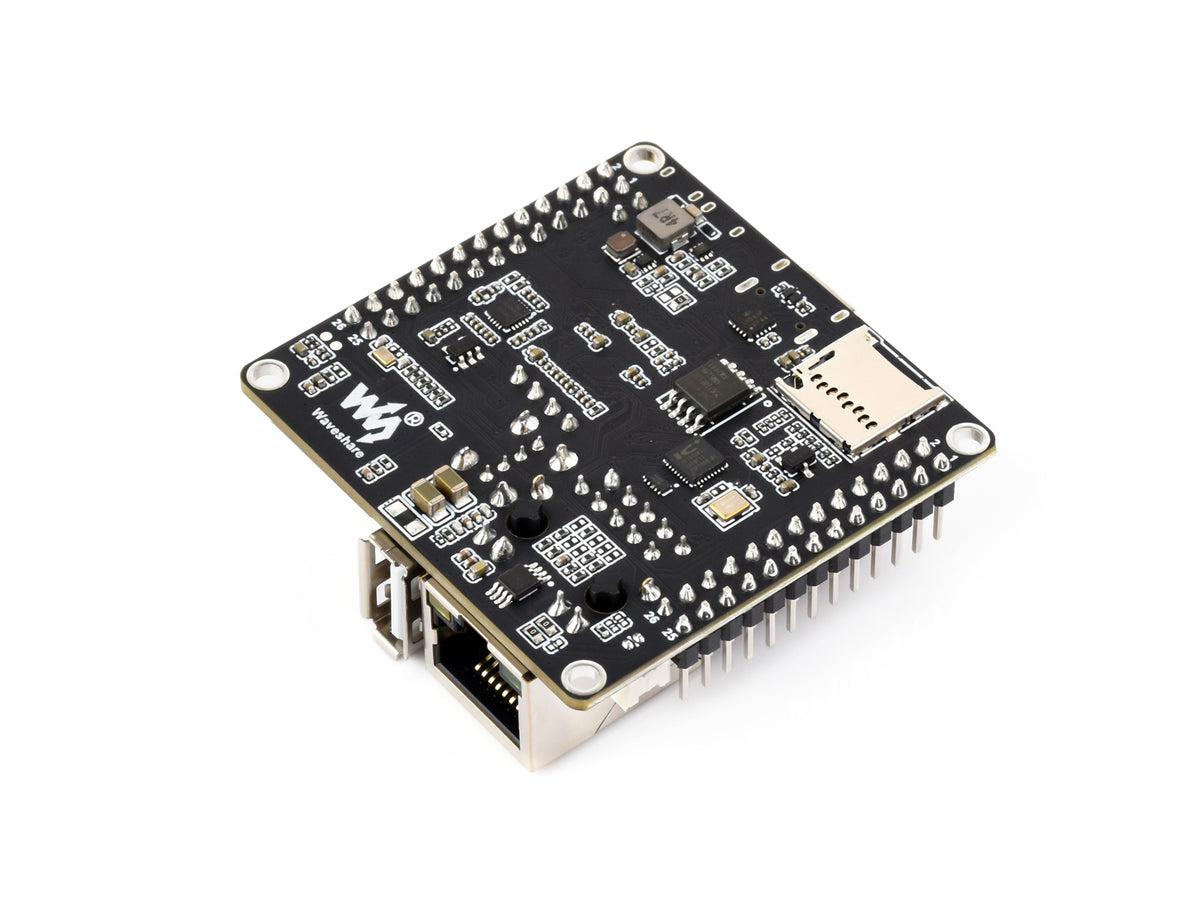

What's On Board

Pin definition

Outline dimensions

Resources & Services

Wiki: docs.waveshare.com/ESP32-P4-NANO-WIFI6-DB

* Please refer to the linked page for the sample resources actually provided.

Package Content

Weight: 0.032 kg

ESP32-P4-NANO-WIFI6-DB Basic Kit

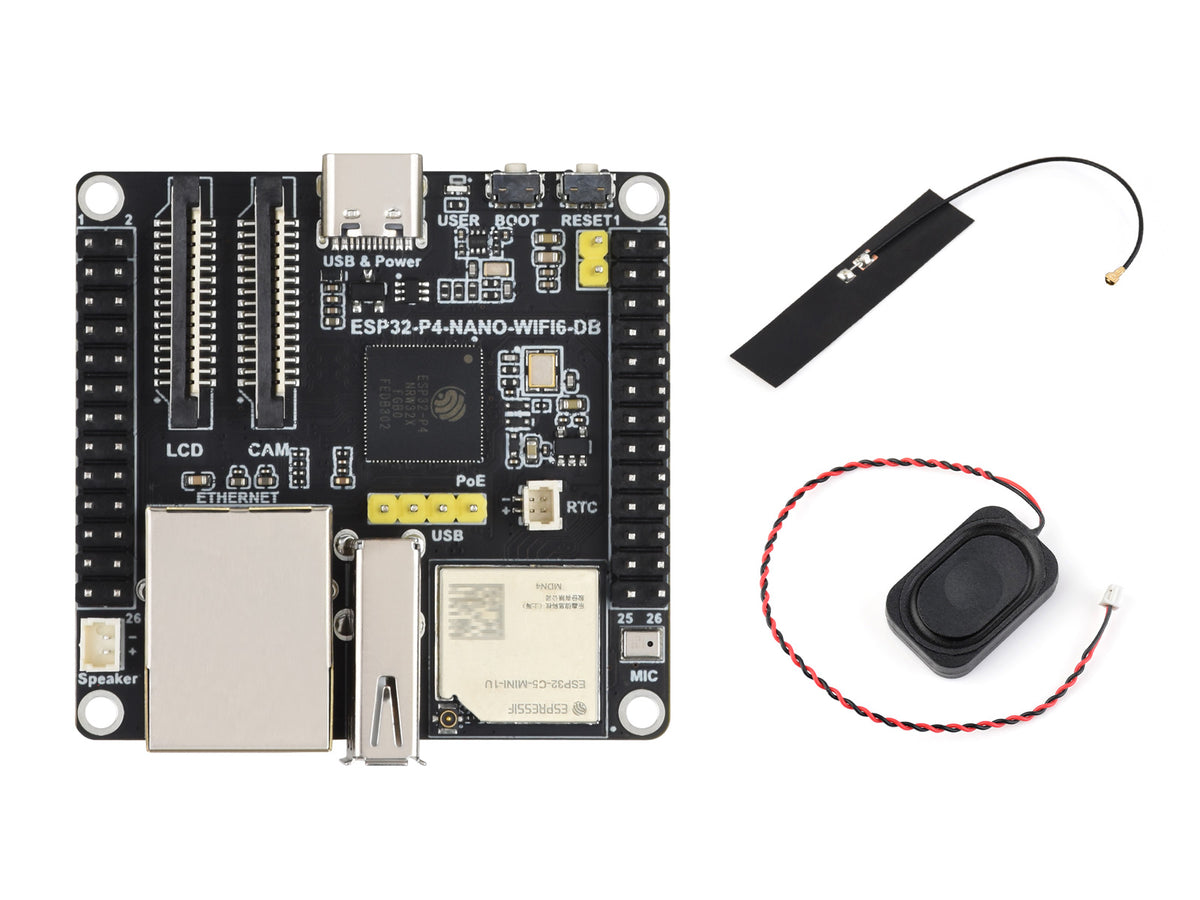

ESP32-P4-NANO-WIFI6-DB x1
8Ω 2W speaker x1

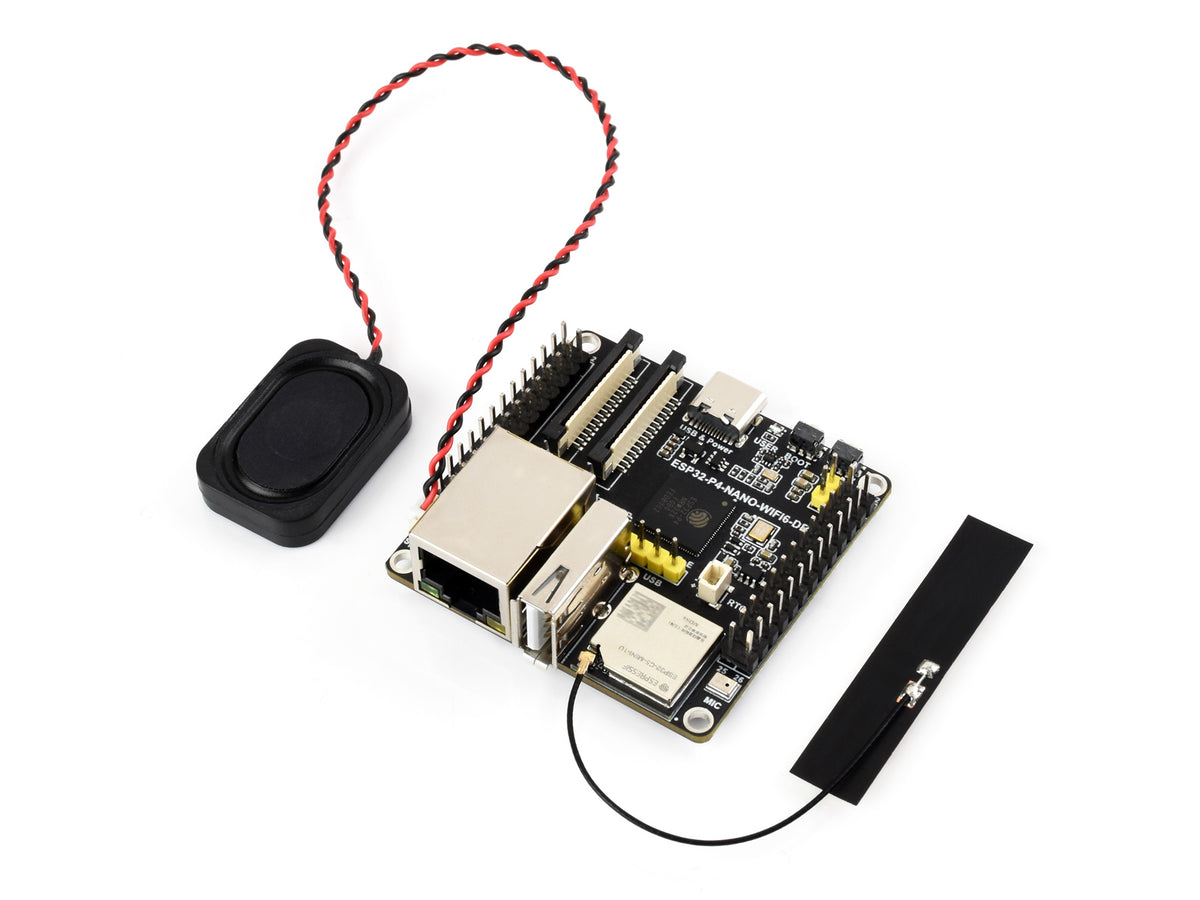

FPC dual-band Wi-Fi antenna x1
