HMI All-in-one display based on ESP32-P4, supports secondary development
Enable Smart Living & Industrial IoT For Scenario-Based Control
3.7V Lithium Batt is optional for all versions

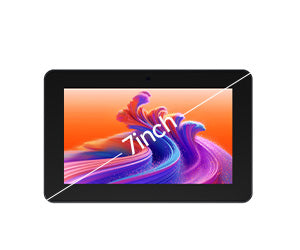

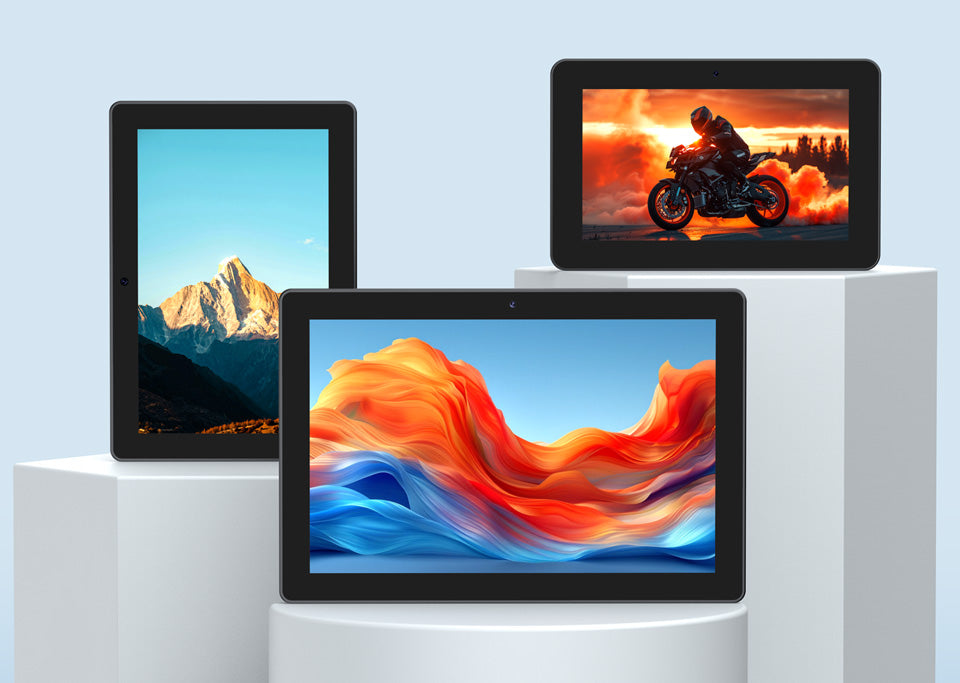

ESP32-P4-WIFI6-Touch-LCD-7
7inch, 720 × 1280 resolution

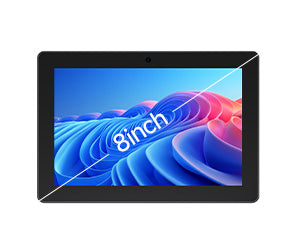

ESP32-P4-WIFI6-Touch-LCD-8
8inch, 800 × 1280 resolution

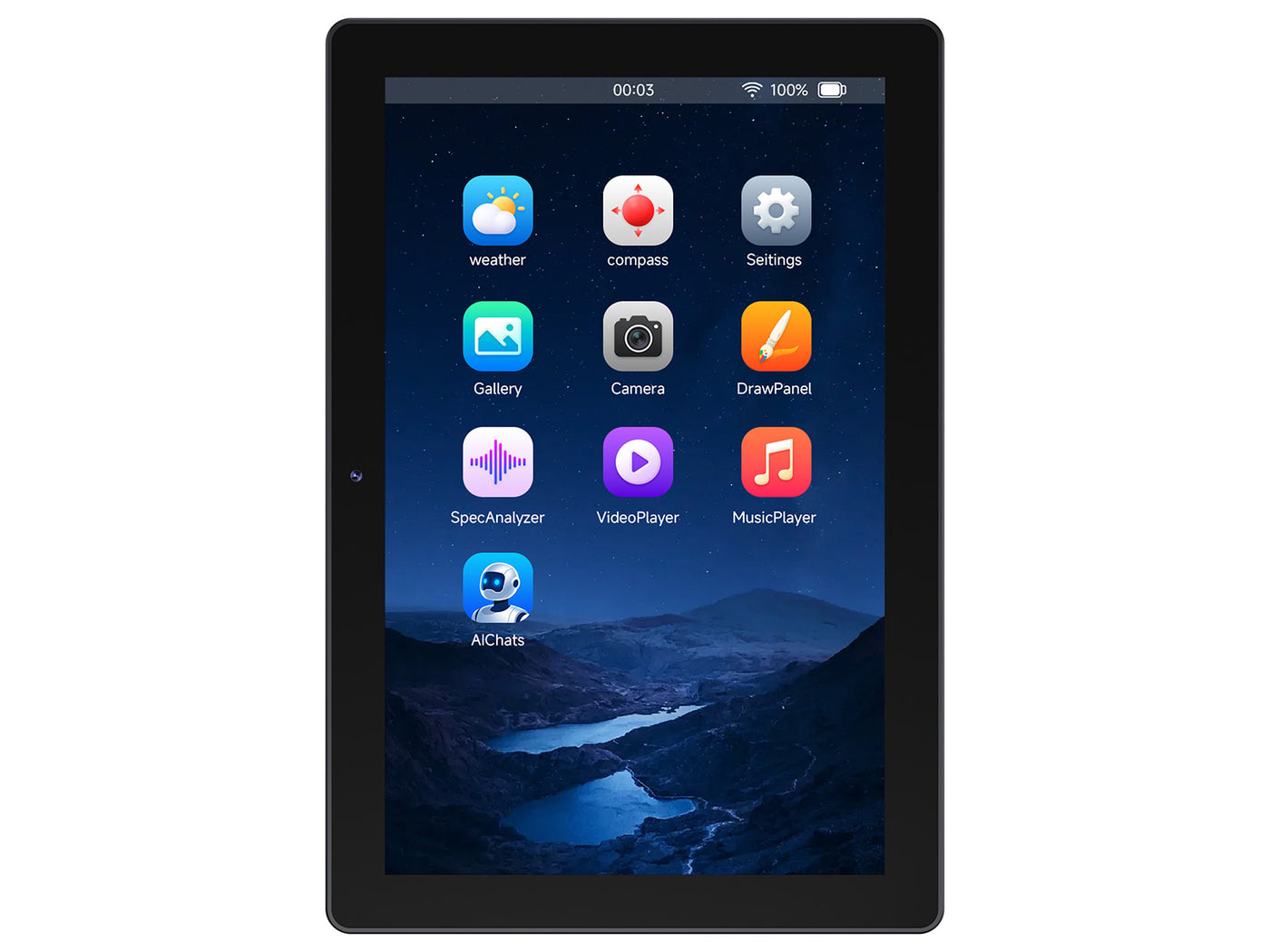

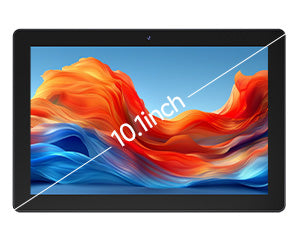

ESP32-P4-WIFI6-Touch-LCD-10.1
10.1inch, 800 × 1280 resolution
This product series is a high-performance development board based on ESP32-P4 controller with RISC-V 32-bit dual-core and single-core processors. Equipped with 7 / 8 / 10.1 inch IPS touch display, features rich human-machine interfaces including MIPI-CSI (with integrated Image Signal Processor), it also supports USB OTG 2.0 HS for high-speed communication.
The ESP32-P4 chip integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, to meet the higher requirements of embedded applications such as Human-Machine interaction, efficient edge computing, and IO expansion.

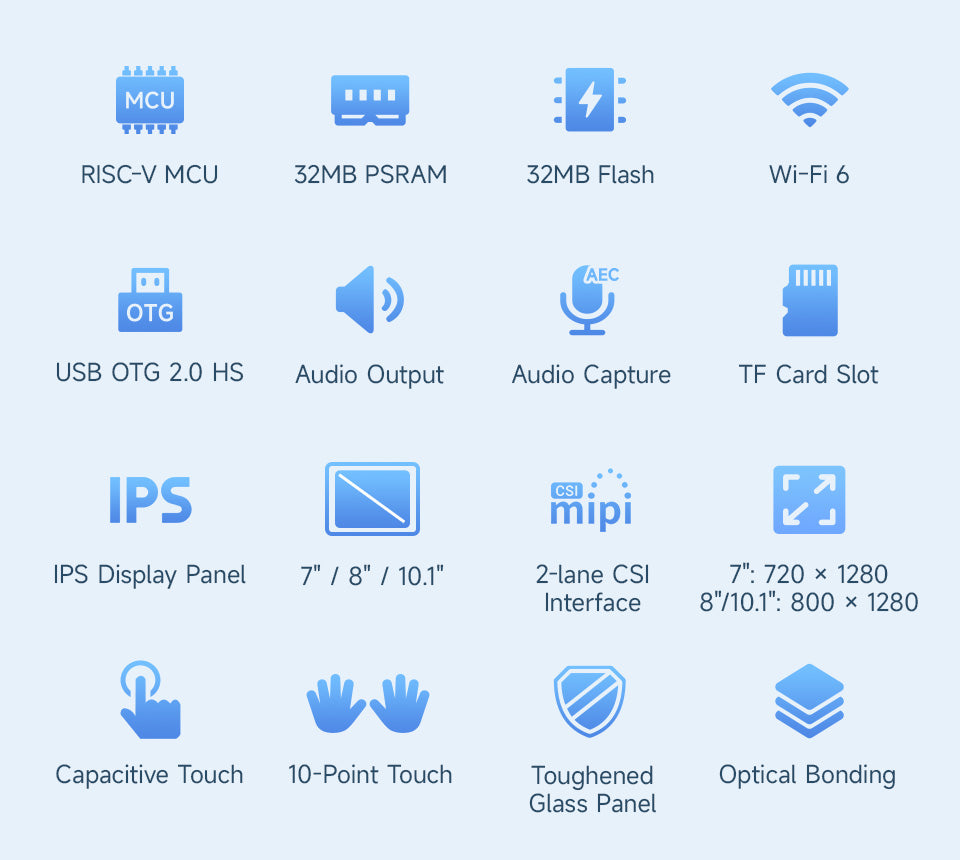

Key features include:
| Model | 7inch | 8inch | 10.1inch |
|---|---|---|---|
| Resolution (H × V) | 720 × 1280 | 800 × 1280 | |
| Communication Interface | MIPI 2-lane | ||
| Brightness | 450cd/m² (supports customized 1000cd/m² high brightness version) |
400cd/m² (supports customized 1000cd/m² high brightness version) |
|
| Driver Chip | ILI9881C | JD9365 | |
| Touch Chip | GT9271 | ||
| Display Dimensions (mm) | 88.0 × 155.0 | 108.24 × 172.82 | 135.96 × 217.18 |
| Pixel Pitch (H × V) (mm) | 0.12075 × 0.12075 | 0.13455 × 0.13455 | 0.1692 × 0.1692 |
| Contrast Ratio | 800:1 | 1200:1 | 800:1 |
| Viewing Angle | 170° | 178° | |
| Operating Temperature | 0℃ ~ 60℃ | ||

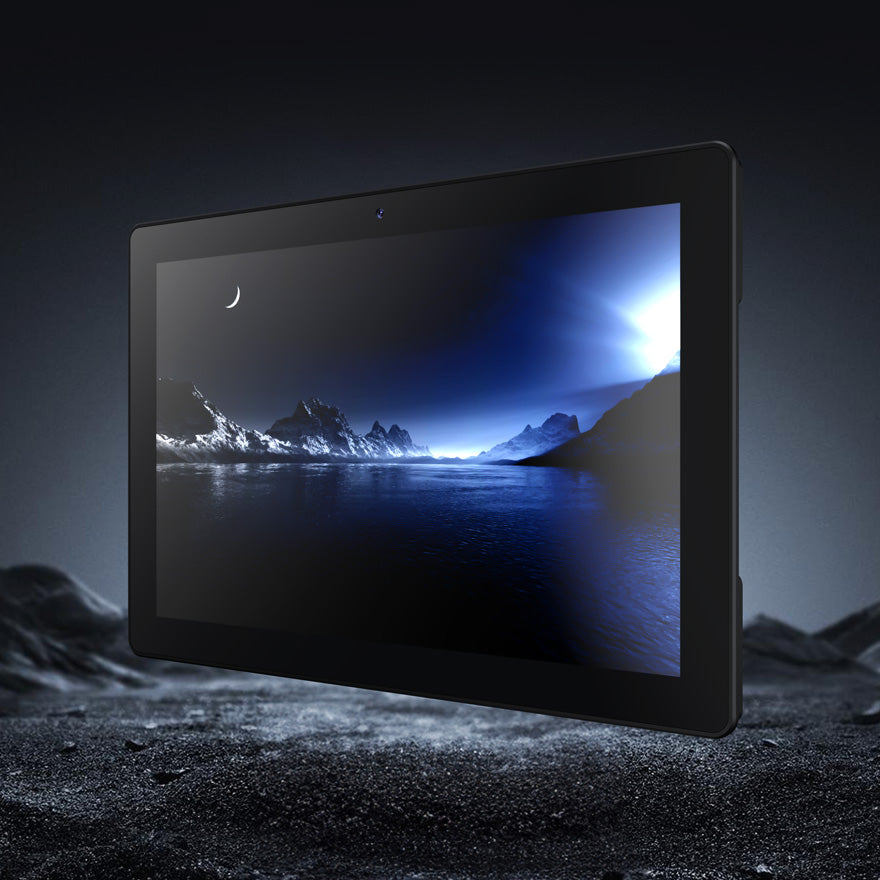

Sensitive touch control with High Resolution display, durable design
Supports 10-point sensitive touch, seamlessly combining intuitive operation
with rapid response for efficient and convenient development

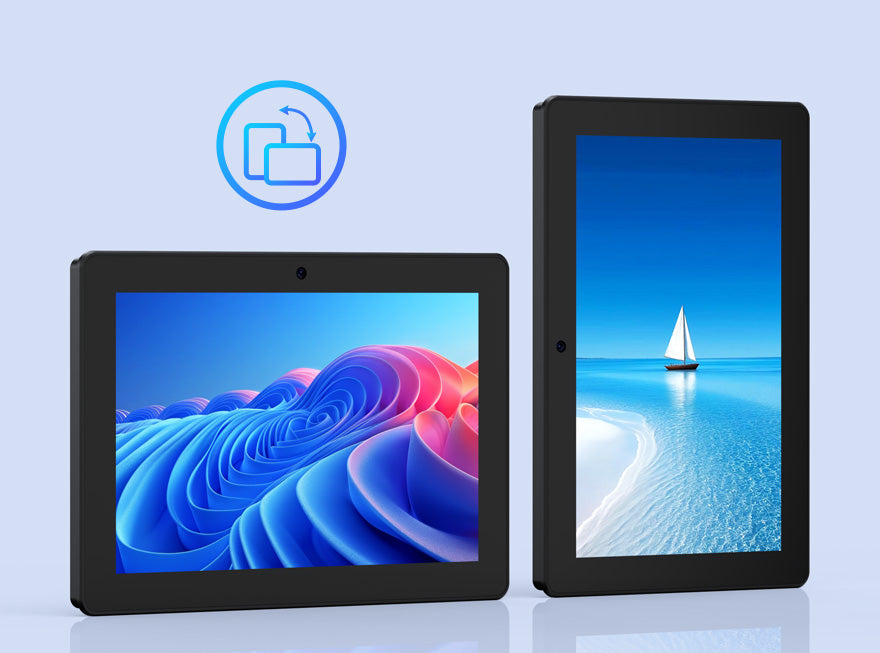

The display orientation is landscape by default. Change the software
config for portrait display

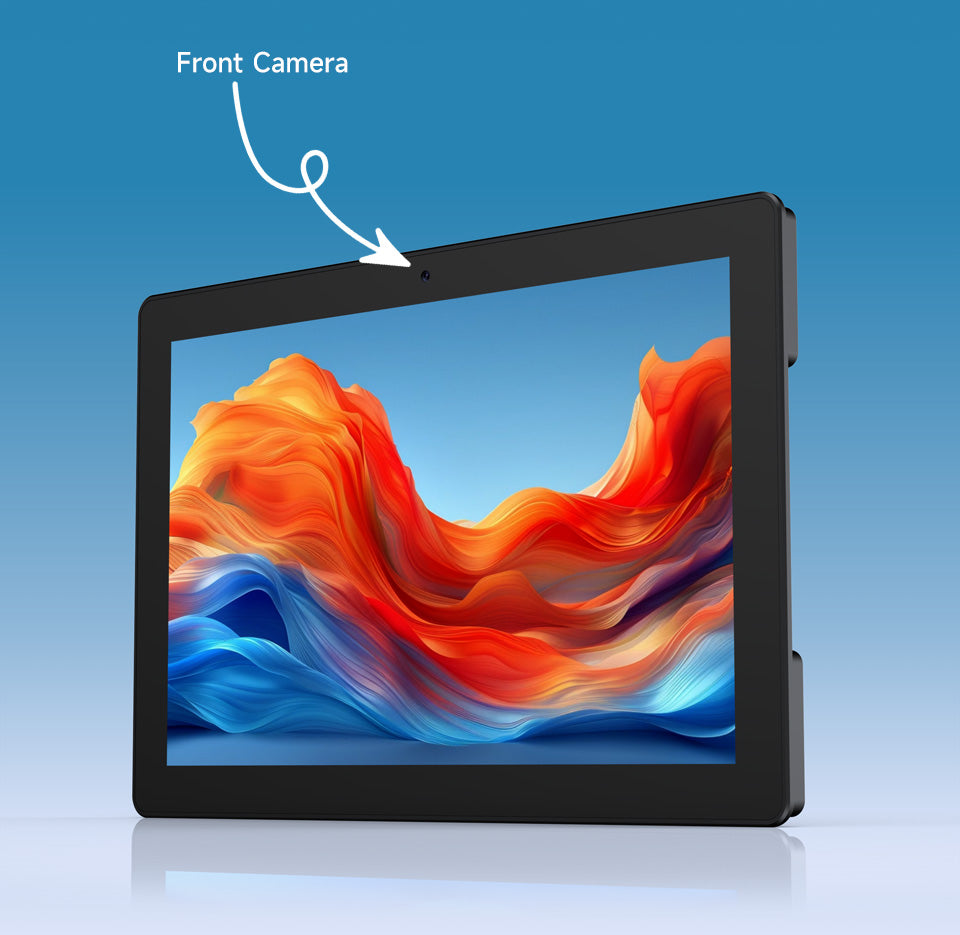

| Sensor | OV5647 | CMOS Size | 1/4inch |
| Pixel | 5MP | Aperture | F2.4 |
| Focal Length | 3.89mm | FOV | 72.9° |
| Distortion | < 1.5% | DOF | 20cm ~ ∞ |
| Image | static image resolution: 2592 × 1944 pixel | ||
| Video Recording | 1920 × 1080p at 30 fps, 1280 × 720p at 60 fps 640 × 480p at 60 fps, 640 × 480p at 90 fps |
||

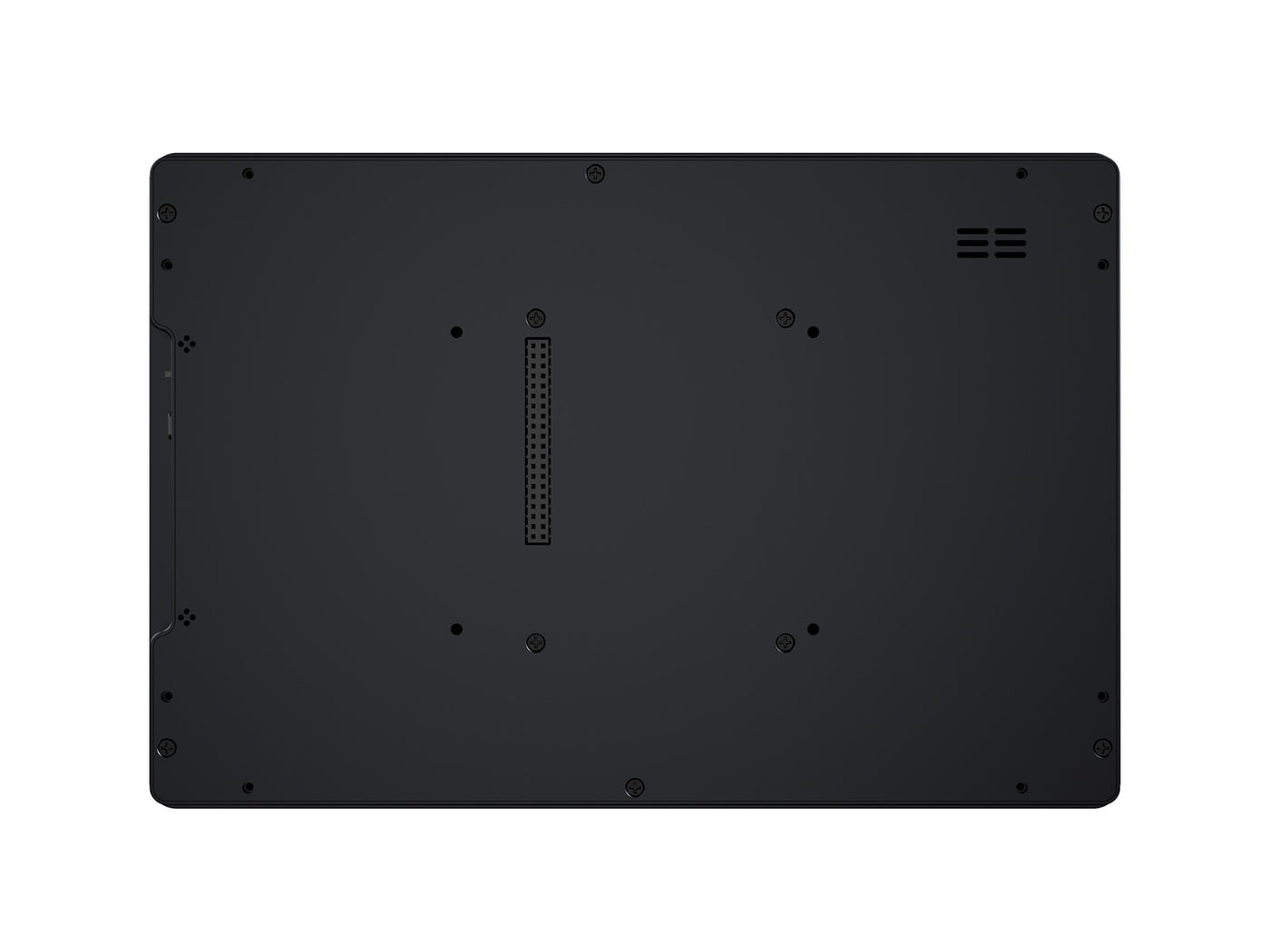

Full metal case with efficient thermal conduction, and reserved mounting holes
on the back for easy integration and embedding
Adopts ESP32-P4-Core module, with built-in ESP32-P4 and 32MB Nor Flash
Onboard ESP32-C6-MINI module extends 2.4GHz Wi-Fi 6 and Bluetooth 5 (LE) for ESP32-P4, using SDIO interface protocol for stable connection and efficient transmission
Onboard ES8311 audio codec chip and ES7210 echo cancellation circuit,
with dual microphones and speaker for daily audio application scenarios
Allows access to online large model platforms such as DeepSeek, Doubao, etc.
Smart Switch
Human-Machine Interface

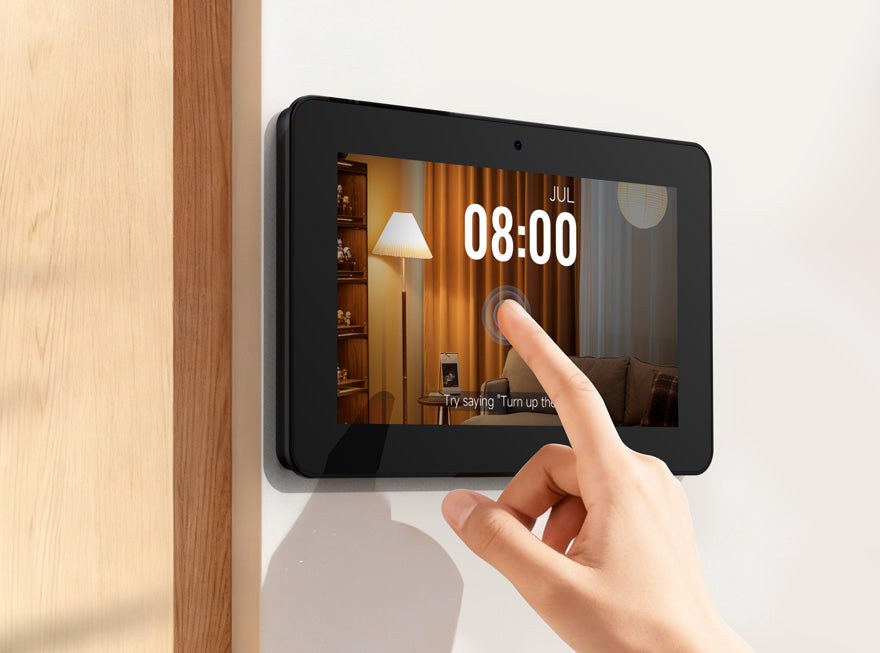

Smart Home Terminal
Industrial Control Device
for reference only, please refer to the package content for detailed part list.
10.1inch
Weight: 0.839 kg
