7-Inch IPS/QLED Dispaly

Integrated Structure | Thin And Light Screen Design




Size - 7"

Resolution - 1024x600

Display Panel - IPS/QLED

Viewing Angle - 170°

Touch Type - Capacitive

Touch Points - 5-Points

Consumption - Low Power

Certification - CE & ROHS2.0

Resources

Wiki: www.waveshare.com/wiki/70H-1024600


Device & System Support

Support Windows / Linux / Android Main Board Which Has HDMI Signal And USB Touch Signal




Used with development adapter, support the following devices:

All versions of Raspberry Pi
Jetson Nano
Windows PC



Comparing The Appearance



Optional Development Adapter



Integrated Structure Design

Provide Secondary Development Resources To Facilitate Integrated Design
Boost Simple Development For Embedding Engineering Applications Quickly



Thinner And More Space Saving

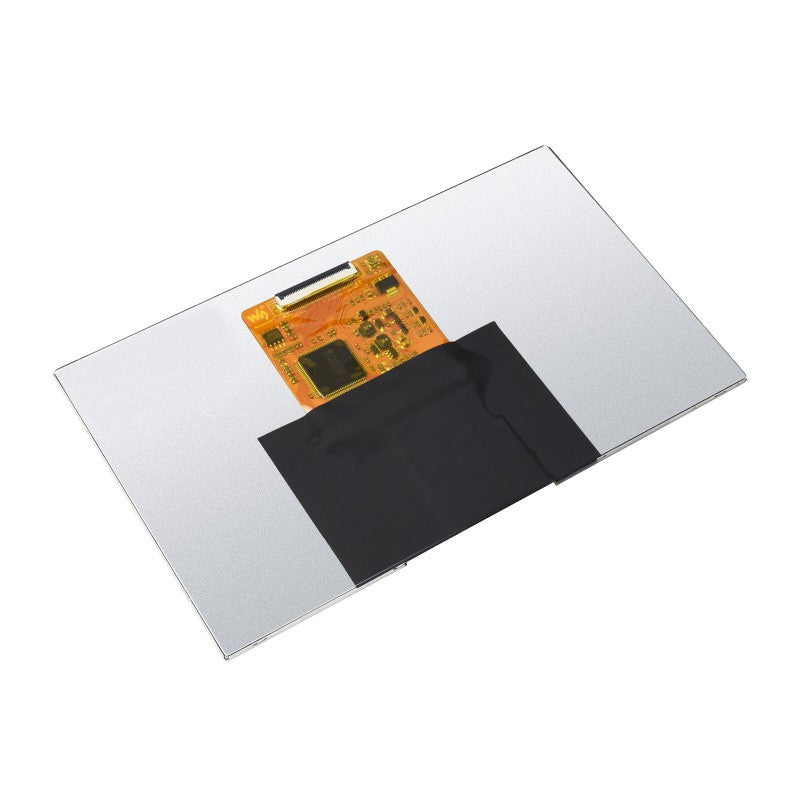

Different with the conventional connection method, integrate 40PIN multi-function interface for one-cable communication. Integrate the driver circuit into an FPC cable, the thinnest only needs 3mm thickness space


170° Wide Viewing Angle


QLED Quantum Dot Technology

Wider Color Gamut

Color Gamut Of This QLED Display Is Up To: NTSC 78%, SRGB 92%

* This function is only available on the QLED version



More Pure Chroma

Chroma Of QLED Increases 58.3%, Makes The Color More Pure, More Vivid

* This function is only available on the QLED version

Longer Lifetime

Due To Its Inorganic Characteristic, The Color Life Of QLED Could Be Up To 60000 Hours Without Color Degradation

* This function is only available on the QLED version

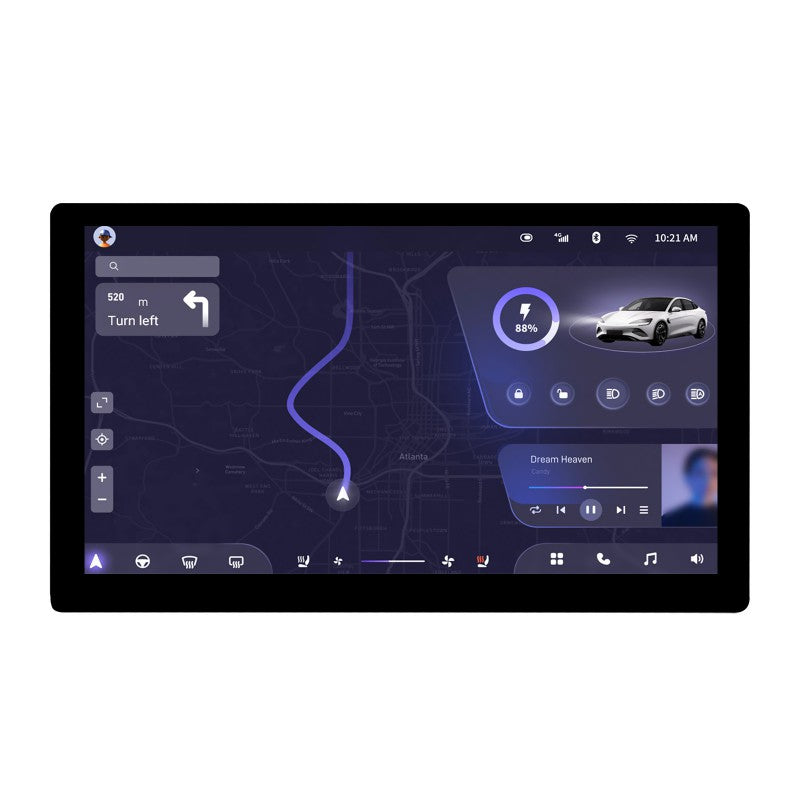

5-Point Capacitive Touch

Gently Touch, And See What You Get, Enjoy Multi-Point UI Interaction Via Flexible Operation, Supports 5-Point Touch

* This function is only available on the Touch Display version




Connection Example

For the first use, it is recommended to use development adapter for connection

* for reference, Raspberry Pi board is NOT included.




Interface Introduction




Applications

New Energy, Electronic Sentinel, Human-Machine Interface, Smart Home
IoT, Industrial Applications, Consumer Electronics




Dimensions



Package Includes

    70H-1024600 IPS/QLED Display

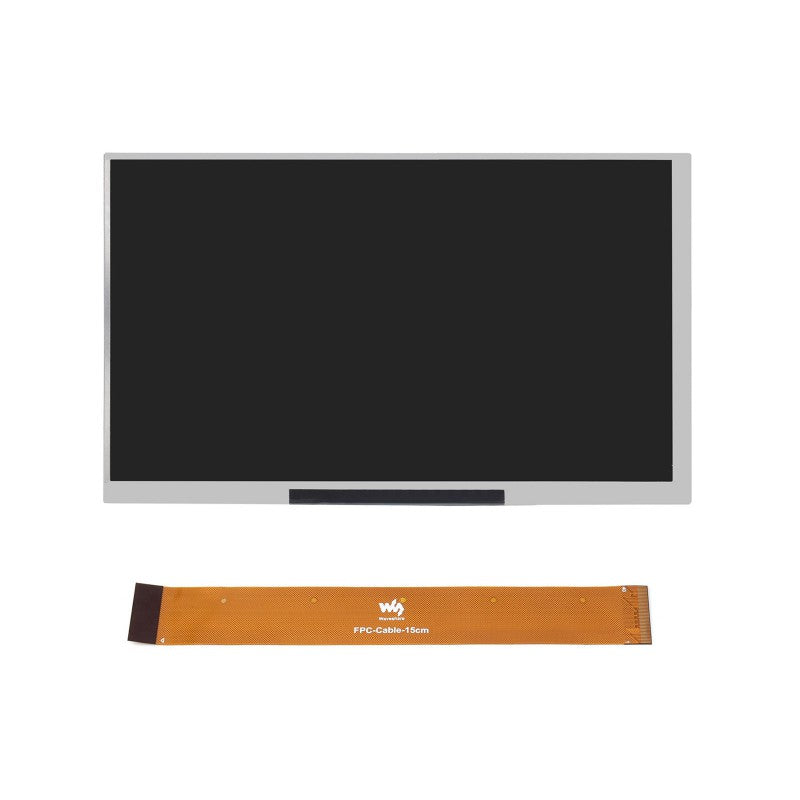

    1. IPS/QLED Display x1 (option of variant)
    2. FPC cable (~ 15cm) x1
    3. Development Accessories (option of variant)

    70H-1024600 IPS/QLED Touch Display

    1. IPS/QLED Touch Display x1 (option of variant)
    2. FPC cable (~ 15cm) x1
    3. Development Accessories (option of variant)
    What variants are available and what are their main differences?
    The display is available in IPS and QLED variants with an optional touch version. The QLED model offers a wider color gamut NTSC 78 percent and sRGB 92 percent, higher chroma by 58.3 percent, and a color life up to 60000 hours. The touch option provides 5 point capacitive touch, while the non touch versions have no touch input.
    Which devices and operating systems are supported and how do I connect for first use?
    It supports Windows, Linux and Android. For first use connect via a development adapter on devices with HDMI signal and USB touch signal, such as Raspberry Pi Jetson Nano or Windows PC. The Raspberry Pi board is not included.
    Is the touch version required for capacitive touch input and what is the touch spec?
    The 5 point capacitive touch is only on the touch display variant. It enables multi point UI interaction via multi point touch.
    What is included in the package and what is the interface design?
    The package includes the IPS or QLED display and an FPC cable about 15 cm long, with development accessories available as an option. The design integrates the driver circuit into the FPC and provides a 40 pin multi function interface for one cable communication.
    What are common use cases and what certifications apply?
    The device is CE and ROHS 2.0 certified and suitable for new energy, industrial, human machine interface, smart home IoT and consumer electronics projects. It features a 170 degree viewing angle and low power consumption.
