Best seller

Waveshare

ESP32-S3 Development Kit - 2.4GHz WiFi, ESP32-S3-WROOM, 8/16/32MB Flash/PSRAM

SKU: WVSH0615

₹ 1,199.99

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

ESP32-S3 Development Kit - 2.4GHz WiFi, ESP32-S3-WROOM, 8/16/32MB Flash/PSRAM₹ 1,199.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Details

ESP32-S3 Microcontroller, 2.4GHz Wi-Fi Development Board, 240MHz Dual Core Processor, ESP32-S3-WROOM Module, Options For 8MB / 16MB / 32MB Flash and 8MB / 16MB PSRAM

ESP32-S3 Microcontroller
Wi-Fi Development Board

Supports development environments such as ESP-IDF, Arduino, MicroPython,etc

Onboard ESP32-S3-WROOM series module

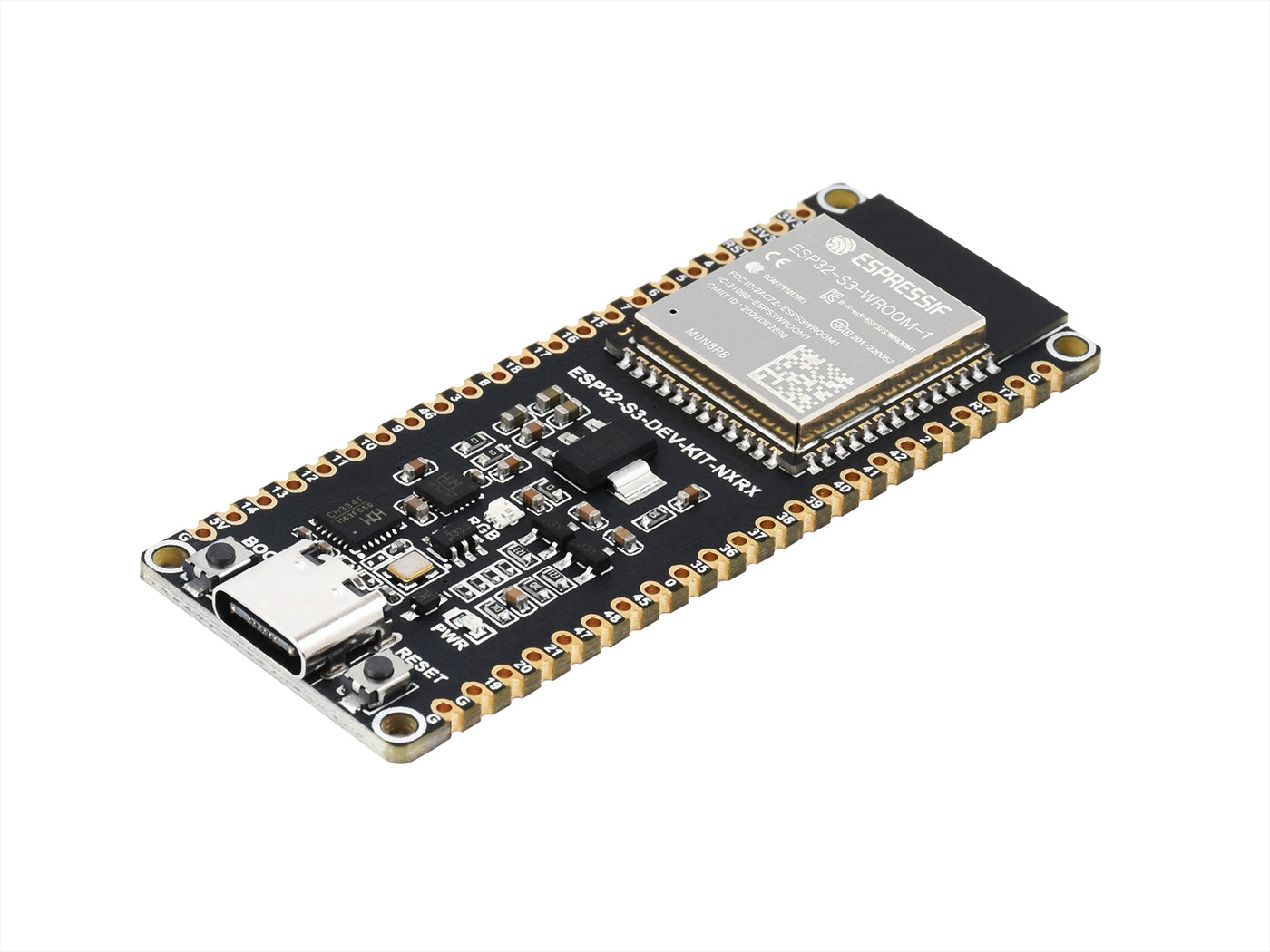

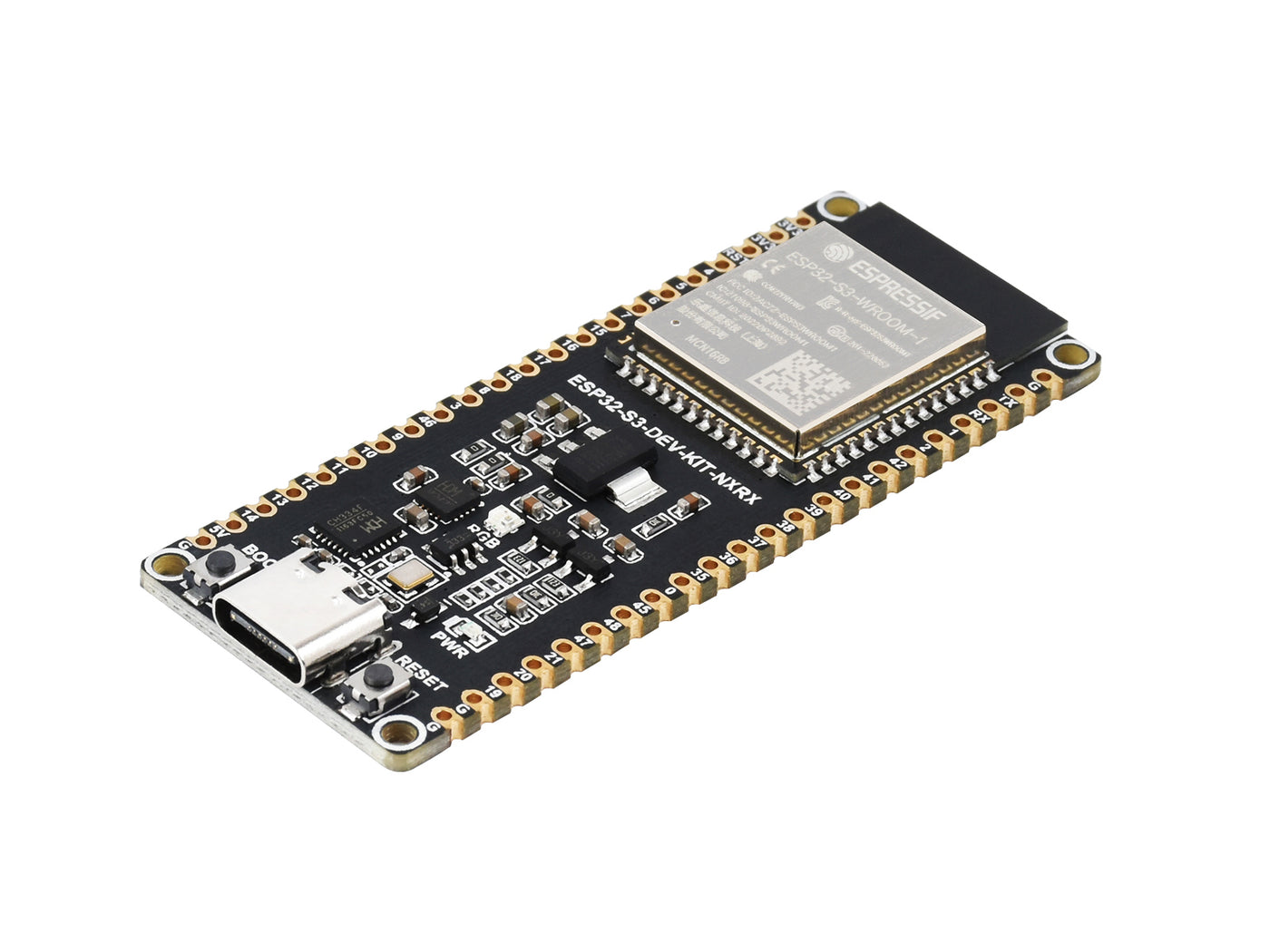

ESP32-S3 microcontroller development board, front view

Version and Pinheader options

ESP32-S3-DEV-KIT-N8R8
8MB Flash and 8MB PSRAM,
with onboard antenna

ESP32-S3-DEV-KIT-N8R8-M
8MB Flash and 8MB PSRAM, with pre-soldered headers,
with onboard antenna

ESP32-S3-DEV-KIT-N16R8
16MB Flash and 8MB PSRAM,
with onboard antenna

ESP32-S3-DEV-KIT-N16R8-M
16MB Flash and 8MB PSRAM, with pre-soldered headers,
with onboard antenna

ESP32-S3-DEV-KIT-N16R8-U
16MB Flash and 8MB PSRAM,
with external antenna

ESP32-S3-DEV-KIT-N16R8-UM
16MB Flash and 8MB PSRAM, with pre-soldered headers,
with external antenna

ESP32-S3-DEV-KIT-N32R16V
32MB Flash and 16MB PSRAM,
with onboard antenna

ESP32-S3-DEV-KIT-N32R16V-M
32MB Flash and 16MB PSRAM, with pre-soldered headers,
with onboard antenna

Features

This product is a compact-size microcontroller development board with multiple digital interfaces.

Adopts ESP32-S3-WROOM series module, which is equipped with a dual-core Xtensa 32-bit LX7 processor with 240MHz running frequency, built-in 512 KB Static RAM (TCM), provides options for 8MB / 16MB / 32MB Flash memory and 8MB / 16MB PSRAM. Onboard CH343 and CH334 chips for USB and UART development via USB-C port. Compatible with the pinout of ESP32-S3-DevKitC-1 development board, more convenient to use and expand a variety of peripheral modules.

You can choose ESP-IDF, Arduino, MicroPython, or other development environments in software so that you can easily and quickly get started and apply it to the product.

Key features include:

Adopts ESP32-S3-WROOM series module with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
Integrated 512KB Static RAM, 384KB ROM, options for 8MB / 16MB / 32MB Flash memory and 8MB / 16MB PSRAM
Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
Type-C connector, easier to use
Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface
Rich peripheral interfaces, compatible with the pinout of ESP32-S3-DevKitC-1 development board, offers strong compatibility and expandability
Castellated module allows soldering directly to carrier boards
Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios

Supports ESP-IDF, Arduino, MicroPython

Comprehensive SDK, dev resources, and tutorials to help you easily get started

ESP32-S3 Designed for AIoT applications

Powered by Xtensa 32-bit LX7 dual-core processor with frequency up to 240 MHz
Powerful AI Computing Capability & Reliable security features

ESP32-S3 microcontroller development board designed for AIoT applications

Wi-Fi and BLE 5 support

ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 b/g/n) with 40 MHz of bandwidth support
Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

Function Block Diagram

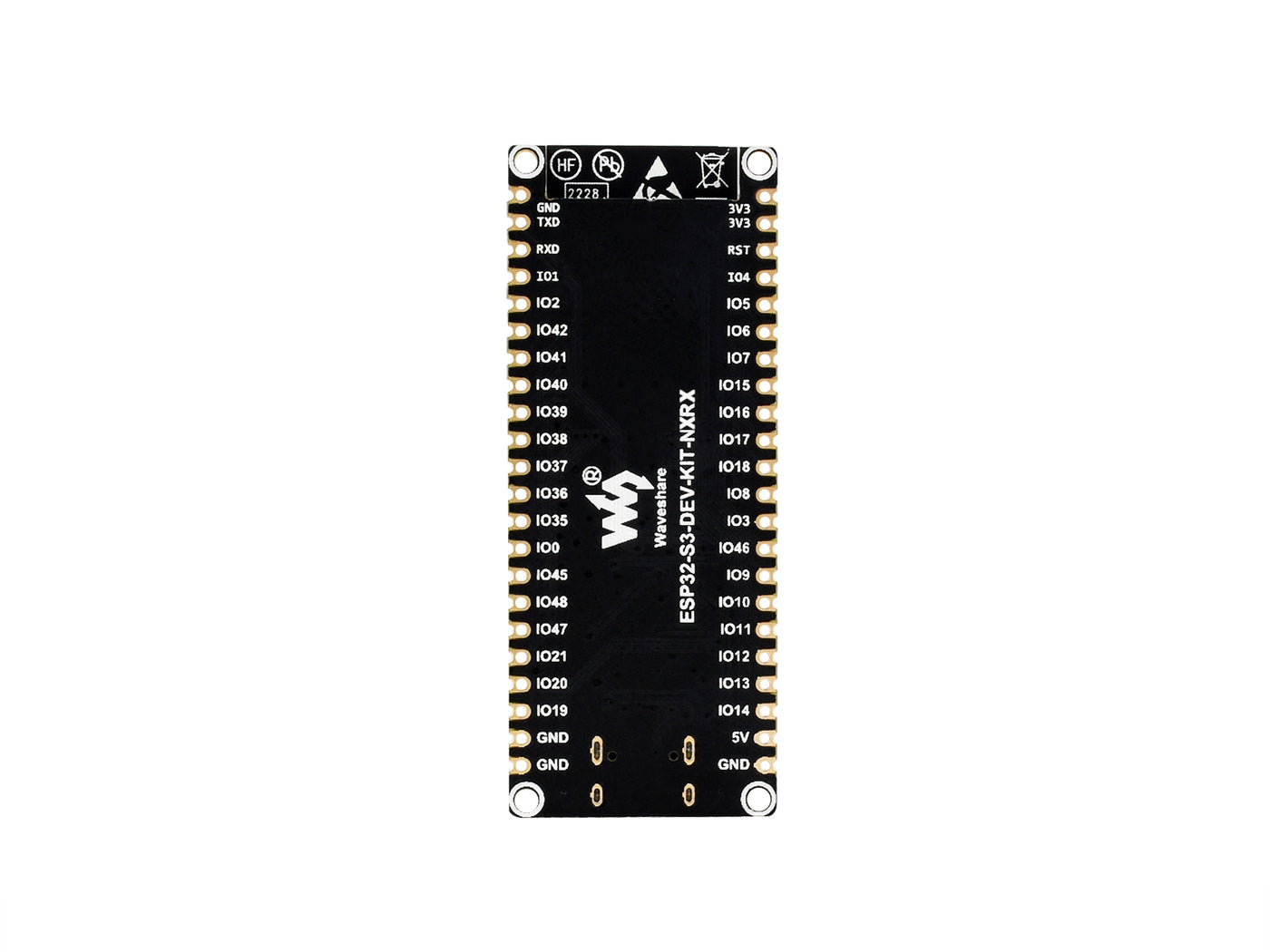

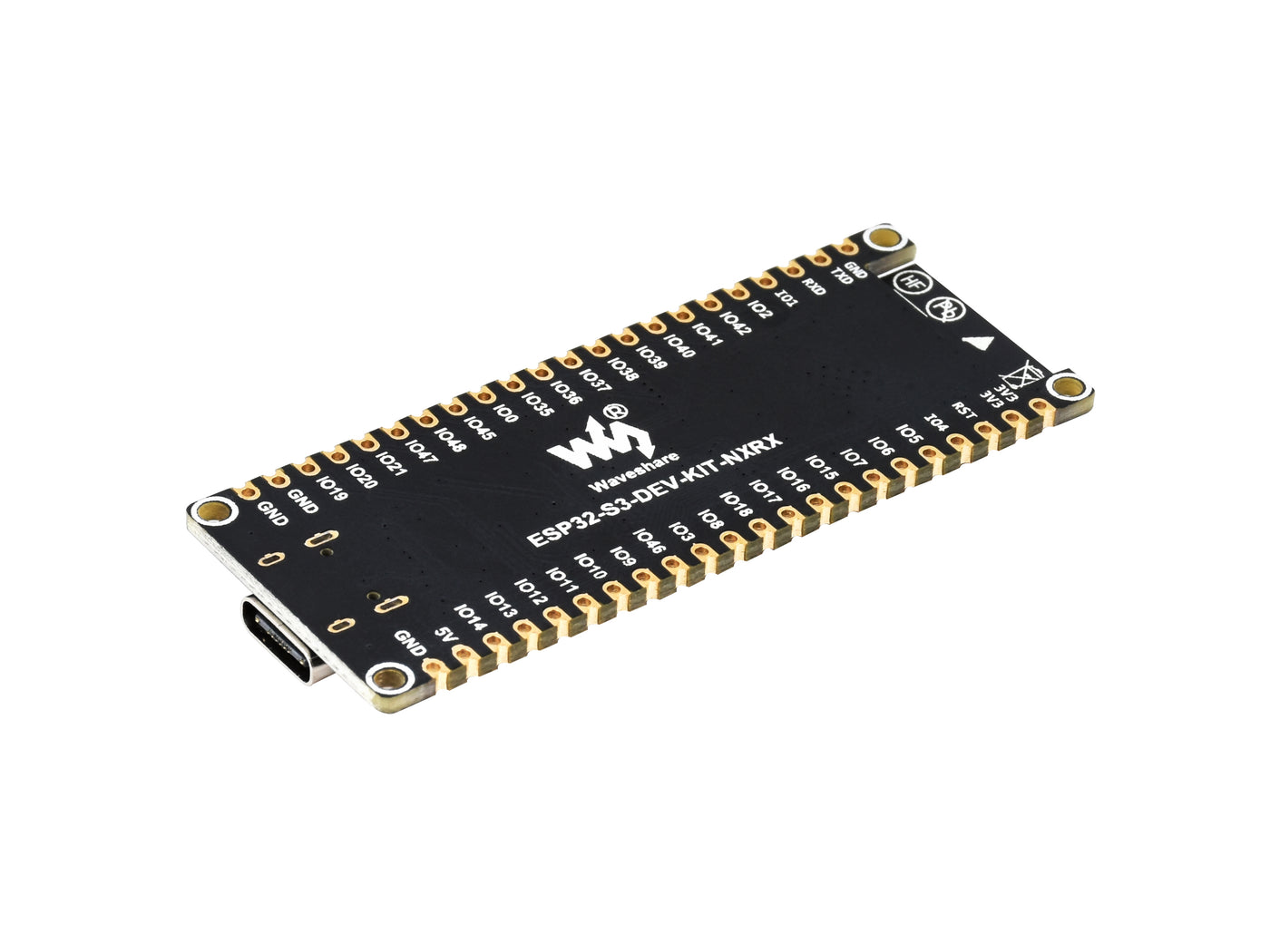

Pinout Definition

Compatible with the pinout of ESP32-S3-DevKitC-1 development board

Onboard Resources

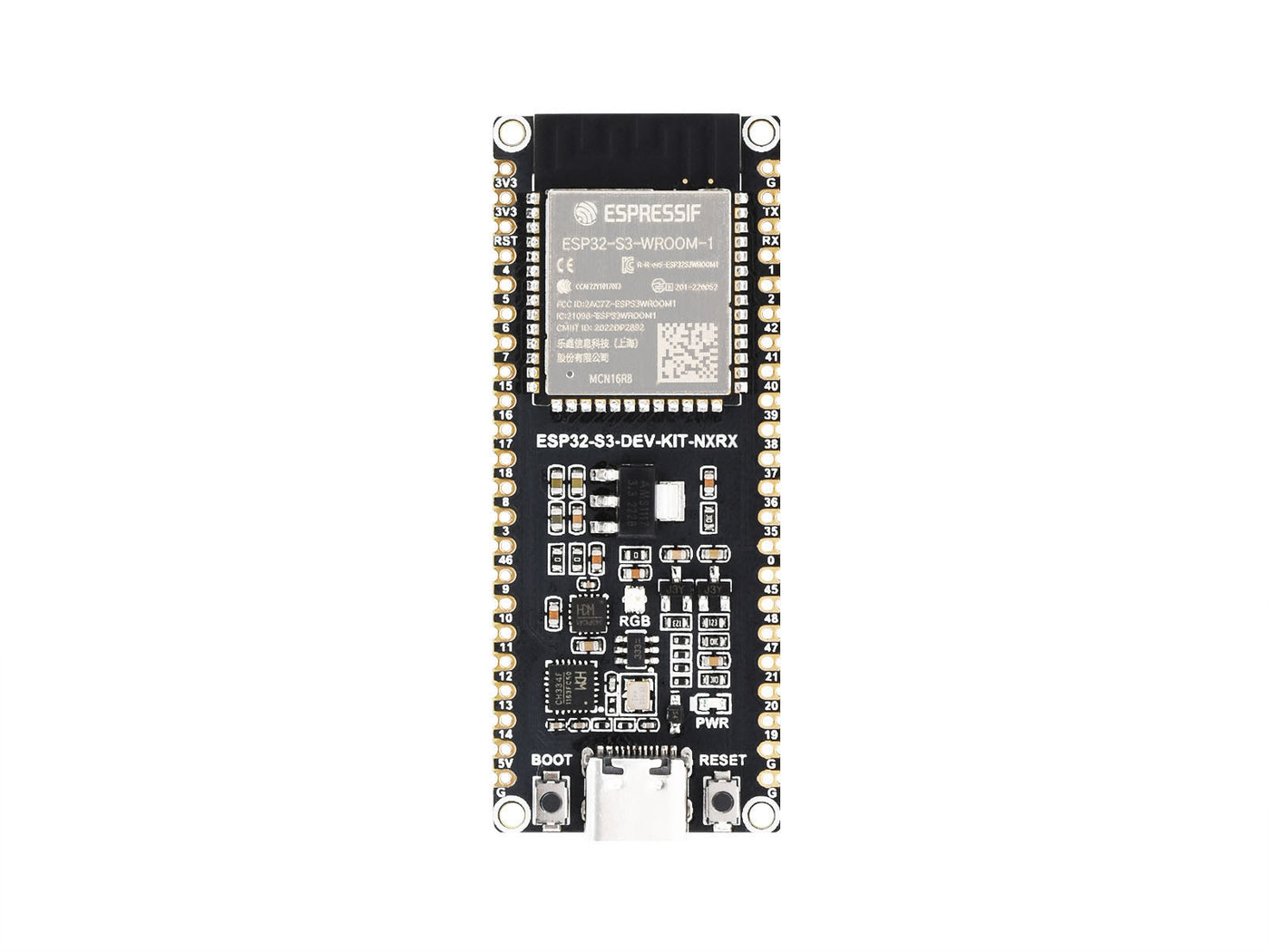

ESP32-S3 microcontroller development board, onboard components

Product Show

Standard version

With external antenna

Frequency range	2400 ~ 2500 MHz	Maximum power	10 W
Storage temperature	-30°C ~ +75°C	Dimensions	155 × 12 (mm)
VSWR	≤2.5	Connector	SMA male central pin
Peak Gain	3±0.5 dBi	Body Material	TPEE
Output Impedance	50 Ω	Operating Voltage	-20˚C ~ + 65˚C
Polarisation	Vertical	Radiation	Omnidirectional

outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/ESP32-S3-DEV-KIT-N8R8

Weight: 0.014 kg

Quick Overview

ESP32-S3-DEV-KIT-N8R8

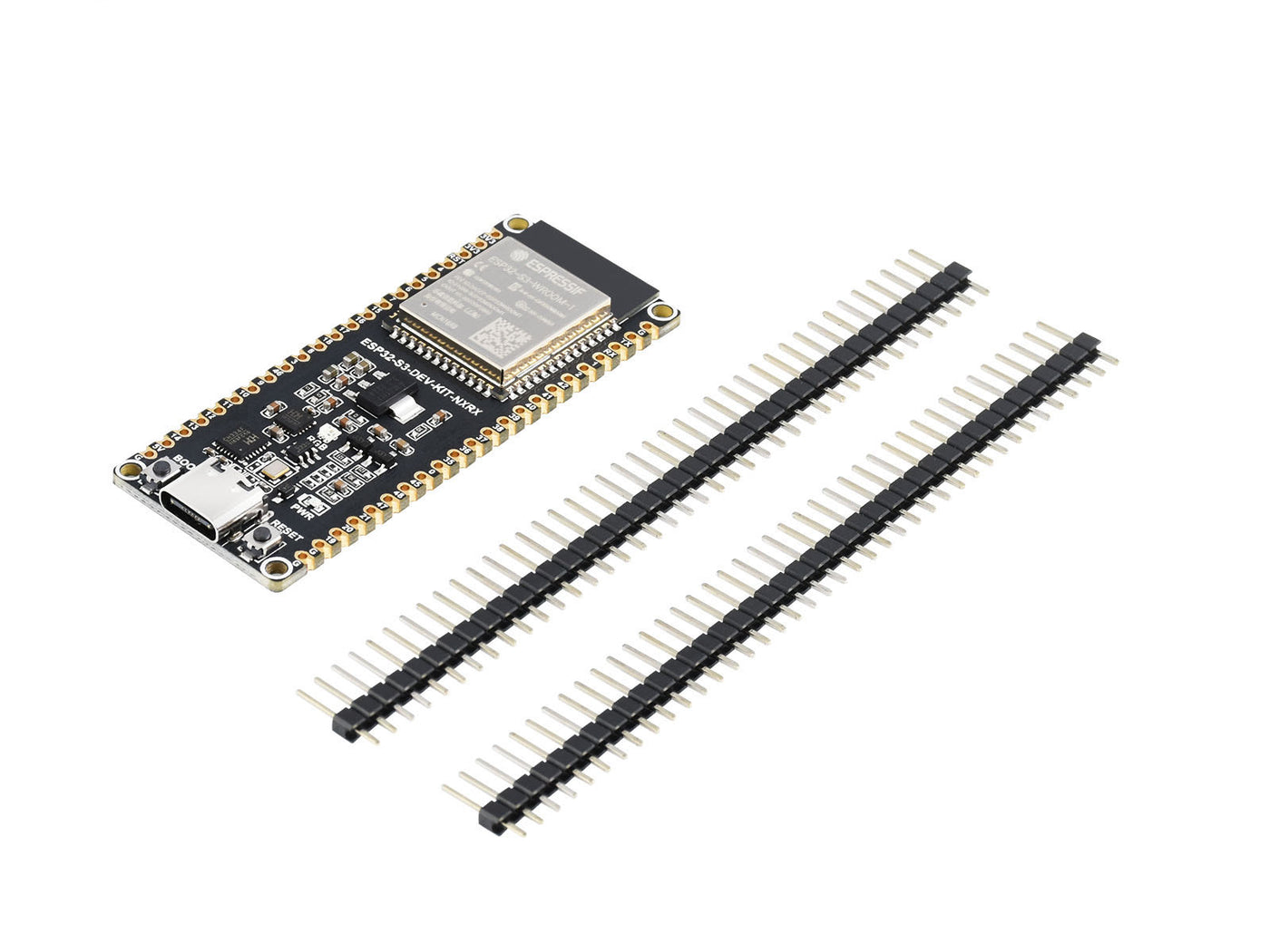

ESP32-S3-DEV-KIT-N8R8 x1
20PIN male pinheader (black) x4

1

2

ESP32-S3-DEV-KIT-N8R8-M

ESP32-S3-DEV-KIT-N8R8 with pre-soldered headers x1

ESP32-S3-DEV-KIT-N16R8

ESP32-S3-DEV-KIT-N16R8 x1

1

2

ESP32-S3-DEV-KIT-N16R8-M

ESP32-S3-DEV-KIT-N16R8 with pre-soldered headers x1

ESP32-S3-DEV-KIT-N16R8-U

ESP32-S3-DEV-KIT-N16R8-U x1

1

2

ESP32-S3-DEV-KIT-N16R8-UM

ESP32-S3-DEV-KIT-N16R8-U with pre-soldered headers x1

ESP32-S3-DEV-KIT-N32R16V

ESP32-S3-DEV-KIT-N32R16V x1

1

2

ESP32-S3-DEV-KIT-N32R16V-M

ESP32-S3-DEV-KIT-N32R16V with pre-soldered headers x1

What memory and module options are available for this kit?

The kit uses the ESP32-S3-WROOM module with 2.4GHz WiFi and offers 8, 16, or 32 MB flash and 8 or 16 MB PSRAM configurations.

Which development environments are supported by this board?

Development environments such as ESP-IDF, Arduino, and MicroPython are supported.

Does the board include an onboard antenna?

Yes, variants such as ESP32-S3-DEV-KIT-N8R8 and N8R8-M include an onboard antenna.

What is the processor speed and core configuration?

The board features a 240 MHz dual core ESP32-S3 microcontroller.

Are there variants with pre-soldered headers?

Yes, the ESP32-S3-DEV-KIT-N8R8-M variant comes with pre-soldered headers.
