S550/F550 Hexacopter Frame

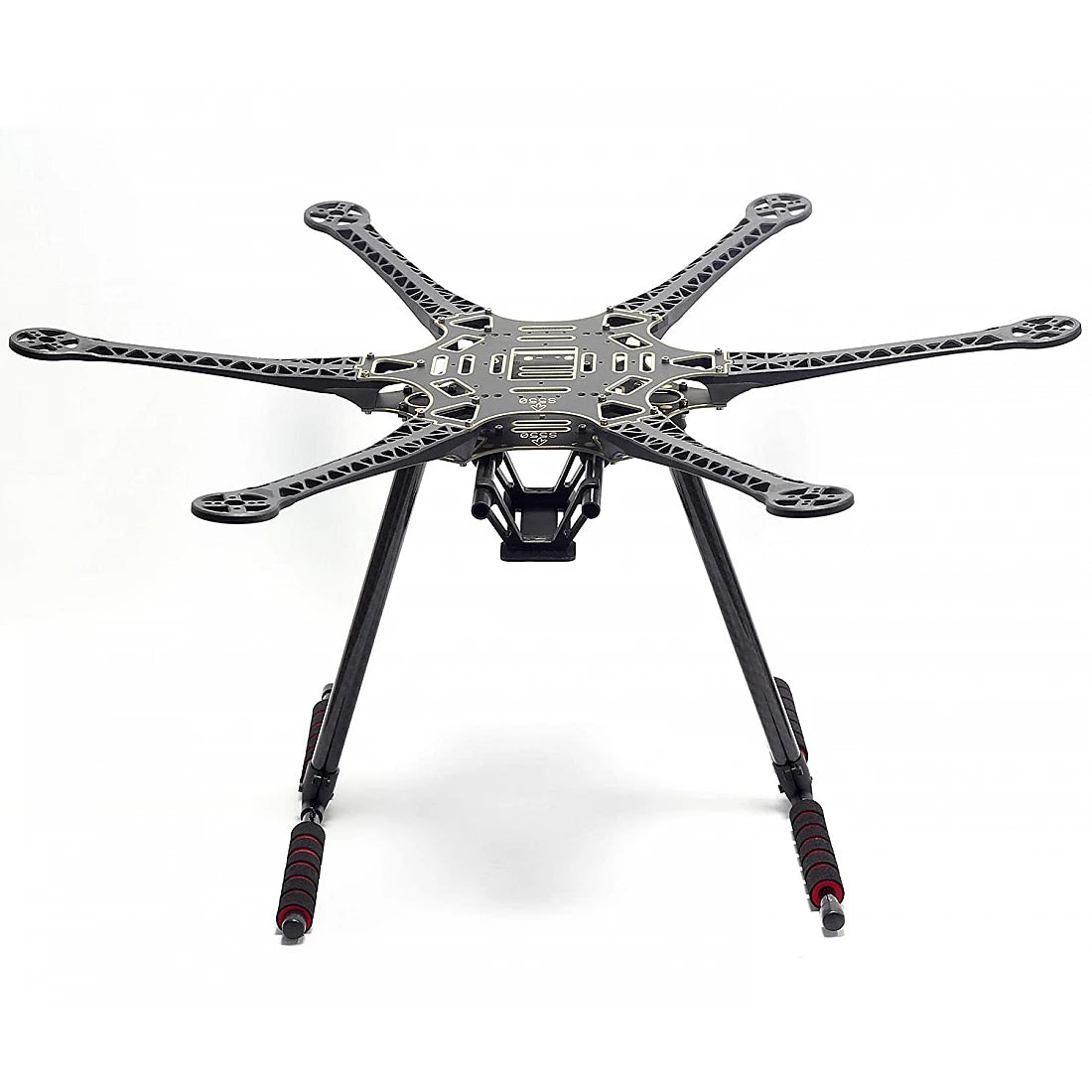

S550

This is Hexacopter Frame which employs 6 arms to get into the air. There are several advantages of a hexacopter frame over a quadcopter one, justifying the extra price tag.

For 6 arms, of course, there are more motors with a hexacopter meaning more power, meaning bigger batteries. This increase in batteries leads to an increase in flight time, which is also nice. Due to these extra motors, a hexacopter is also more stable than your quadcopter equivalent.

Another great advantage of using hexacopters is if for any reason your quadcopter loses a motor, it goes down but with a hexacopter, on the other hand, in the majority of cases you will be able to land safely with one or maybe even two motors down; an extra inbuilt guarantee on your beloved copter.

The S500 has strong, light, and have a sensible configuration including a PCB(Printed Circuit Board) with which you can directly solder your ESC‘s to the Quadcopter. So, making the Quadcopter build fast and easy. So, it avoids the use of extra PDB(Power Distribution Board) and makes the mounting clean and neat. The S550 Hexacopter Frame is a highly flexible frame during the mounting of various components like flight controller, battery, etc.

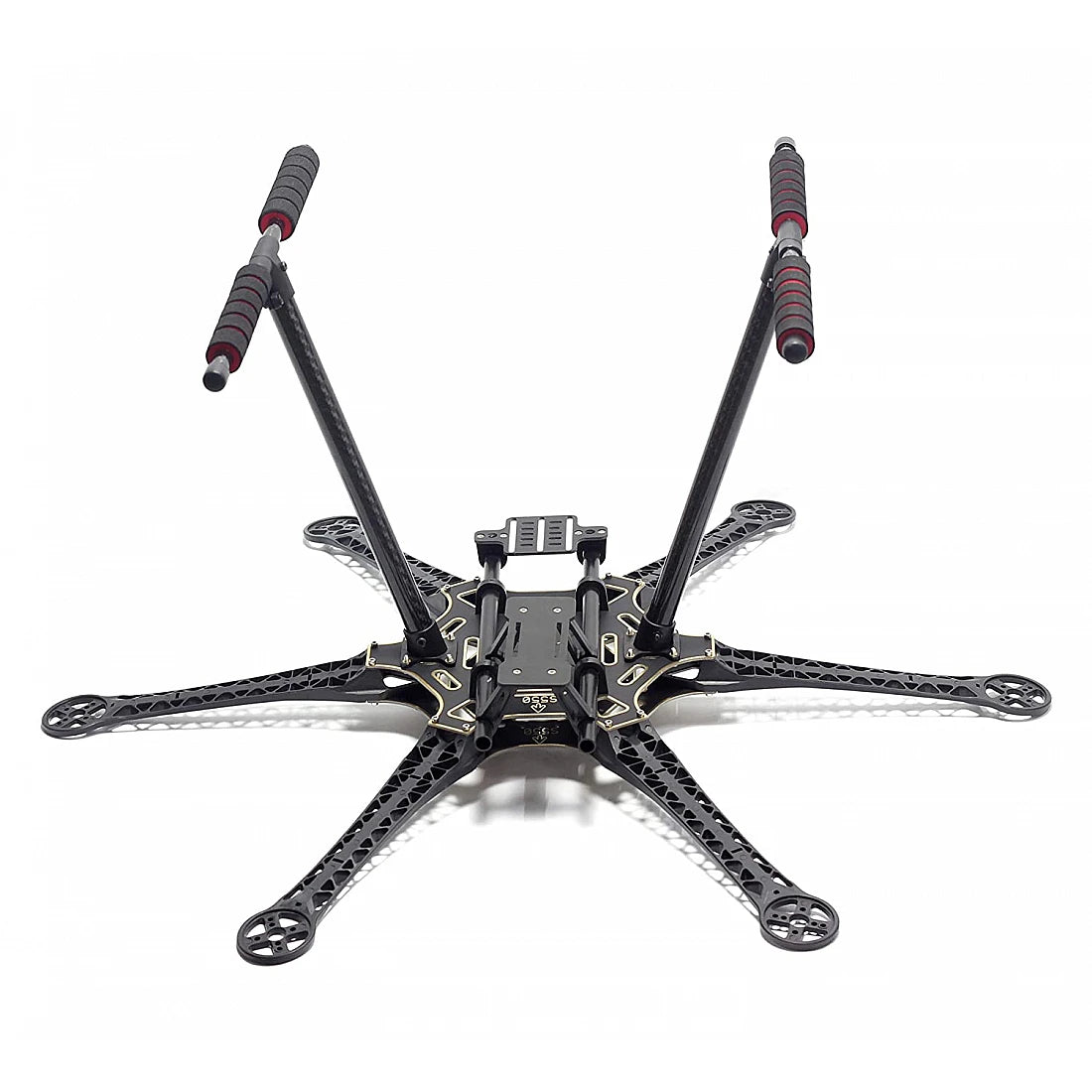

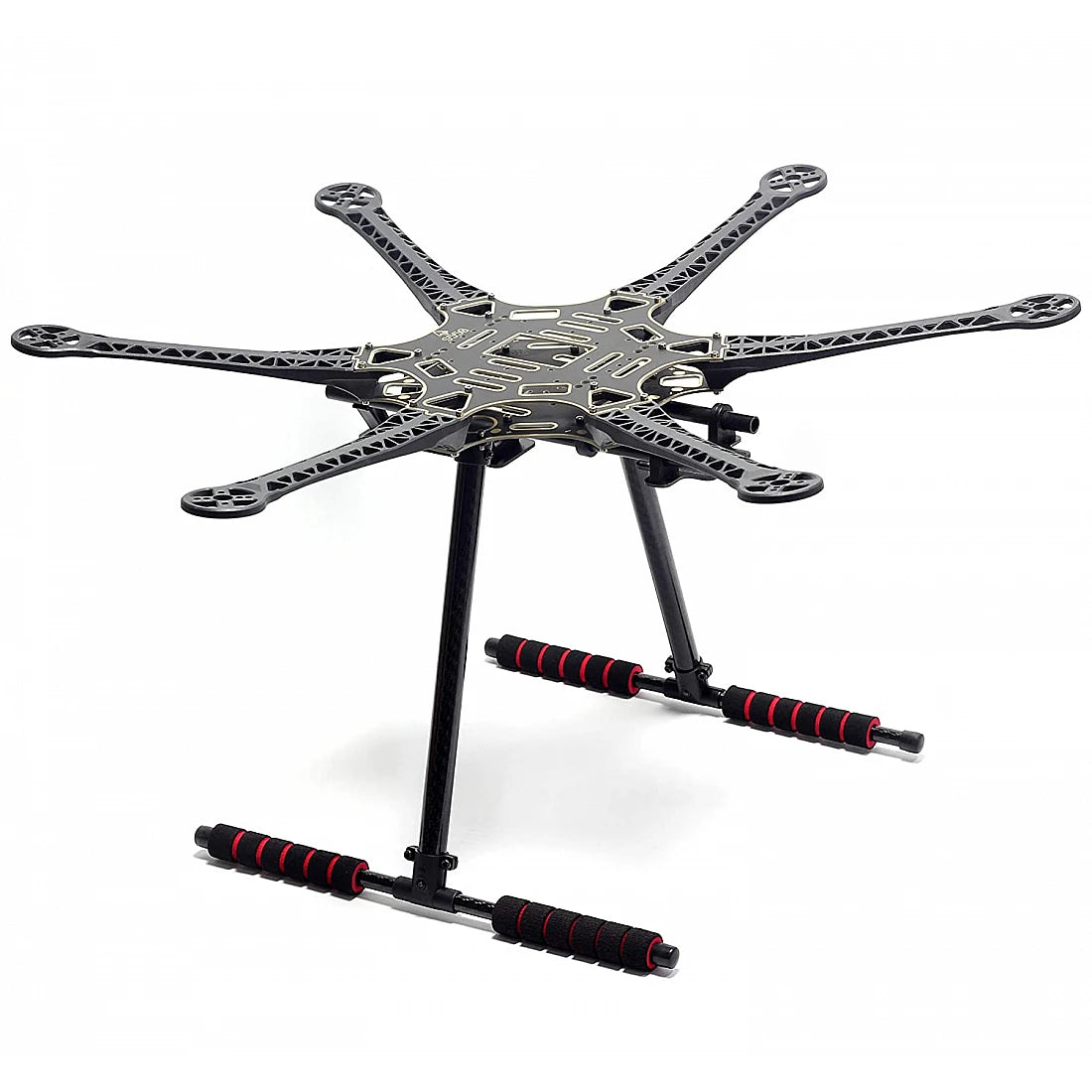

The S550 hexacopter frame kit is an excellent strong lightweight Hexacopter frame with carbon fiber landing gear and a bonus built-in the printed circuit board (PCB) for neat and easy wiring. It comes with integrated PCB for neat and easy wiring. The added lift capacity of a hex configuration makes this frame for carrying larger payloads such as camera systems and other electronic components. This makes for an exceptional camera rig or simply a very agile and powerful multi-rotor frame for aerobatics.

It comes with pre-threaded brass sleeves for all of the frame bolts, so attaching the arms to the mainframe is done within few minutes.  Also, it requires one size of bolt for the overall build and thus a unique one-size hex wrench which makes hardware mounting very convenient.

The assembly of this frame is super simple with pre-threaded sleeves for all the frame bolts so no lock-nuts are required. The motor mounts are ready to take a selection of motors with mounting hole centers of 16, 19 and 25 mm once again making this a very universal frame at a very affordable price.

The frame has the wheelbase of 550mm and whole frame kit weighs around 760gm. It features mounting tabs at the front and rear end on the bottom plate of the mainframe for mounting cameras and other accessories.

We are offering a full line of multi-rotor accessories

- Multirotor Motors
- ESC’s (Electronic Speed Controller)
- Orange Li-PO Batteries
- Flight Controllers
- FPV Cameras
- Gimbals
- Propellers
- Remotes

Note: The dimensions and weight may have  ±2% error.

Features:

- Made by advanced engineering material, super strong & smooth
- Easy to assemble and disassemble.
- The frame is tough and durable.
- The main glass fiber frame has good strength.
- The arm equips support ridges for better and faster forward flight.
- Features pre-threaded brass sleeves.
- Large mounting tabs for camera mounting.
- PCB for easy and neat wiring
- Easy assembly

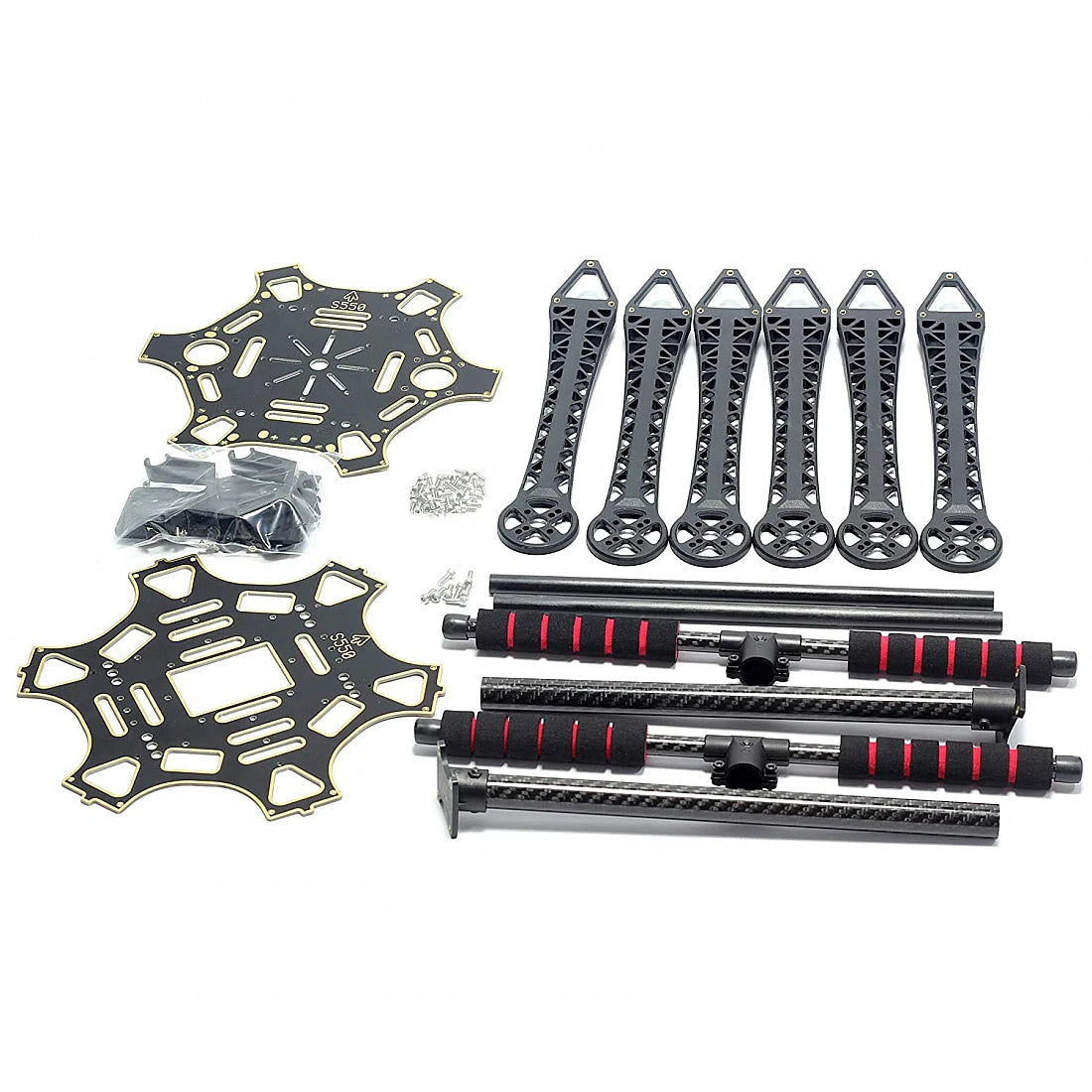

Package Includes:

1 x S550 quadcopter Frame(Top and Bottom) with PCB soldered centerboard
6 x S550 arms
Landing gear setup & Accessories set (as shown in the image)

Recommendation (NOT Included) :

– Motor suggested: 2212 KV980, 2216 KV880 KV900, 3108 KV720 KV900
– Prop suggested: 8038 9047 1038 1045 1047
– Battery suggested: 3S-4S 2200mAh-5200mAh

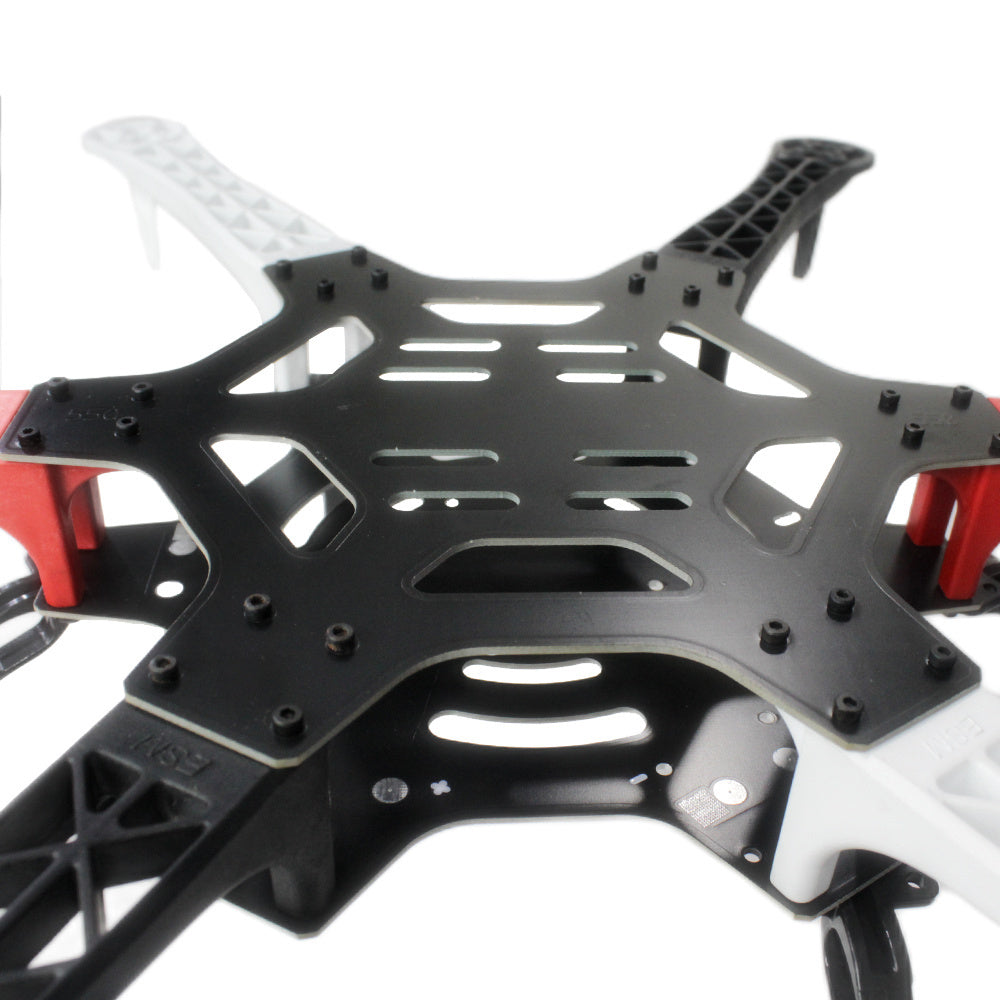

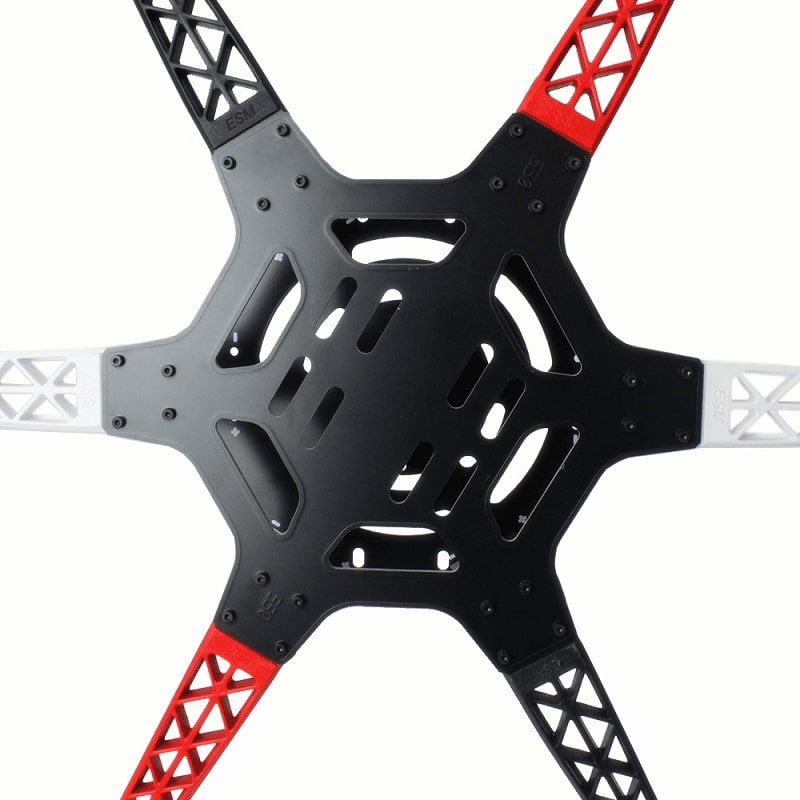

F550

This F550  Hexacopter Frame is made from 35% of Glass Fiber which makes it tough and durable. They have arms of ultra-durable Polyamide-Nylon which are the stronger molded arms having a very good thickness so no more arm breakage at the motor mounts on a hard landing. The arms have support ridges on them, which improves stability and provides faster forward flight.

They are strong, light, and have a sensible configuration including a PCB (Printed Circuit Board) with which you can directly solder your ESC‘s to the Hexacopter. So, making the Hexacopter build fast and easy. So, it avoids the use of extra PDB and makes the mounting clean and neat.

Introducing our Made in India Drone Frame, meticulously crafted to ensure assured quality and exceptional compatibility surpassing other options in the market.

We at ROBU dedicatedly redesigned and fabricated these Drone Frame Parts using stronger materials with around 35% of glass fiber, addressing the longstanding issues related to durability and compatibility that were raised by our valued customers over time. We take immense pride in presenting you with a product that not only meets the utmost standards of performance and reliability but also comes at an incredibly affordable price. Experience the difference with our upgraded Drone Frame Parts and elevate your drone-building journey like never before.

Note:

- The dimensions and weight may have ±5% error.
- Refer to the attachments for schematics for Dimensional Details
- To power up the drone, you can connect the battery terminals to one of the ESC points.

Features

- Made of advanced engineering material, super strong & smooth
- Easy to assemble and disassemble.
- The frame is tough and durable.
- The main glass fiber frame has good strength.
- The arm equips support ridges for better and faster forward flight.
- Features pre-threaded brass sleeves.
- Large mounting tabs for camera mounting.
- In-built power distribution board.
- Arm mounting holes: 3 mm.

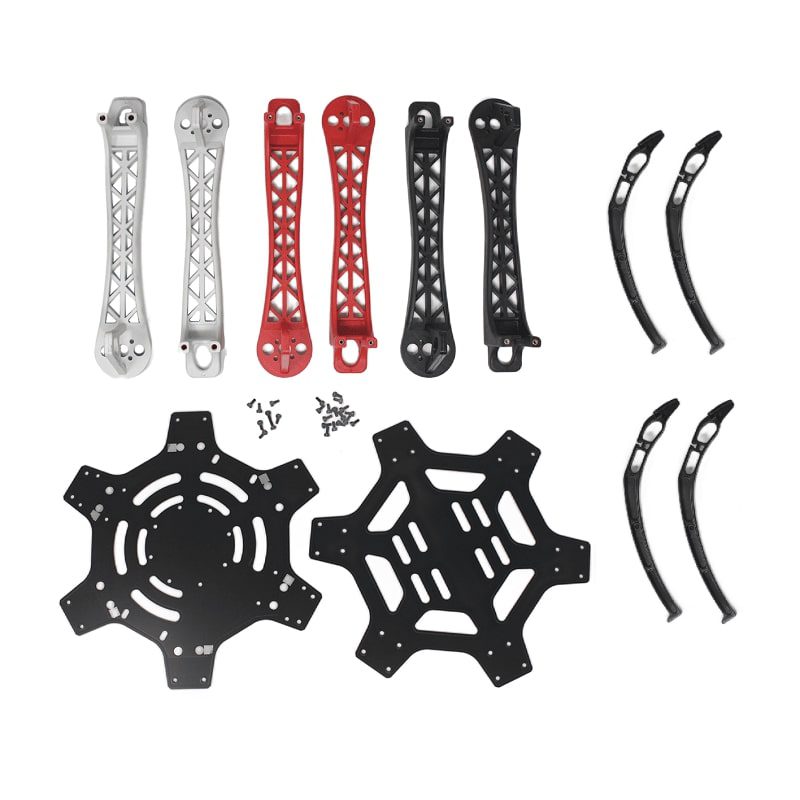

Package Includes

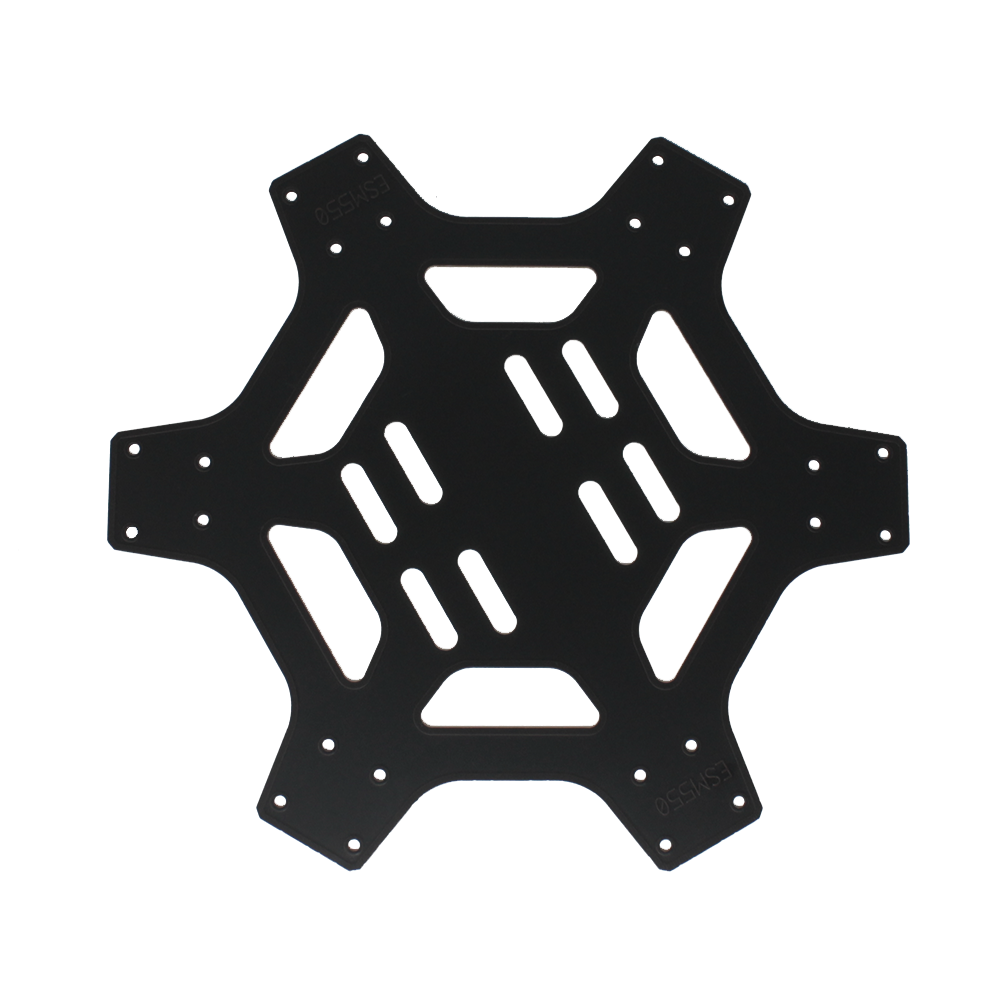

- 1 x F550 Frame (Top and Bottom) with Integrated PCB.

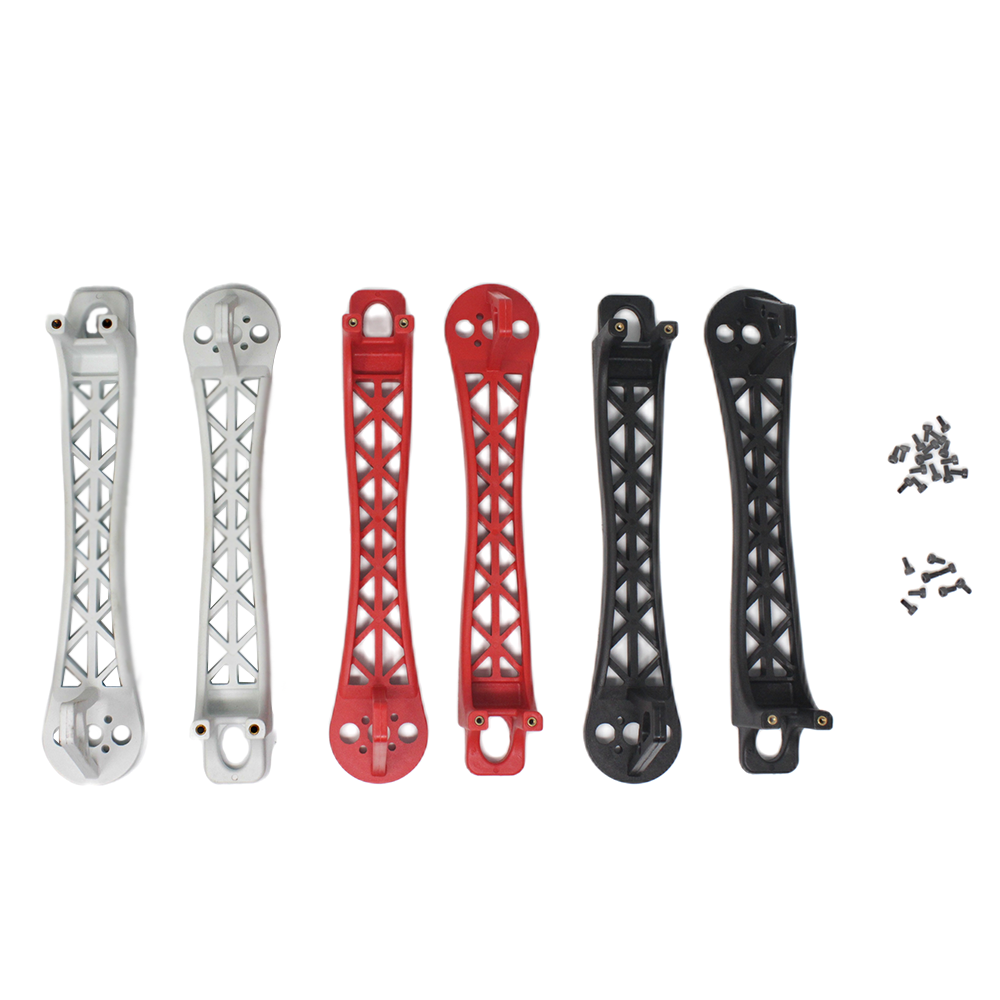

- 6 x F550 arms (2 Red + 2 White+ 2 Black).

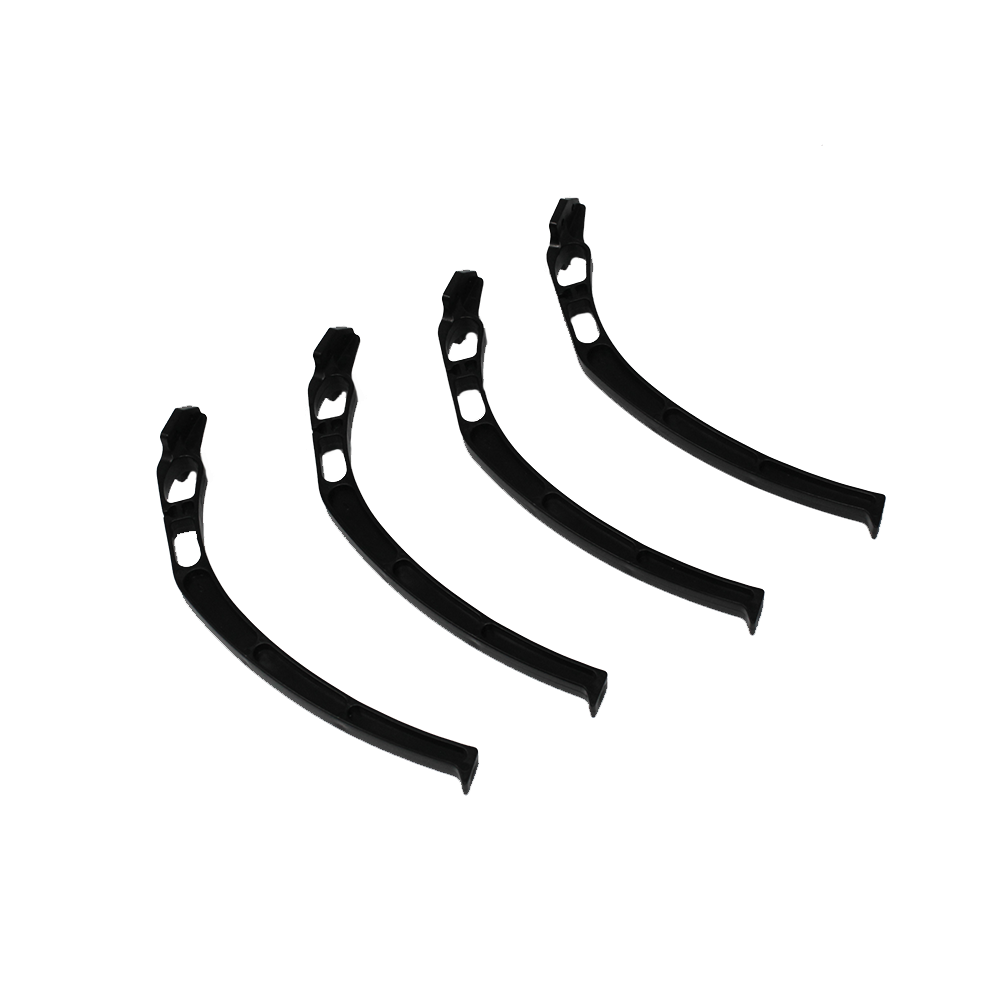

- 1 x Landing Gear
- 1 x Accessories set (24 x M2.5 * 5mm Screws)

Recommendation (NOT Included ) :

- Propeller:  Orange Propeller (CW & CCW)
- Battery: 3S-4S Orange LiPo (2200 – 5200mAh)
- ESC: 15A – 40A.
- Motor: 800-1200 KV (brushless dc motor)
