TS832 AV Wireless Transmitter - 5.8G 600MW 48CH

SKU: DRO3002

₹ 3,899.99 ~~₹ 4,199.99~~

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

TS832 AV Wireless Transmitter - 5.8G 600MW 48CH₹ 3,899.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

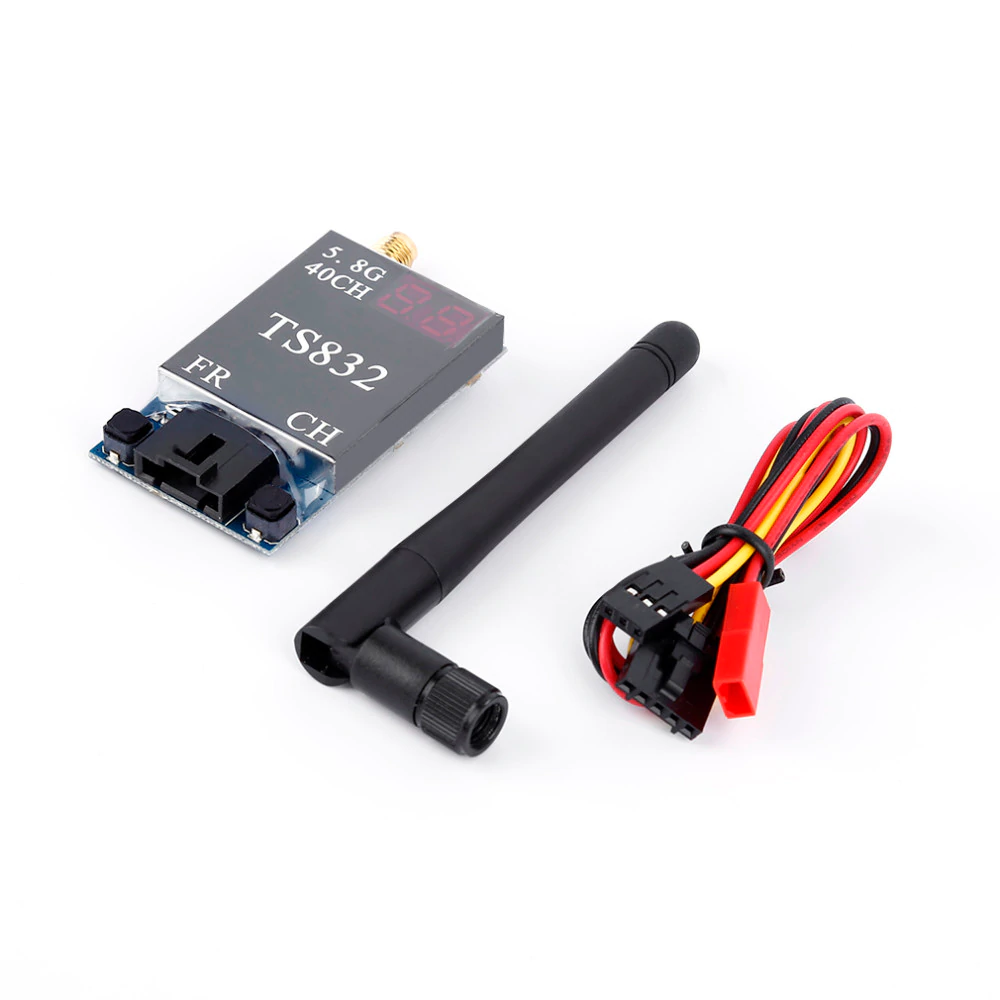

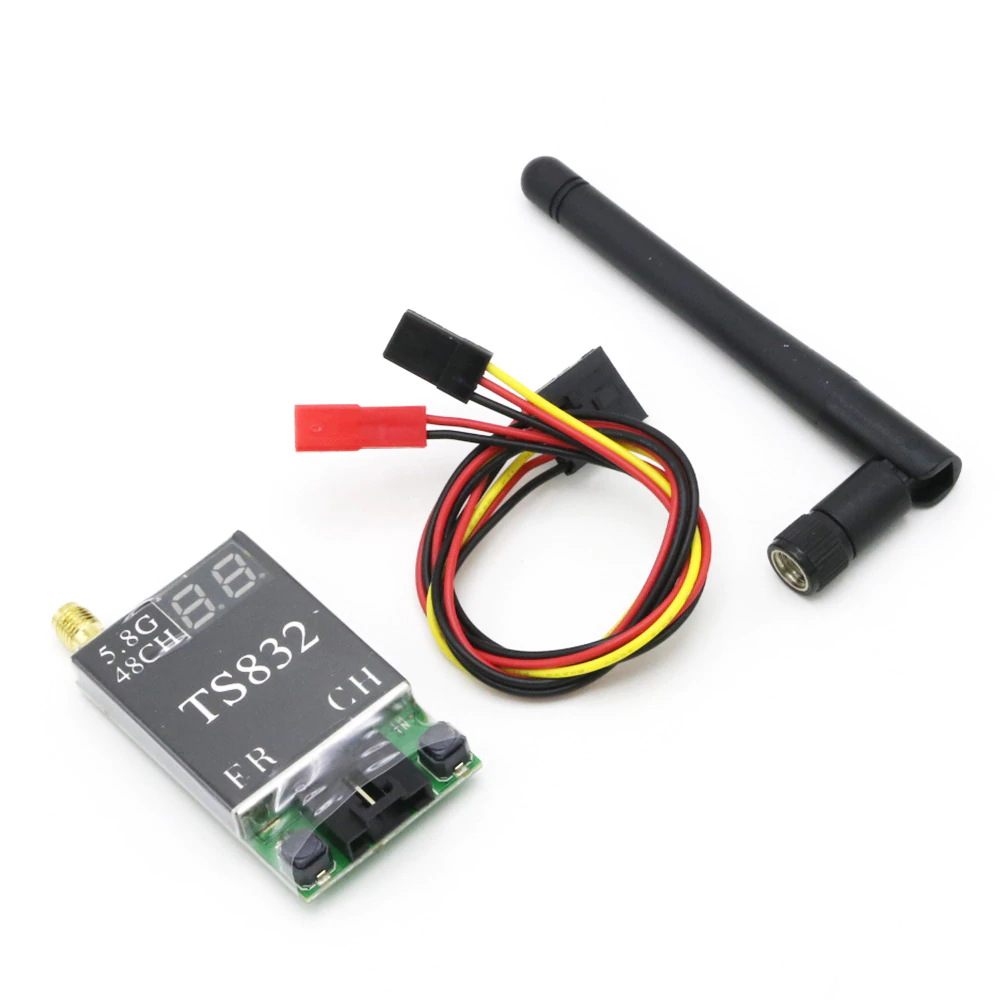

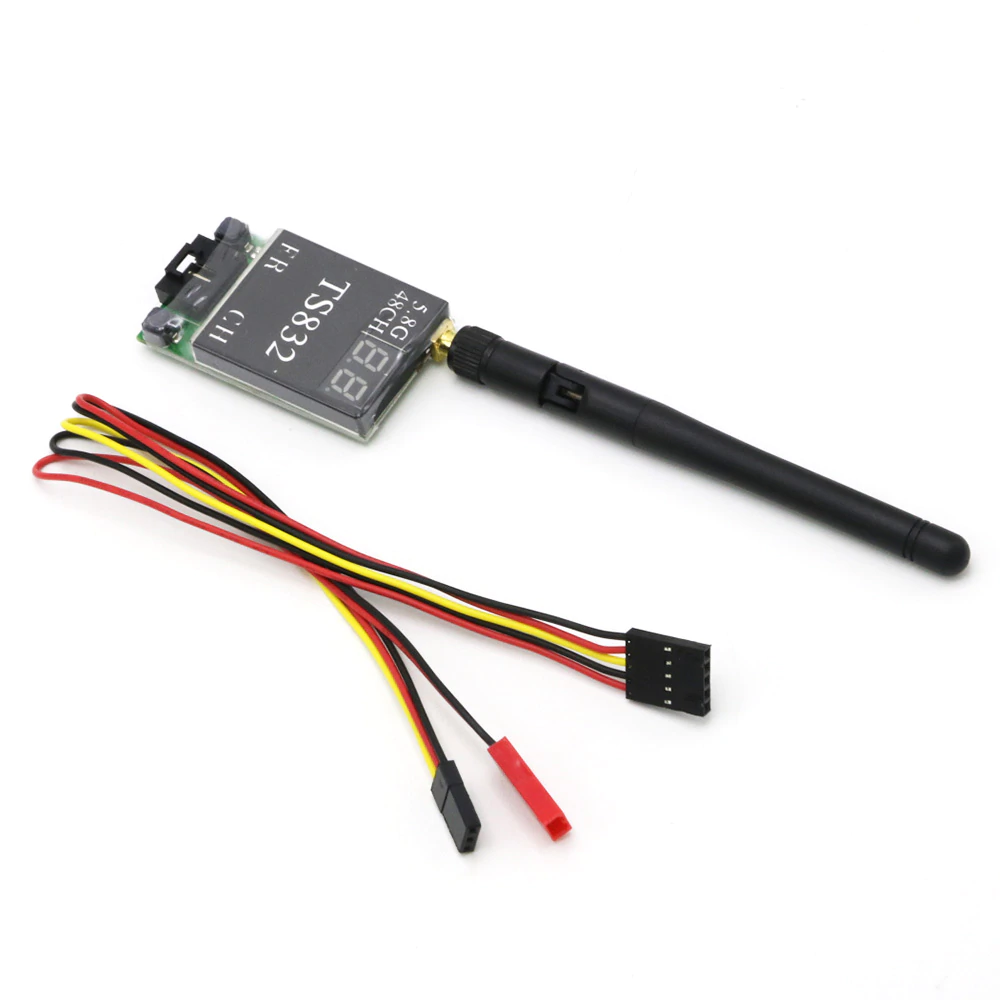

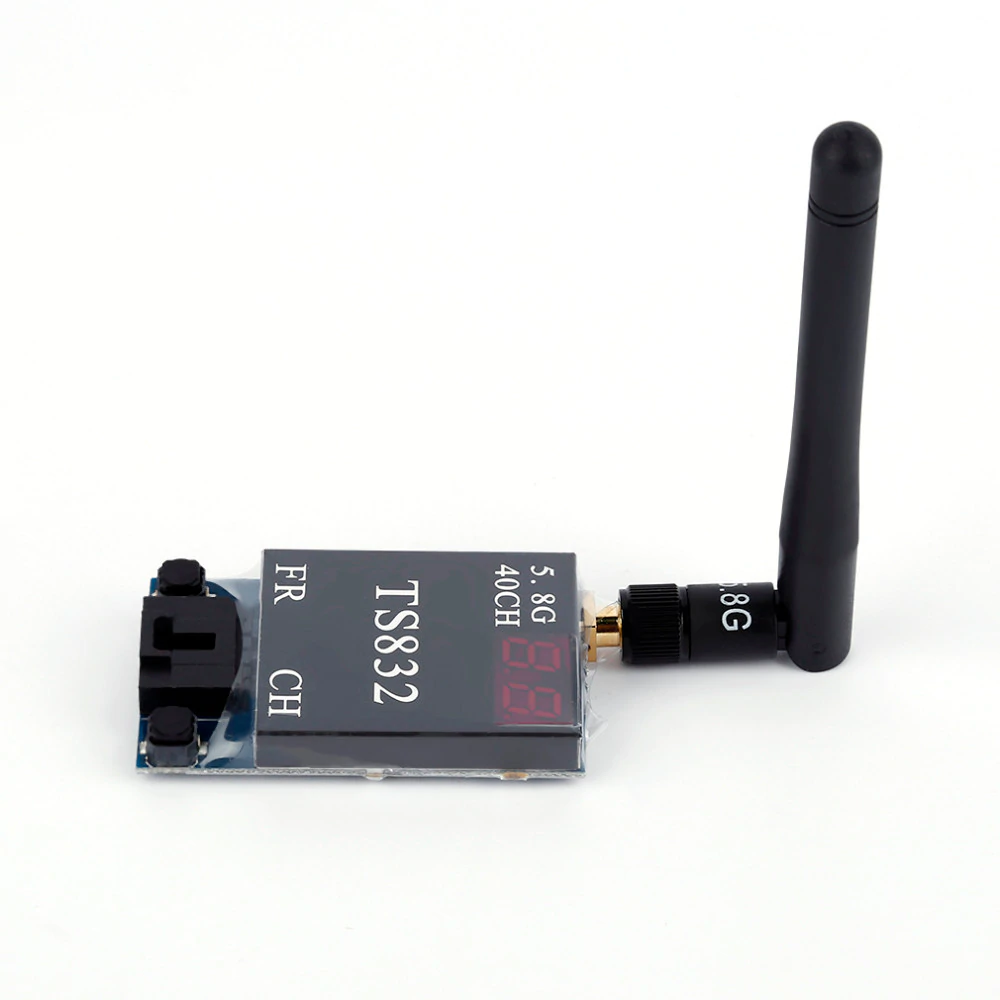

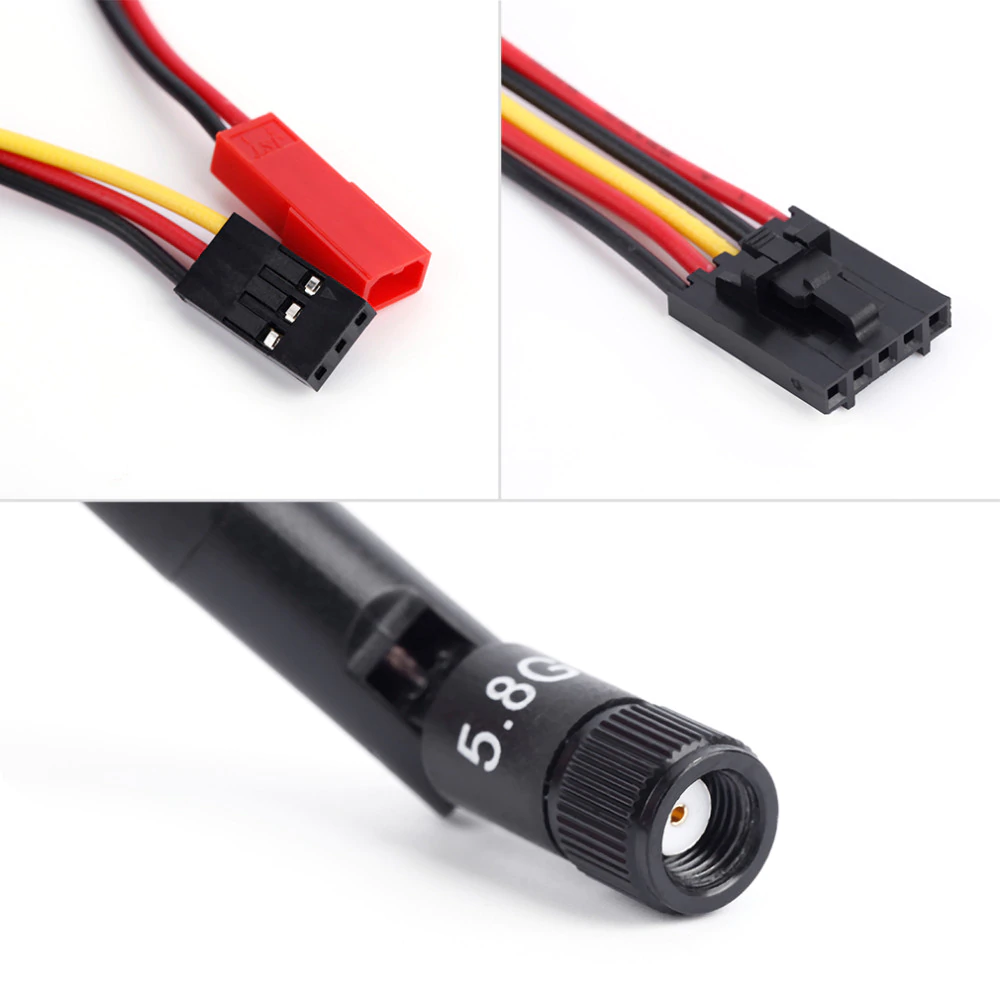

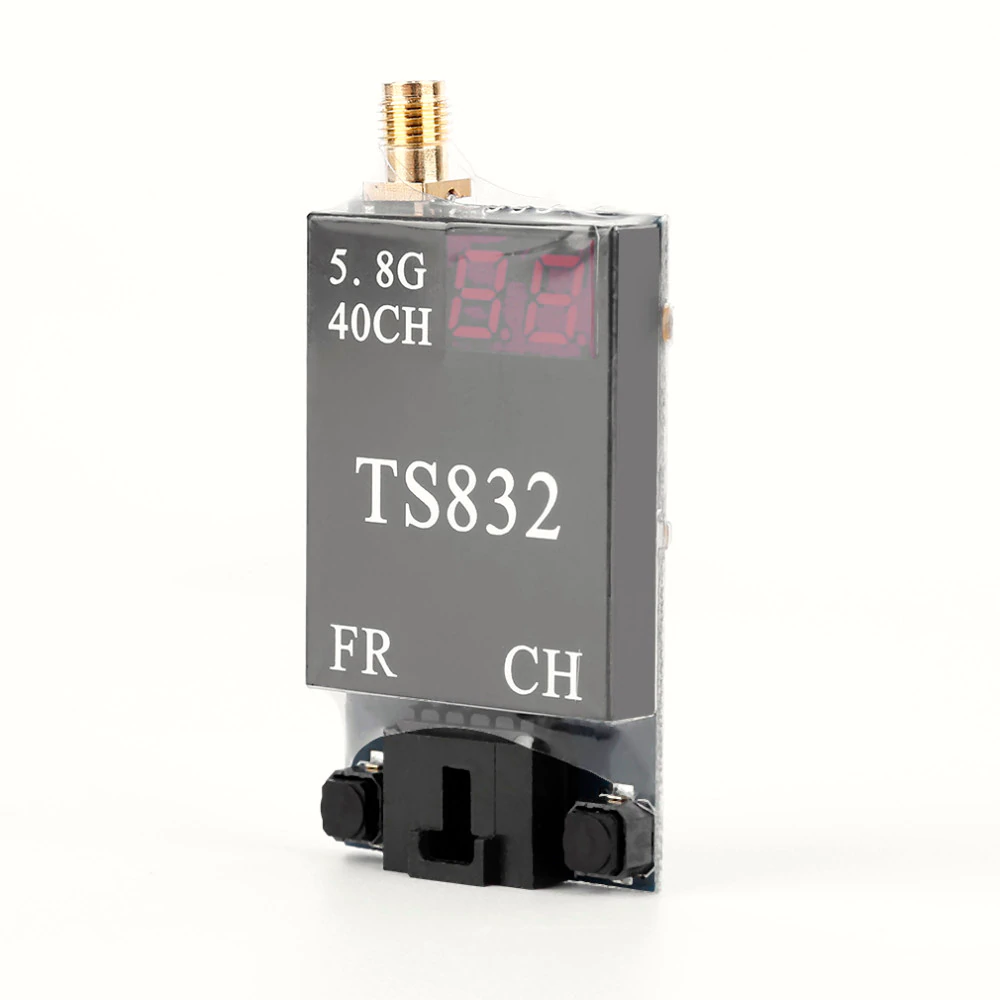

The TS832 Transmitter packs a whopping 600mW of ultra clean 5.8GHz power! A must for those looking for longer range and locked in video. The TS832 is transmitting a full range of 32 channels and uses an easy to use 2 button interface, it also comes with a clean pre-wired harness, and only weighs in at 21g, it’s perfect for a wide range of aircraft!

Note: This is the new 48-channel edition of the 5.8Ghz 600mW AV Wireless System

40 channels: Cover A, B, E bands and F band (Airwave band), 4 bands and all frequencies compactable;

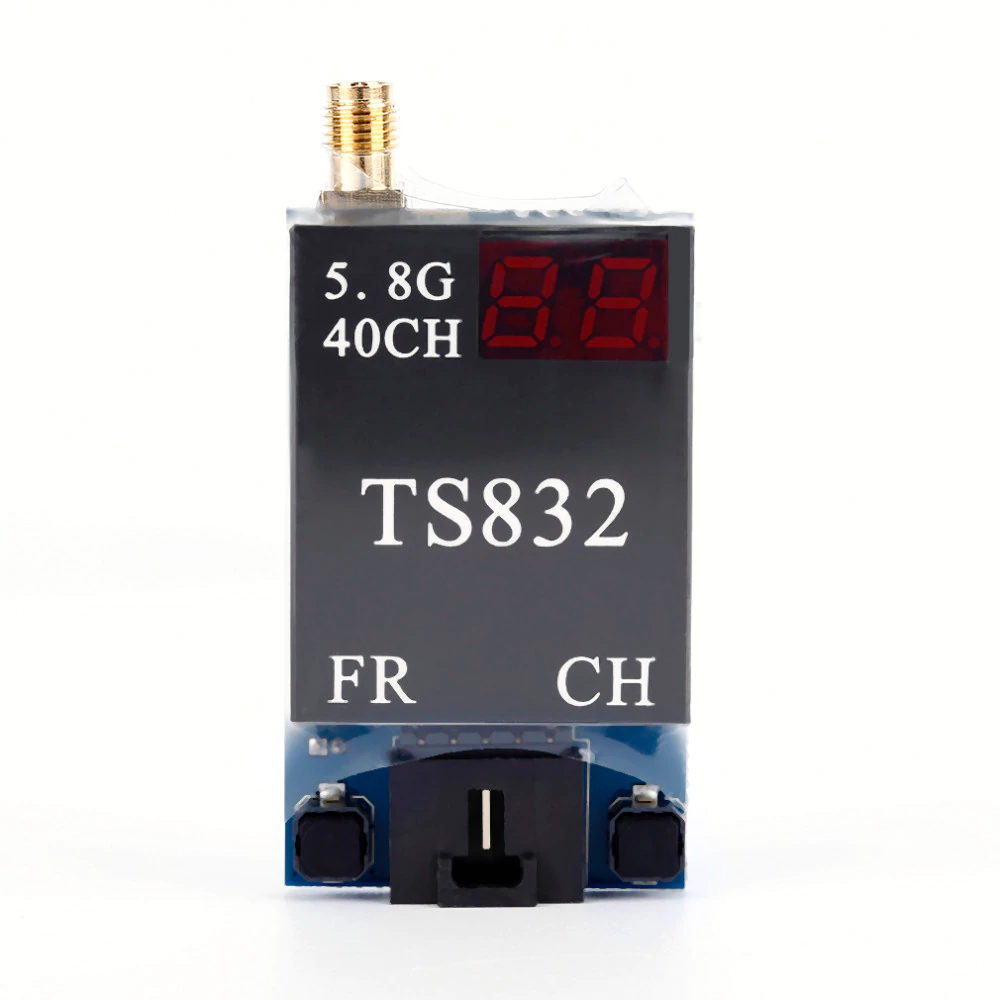

Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching;
Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received;
Power off memory: Replay the very last frequency band and channel
Independent video and audio signal outputs

Specifications

TX TS832 specs:

Power input: 7.4-16V (3S Lipo suggested)
Transmitting power: 600mA

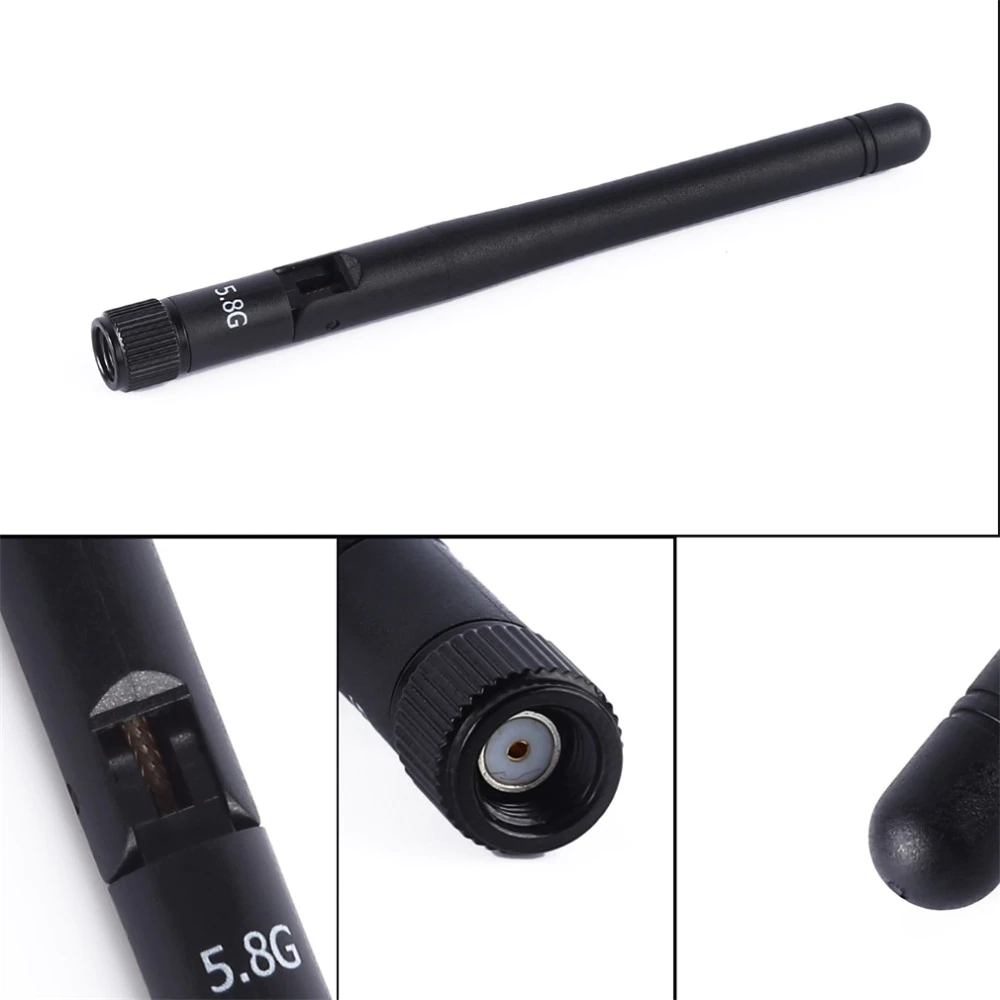

Antenna gain: 2db
Working current: 220mA at 12V
Video bandwidth: 8M
Audio bandwidth : 6.5M
Weight: 22g

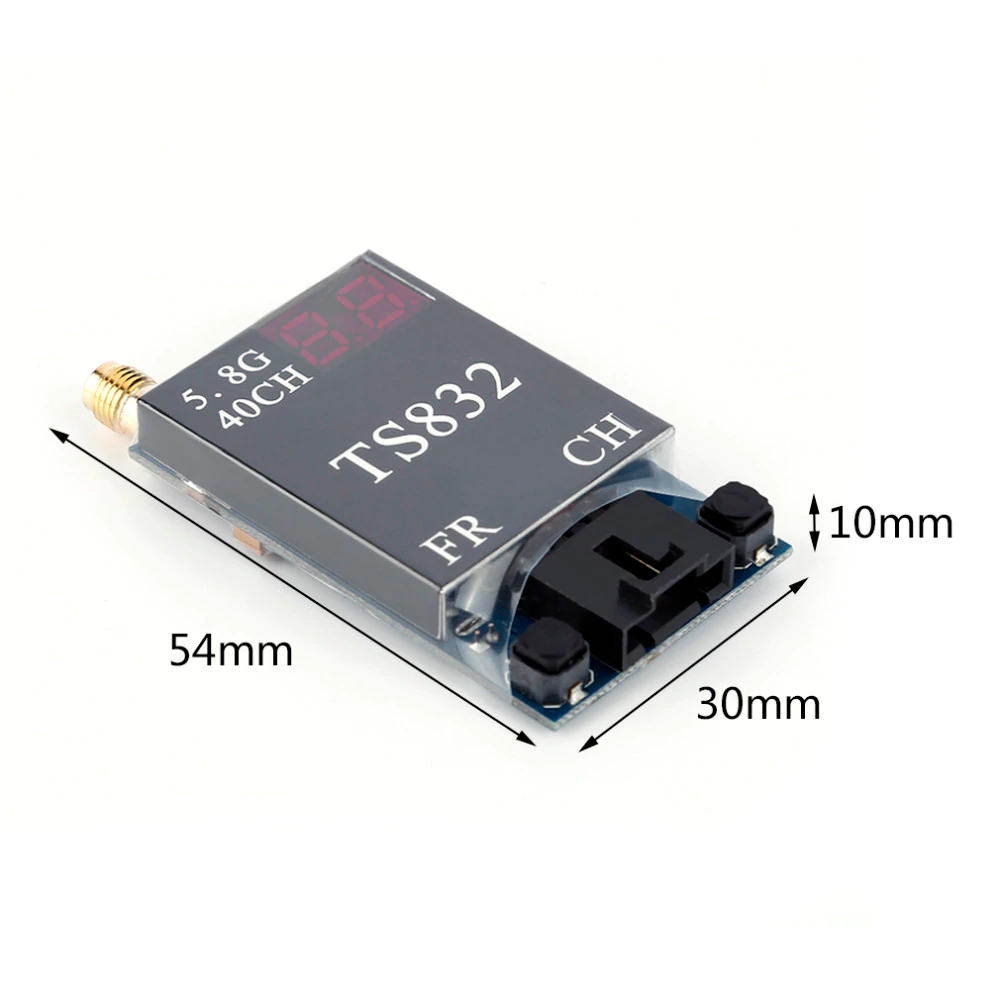

Dimension: 54x 32x 10mm(excluding antenna)

Resources

Datasheet

Tutorials

What channels and frequency bands does the TS832 support?

It supports 40 channels across the A, B, E and F bands with CH and FR buttons for channel and band switching, and two digit displays showing the current CH and FR.

How do I operate the CH and FR controls and read the current settings?

Use CH to switch channels and FR to switch frequency bands; the displays show CH and FR in real time.

What are the power and input requirements for the TS832?

Power input is 7.4 to 16 V (3S LiPo suggested) and transmitting current is 600 mA.

What are the physical dimensions and weight of the transmitter?

Dimensions are 54 x 32 x 10 mm excluding the antenna and the unit weighs 22 g.

Does the transmitter remember the last setting after power is turned off?

Yes, it features power off memory that replays the last frequency band and channel.
