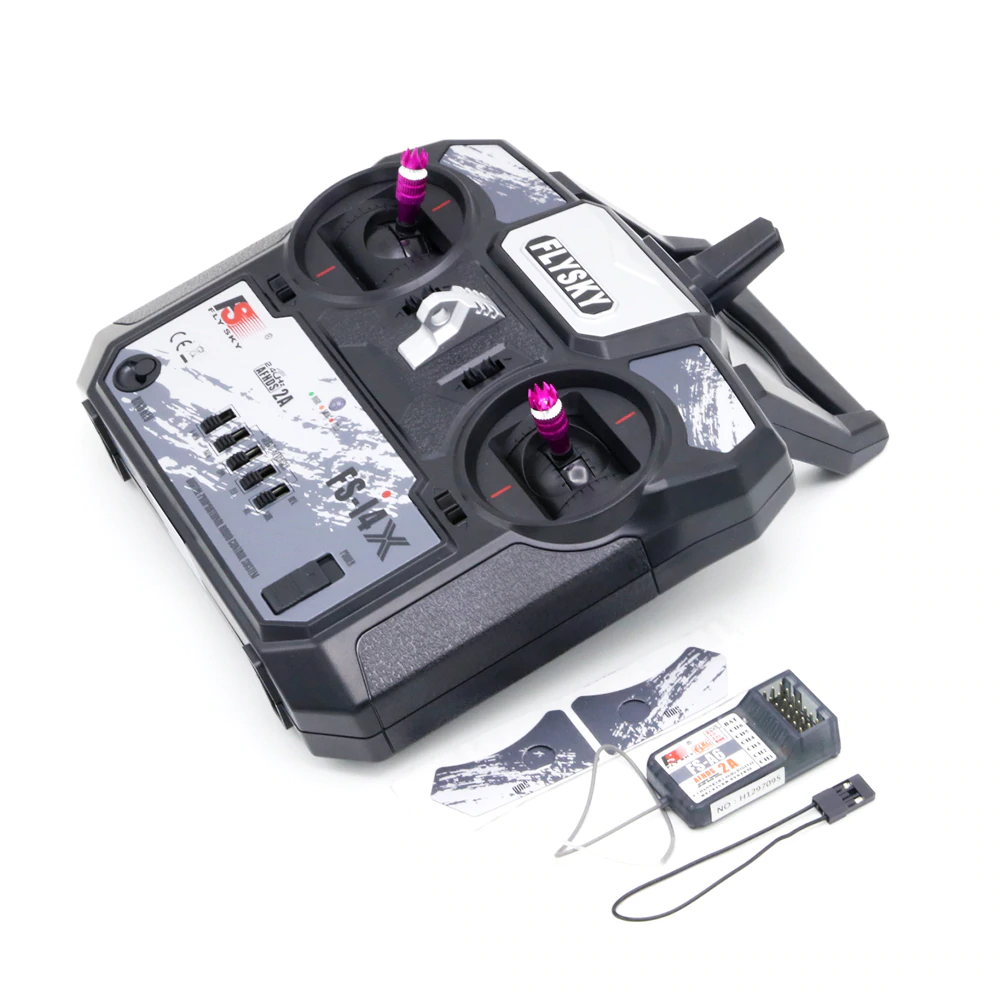

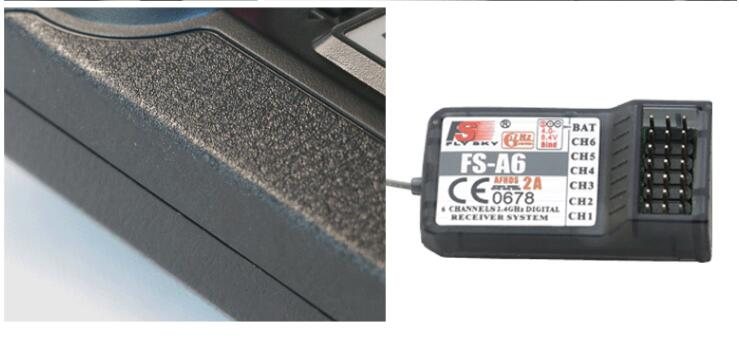

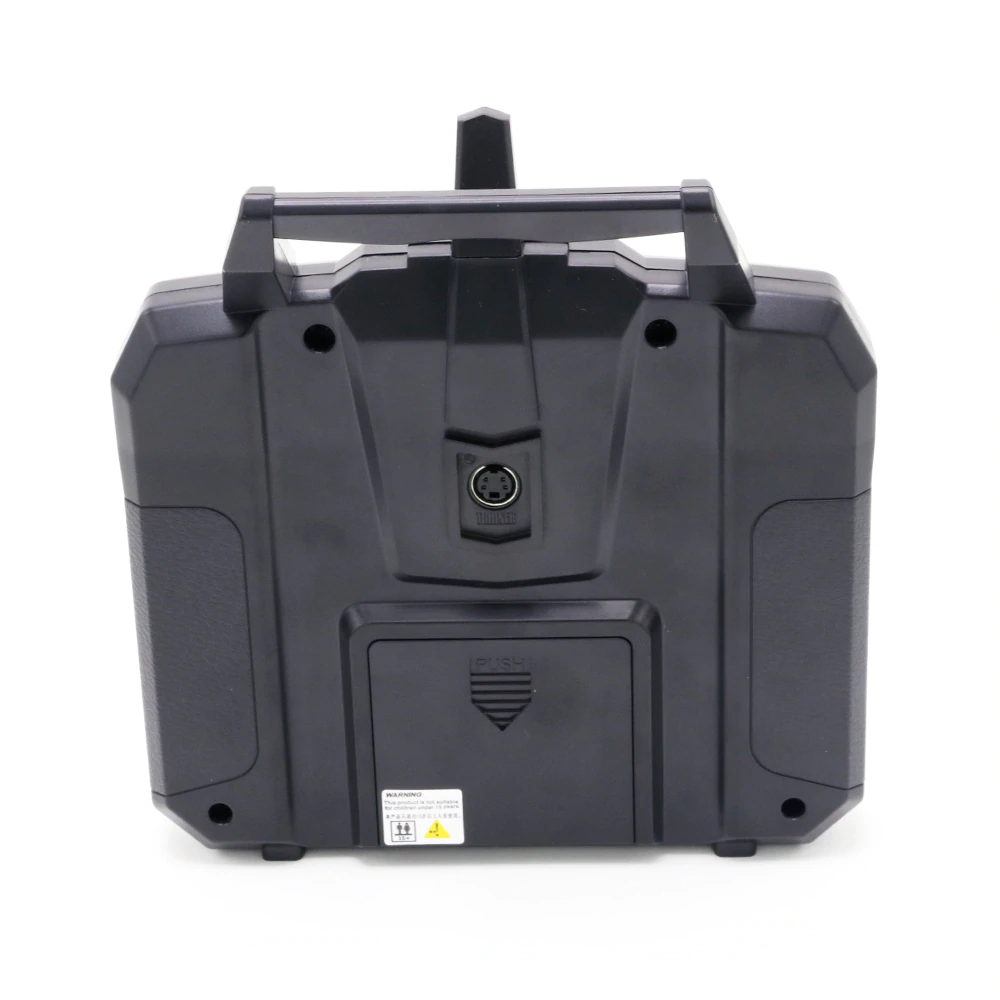

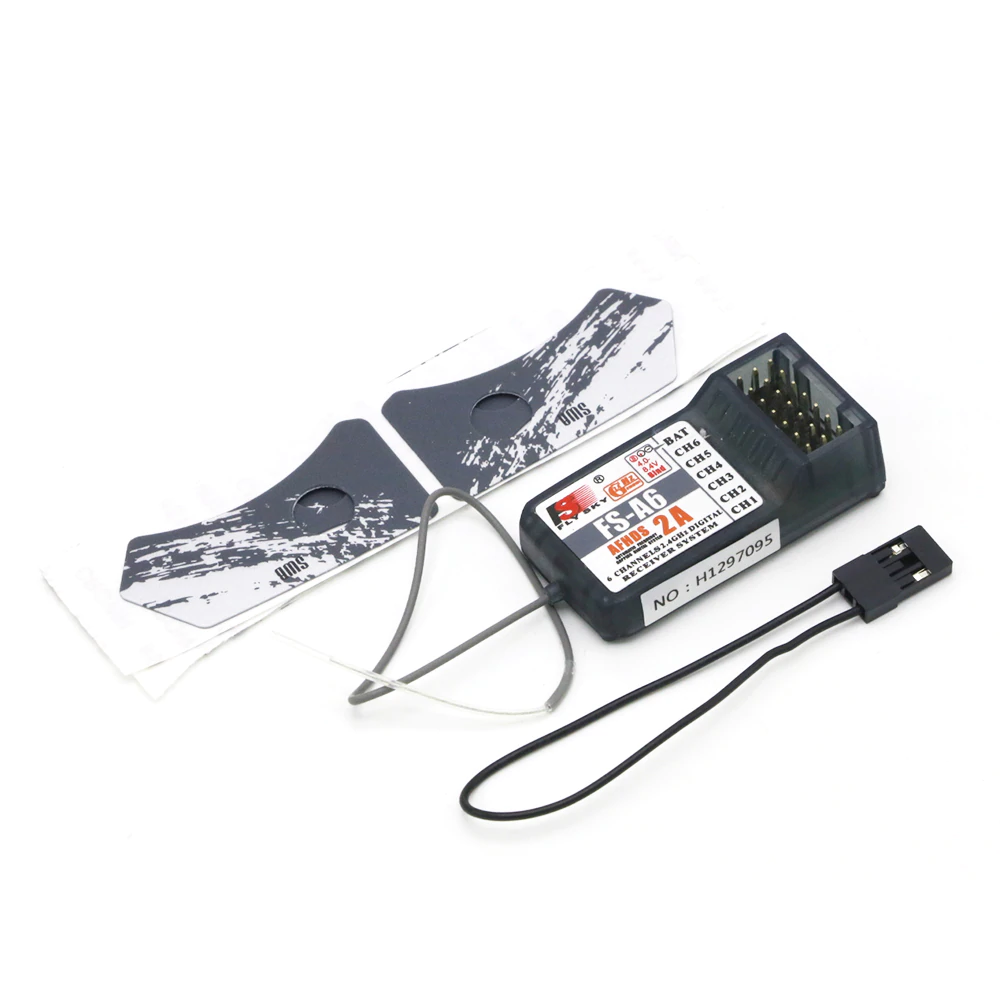

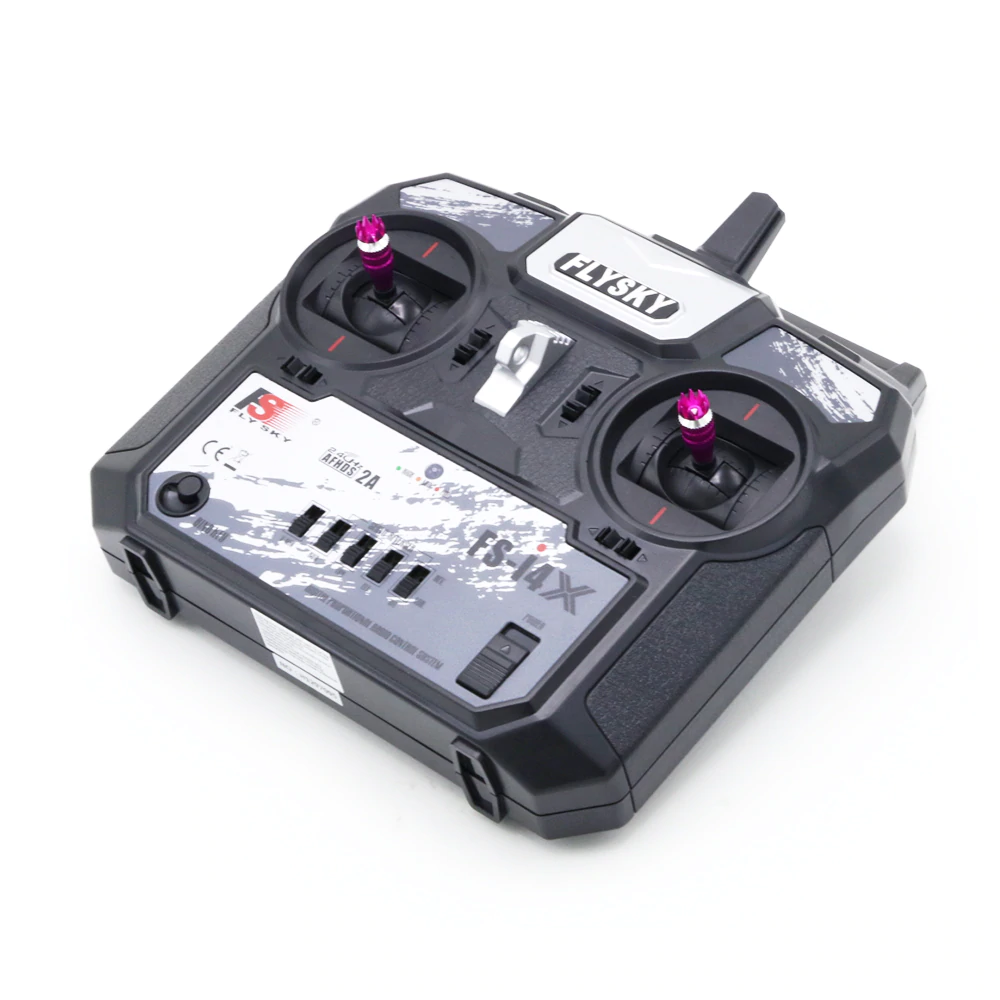

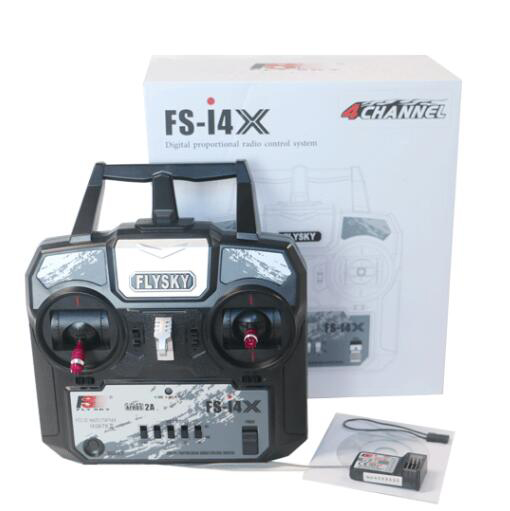

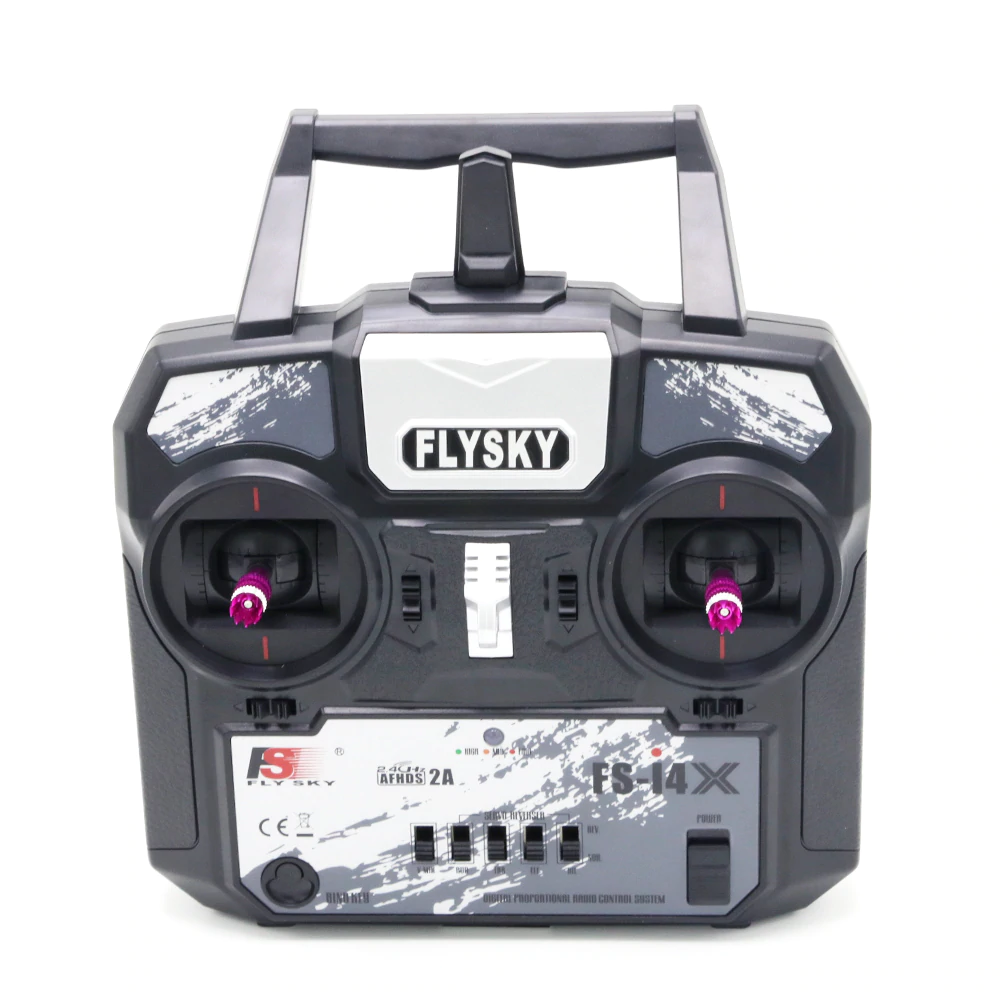

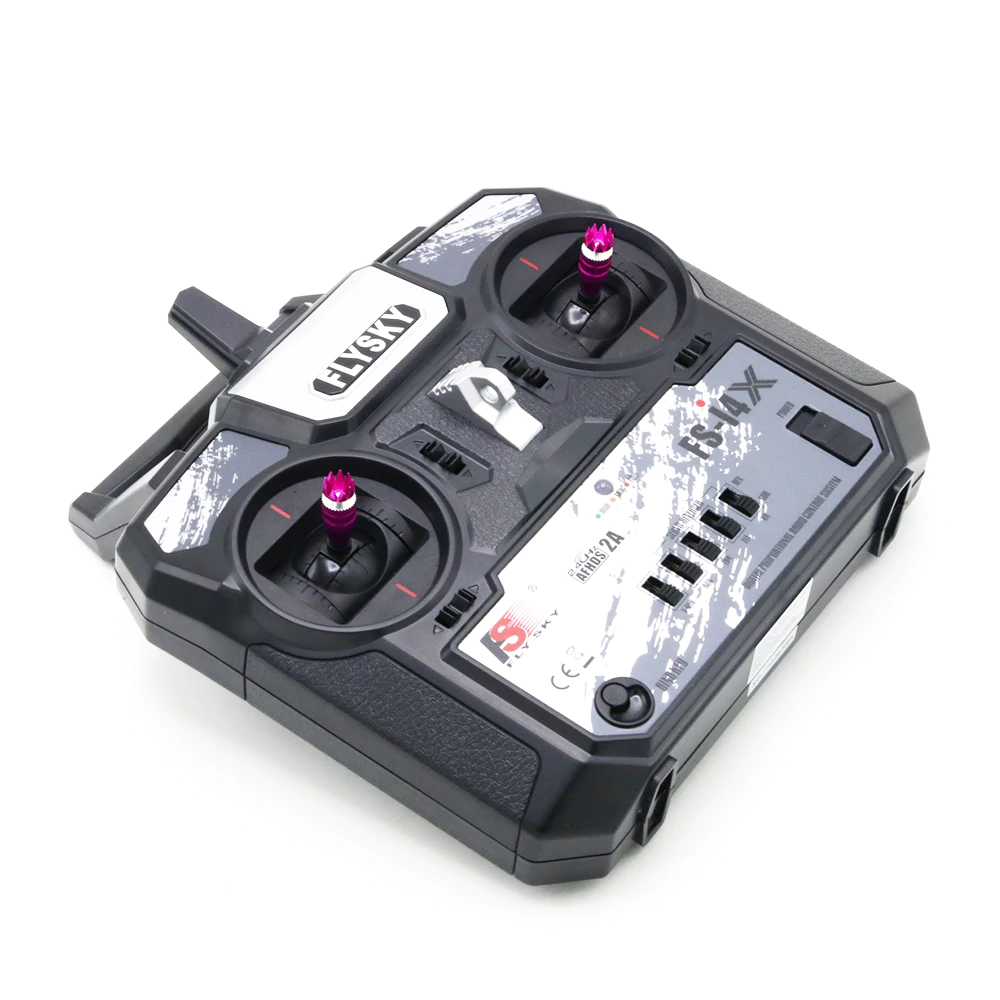

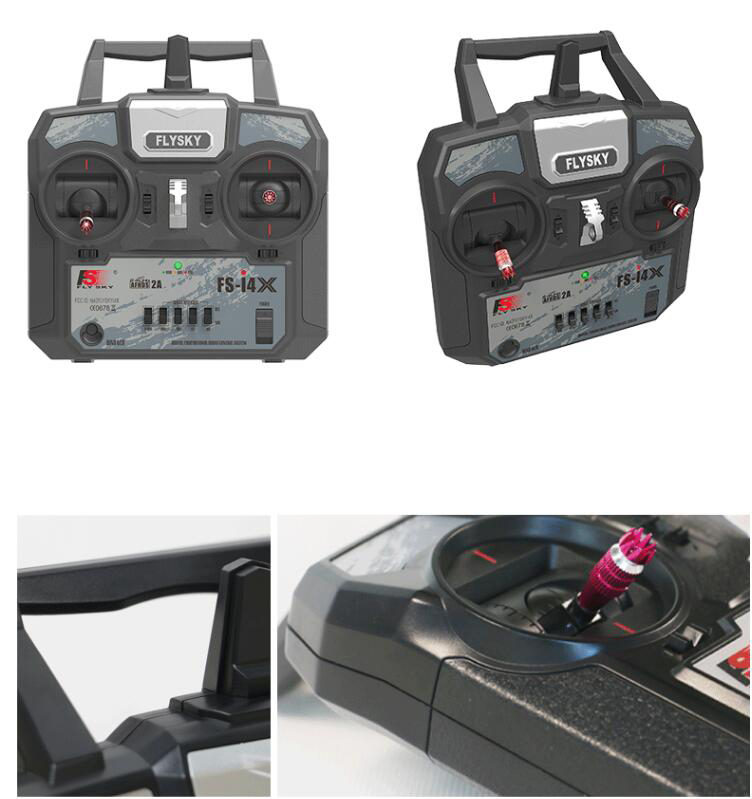

FlySky FS-i4X 2.4GHz 4CH AFHDS R/C Transmitter + FS-A6 Receiver (Left Throttle)

SKU: DRO1004

₹ 2,499.99 ~~₹ 4,190.00~~

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

FlySky FS-i4X 2.4GHz 4CH AFHDS R/C Transmitter + FS-A6 Receiver (Left Throttle)₹ 2,499.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

This FlySky FS-i4X 2.4GHz 4CH AFHDS R/C Transmitter + FS-A6 Receiver radio system uses a high gain and high-quality multi-directional antenna, it covers the whole frequency band. Associated with a high sensitivity receiver, this radio system guarantees a jamming free long-range radio transmission. Each transmitter has a unique ID when binding with a receiver, the receiver saves that unique ID and can accept only data from the unique transmitter, this avoids picking another transmitter signal and dramatically increase interference immunity and safety.

With strong initiative and passive anti-interference ability and V-MIX mix control system, compatible with many models. According to your own needs, you can DIY expansion channel, this item can be expanded to 10CH. Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 140 independent channels.

This radio system uses low power electronic components and sensitive receiver chip. The RF modulation uses intermittent signal thus reducing even more power consumption. AFHDS2A system has the automatic identification function, which can switch automatically current mode between the single-way communication mode and two-way communication mode according to the customer needs.

AFHDS2A has built-in multiple channel coding and error-correction, which improve the stability of the communication, reduce the error ratio and extend the reliable transmission distance.

Specifications

Channels: 4
Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.4055-2.475GHz
RF power: <20dBm
RF Channel: 140
Bandwidth: 500KHz
2.4GHz system: AFHDS 2A / AFHDS
Modulation Type: GFSK
Stick Resolution: 1024
Low Voltage Warning: <4.2V
DSC Port: PS2 PPM
Chargeable: No Antenna
Length: 26mm
Weight: 335g

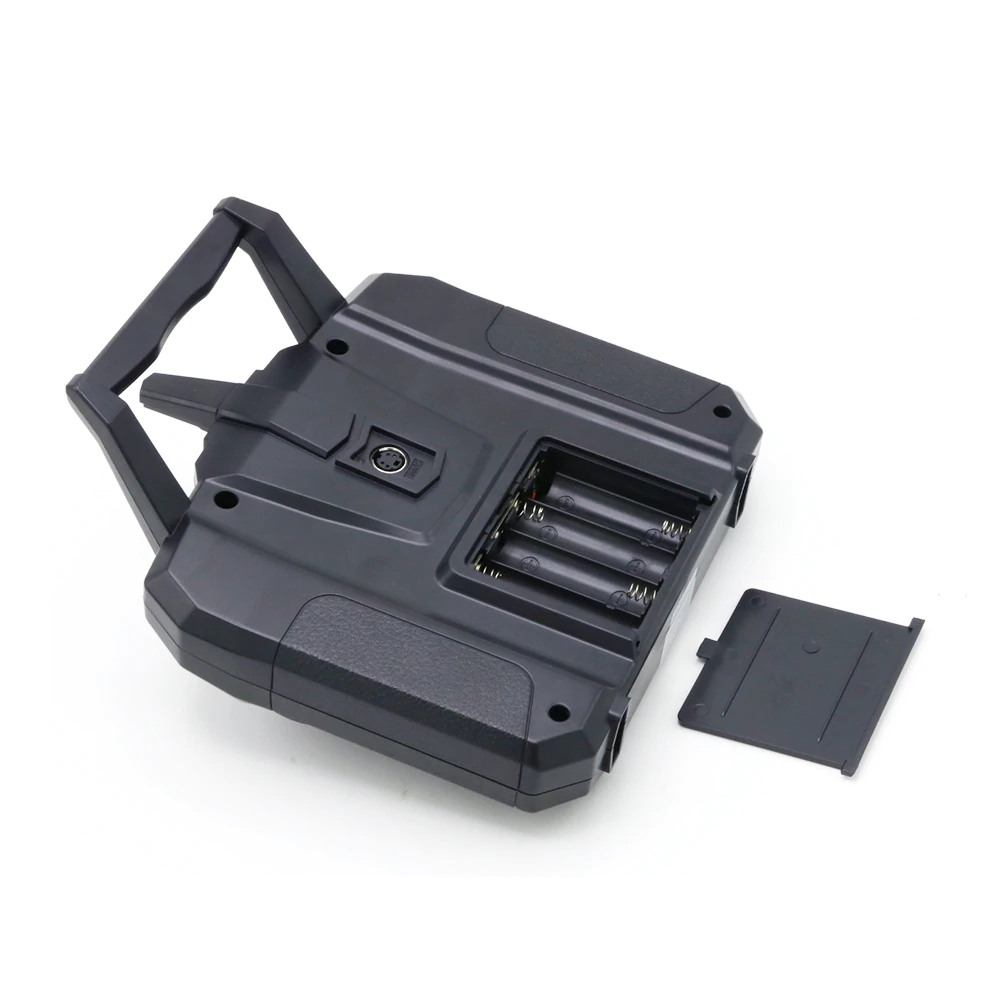

Power: 6V DC 1.5AA*4
Display: LED Indicators
Size: 174*89*190mm
On-Line Update: No
Color: Black
Certificate: CE0678, FCC

Resources

Datasheet

Tutorial

How many channels does this system support and can it be expanded to more channels?

The transmitter supports 4 channels by default and can be expanded to 10 channels. The binding uses a unique transmitter ID to the receiver to prevent interference.

What is the operating frequency range and channel configuration?

It operates in the 2.405 to 2.475 GHz band and supports 140 independent channels with a 500 kHz bandwidth. RF power is less than 20 dBm.

Is this system compatible with different model types and how does it handle interference?

The AFHDS2A system provides automatic identification and can switch between modes as needed. Binding with a unique ID helps prevent interference from other transmitters and the system supports V-MIX for model compatibility.

What power source does the transmitter use and is it rechargeable?

Power is supplied by four AA cells to provide 6V and it is not rechargeable.

Is warranty or returns information available for this product?

Warranty and returns information are not provided in the product description; please check the seller policy for details.
