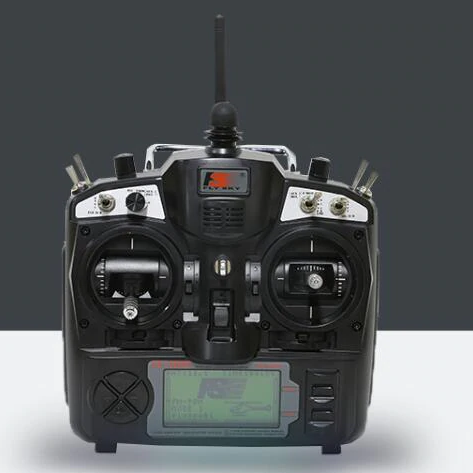

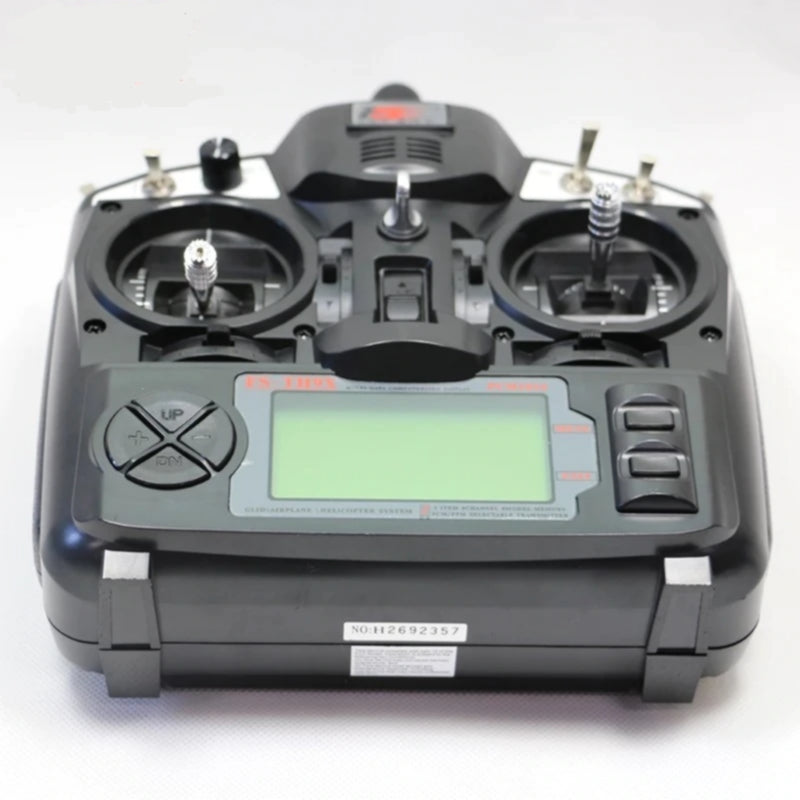

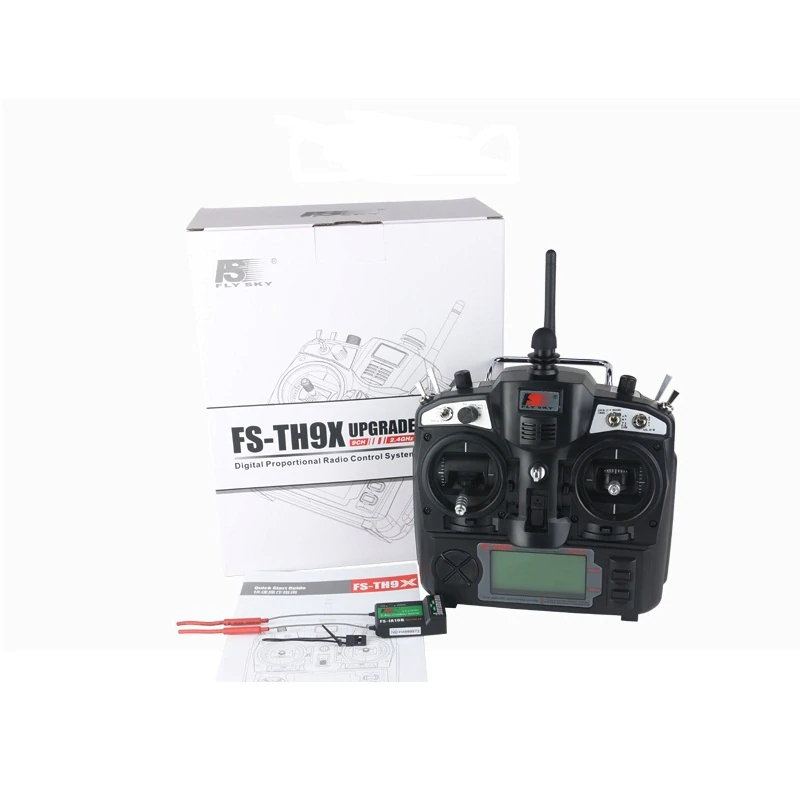

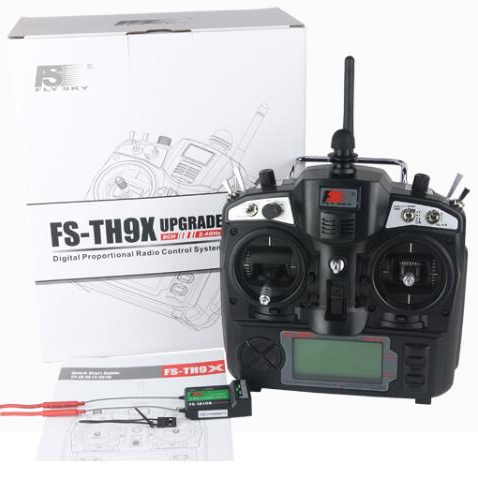

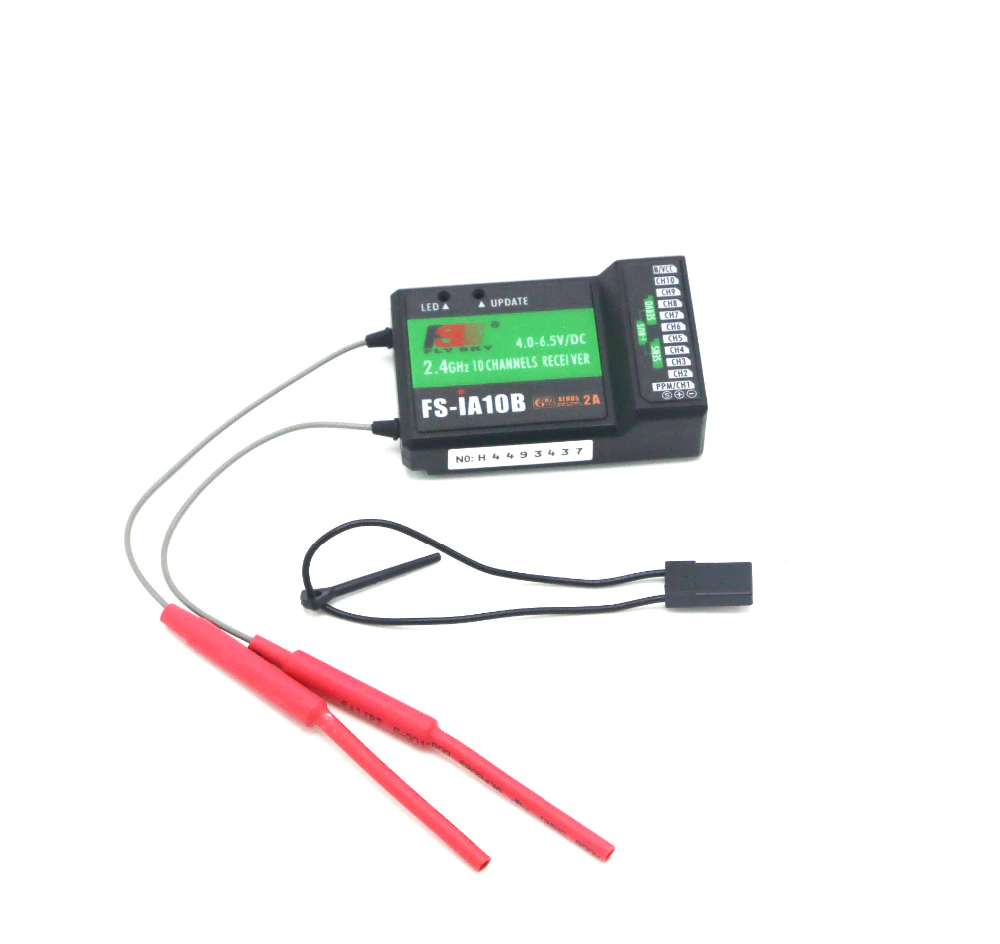

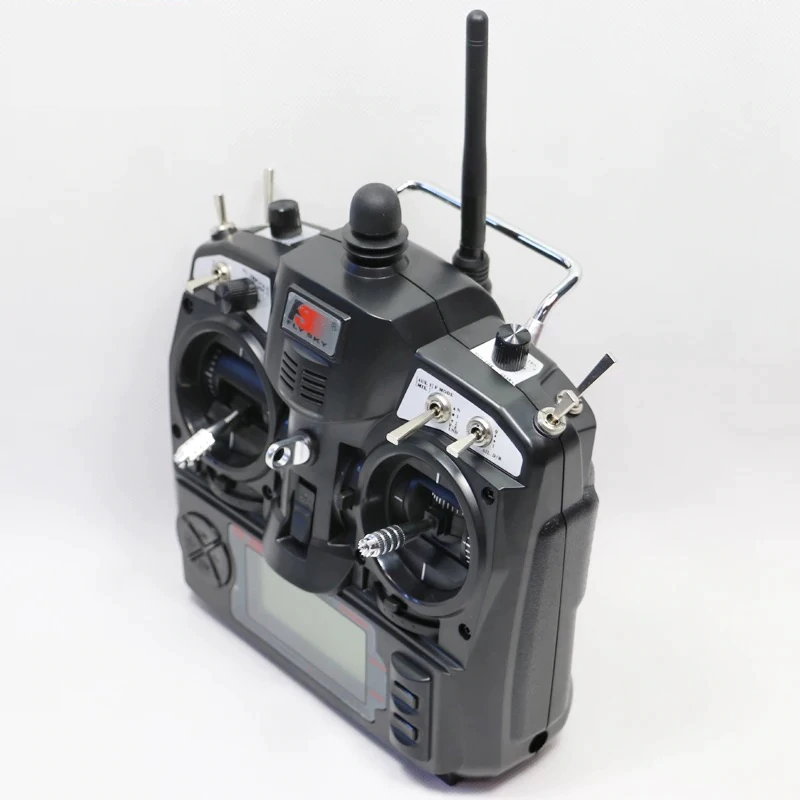

Flysky FS-TH9X 2.4GHz 9CH Upgrade Transmitter with FS-IA10B Receiver Radio Set

FS-TH9X 2.4GHz 9CH Upgrade Transmitter with FS-IA10B Receiver has revolutionized the way people experience RC, and now this radio transmitter and Receiver can stand up to the top competitions.

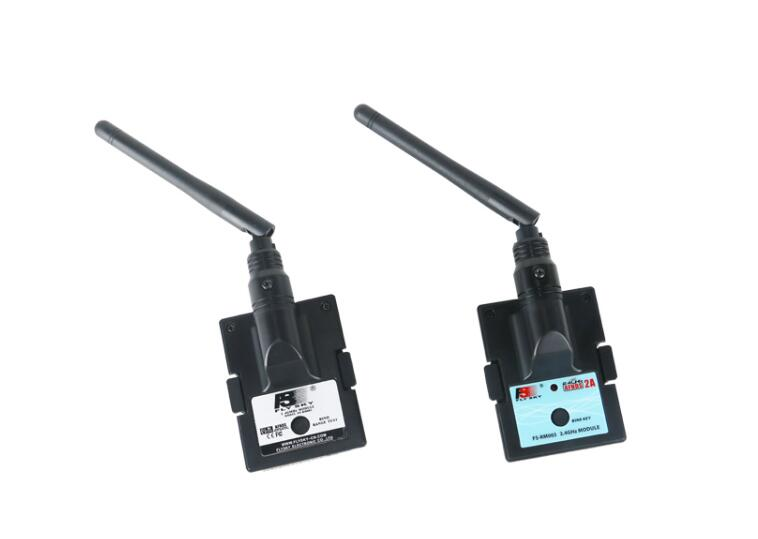

This Upgraded 9 channel with FS-RM003 2.4GHz Module TRANSMITTER’S AFHDS (automatic frequency hopping digital system), is developed by FLYSKY for all the Radio Control model lovers and is patented by FLYSKY at home. The system is specially developed for all the Radio control models, that offers super active and passive anti-jamming capabilities, very low power consumption and high receiver sensitivity. With extreme rigorous testing by engineers and studying the markets for years, FLYSKY AFHDS is now considered to be one of the best systems available in the market.

2.4GHz is the standard of new generation radio system because it has a lot of advantages. Operating at 2.4 GHz puts the radio control out of the frequency range of any ‘noise’ generated by the other electronic components on your helicopters – such as the brushless motor, Electronic speed controller, Servos and any metal to metal noise – eliminating interference and glitching that can affect traditional frequency system

Specifications

1. Channels: 9channels;
2. Model type: heli, airplane, glid;
3. RF Power: less than 20dbm;
4. 2.4G System:AFHDS
5. Code type:GFSK
6. Sensitivity: 1024;
7.Bandwidth:500Hz
8. Low voltage warning: yes;
9. DSC port: yes;
10. Charger port: yes;
11. Power: 12V DC(1.5AA*8) not included ;
12. Weight: 671g;
13. ANT Lenght: 26mm;
14. Size: 185*221*111mm;
15. Color: black;
16. certificate: CE FCC;
