Gens Ace

Gens ACE Lipo Battery 4S 14.8V

SKU: ELC5081-22

ā‚¹ 3,099.99

Out of stock

Select variant

4S 2200mAh 45C XT60
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Gens ACE Lipo Battery 4S 14.8V4S 2200mAh 45C XT60ā‚¹ 3,099.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Gens ace lipo battery packsĀ haveĀ remarkable stacking technology which enables high current capacity cells.Ā With High discharge performance and high energy density, GensAce batteries provide high quality, reliable power forĀ MIKADO LOGO500, ALIGN T-REX550/600, GAUI X5, Outrage 550, Hirobo SDX, FPV and custom made racing drones.

Nominal Charge Current should be kept at 1C.

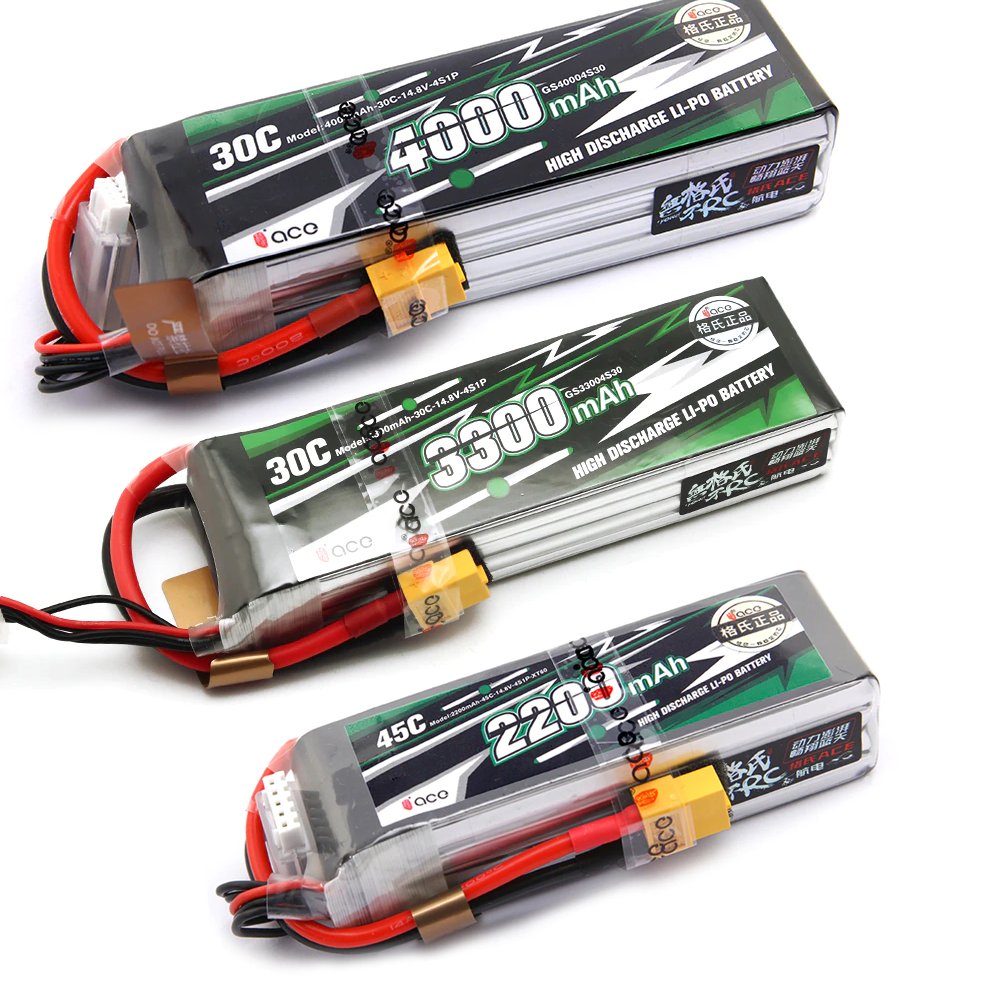

Gens aceĀ 45CĀ 4S1P Lipo Battery PackĀ Specs:

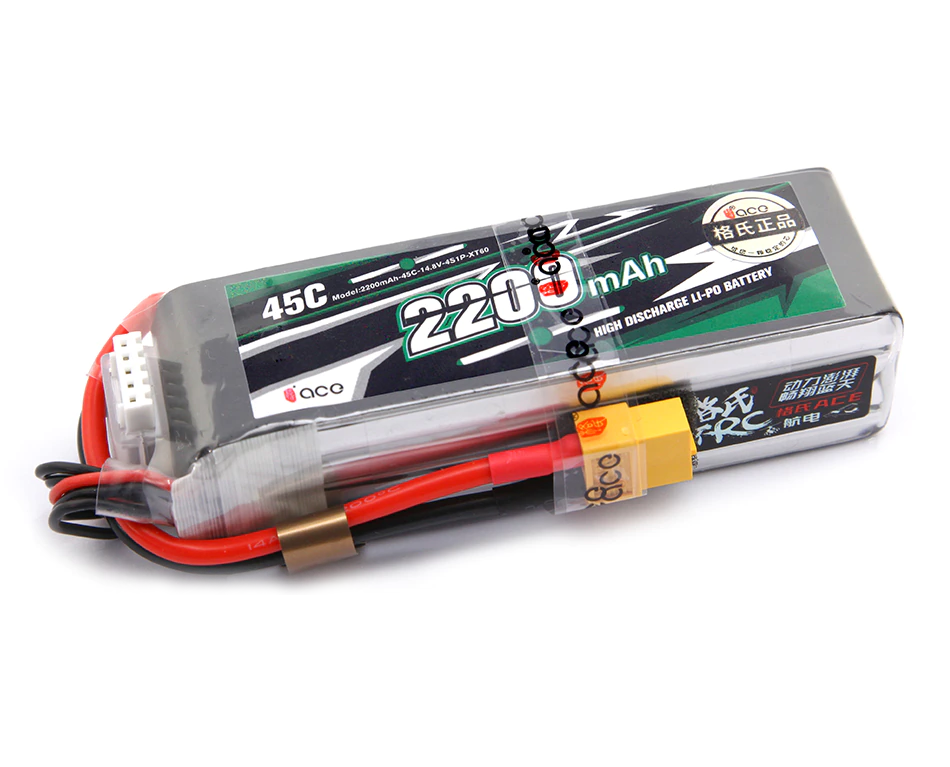

  • 2200mAh 45C 14.8V 4S
    • Capacity: 2200mAh
    • Electric core: 4S1P
    • Voltage: 14.8V
    • Voltage: 45C
    • Discharge wire: 80mm, silicone wire
    • Charging line: 45mm, silicone wire
    • Size(HxWxL): 27x32x105mm
    • Weight(士15g): 223g

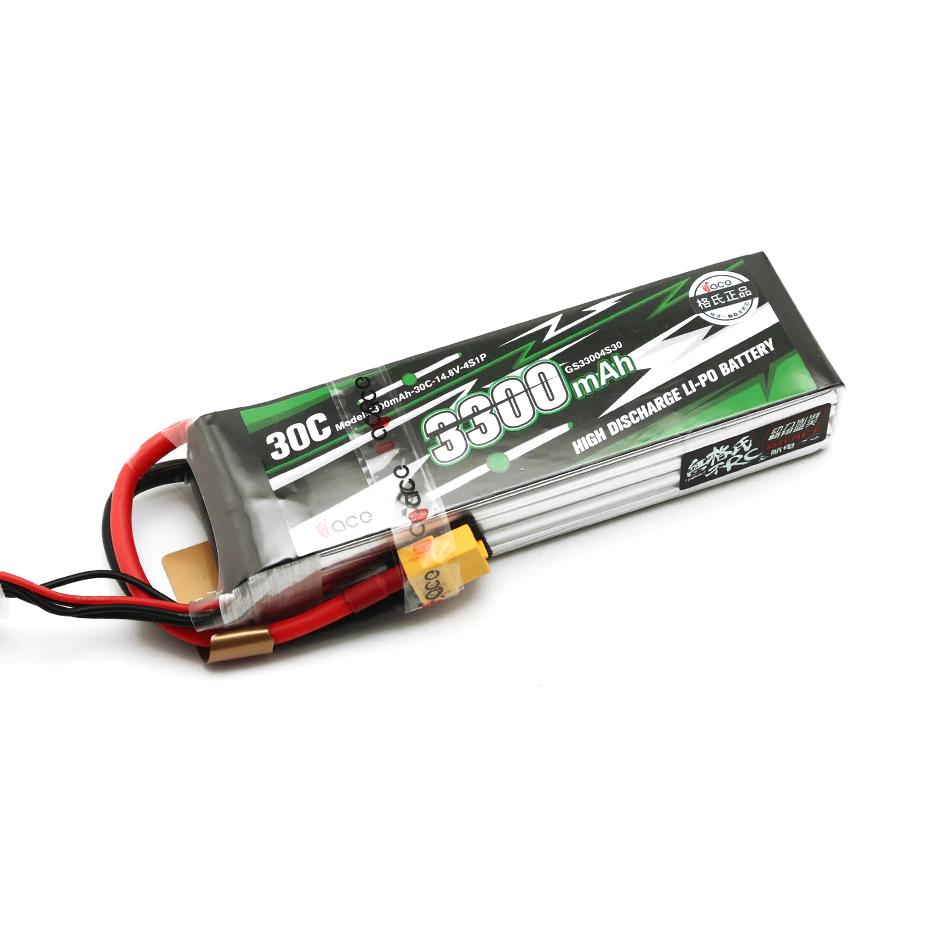

  • 3300mAh 30C 14.8V 4S
    • Capacity: 3300mAh
    • Electric core: 4S1P
    • Voltage: 14.8V
    • Discharge rate: 30C
    • Discharge wire: 80mm, silicone wire
    • Charging line: 45mm, silicone wire
    • Size(HxWxL): 24x40x137mm
    • Weight(士15g): 315g

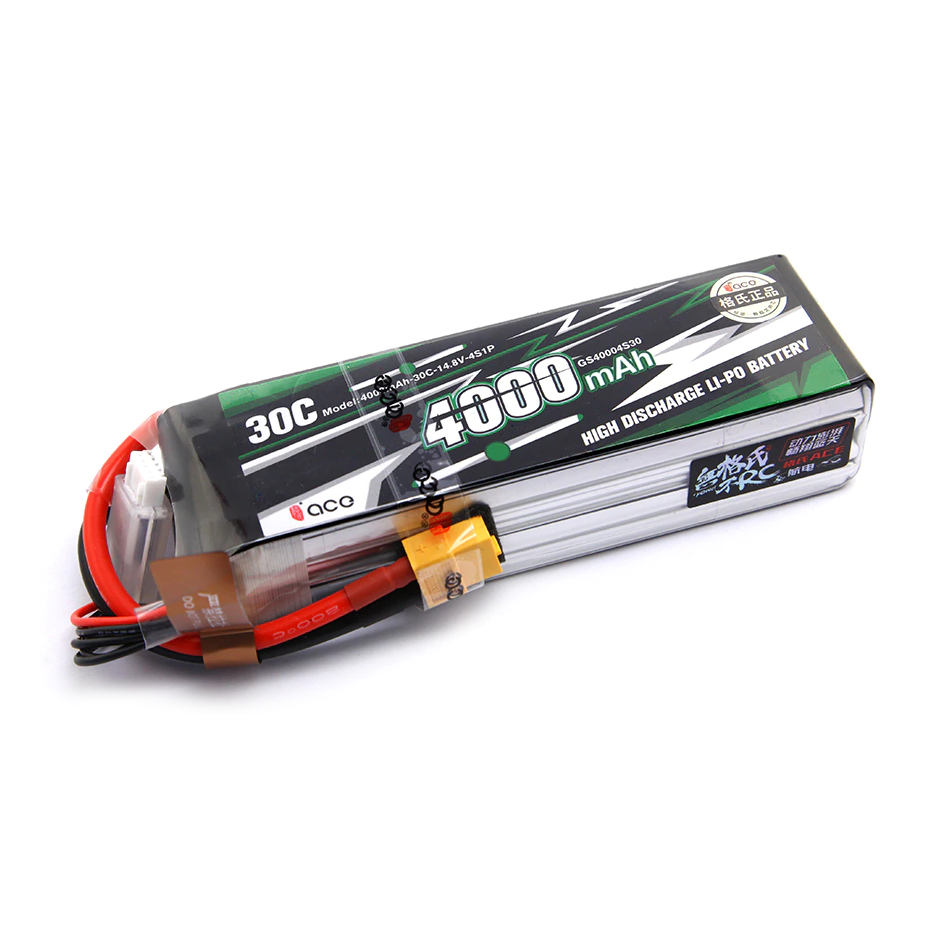

  • 4000mAh 30C 14.8V 4S
    • Capacity: 4000mAh
    • Electric core: 4S1P
    • Voltage: 14.8V
    • Discharge rate: 30C
    • Discharge wire: 80mm, silicone wire
    • Charging line: 45mm, silicone wire
    • Size(HxWxL): 29x40x138mm
    • Weight(士15g): 381g

What capacity variants are available for this battery family?
The 4S 14.8V family includes 2200mAh 45C, 3300mAh 30C, and 4000mAh 30C variants. All are 4S1P with nominal voltage of 14.8V.
What is the recommended charging current for these packs?
Nominal charge current should be kept at 1C.
Which drones or models are compatible with these packs?
They are suitable for MIKADO LOGO500, ALIGN T-REX550-600, GAUI X5, Outrage 550, Hirobo SDX, FPV and other custom racing drones.
What are the dimensions and weights for the available capacities?
The 2200mAh variant is 27 x 32 x 105 mm and about 223 g. The 3300mAh variant is 24 x 40 x 137 mm and about 315 g. The 4000mAh variant is 29 x 40 x 138 mm and about 381 g.
How should I maintain and handle these LiPo packs?
Handle and use LiPo packs with care. Do not use if damaged and follow the guidance such as charging at 1C and using the 4S1P configuration.
A
Admin
Welcome to the discussion thread for Gens ACE Lipo Battery 4S 14.8V
Feel free to ask questions, share tips or report issues.

Discover More In:

Batteries ā†’ Batteries & Chargers ā†’ Drone Accessories ā†’

Category: View similar items (Gens)

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Gens ace lipo battery packsĀ haveĀ remarkable stacking technology which enables high current capacity cells.Ā With High discharge performance and high energy density, GensAce batteries provide high quality, reliable power forĀ MIKADO LOGO500, ALIGN T-REX550/600, GAUI X5, Outrage 550, Hirobo SDX, FPV and custom made racing drones.

Nominal Charge Current should be kept at 1C.

Gens aceĀ 45CĀ 4S1P Lipo Battery PackĀ Specs:

  • 2200mAh 45C 14.8V 4S
    • Capacity: 2200mAh
    • Electric core: 4S1P
    • Voltage: 14.8V
    • Voltage: 45C
    • Discharge wire: 80mm, silicone wire
    • Charging line: 45mm, silicone wire
    • Size(HxWxL): 27x32x105mm
    • Weight(士15g): 223g
  • 3300mAh 30C 14.8V 4S
    • Capacity: 3300mAh
    • Electric core: 4S1P
    • Voltage: 14.8V
    • Discharge rate: 30C
    • Discharge wire: 80mm, silicone wire
    • Charging line: 45mm, silicone wire
    • Size(HxWxL): 24x40x137mm
    • Weight(士15g): 315g
  • 4000mAh 30C 14.8V 4S
    • Capacity: 4000mAh
    • Electric core: 4S1P
    • Voltage: 14.8V
    • Discharge rate: 30C
    • Discharge wire: 80mm, silicone wire
    • Charging line: 45mm, silicone wire
    • Size(HxWxL): 29x40x138mm
    • Weight(士15g): 381g

FAQ
What capacity variants are available for this battery family?
The 4S 14.8V family includes 2200mAh 45C, 3300mAh 30C, and 4000mAh 30C variants. All are 4S1P with nominal voltage of 14.8V.
What is the recommended charging current for these packs?
Nominal charge current should be kept at 1C.
Which drones or models are compatible with these packs?
They are suitable for MIKADO LOGO500, ALIGN T-REX550-600, GAUI X5, Outrage 550, Hirobo SDX, FPV and other custom racing drones.
What are the dimensions and weights for the available capacities?
The 2200mAh variant is 27 x 32 x 105 mm and about 223 g. The 3300mAh variant is 24 x 40 x 137 mm and about 315 g. The 4000mAh variant is 29 x 40 x 138 mm and about 381 g.
How should I maintain and handle these LiPo packs?
Handle and use LiPo packs with care. Do not use if damaged and follow the guidance such as charging at 1C and using the 4S1P configuration.
