HobbyWing has come out with an ESC durable enough to handle even the most high performance RC Wings. Never worry about your ESC again, with a burst rating of up to 100A, we offer a lot of variants to suit your every need.
Features
Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected
Throttle calibration function: Throttle range can be calibrated to be compatible with different transmitters
Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field
Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection
Compatible with Lipo and NiMH battery.
Timing can be changed to be suitable for different brushless motors.
Specifications

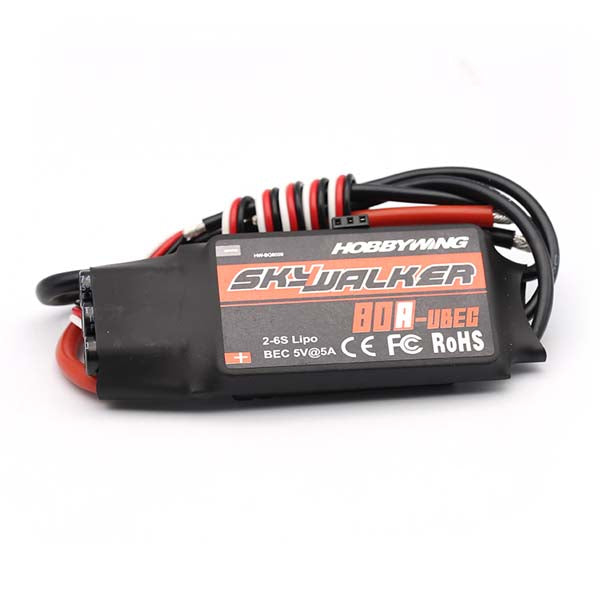

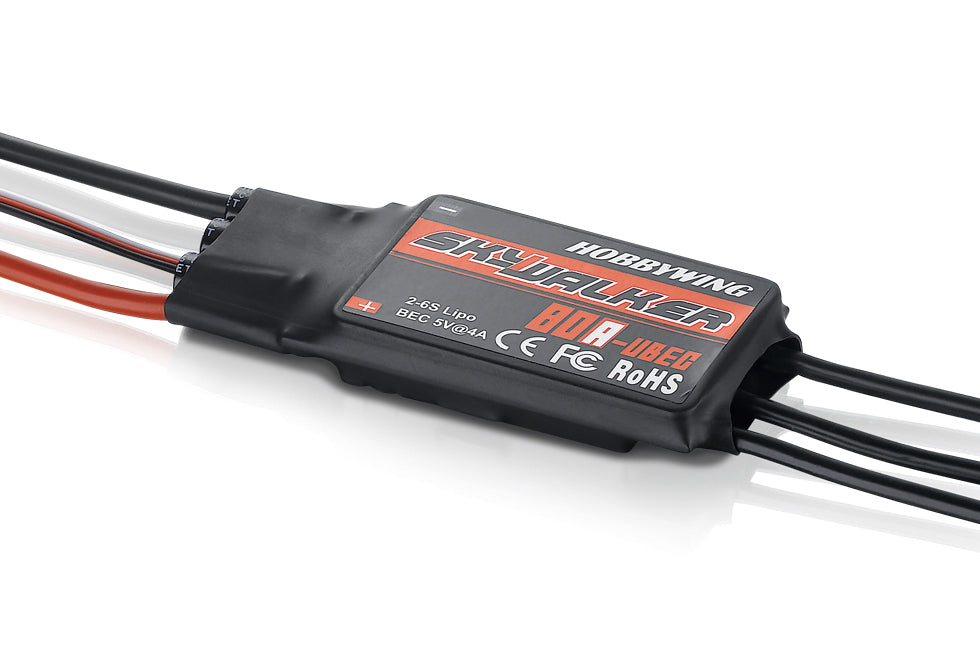

Skywalker 80A UBEC ESC (2-6S)
Output: Continuous 80A, Burst 100A up to 10 seconds.
Input Voltage: 2-6S Lipo, 5-18 cells NiMH.
BEC: 5A / 5V Switch mode BEC.
Refresh rate of the throttle signal: 50Hz to 432Hz.
Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM (BLM = BrushLess Motor)
Size: 86mm*38mm*12mm.
Weight: 82g.
Skywalker 60A UBEC ESC (2-6S)
Output: Continuous 60A, Burst 80A up to 10 seconds.
Input Voltage: 2-6S Lipo, 5-18 cells NiMH.
BEC: 5A / 5V Switch mode BEC.
Refresh rate of the throttle signal: 50Hz to 432Hz.
Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
Size: 77mm*35mm*14mm.
Weight: 63g.
Skywalker 50A UBEC ESC (2-6S)
Output: Continuous 50A, Burst 65A up to 10 seconds.
Input Voltage: 2-4S Lipo, 5-12 cells NiMH.
BEC: 5A / 5V Switch mode BEC.
Refresh rate of the throttle signal: 50Hz to 432Hz.
Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
