Best seller

Waveshare

IMX291 2MP IR-CUT Camera for Raspberry Pi - Fixed-Focus, 83° FOV

SKU: WVSH0621

₹ 5,399.99

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
IMX291 2MP IR-CUT Camera for Raspberry Pi - Fixed-Focus, 83° FOV₹ 5,399.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Details

IMX291 2MP IR-CUT Camera, Fixed-Focus, 83° Diagonal FOV, Rolling Shutter, Compatible With Raspberry Pi Series Boards
IMX291-83 IR-CUT Camera

2MP | Starlight Camera | IR-CUT  | 83° FOV 

Compatible with Raspberry Pi series boards

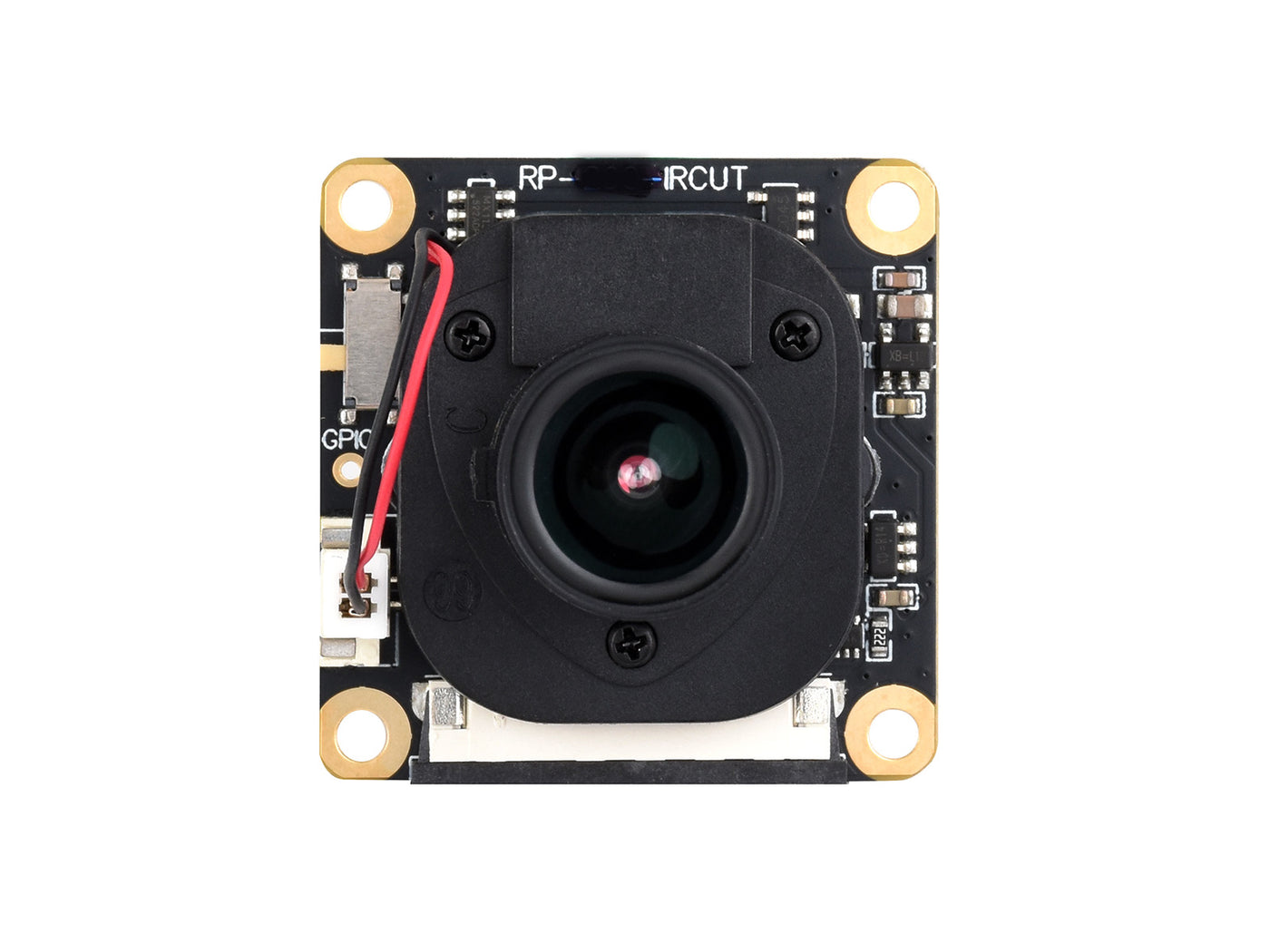

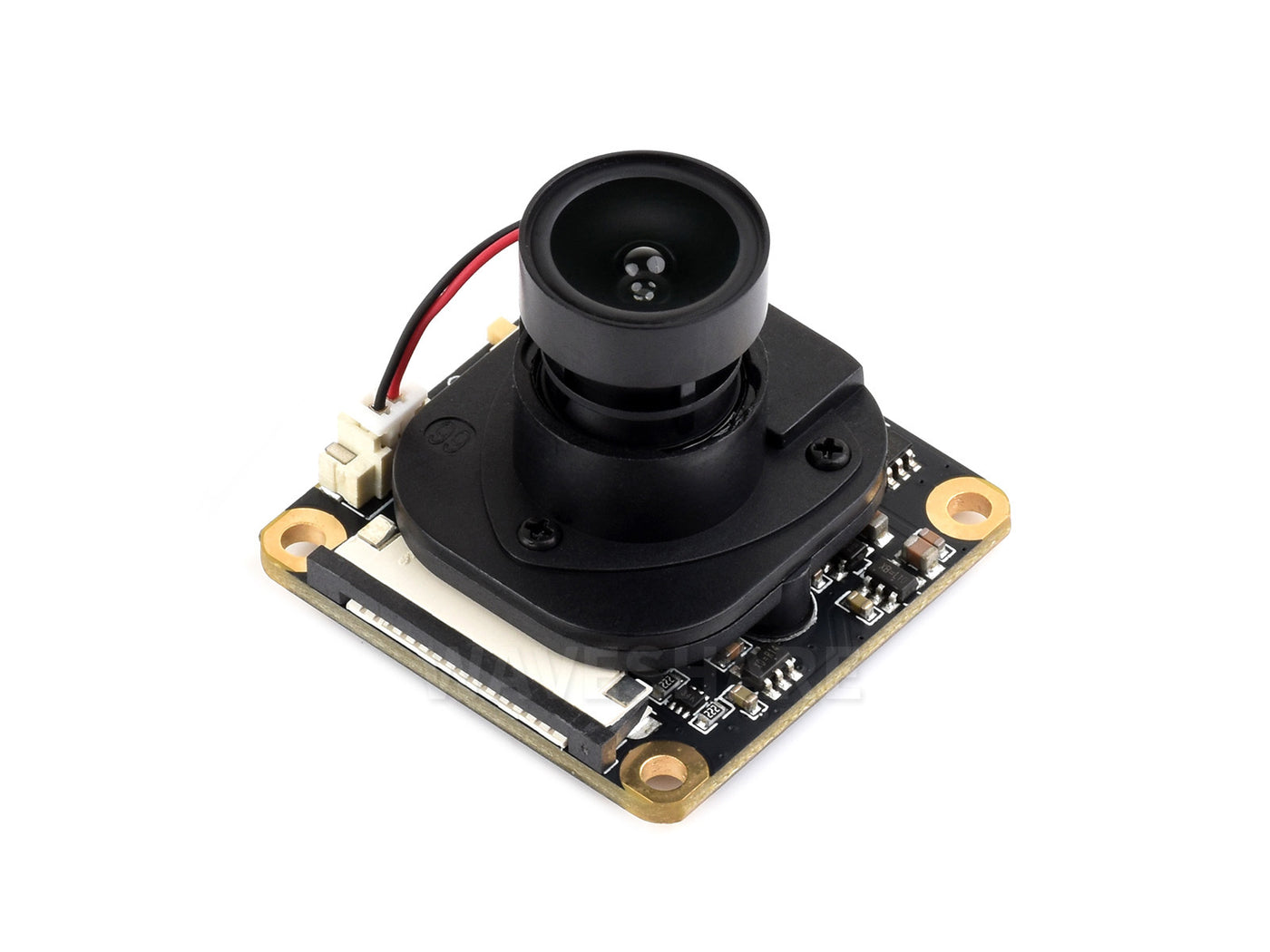

IMX291 2MP IR-CUT Camera, front view
Device Support

Raspberry Pi series
Supports Pi 5 / 4B / 3B+ / 3A+ / Zero /
Zero 2 W

for using with CM3 / 3+ / 4 / 5, an extra adapter board is required


Specifications
Sensor IMX291 CMOS size 1/2.8 inch
PIXELS 2MP (1920 × 1080) APERTURE F2.0
FOCAL LENGTH 3.95mm FIELD OF VIEW 83°
CAMERA TYPE Color FOCUSING Fixed focus
DISTORTION < 33% SHUTTER Rolling shutter
Starlight Camera

Clear Imaging even in Low Light Conditions

IMX291 2MP IR-CUT Camera, clear image in low light conditions
Built-in IR-CUT

Correct Color Deviation of Infrared Camera During the Daytime, Better Imaging Effect

IMX291 2MP IR-CUT Camera, built-in IR-CUT

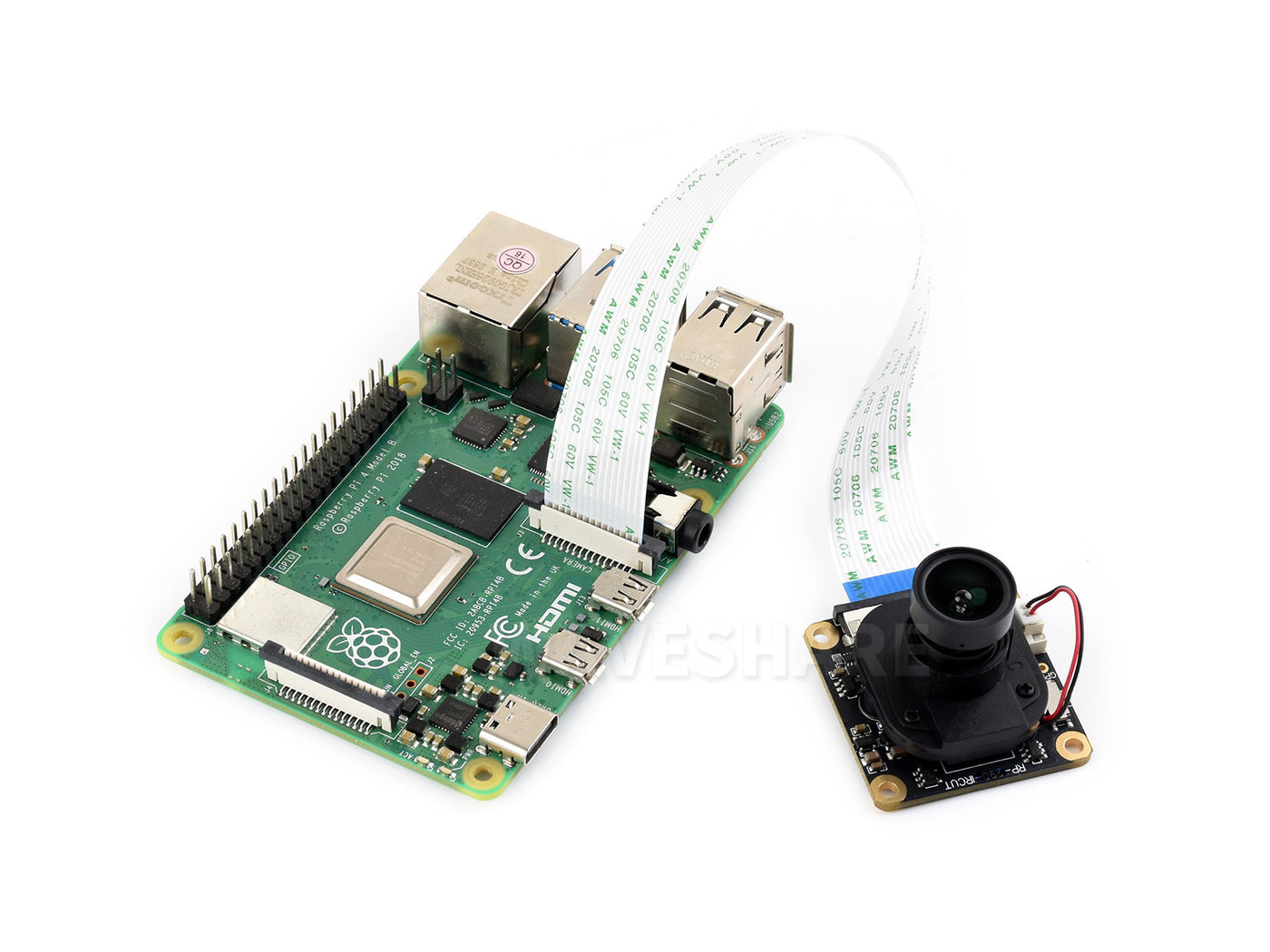

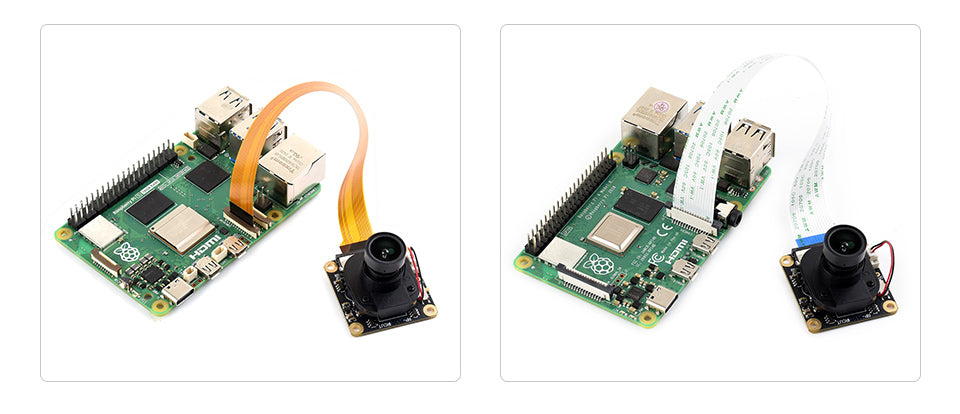

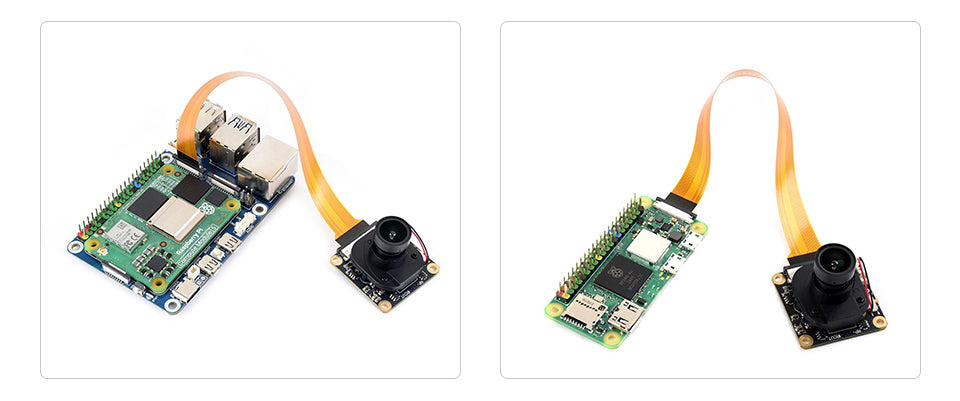

Working with Raspberry Pi

Compatible with all Raspberry Pi series boards

IMX291 2MP IR-CUT Camera, built-in IR-CUT IMX291 2MP IR-CUT Camera, working with Raspberry Pi
* for reference only, the Raspberry Pi 4B, Raspberry Pi 5, CM5, and Raspberry Zero 2 W are NOT included.

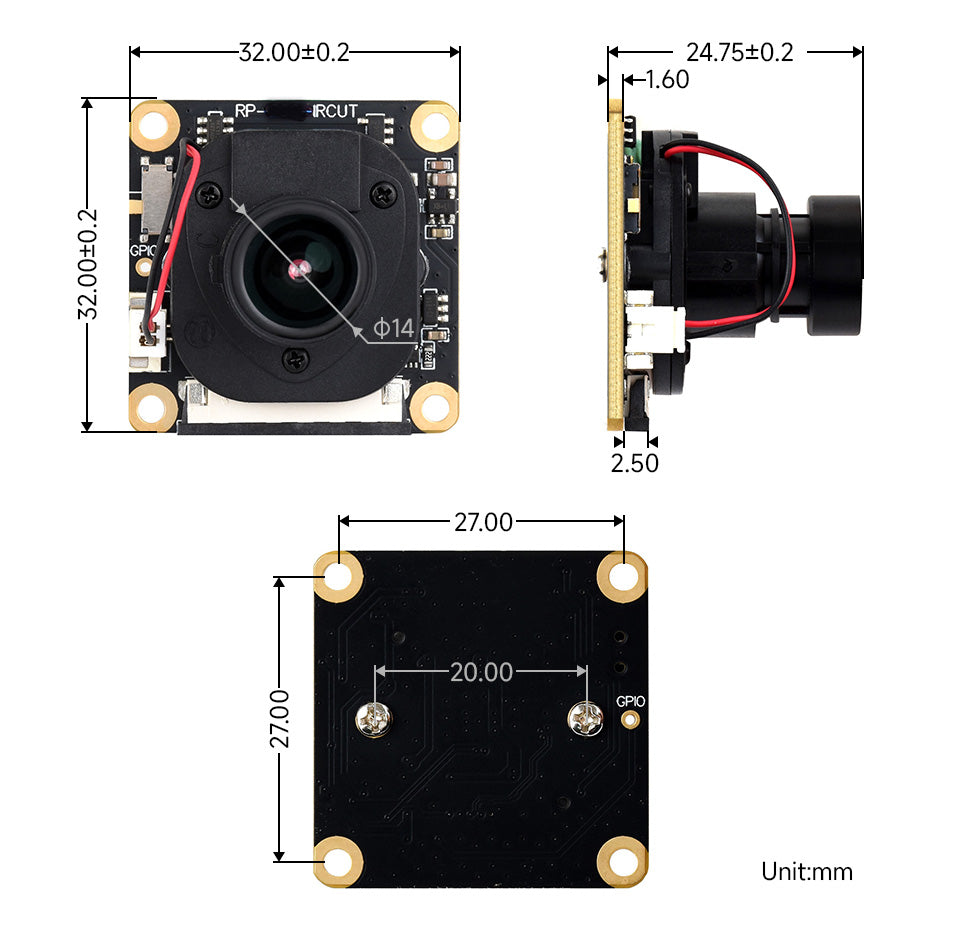

outline dimensions
IMX291 2MP IR-CUT Camera, outline dimensions
Resources & Services
Wiki: docs.waveshare.com/IMX291-83_IR-CUT_Camera

Weight: 0.023 kg

Quick Overview

  1. IMX291-83 IR-CUT Camera x1
  2. RPi Zero V1.3 Camera Cable 15cm x1
  3. 15PIN FFC cable (opposite) x1
1 IMX291-83 IR-CUT Camera
2
3
Which Raspberry Pi models are supported by this camera?
The camera is compatible with Raspberry Pi series boards and supports Pi 5, 4B, 3B+, 3A+, Zero and Zero 2 W. For CM3, 3+, 4 or 5 an extra adapter board is required.
What are the main specifications of this camera?
It uses the IMX291 sensor with 2 MP resolution (1920 x 1080), fixed focus, and an 83 degree diagonal field of view. It features IR-CUT and rolling shutter.
What does fixed focus mean for setup and use?
Fixed focus means the lens is not adjustable after manufacture and does not require manual focusing.
How does it perform in low light conditions?
The camera is described as a Starlight Camera with IR-CUT, which supports improved image quality in varying lighting conditions.
Is an adapter required for certain Pi models?
Yes, for CM3 / 3+ / 4 / 5 models, an extra adapter board is required to use this camera.
