IMX415 8MP Camera Module (A), With High SNR, Good Low Light Performance

SKU: WVSH0546

₹ 3,249.99

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

IMX415 8MP Camera Module (A), With High SNR, Good Low Light Performance₹ 3,249.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

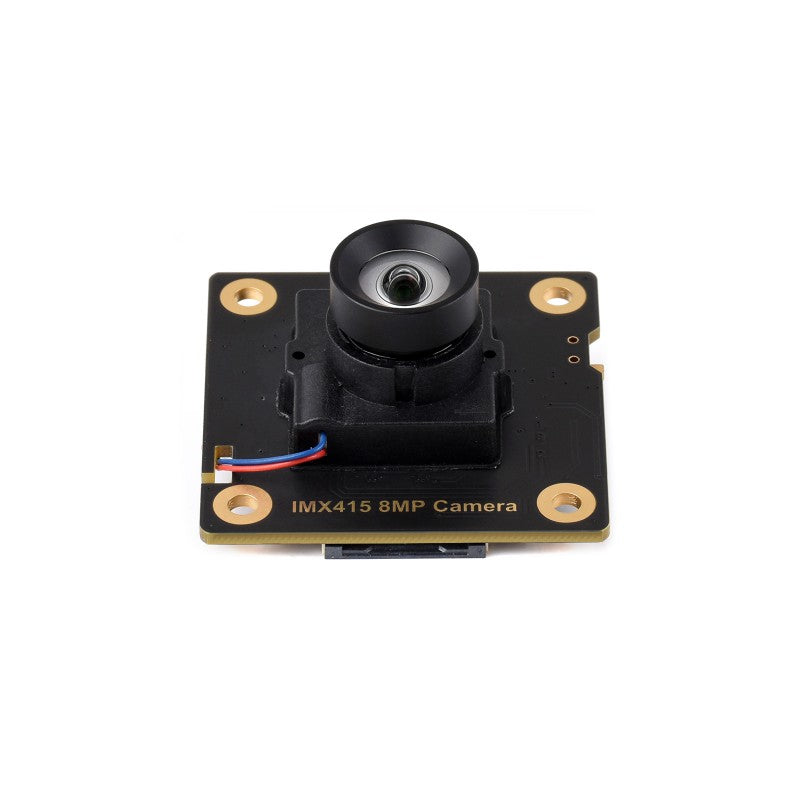

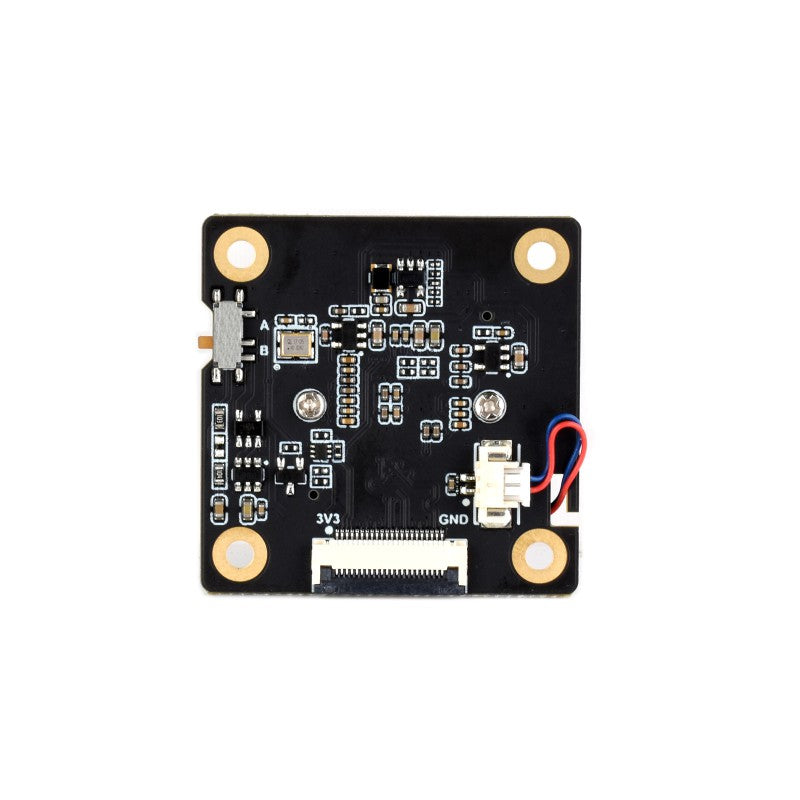

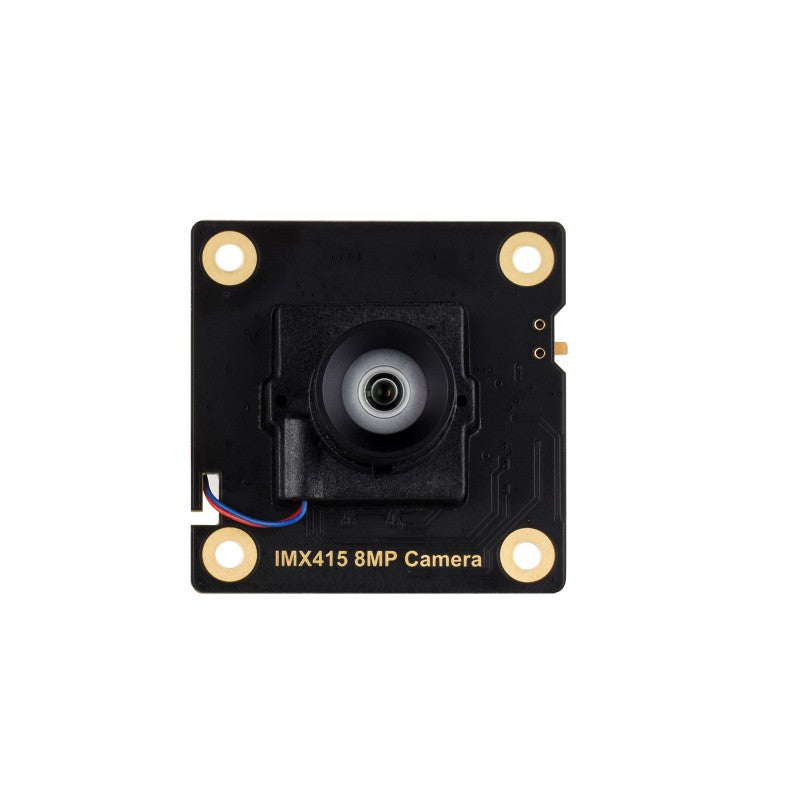

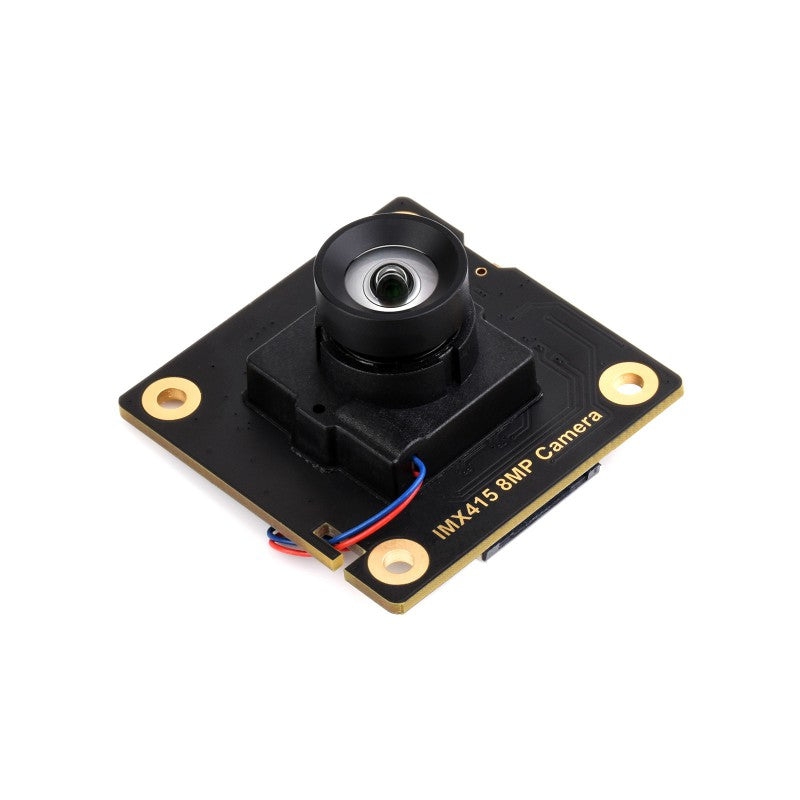

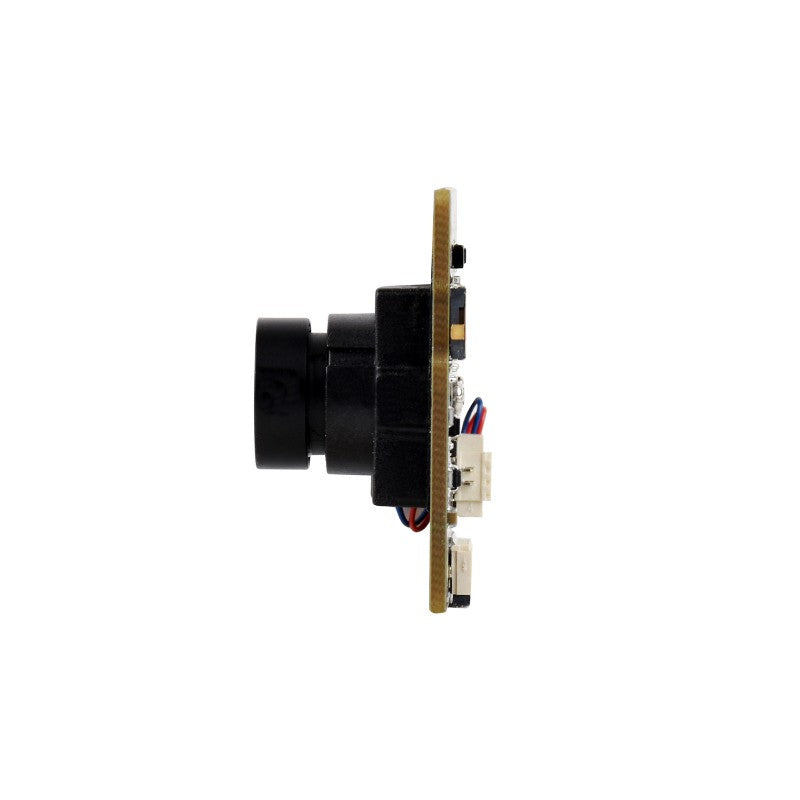

IMX415 8MP Camera (A)

Adopts IMX415 Sensor Chip With 95.5° Wide Angle Lens

Specifications

Sensor	IMX415	CMOS size	1/2.8″
Camera type	Color	Recommended recording pixels	Approx. 8.29MP (3840 × 2160)
Image size	Diagonal 6.43mm	Unit cell size	1.45µm (H) × 1.45µm (V)
Aperture	F2.4	Focal length	2.88mm
FOV	95.5°	Distortion	<1%
Applications	Suitable for AI applications such as facial recognition, road marking recognition, license plate recognition, etc.

Wide Field of View

Onboard 95.5° wide angle lens, provides a wider picture range and viewing angle

High SNR and Low Light Performance

Multiple Motherboards Support

Compatible With Raspberry Pi 5 / Zero Series / Zero 2W Series Boards

Extra FPC Cable Is Required For Raspberry Pi 4B+ / 3B+ / 3B Series

Connecting with Raspberry Pi 5	Connecting with Raspberry Pi 4B
Connecting with Zero 2 W	Connecting with Zero W

Supports Luckfox Motherboards Can be Directly Connected to Luckfox-Omni3576 Development Board

Connecting with Luckfox-Omni3576 Development Board

* for reference only, Raspberry Pi 4B, Raspberry Pi 5, Zero W, Zero 2 W, Luckfox-Omni3576, and yellow FPC are NOT included.

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/IMX415_8MP_Camera_(A)

Package Content

Weight: 0.012 kg

IMX415 8MP Camera (A) ×1
22PIN FPC cable ×1

What lens and sensor does this module use?

It uses the IMX415 CMOS sensor with a 95.5 degree wide angle lens.

What are the main AI use cases this camera supports?

It is suitable for AI tasks such as facial recognition, road marking recognition, and license plate recognition.

Which boards are compatible and what about connections?

It is compatible with Raspberry Pi 5, Raspberry Pi Zero series, and Zero 2 W, and can connect to Luckfox development boards; an extra FPC cable may be required for certain Raspberry Pi models.

What is included in the package?

The package includes the IMX415 8MP Camera (A) and one 122 pin FPC cable.

Are there any warranty details or return information listed?

Warranty information is not provided in the product description. Returns and delivery terms are not specified here.
