IMX462 2MP IR-CUT Camera, 90Ā° DFOV, Starlight Camera Sensor, Fixed-Focus, Compatible With Raspberry Pi

SKU: WVSH0512

ā‚¹ 5,349.99

In stock | Ready to ship

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
IMX462 2MP IR-CUT Camera, 90Ā° DFOV, Starlight Camera Sensor, Fixed-Focus, Compatible With Raspberry Piā‚¹ 5,349.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

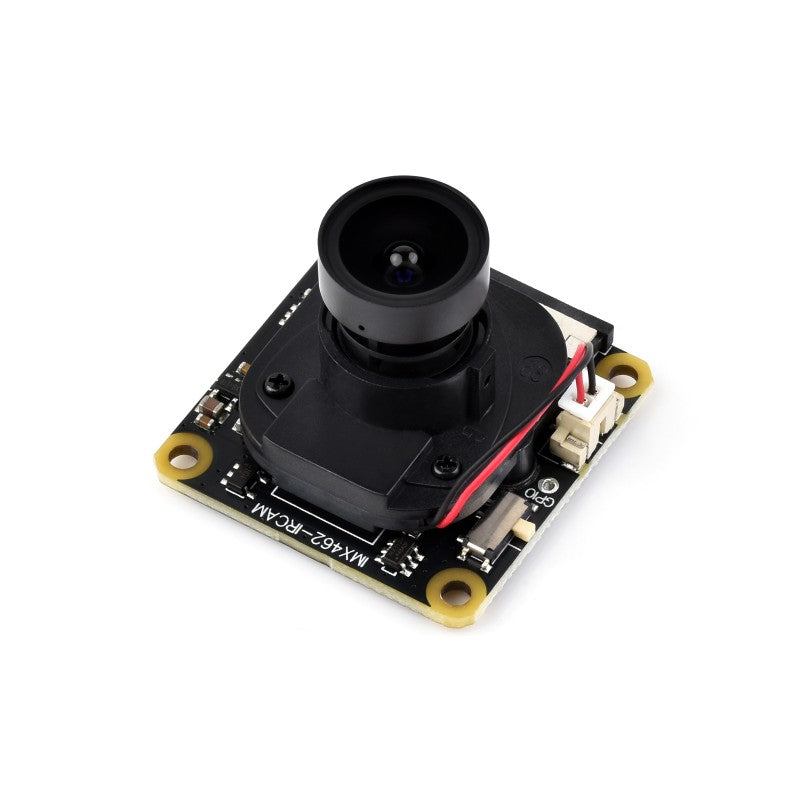

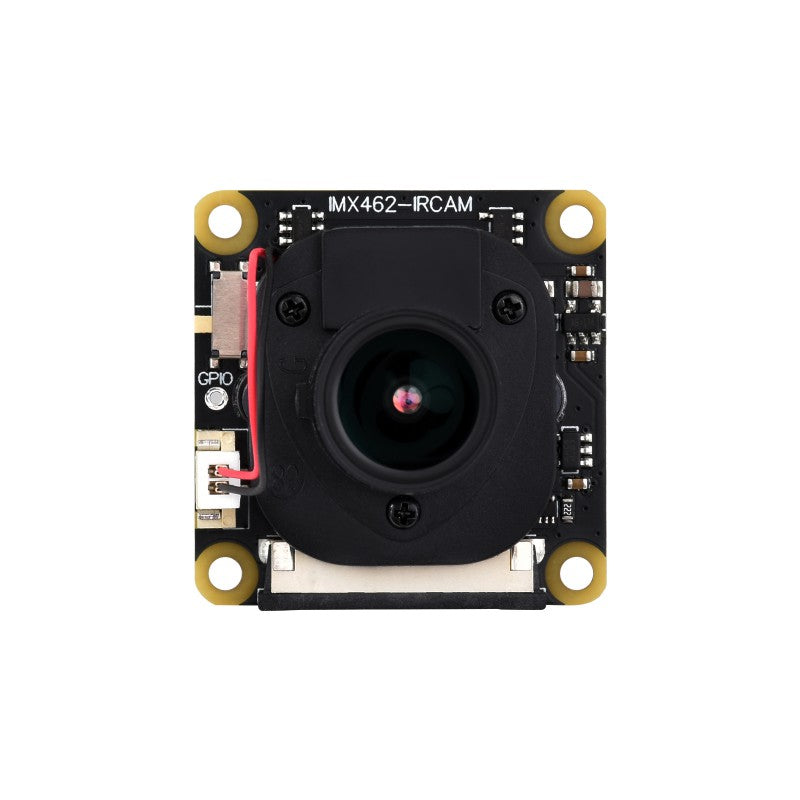

IMX462 Starlight Camera

2MPā€ƒ|ā€ƒIR-CUT ā€ƒ|ā€ƒ90Ā° DFOVā€ƒ

Compatible with Raspberry Pi series boards

Ā

Specifications

Specification Details
Sensor IMX462
CMOS Size 1/2.8 inch
Pixels 2MP (1920 Ɨ 1080)
Aperture F2
Focal Length 3.95mm
Diagonal Field of View 90Ā°
Camera Type Color
Focusing Fixed focus
Distortion < 5%
Shutter Rolling Shutter

Ā

Starlight Camera

Capable of Capturing Clear Images Even in Low Light Conditions

Ā

Ā Built-in IR-CUTĀ

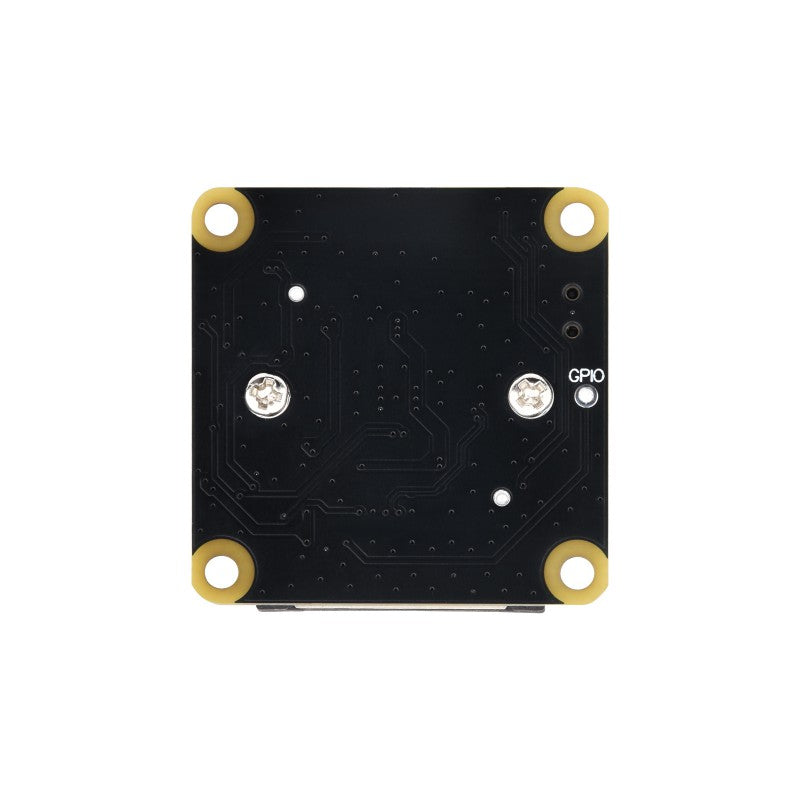

Onboard switch and GPIO pad for switching or GPIO software control of IR-CUT function

Ā

Correct Color Deviation of Infrared Camera During the Daytime, Better Imaging Effect

Ā

Works with IR fill light for night vision imaging

Note: The IR fill light needs to be purchased separately. It is recommended to use an 850nm fill light.

Ā

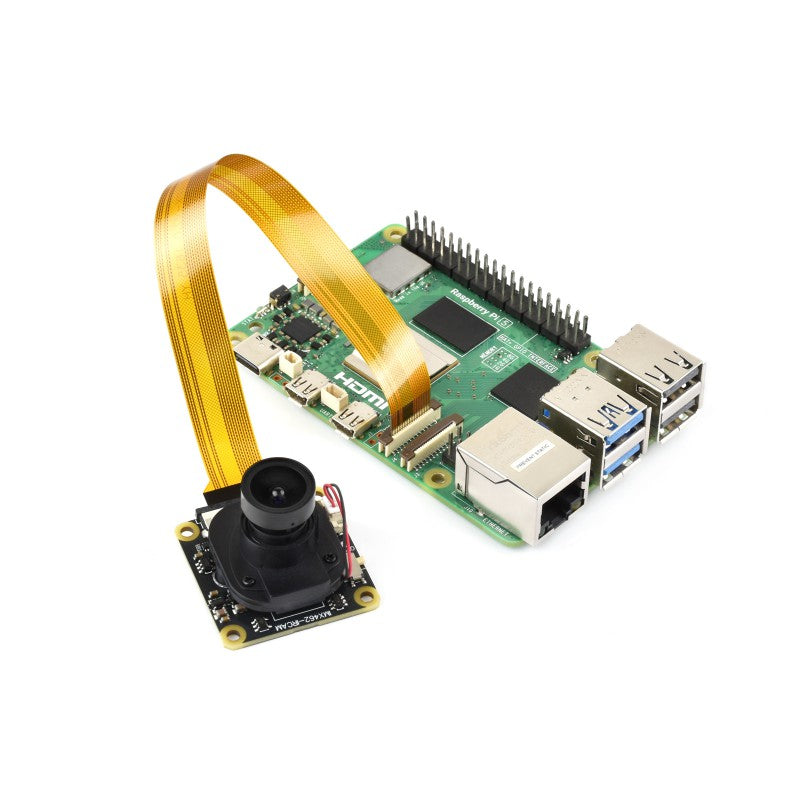

Working with Raspberry Pi

Direct Connect to Raspberry Pi Different Variants Including 5 / 4B / 3B+ / 3A+ / 3B / 2B / B+ / A+, Supports Connecting to Zero / Zero 2 W series

for reference only, the Raspberry Pi 5 and Raspberry Pi 2W are NOT included.

Ā

Outline Dimensions

Ā

Resources & Services

Wiki: www.waveshare.com/wiki/IMX462_IR-CUT_Camera_(A)

Ā

Package Content

Ā Weight: 0.012 kgĀ

IMX462 IR-CUT Camera (A) x1

Is this camera compatible with Raspberry Pi boards and which variants are supported?
Yes, it is designed for direct connection to Raspberry Pi series boards and supports a range of variants including 5, 4B, 3B+, 3A+, 3B, 2B, B+ and A+. It also notes compatibility with Zero and Zero 2 W series for reference. The package does not include a Raspberry Pi board.
What are the key specifications of the IMX462 camera?
It is a 2 MP color camera with 1920 by 1080 resolution, 90 degree diagonal field of view, fixed focus, F2 aperture, 3.95 mm focal length, and a 1/2.8 inch sensor. It uses a rolling shutter and includes an IR-CUT filter for color accuracy during the day.
Do I need to buy an IR fill light separately?
Yes, for night vision imaging an IR fill light is recommended and must be purchased separately, with 850 nm suggested.
How is the IR-CUT feature controlled?
The camera includes a built in IR-CUT with an on board switch and a GPIO pad for switching or software control.
What is included in the package and what is the weight?
The package contains one IMX462 IR-CUT Camera (A). The stated weight is 0.012 kg.
