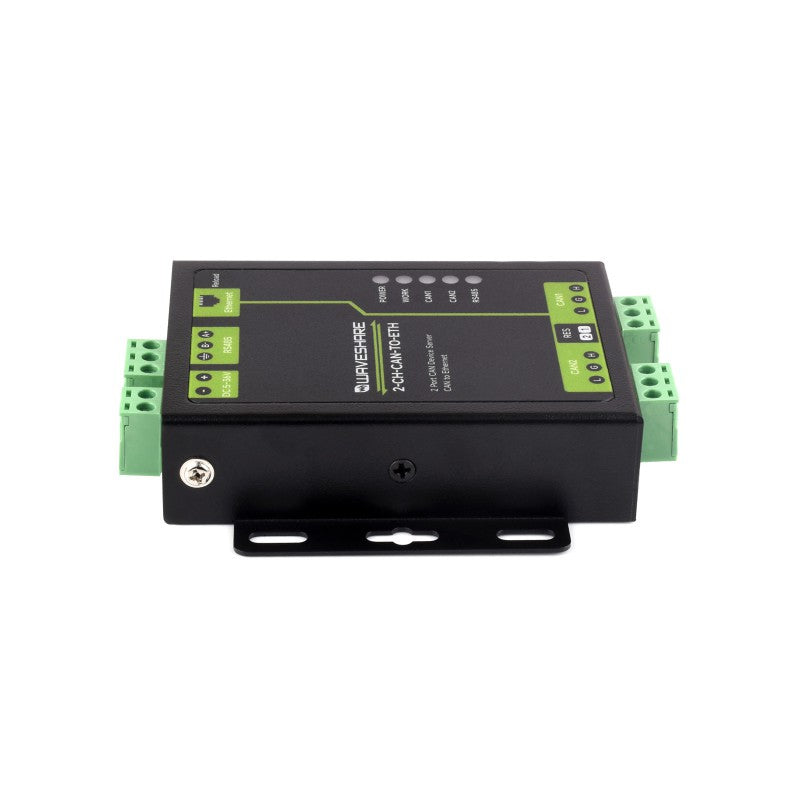

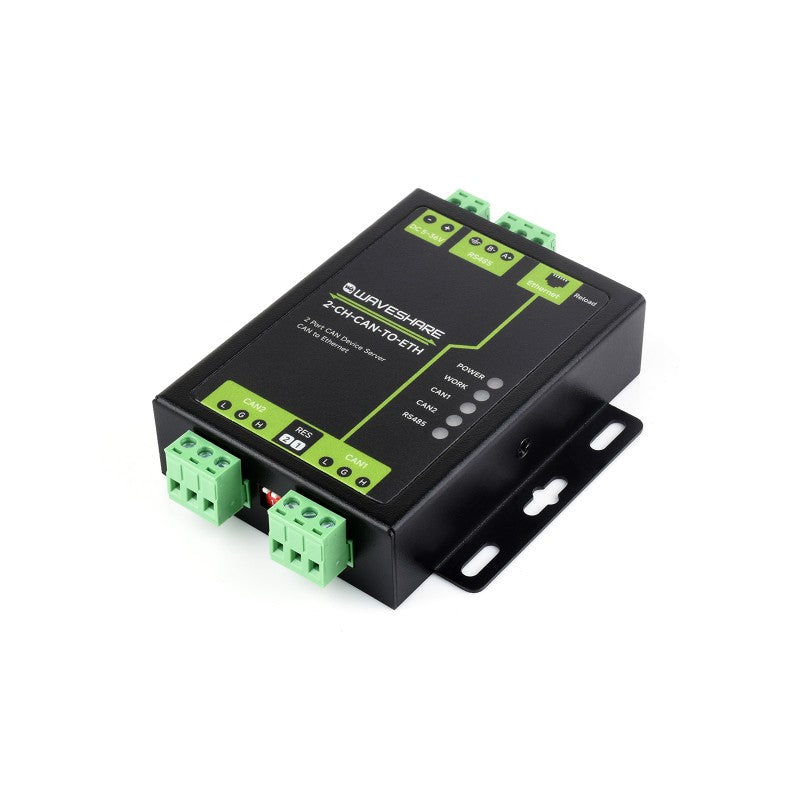

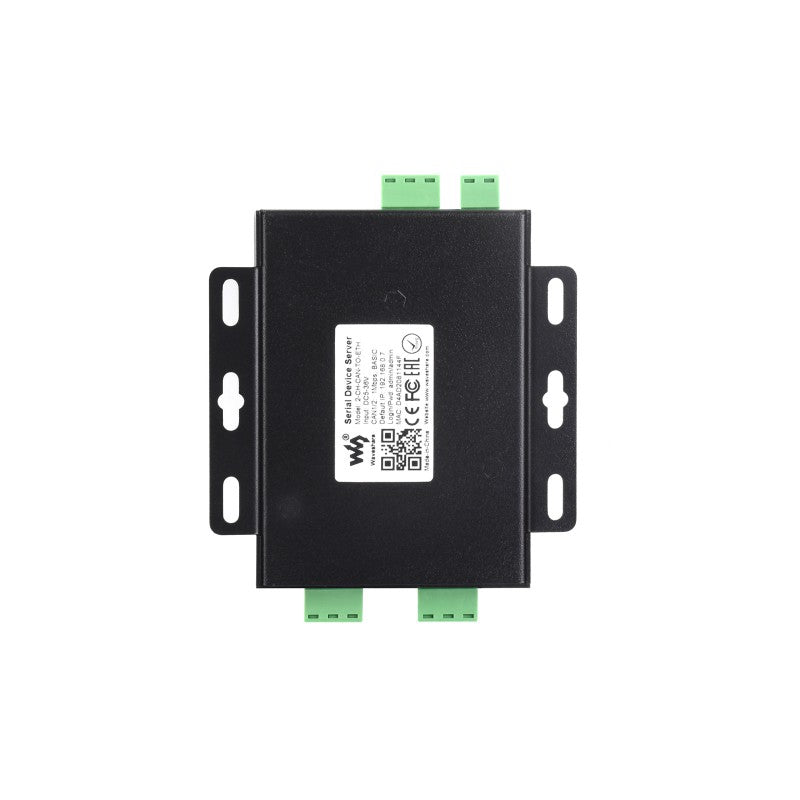

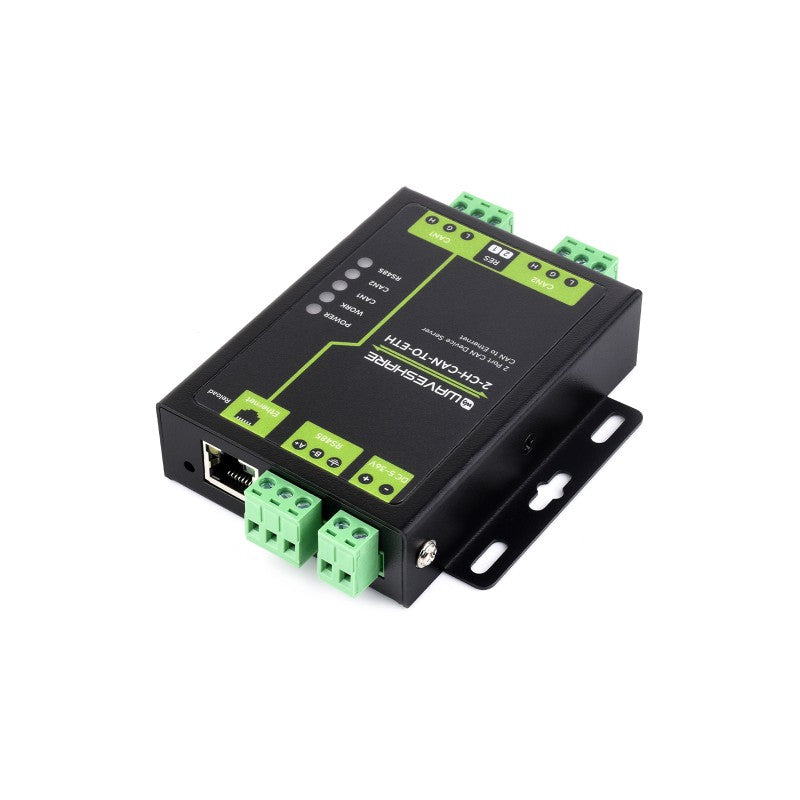

Industrial Grade 2-Ch CAN To Ethernet Server

SKU: ELC2118

Regular price ₹ 6,999.99
Sale price ₹ 6,999.99 Regular price ₹ 7,999.99
Sale Sold out
Unit price
Tax included. Shipping calculated at checkout.
This is a pre order item. Ships in 2-4 weeks.

Industrial 2-Ch CAN To Ethernet Server

2-Ch CAN + RS485 + Ethernet Port

Supports CAN Repeater / CAN To RS485, Dual SOCKET



The 2-CH-CAN-TO-ETH is a CAN bus to Ethernet port server to realize data communication between CAN device and network server. Built in 2-ch CAN ports, 1-ch Ethernet port and TCP/IP protocol stack, allowing interconnection and communication between CAN-bus and Ethernet for expanding CAN-bus network range. Industrial grade metal case design, supports wall-mount installation, compact in size, easy to install, suitable for applications such as building automation system, industrial automation system, power monitoring, etc.



HARDWARE Operating voltage DC 5~36V
Operating current 26mA (avg) 36V
56mA (avg) 12V
124mA (avg) 5V
Power protection Power supply surge level 3, Group pulse level 3
Ethernet port RJ45, 10/100Mbps, supports Auto-MDI/MDIX
Ethernet port protection 1.5KV eletromagnetic isolation
Serial port RS485
Serial port baudrate 600bps~115.2Kbps
CAN baudrate 10Kbps~1Mbps
CAN working mode Basic, Loopback
CAN protection Power supply isolation, signal isolation
SOFTWARE Network protocol IPV4, TCP/UDP
IP acquisition method Static IP, DHCP
Configuration method Webpage configuration, Serial/Network AT command
TCP server connection Supports up to 4-ch TCP connection
CAN receiving capability 8000 frames/s (per channel)
CAN transmitting capability 8000 frames/s (per channel)
120Ω resistor built in (enabled by switch)
Network cache transmitting: 16 Kbytes (total)
receiving: 16 Kbytes (total)
CAN cache transmitting: 200 complete data packets (per channel)
receiving: 200 complete data packets (per channel)
Serial port cache transmitting: 2Kbyte; receiving: 2Kbyte
Flow control None
Heartbeat packet Supports user-defined heartbeat packet (CAN data packet that compliants with transparent transmission protocol)
Registration packet Supports user-defined, mac, Transparent Transmission Cloud registration packet
Average transmission delay <20ms
Software Configuration software, VCOM (without auto-search function)
OTHERS Operating temperature -40~85°C (industrial grade)
Storage temperature -40~105°C
Operating humidity 5% ~ 95% RH (no condensation)
Storage humidity 5% ~ 95% RH (no condensation)
Dimensions 96.5×94.0×25.0mm


Primary Function

Supports CAN To Ethernet And RS485, CAN Repeater (Bidirectional Transmission Between CAN Bus Interfaces), Etc.


Function Block Diagram


Wide Temperature, Wide Voltage

Industrial-Grade Standard Design For Meeting Temperature And Voltage Requirements In Various Application Fields


Built-In Multiple Protections

Interface Protection
Power supply anti-reverse, overvoltage protection, CAN interface anti-surge protection, digital isolation protection

Electrical Fast Transient Group (EFT)
Protect equipment hardware against damage caused by instantaneous current in the circuit, lightningproof & transient spike voltage proof

ESD Protection
Prevent damage to equipment from static electricity, such as dust static electricity, electric arc, etc.

Software and Hardware Dual Watchdog
Onboard external watchdog circuit, 7*24 hours stable operation without downtime, stronger anti-interference capability

Multiple Working Modes

TCP Server Mode

The CAN To Ethernet Server Will Be Listening Configured Ports And Waiting For TCP Client Connections, Data From The CAN Device Will Be Transferred Via CAN Server To Every Connected Client

TCP Client Mode

The CAN To Ethernet Server Will Try Establishing TCP Connection With Configured IP To Achieve Bidirectional Transparent Transfer Between The Server And CAN Device, And Keep Retrying If Failed

UDP Mode

The CAN To Ethernet Server Will Send Data From The CAN Device To Specific IP Network Device Through UDP Packets, And Will Be Simultaneously Listening The Port And Send All The Received Data Back To The CAN Device


CAN Data Transparent Transmission Protocol

The Frame Structure Transmission In Working Mode Of Each Socket Includes Frame Information, Frame ID, And Frame Data, Compliant With CAN 2.0B Specification, Supports Operation By Any System


CAN Repeater Function

To Solve The Problems Of CAN Network Transmission Rate And Distance, And Expand The Number Of Communication Network

CAN ID Filtering

Receives The Data From CAN IDs Within The Configured Range Only, Filtering Out CAN Frames Outside The Range


Heartbeat Packet Function

CAN Heartbeat Packet: Sends Fixed Query Commands To The CAN Network Through Heartbeat Packet; Network Heartbeat Packet: Notifies Network Terminal That The Server Is Active To Maintain Normal Network Connectivity With The Server


Registration Packet Function

Allows Server To Identify The Device Data Source, Or As A Password For Obtaining Server Function Authorization

Application Examples

Charging Station Solution

Expands Charging Station Management Scope For Saving Cost;
Supports CAN Repeater Function To Increase Communication Distance;
Real-Time Monitoring Of Each Charging Station Status To Control The Project Status


Building Control Solution

Industrial-Grade Design That Can Adapt To Outdoor Harsh Environments;
Takes Real-Time Information Of Different Buildings Into Account, And Transmits To Remote Server For Overall Coordination

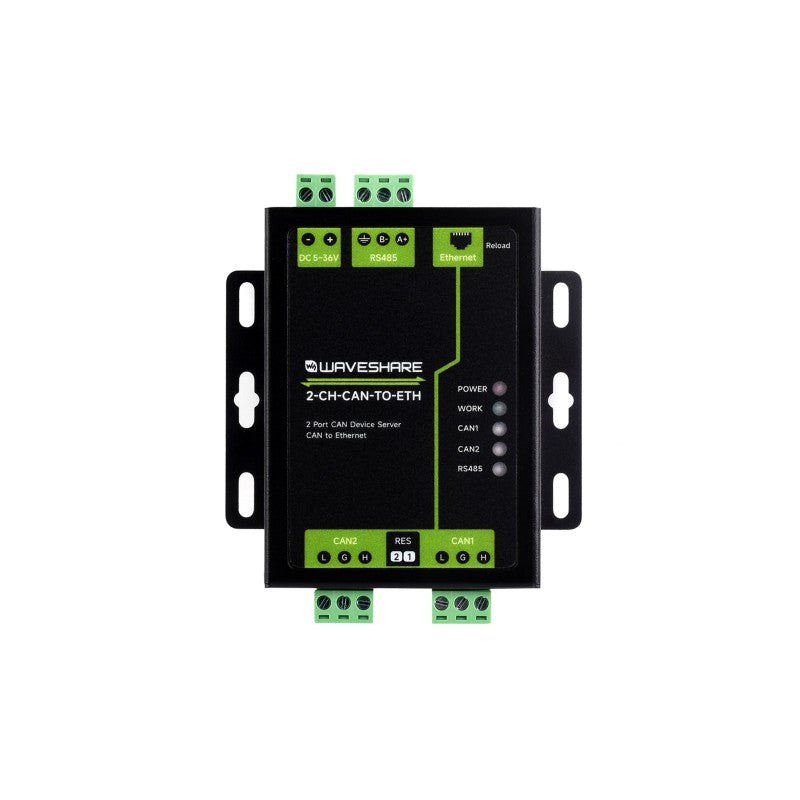

Interface Introduction


Outline Dimensions





Package Contains:

Weight: 0.31 kg

The power supply of this product is not included, it is recommended to be used with a 12V Power Adapter
  1. 2-CH-CAN-TO-ETH x1
  2. Power supply terminal adapter x1
  3. Screwdriver x1
